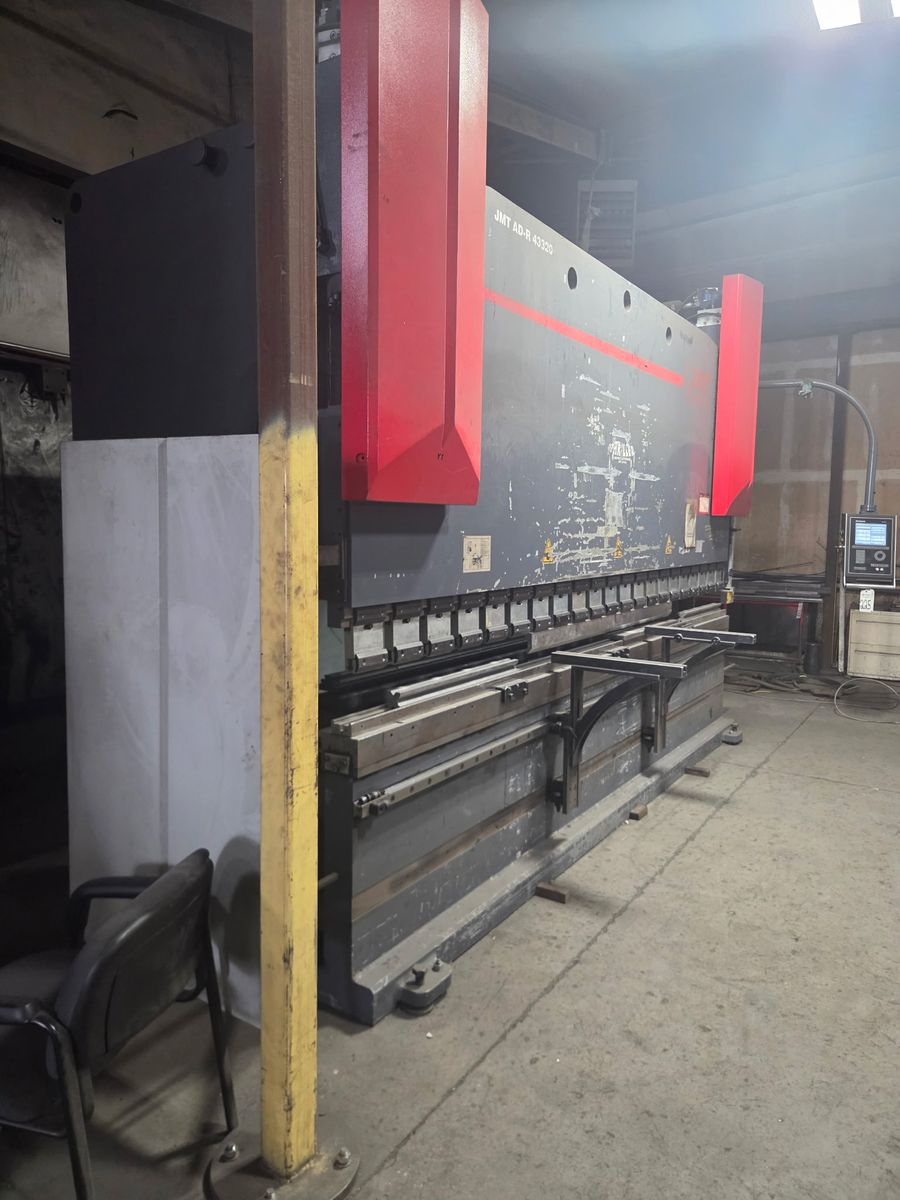

MACHINE DIMENSIONS

Overall Bending Length (A) Ft/Inch     14' 1”

Distance Between Sideframes (B)      Ft/Inch     12' 4"

Stroke (C) Inch  14.4

Daylight (D)  Inch  24.8

Throat Depth (E)      Inch  16.1

Table Height (F)     Inch  35.4

Table Width (G)      Inch  6.1

Overall Height (H)      Ft/Inch     10' 7"

Overall Length (L)      Ft/Inch     18’ 1”

Overall Width (W) Ft/Inch     6' 3"

Approximate Weight      LBS   46,200

Oil Capacity      Gallons     66

Maın Motor  HP    50

Full Load Amps (3 phase)      230/460 V   130/65 A

SPECIFICATIONS

Capacity    Length x Tons     14' 1” x 352 ton

Ram Repeatability Inch  ± 0.0004

Programmable Ram Tilt         Yes

Programmable Ram Approach Speed (maximum) IPM   236

Programmable Ram Working Speed (maximum)  IPM   24

Programmable Ram Returm Speed (maximum)   IPM   236

Box Forming Universal Wedge Clamp Height  Inch  5.9

X Axis Back Gauge Speed IPM   591

X Axis Back Gauge Travel (Front to Back)  Inch  25.6
