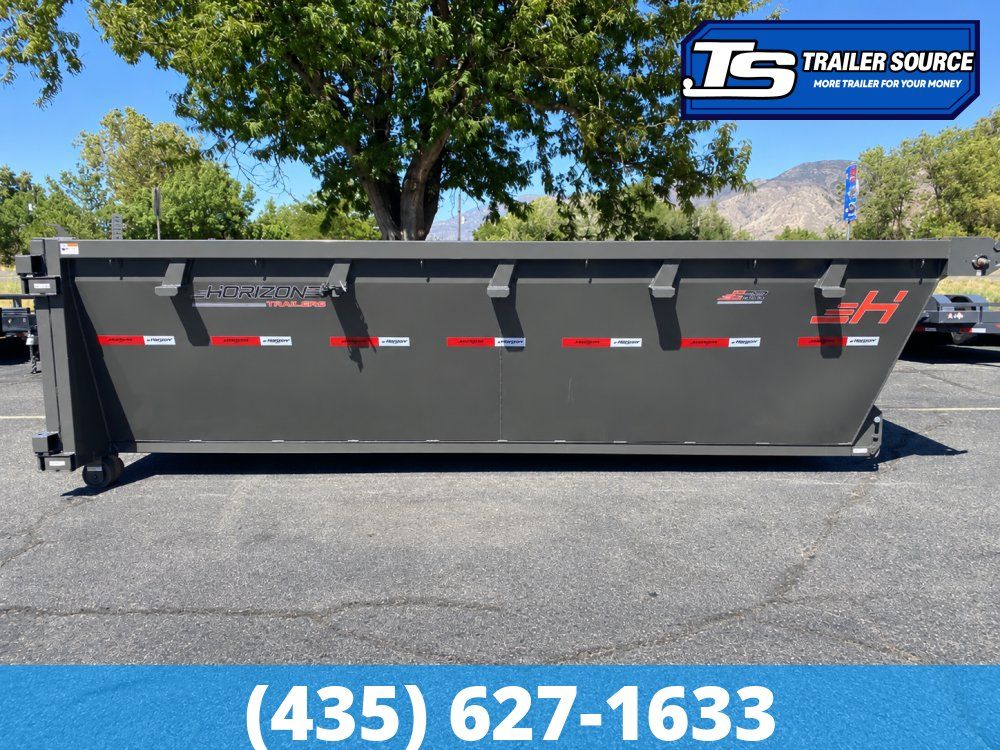

x 14 Horizon EDZ Roll Off Dumpster Bin Only Trailer – Ready To Work!

The Horizon EDZ Series Roll-Off Dumpster Bin is an industrial, multi-purpose container built to pair seamlessly with Horizon’s RDZ and HRD roll-off trailer chassis.

Rather than buying an entire new dump trailer for every job site, the EDZ bin acts as a standalone, heavy-duty container module. Designed for roofing crews, demolition contractors, and dumpster rental companies, it provides a rugged, walk-in waste containment box that can be dropped off flat on driveways or job sites and winched onto the trailer frame when full.

CORE FEATURES OF THE HORIZON EDZ DUMPSTER BIN

Heavy-Duty 10-Gauge Steel Floor & Side Walls

The entire body shell is fabricated using high-tensile 10-gauge solid sheet steel supported by a 1.5" x 3" x 11-gauge tubing bed frame.

• The Benefit: Many budget dumpster cans utilize flimsy 12-gauge or 14-gauge metal that dents and deforms when heavy items hit the walls. Horizon’s 10-gauge steel plate provides superior puncture and impact resistance against concrete chunks, heavy roofing shingles, tree logs, and demolition debris.

3" x 4" x 11-Gauge Structural Tubing Top Rail

Running along the upper rim of the 4-foot steel walls is a thick structural steel tubing rail.

• The Benefit: Top rails take continuous abuse from excavator buckets, skid steer loaders, and heavy debris dropped over the edges. The 11-gauge rectangular tube prevents the top of the bin from bending inward or warping over years of commercial use.

Front & Rear Greasable Frame Rollers

The base frame is outfitted with heavy-duty steel rollers equipped with integrated Zerk grease fittings.

• The Benefit: Greasable spindles ensure the rollers turn smoothly under massive load weights. This prevents the rollers from binding up, dragging, or gouging asphalt driveways and concrete pads when loading or unloading off the trailer frame.

Single Heavy-Duty Rear Gate & Commercial Slam-Latch

Instead of two swinging doors, the rear discharge zone features a single continuous steel gate backed by reinforced vertical tubing.

The Benefit: Eliminates the central seam weakness found in traditional split barn doors. A heavy-duty, single-lever locking mechanism allows operators to unlatch and swing the entire rear face open in one fluid motion, eliminating the hassle of securing two separate door pins on uneven ground or muddy landfills.

Winch Attachment D-Ring & Internal Tie-Downs

The nose of the container features a reinforced heavy-duty welded D-ring, while the interior floor includes four frame-welded D-rings.

• The Benefit: The front D-ring provides a rock-solid, centered pull point for the RDZ trailer’s 17,500 lb. winch cable. The internal D-rings allow you to secure compact equipment or heavy tools inside the bin if using it as a temporary job-site storage box.

Integrated Tarp Mounting System & Side J-Hooks

The headboard features built-in tarp mounting brackets paired with exterior 3/8" round tie-down hooks welded around the outer rim.

• The Benefit: It makes installing a manual or roll-style tarp assembly effortless, ensuring you can quickly secure loose debris, gravel, or trash to remain D.O.T. compliant on the highway.

Architectural 5-Stage Baked Powder Coat Finish

The entire steel box undergoes a thorough steel grit blast before receiving a thick, heat-cured powder coat shield.

• The Benefit: Unlike cheap spray paint that peels when exposed to harsh chemicals or scraping trash, Horizon's powder coat seals the steel against rust, moisture, and road salt, keeping your rental fleet looking sharp in colors like Midnight Black, Ash Grey, and Flame Orange.

THE HORIZON EDZ DUMPSTER QUICK SPECS

• Container Lengths: Available in 14' and 16' Options.
• Side Wall Height: 4 Feet (48") Standard.
• Cargo Capacity: ~12.5 Cubic Yards (14' Model) / ~14.5 to 14.87 Cubic Yards (16' Model).
• Bed Width: 60" Bottom Base Width / 83" to 89" Flared Top Width.
• Floor & Wall Thickness: 10-Gauge Solid Steel Plate.
• Sub-Frame Crossmembers: 3" Structural Channel Spaced on Tight 16" Centers.
• Dry Weight: ~2,260 lbs (14' model) to ~2,763 lbs (16' model).
• Compatibility: Native fit for Horizon RDZ and HRD Series Roll-Off Trailers.

WHY THE EDZ DUMPSTER BIN OVER A STANDARD FIXED DUMP TRAILER?

• Ground-Level Walk-In Convenience: Standard dump trailers force workers to lift heavy 80 lb. debris over high 3-foot or 4-foot steel side walls. With the EDZ bin dropped flat on the ground, workers can roll wheelbarrows or walk heavy demolition material straight through the rear doors.
• Cost-Effective Fleet Expansion: Adding an extra dump trailer to your business costs $12,000 to $18,000+. Adding an extra EDZ roll-off bin costs a fraction of that, allowing you to scale up your job site coverage without paying for extra axles, tires, brakes, and vehicle registrations.
• Zero Job-Site Trailer Tie-Ups: When you drop an EDZ bin at a customer's location, your expensive trailer frame and towing truck remain free to haul equipment, pick up supplies, or move other containers.

IDEAL USERS FOR THIS DUMPSTER BIN

The Horizon EDZ Roll-Off Dumpster Bin is the premier choice for Roofing Contractors, Junk Removal Operators, Dumpster Rental Businesses, and General Construction Crews. It is built specifically for operators who already own or operate a Horizon roll-off trailer and need durable, high-yield 10-gauge steel containers to expand their multi-site operational efficiency.
