AVENTICS R431002939 (BRAND NEW)
16 Hours
33
0
$650.00
Description
Condition
Payment Types Accepted
VenmoNew in box and unused.
More than one available.

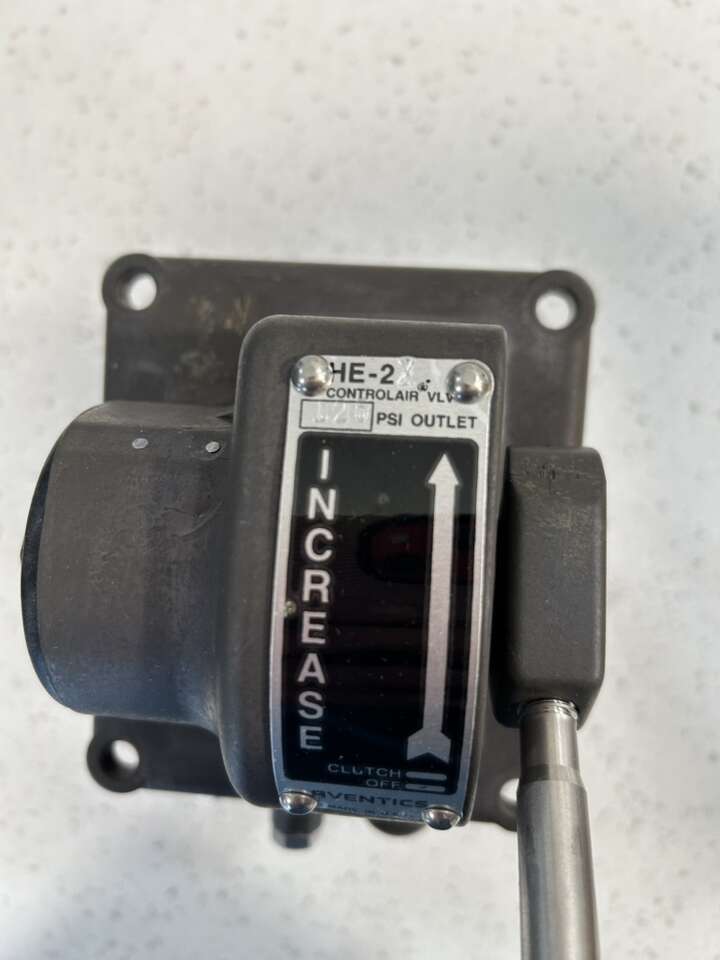

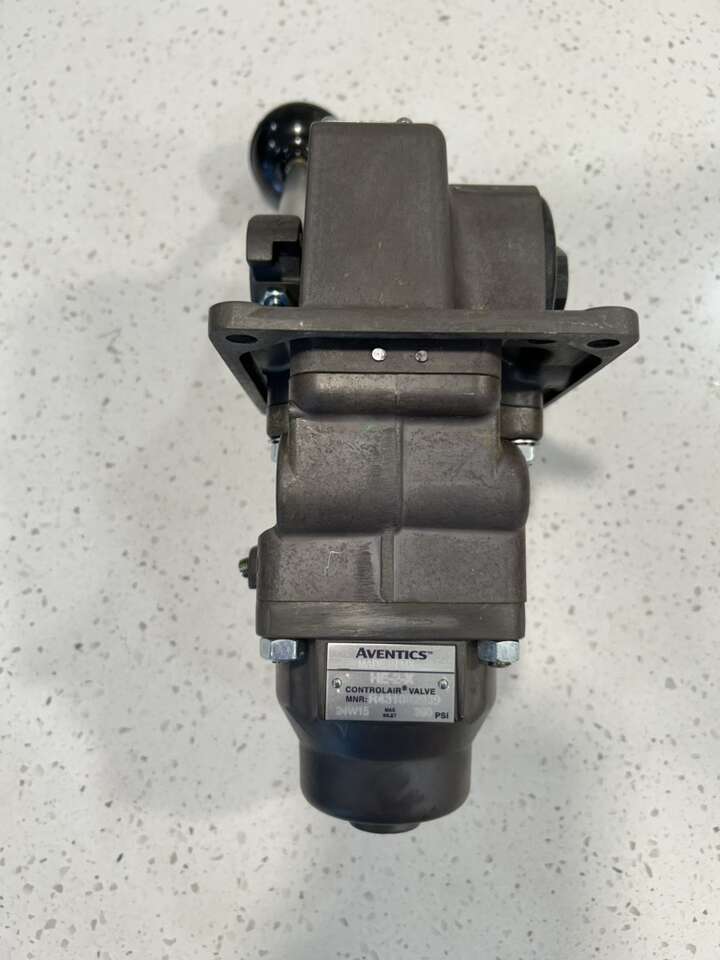

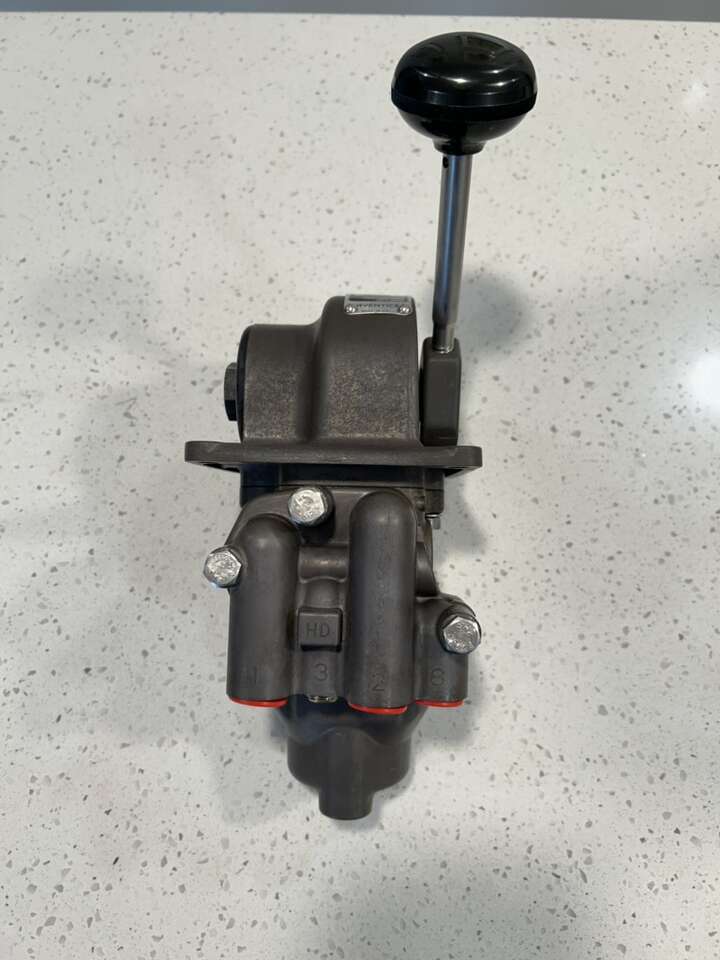

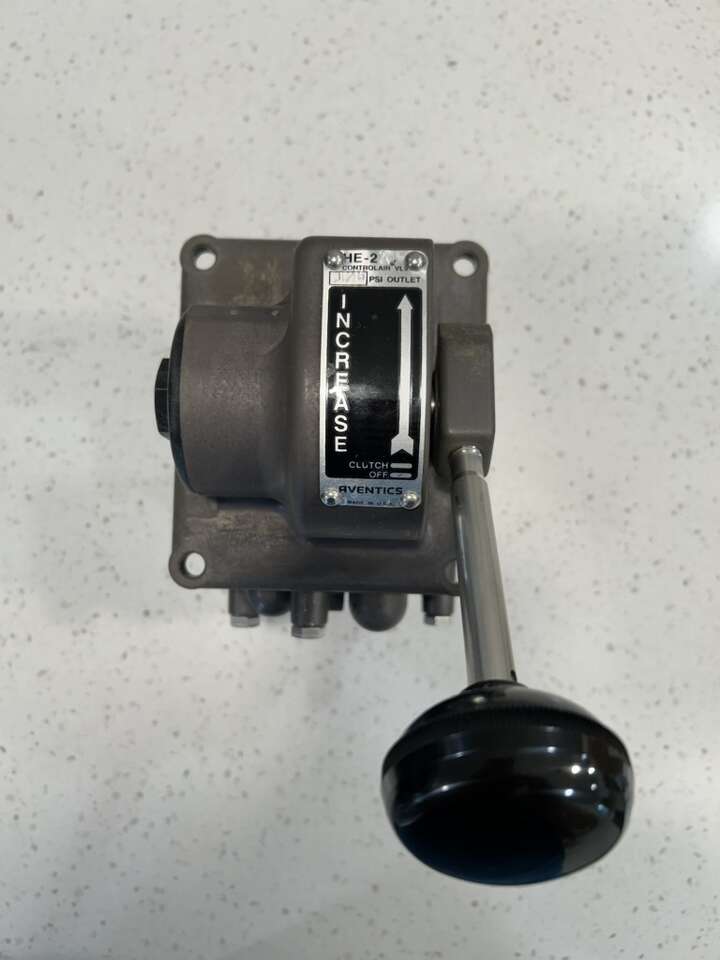

AVENTICS R431002939

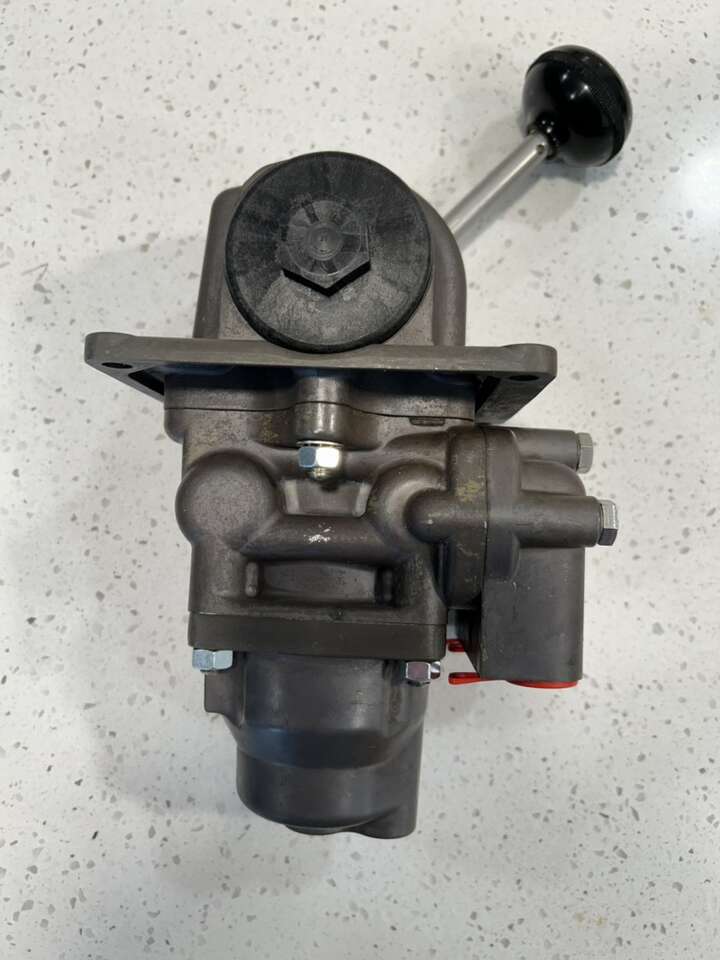

The HE-2 CONTROLAIR Valve is a composite lever operated directional valve consisting of a 3-way directional valve and a 3-way pressure regulating portion with each unit having its own OUT port.

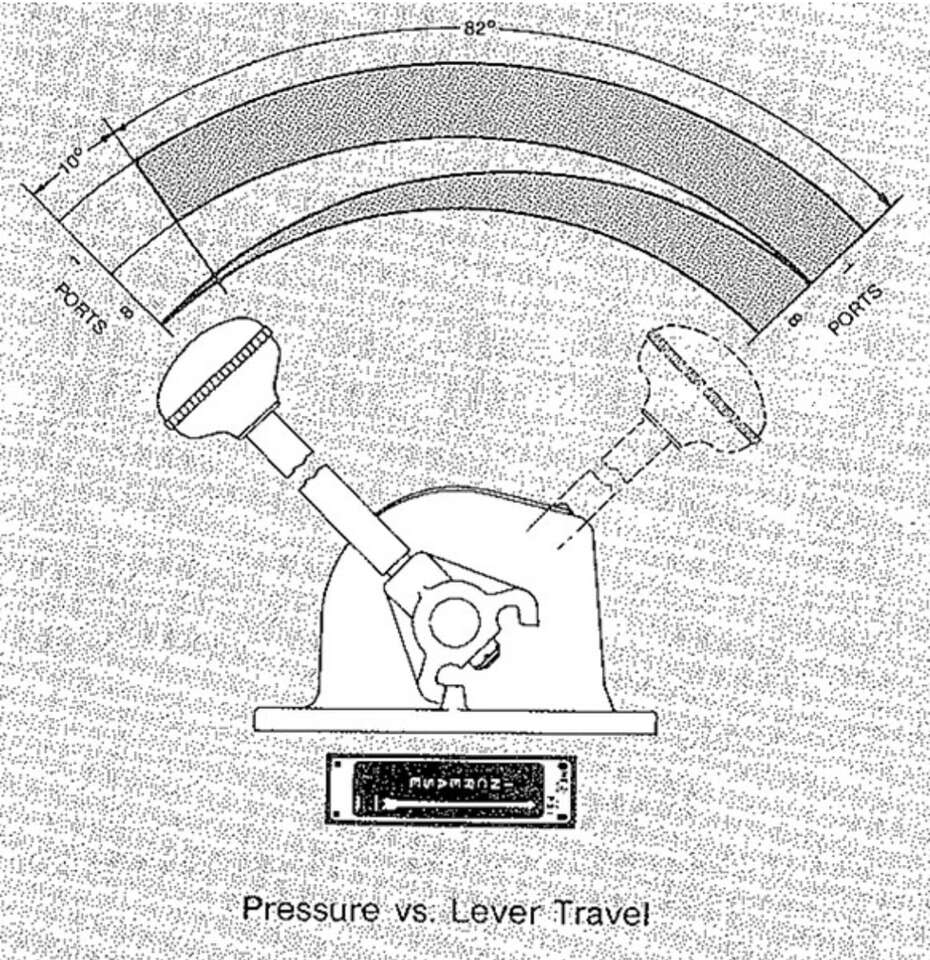

The first 10° of lever travel from the Off position opens the directional valve to provide full inlet pressure for its OUT port. Further lever-travel controls the pressure of the air delivered by the pressure regulating portion. This graduated pressure varies directly with lever travel.
These valves are used principally in the control of a clutch and a throttle of an engine.

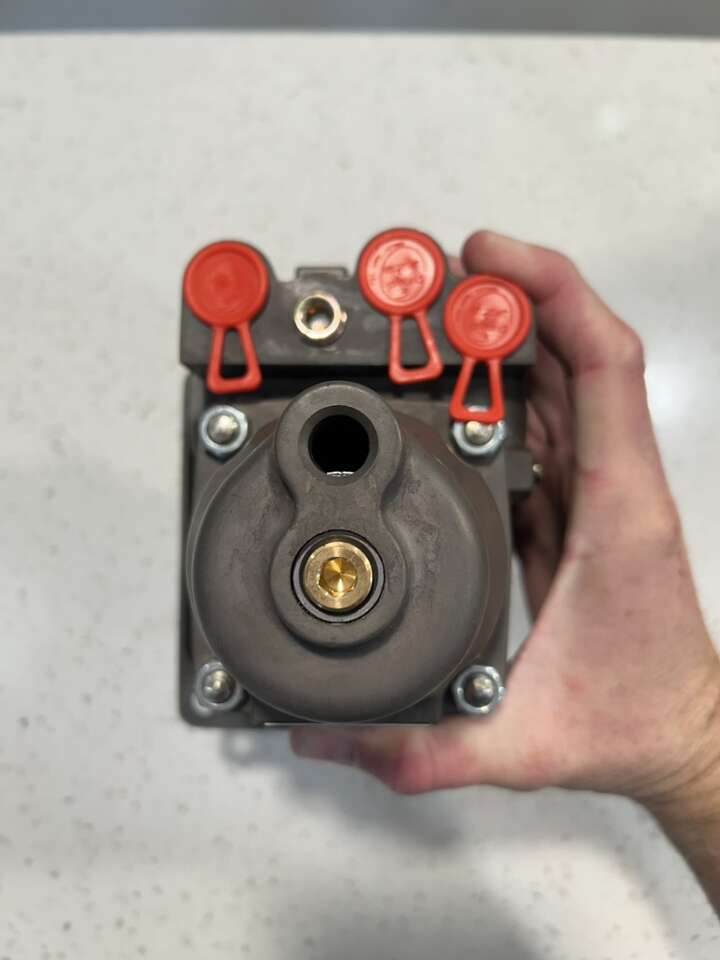

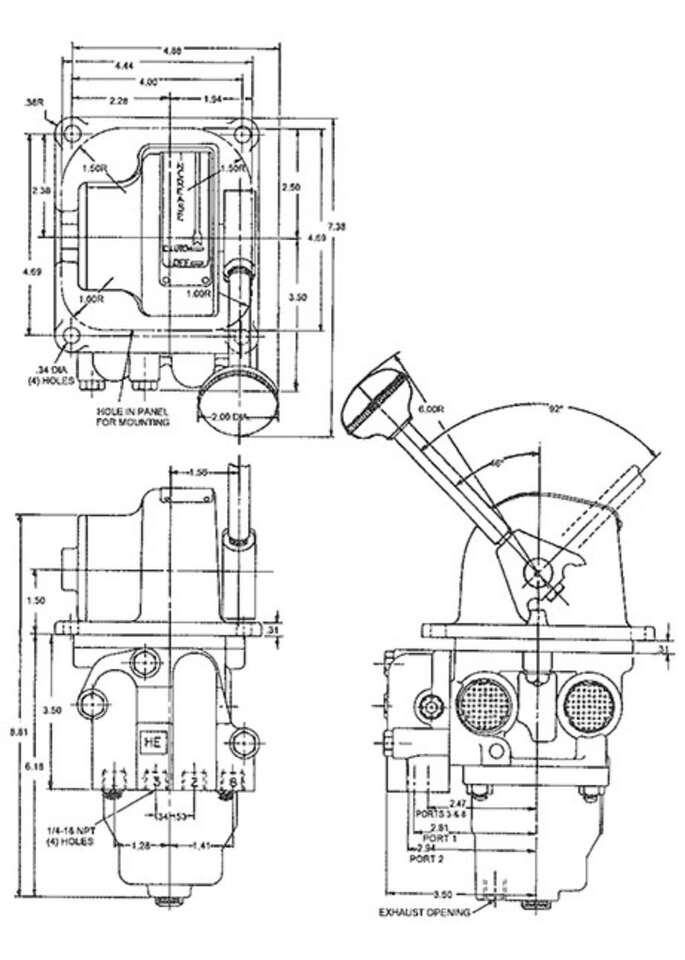

PIPE CONNECTIONS
Port 1-OUT, full inlet pressure when lever is moved 10° clockwise from Off (facing lever side of valve).
Port 2-IN pressure.
Port 8-OUT, graduated pressure when lever is moved clockwise from Off.
The lever returns from the extreme position to the valve's clutch or Off position when the operating force is removed.
Old Part # P 051692-3 P 51692-3 P051692-3 P51692-0003 P51692-3
Model HE-2-X
Pressure Range 0-125 psi
Weight 9 lb
Applications Applications for H CONTROLAIR Valves are limitless. They operate:
Throttles - Rolling Mills - Marine Propulsion Engines
Clutches - Presses - Construction Equipment
Brakes - Shears - Oil Drilling Rigs
Clamps - Conveyors - Production Tools
Gates - Dredges - Cranes, Hoists & Draglines
and many other kinds of equipment and machines. In fact H CONTROLAIR Valves are used wherever it is necessary, or preferable, to have instant and convenient control of the flow of air into a pneumatic circuit and of the pressure buildup of air in that circuit.
