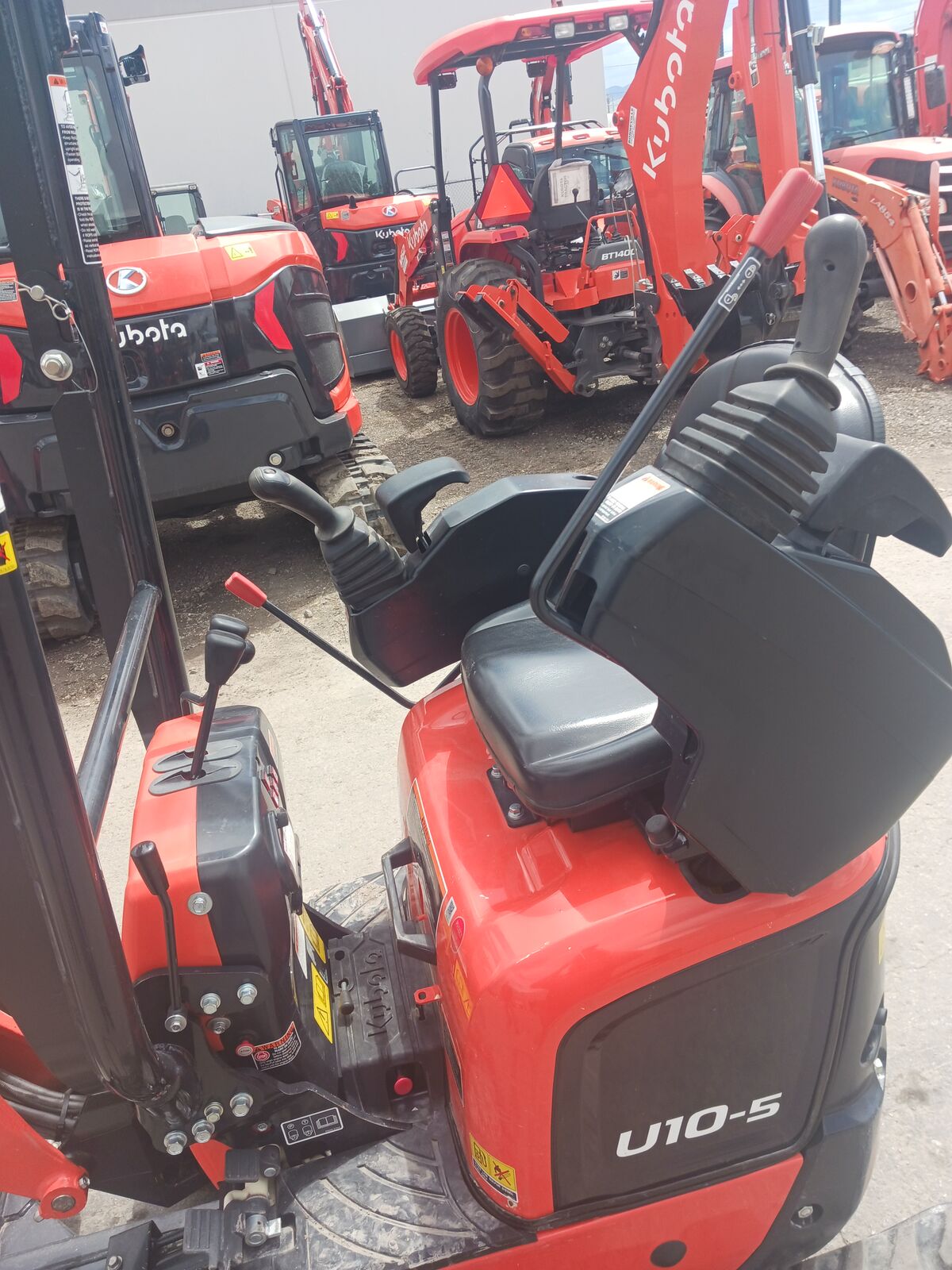

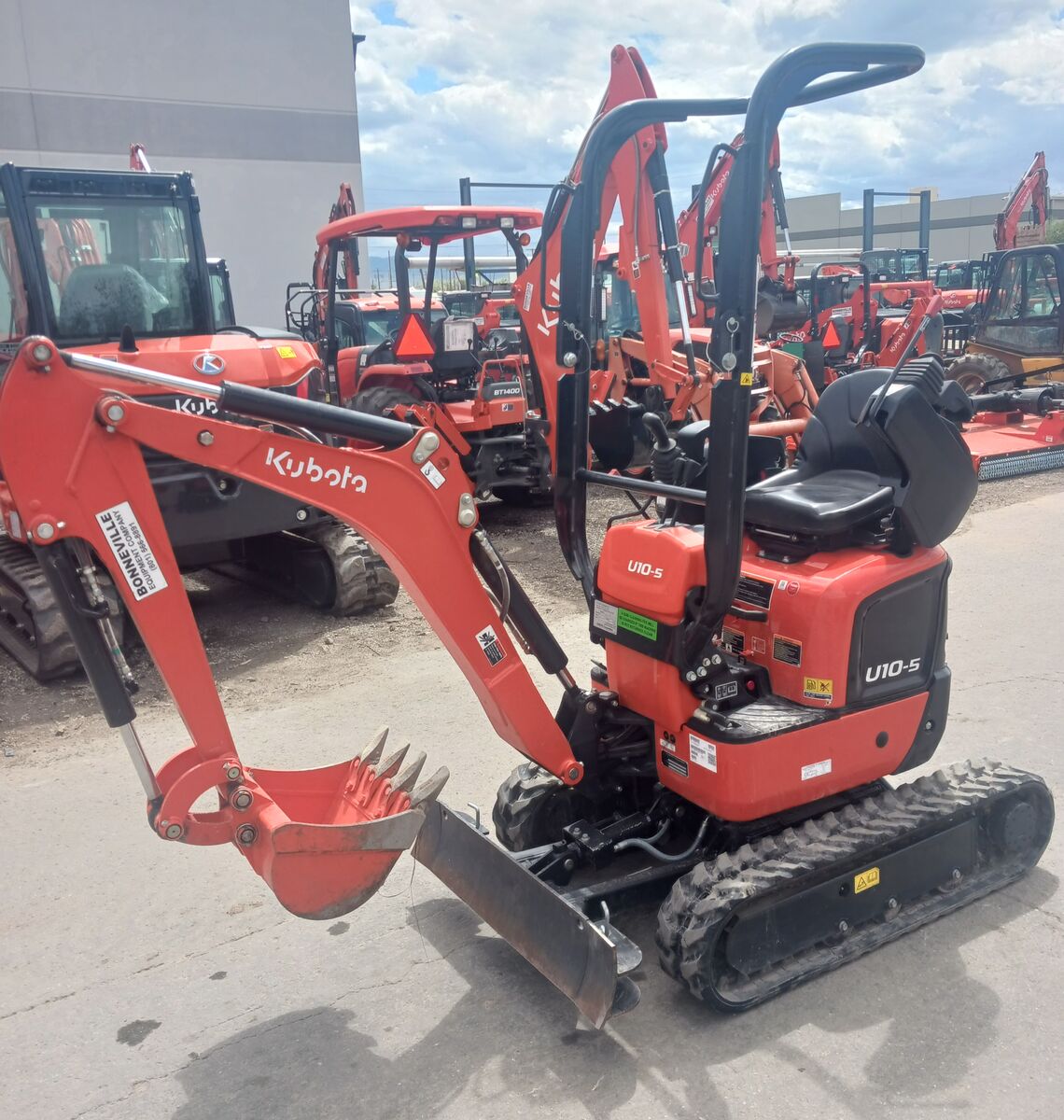

VERY LOW HOURS - KUBOTA 1 TON MINI EXCAVATOR

The Kubota U10-5 highlights a 10’ digging height and 5’ 11” digging depth, an incredible offering inside its ultra-compact frame. Kubota’s reputation for durability and operator comfort shine through in the U10-5 and you’ll also have access to an adjustable track range and standard two-speed for increased control. Financing Available

• Hours: 96
• Engine Model: Kubota D722-E4
• Horsepower (gross): 10.3 HP
• Displacement: 43.8 cu. in.
• Operating Weight: 2646 lbs
• Auxiliary Hydraulics Flow Rate: 5.5 GPM
• Pump Capacity: 2.8 GPM×2
• Overall Length: 9 ft. 9 in.
• Overall Height: 7 ft. 5 in.
• Overall Width: Standard: 3 ft. 3 in. / Narrow: 2 ft. 6 in.
• Blade Width: Standard: 3 ft. 3 in. / Narrow: 2 ft. 6 in.
• Blade Height: 7.9 in.
• Crawler Length: 4 ft. 5 in.
• Ground Clearance: 5.5 in.
• Ground Contact Pressure: 4.2 psi
• Bucket Breakout Force: 2337 lbf
• Arm Breakout Force: 1214 lbf
• Travel Speed: High: 2.5 mph / Low: 1.2 mph
• Swing Speed: 8.3 rpm
• Boom Swing Angle: 55° (both right & left)
• Hydraulic Oil Reservoir: 3.3 gal
• Hydraulic System Capacity: 4.5 gal
• Fuel Tank Capacity: 3.2 gal
