Venmo5/8 hePEX - (500 ft.) for Radiant Heat Systems

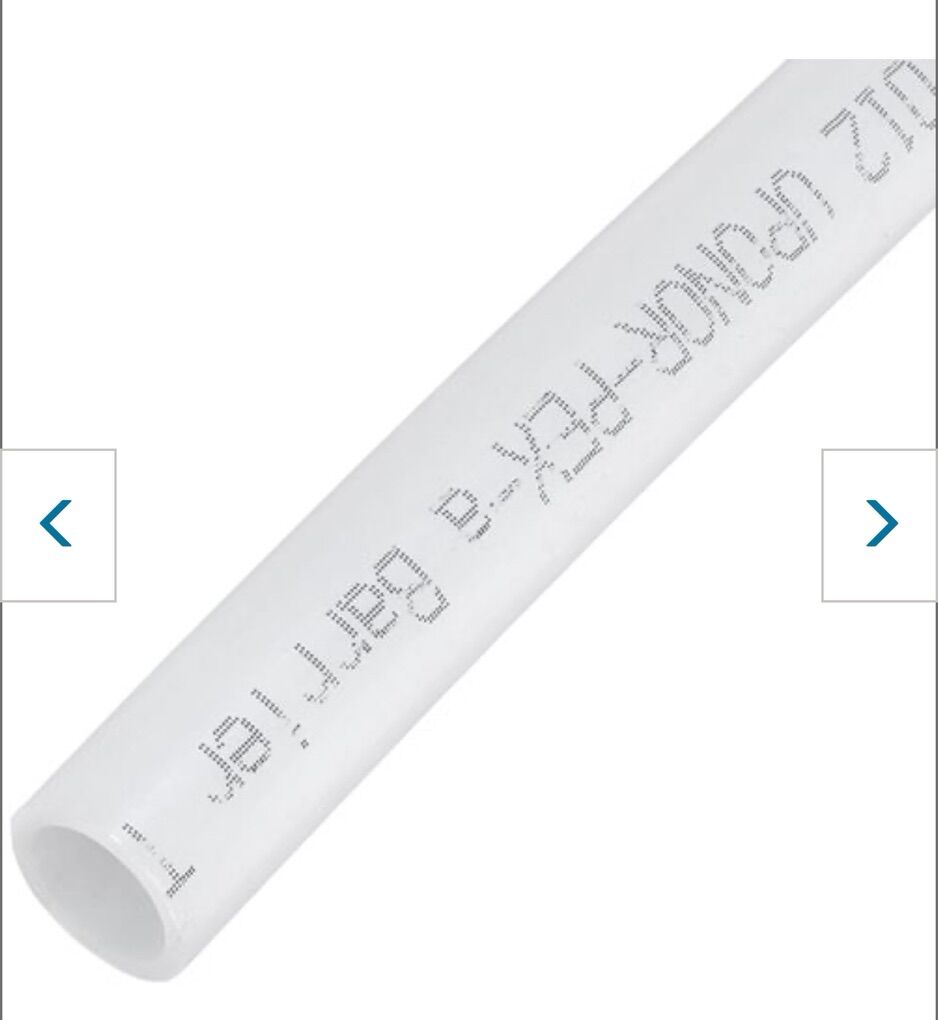

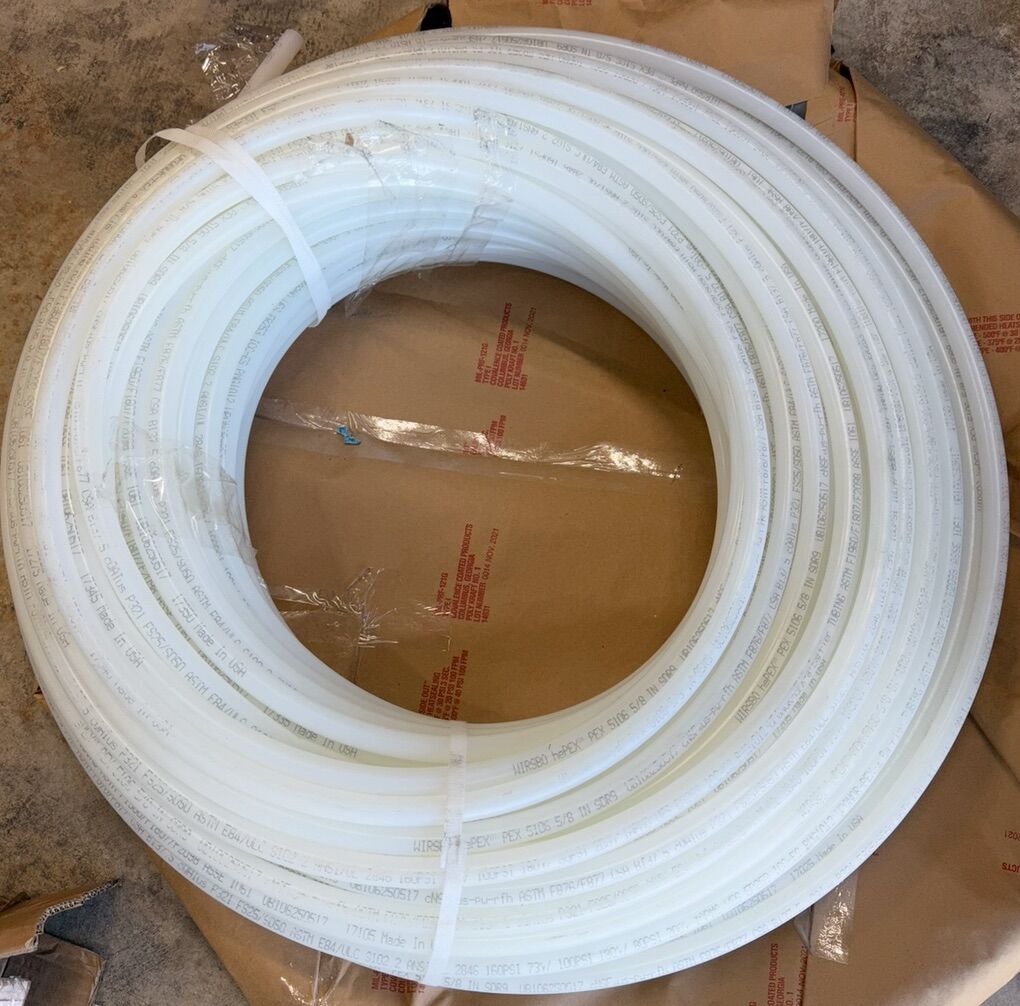

Uponor (Wirsbo) hePEX is heat-transfer tubing with an EVOH oxygen diffusion barrier. The oxygen diffusion barrier meets the requirements of the German DIN Standard 4726. Uponor (Wirsbo) hePEX is compatible with both Uponor’s (Wirsbo) ProPEX fitting connections and QS-style fittings. Uponor (Wirsbo) hePEX is manufactured to ASTM F876 and F877, and is designed for closed-loop hydronic heating applications. Uponor (Wirsbo) hePEX tubing is rated and listed by the Hydrostatic Stress Board of PPI at: 200 degrees F at 80 psi, 180 degrees F at 100 psi and 73.4 degrees F at 160 psi. Note 1: 5/16 hePEX tubing is used for the Uponor (Wirsbo) Quik Trak system.
Note: Uponor (Wirsbo) hePEX tubing, traditionally used in radiant heating applications, became certified to NSF/ANSI Standard 61 for potable water in December 2012. Please read the Approvals document located in the Manuals tab for more information.
What are the Uponor PEX Standards? Uponor PEX and associated fittings are manufactured to the following standards:\
- ASTM F876 Standard Specification for Cross-linked Polyethylene (PEX) Tubing\
- ASTM F877 Standard Specification for Cross-linked Polyethylene (PEX) Plastic Hot and Cold Water Distribution Systems\
- ASTM F1960 Standard Specifications for Cold Expansion Fittings with PEX Reinforcing Rings for use with Cross-linked Polyethylene (PEX) Tubing\
- ASTM F2080 Standard Specifications for Cold Expansion Fittings with Metal Compression Sleeves for Cross-linked Polyethylene (PEX) Tubing\

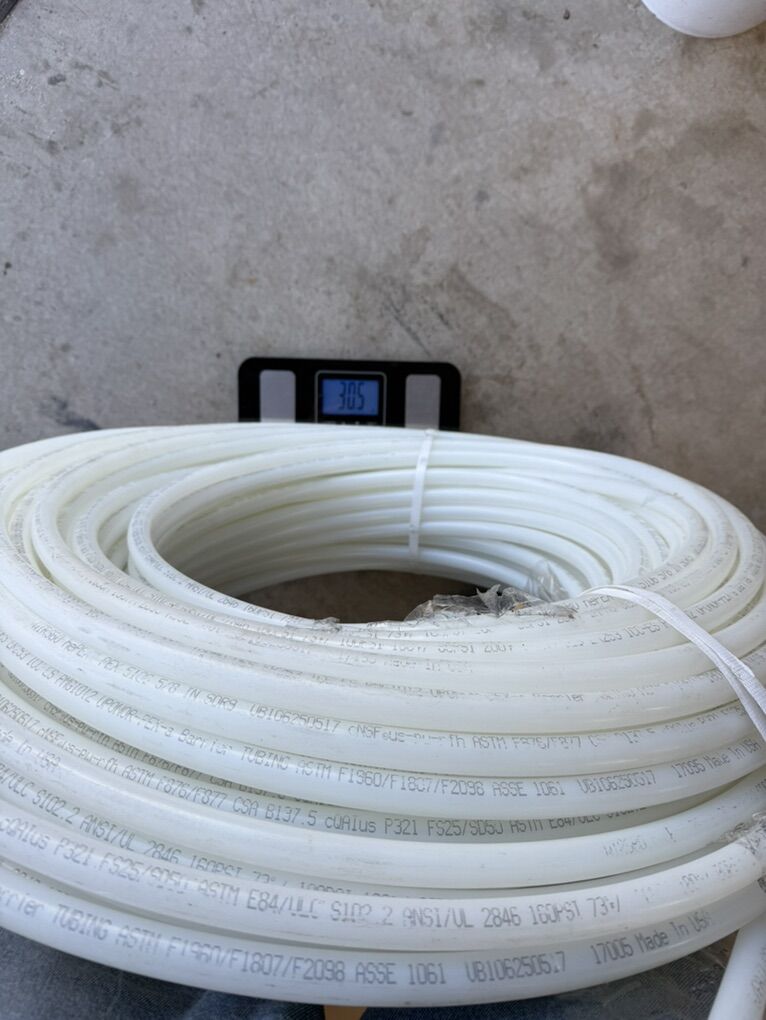

- CSA B137.5 Thermoplastic Pressure Piping Compendium length gathered by weight, 30 lbs equates to roughly 500 feet in length. Estimate only

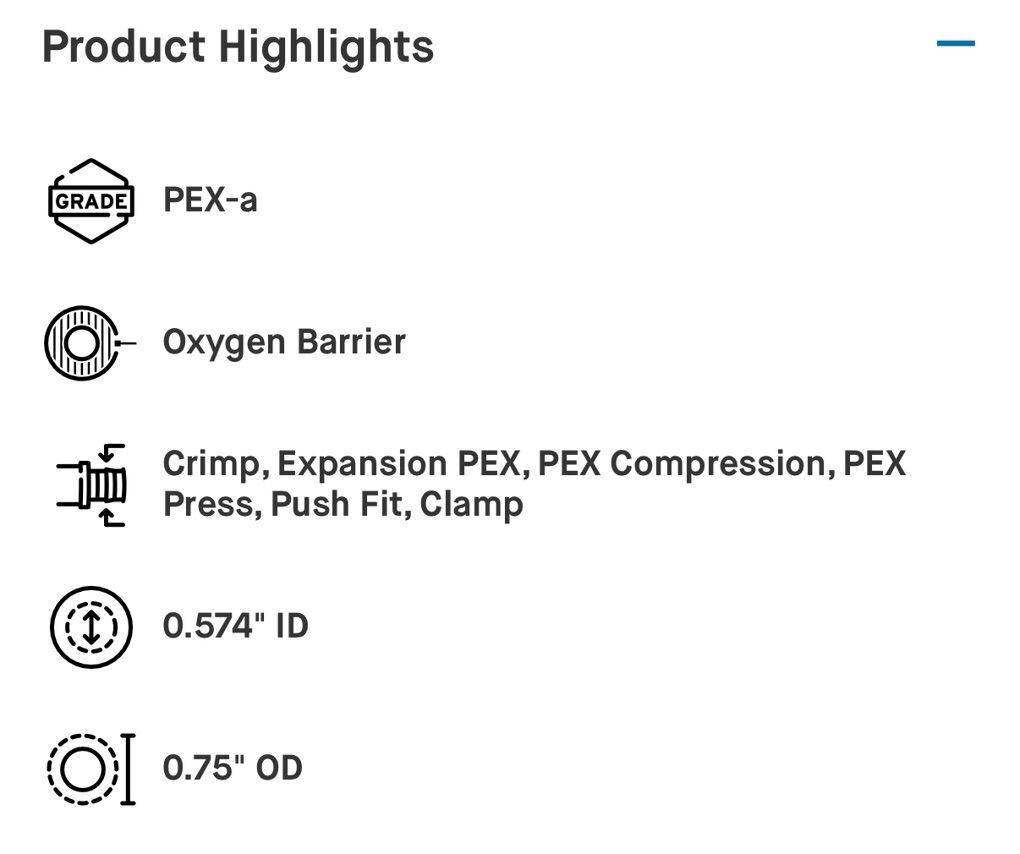

Fitting System Compatibility: Crimp Expansion PEX PEX Compression PEX Press Push Fit Clamp Size: 5/8 Shape: Coil Tubing Type: Oxygen Barrier Material: PEX Color: White Application: Heating Max Pressure (PSI): 160 Outside Diameter: 0.75 Grade: PEX-a Inside Diameter: 0.574 Standards Met: DIN4726 NSF Max Temp (F): 200°F Type: Tubing
