New. Located in Nephi.

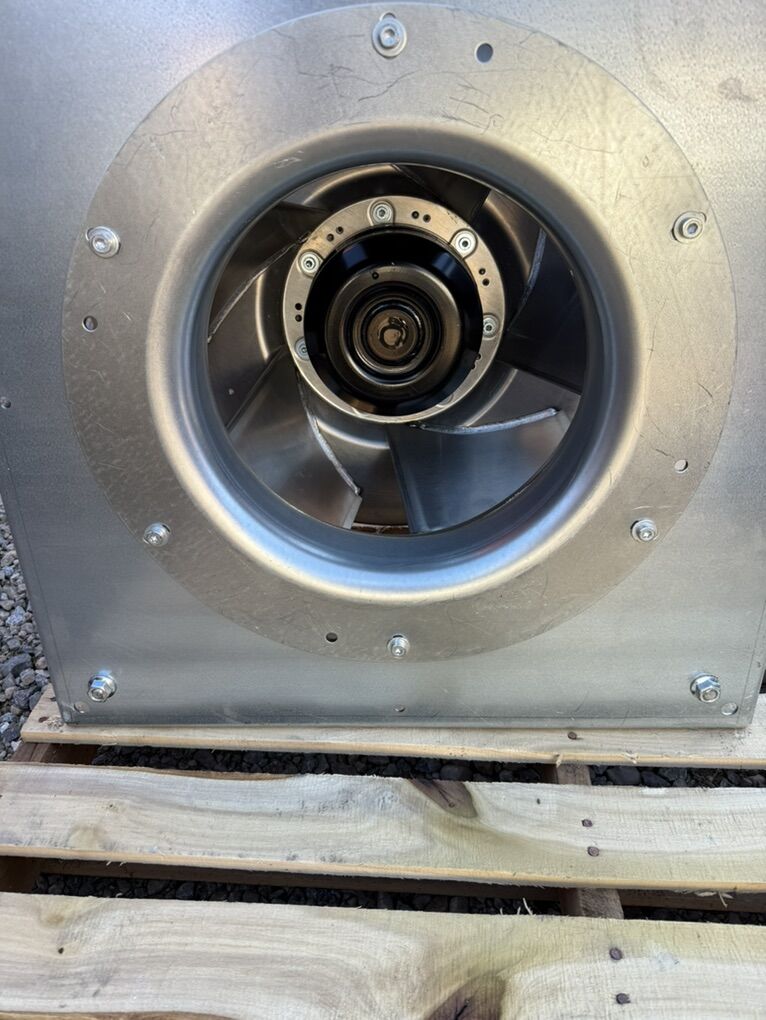

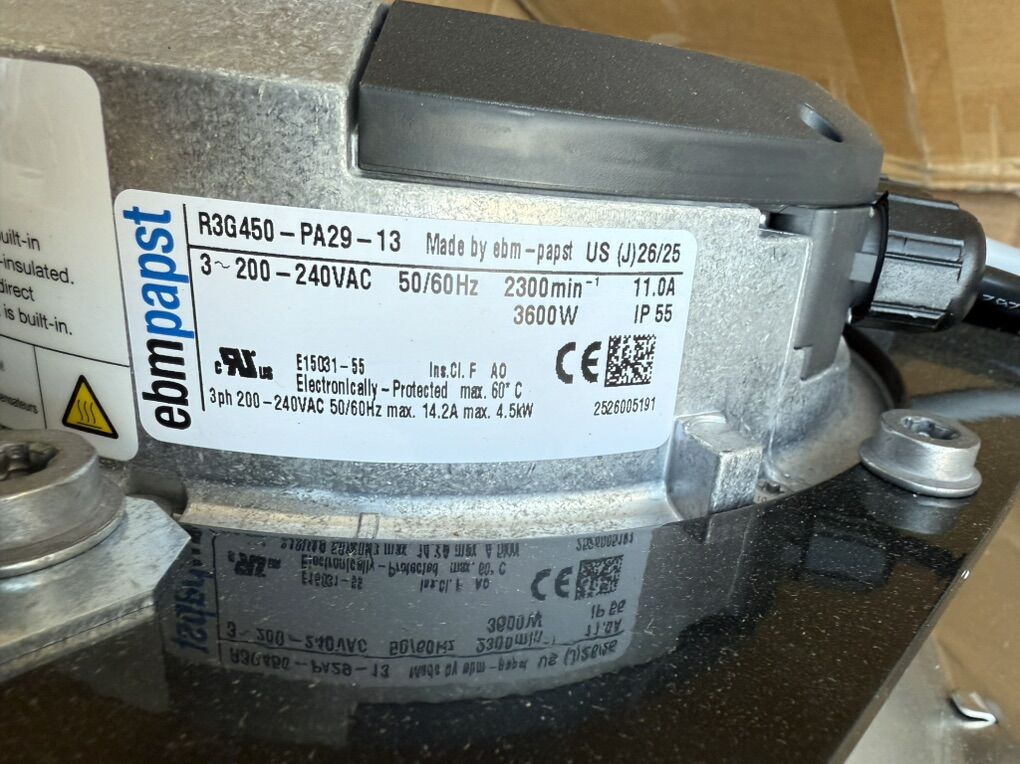

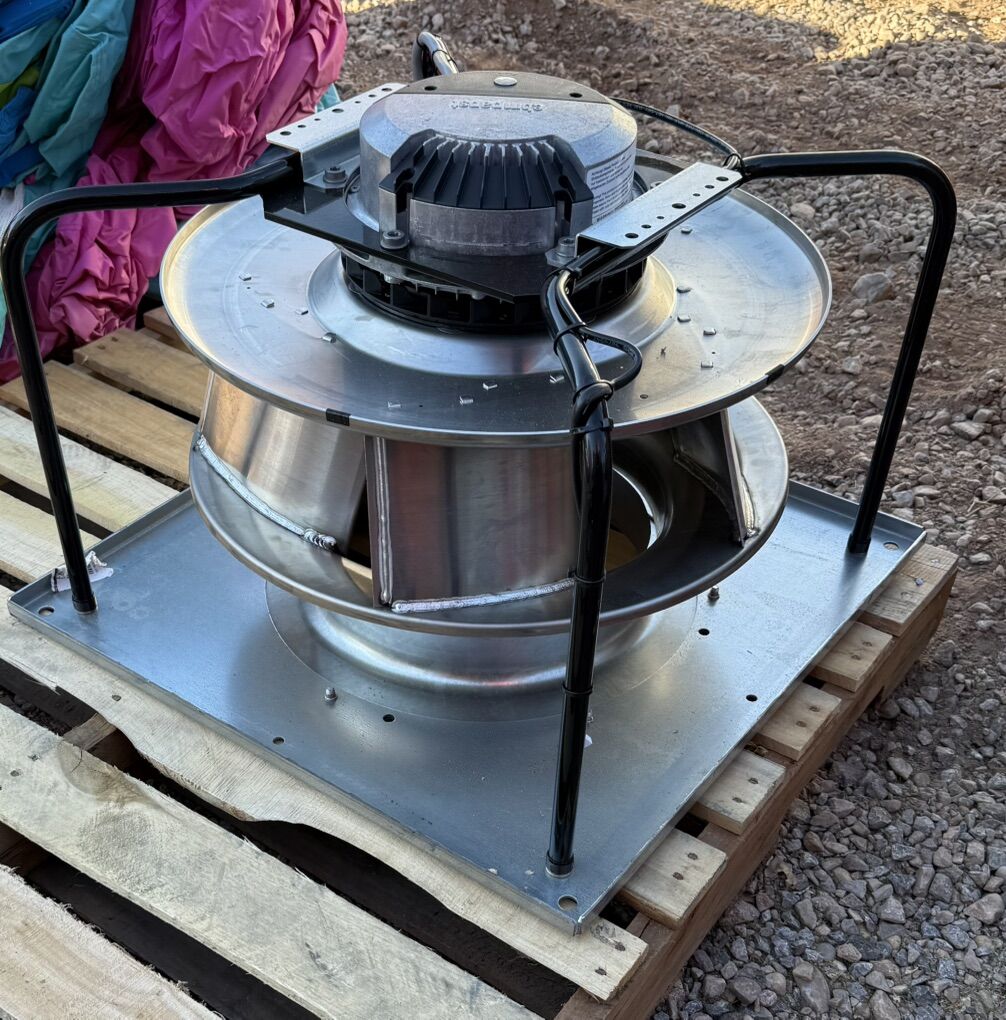

Model R3G450 - PA29 - 13

Highlights: Control input: 15-50 VDC Output: 3.3-24 VDC, Pmax 800 mW Integrated PI controller RS485 MODBUS Over-temperature protected motor/electronics Soft start, motor current limit Locked motor protection Line undervoltage/phase failure detection UL/CSA approval rating IP55 ingress protection rating

Nominal data Highlights: Control input: 15-50 VDC Output: 3.3-24 VDC, Pmax 800 mW Integrated PI controller RS485 MODBUS Over-temperature protected motor/electronics Soft start, motor current limit Locked motor protection Line undervoltage/phase failure detection UL/CSA approval rating IP55 ingress protection rating Air flow 7840 CFM Phase 3 Voltage 200-240 Nominal voltage range Frequency Power input (1) Material: Electronics housing: Die-cast aluminum Impeller: Sheet aluminum Mounting position: Shaft horizontal or rotor down Rotor on top per request Condensate discharge holes: Rotor-side Direction of rotation: Clockwise, viewed toward rotor Speed (1) Current draw (1) Mass Dimensional data (in) 24.8” W 22.83 W 18.38” H Part number Type Motor CFM VAC VAC Hz Watts RPM A lbs A B C EG1R240450A26 R3G450-PA29-13 M3G150-FF 7840 3~ 230 200 .. 240 50/60 3950 2300 10.8 105 24.8 22.83 18.38
