GENERAL

Type: Amateur VHF/UHF transceiver

Frequency range: USA and Canada

TX: 144-148 / 438-450 MHz

RX: 118-174 / 410-470 MHz

General market

TX: 144-148 / 430-440 MHz

RX: 118-174 / 410-470 MHz

Tuning steps: 5 / 10 / 12.5 / 15 / 20 / 25 KHz

Frequency stability: ±10 ppm @ -20 to +60°C (-4 to 140°F)

Mode: TX: FM

RX: AM / FM

Channels / memory management: 70 regular 1 call

RAM storage with rechargeable lithium backup battery

Repeater shift / offset: 2 m: ±600 KHz 70 cm: ±5 MHz

Power supply: 13.8 VDC ±15%

Current drain / power consumption: RX: Less than 1.2 A (No signal)

TX: Less than 11.5 A

Antenna impedance / connector: 50 ohm / Two SO-239 (On pigtails)

Dimensions (WHD): 14142165 mm (5.551.656.5")

Weight: 1.1 Kg (2.4 lb)

Other features: Detachable front panel. 1K2 / 9K6 packet jack. AIP. Dimmer.

CTCSS/PL encoder. DTMF. DTSS. Twin RX.

RECEIVER SECTION

Receiver system: Double conversion superheterodyne

1st IF: 45.05 MHz (VHF) - 58.525 MHz (UHF)

2nd IF: 455 KHz

Sensitivity: Main band: 0.16 uV (12 dB SINAD)

Sub band: 0.25 uV (12 dB SINAD)

Selectivity: 12 KHz (-6 dB)

28 KHz (-60 dB)

Image rejection:

AF output power / speaker: 2 W at 5% distortion / 8 ohm

External speaker connector: 3.5 mm, 8 ohm

TRANSMITTER SECTION

RF output power:

2 m: 50 W 10 W 5 W

70 cm: 35 W 10 W 5 W

Modulation system: Reactance modulation

Max FM deviation (Factory set): ±5 KHz

Spurious emissions: Better than -60 dB

Microphone impedance / connector: 600 ohm / 8-pin (Modular)

Must have Amateur Radio license.

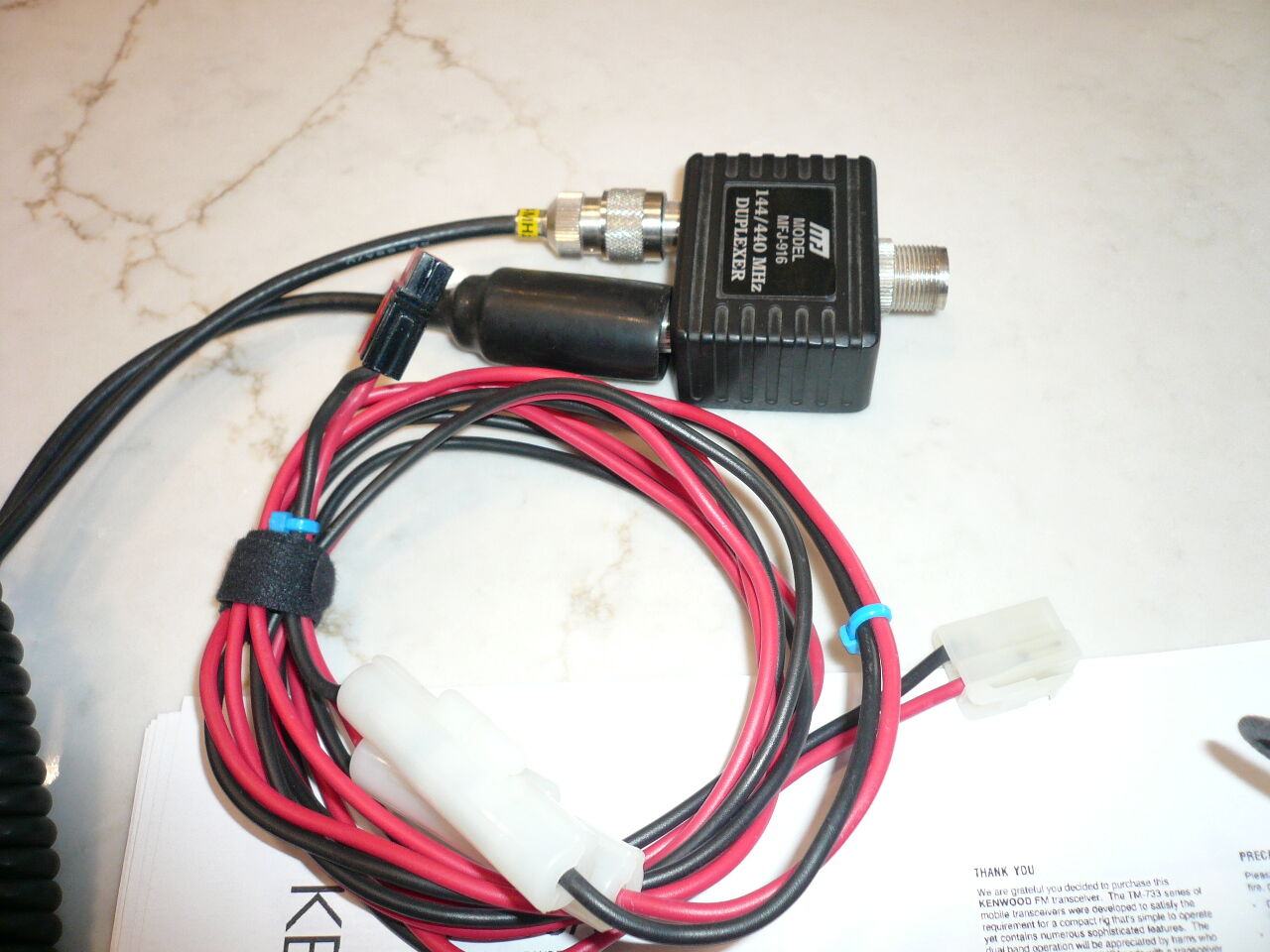

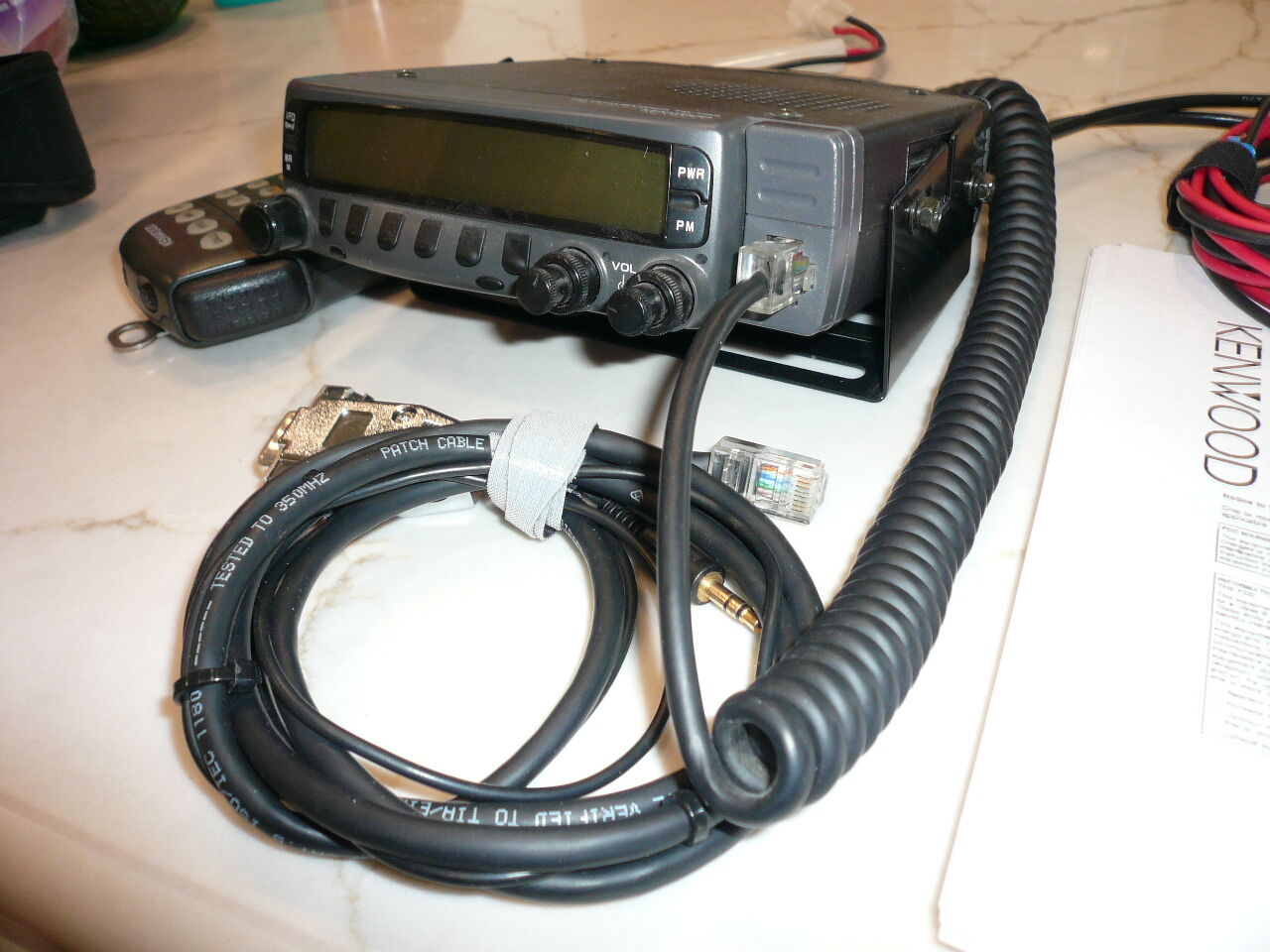

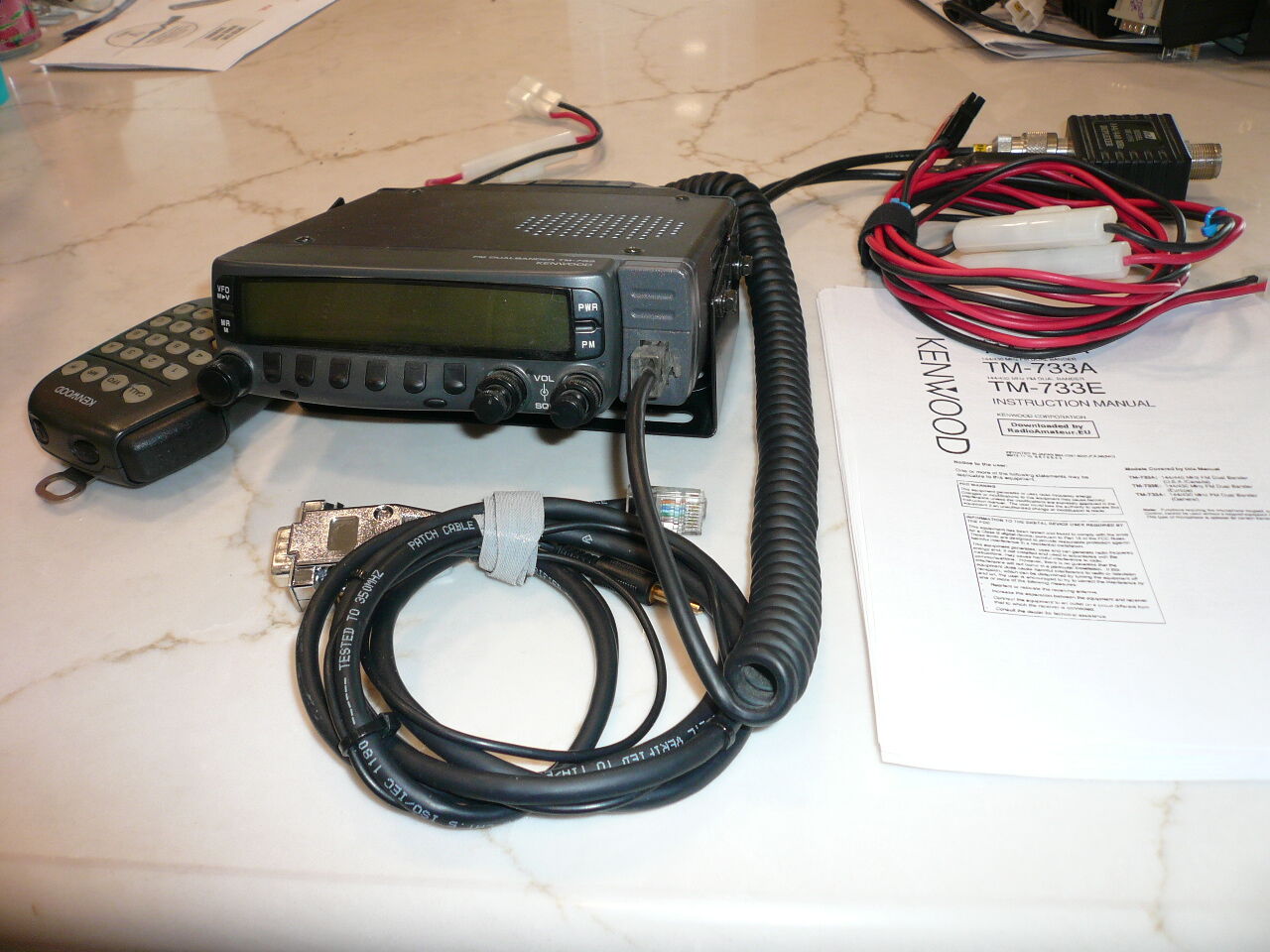

Comes with Manual, microphone, data cable for TNC

Cash, Paypal, Venmo. No trades, you pickup. I have two of these in regular use. Selling this one. Was used in a Packet Radio go box for many years.
