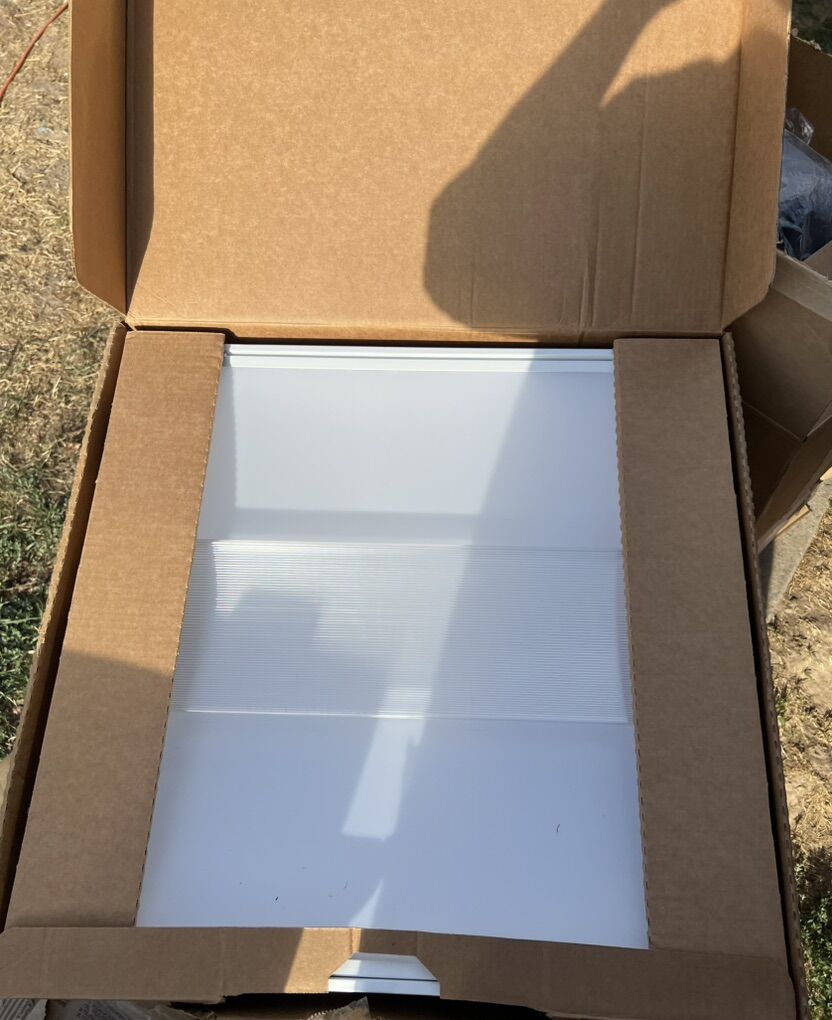

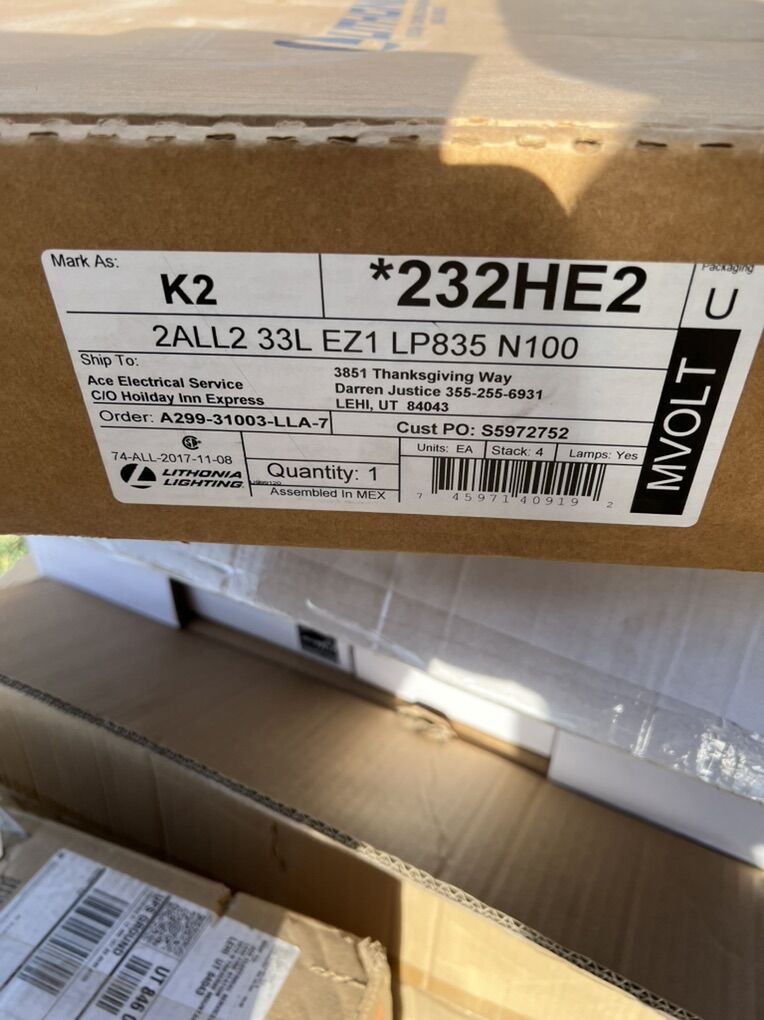

Lithonia 2ALL2 33L EZ1 LP835 2'x2' LED Recessed Light,

I have 2 available asking $200.00 per light.

FEATURES & SPECIFICATIONS

INTENDED USE — The AL combines clean, fine lines with a unique design that complements any space.

The CTRF (Center Fill) option features a center mounted LED source shielded by the secondary refractor that

creates a gradient along the luminaire aperture, accentuating the concave primary lens.

Ideal for office spaces, conference rooms, and schools.

CONSTRUCTION — Rugged, pre-painted one-piece cold-rolled steel reflector assembly with

embossed steel for increased structural integrity and strength. Polyester powder-paint after

fabrication option available.

Hinged doorframe assembly retains optical assembly and easy access to electrical components. End

plates include integral T-bar clips.

OPTICS — Luminous optical system consists of a unique blend of high performance transmittance diffuser

coupled with a concave, clear, ribbed refractor for and unique multi-step appearance. To improve fixture

performance and eliminate pixilation the diffuser uses a unique blend of high molecular weight polymer

beads with unrelated refractive index.

ELECTRICAL — Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality

of illumination for extended service life. 90% LED lumen maintenance at 60,000 hours (L90/60,000).

nLight® embedded controls make each luminaire addressable - allowing it to digitally communicate with

other nLight enabled controls such as dimmers, switches, occupancy sensors and photocontrols. Simply

connect all the nLight enabled control devices and the AL luminaires using standard Cat-5 cabling. Unique

plug-and-play convenience as devices and luminaires automatically discover each other and self-commission.

Lumen Management: Unique lumen management system (option N80) provides onboard intelligence that

actively manages the LED light source so that constant lumen output is maintained over the system life,

preventing the energy waste created by the traditional practice of over-lighting.

Step-level dimming option allows system to be switched to 50% power for compliance with common energy

codes while maintaining fixture appearance.

eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker-free,

low-current inrush, 89% efficiency and low EMI.

Driver disconnect provided where required to comply with US and Canadian codes

INSTALLATION — Lightweight and easy to install in any standard T-Bar system.

Maintenance: LED boards include plug-in connectors for easy replacement or servicing.

Suitable for damp locations.
