No Longer in need of this Machine. Has worked great and continues to do so. Engine Runs Great, Hydraulics are in tip top shape.

Roller Packages include:

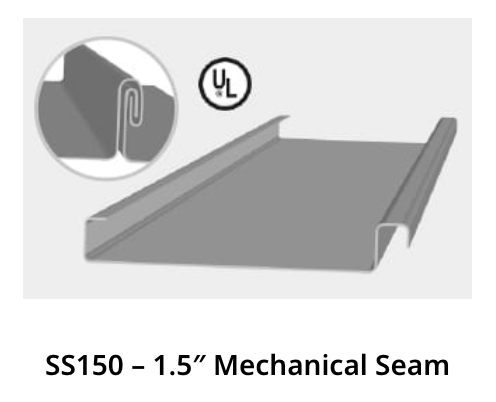

SS150 Profile

FF150 Profile

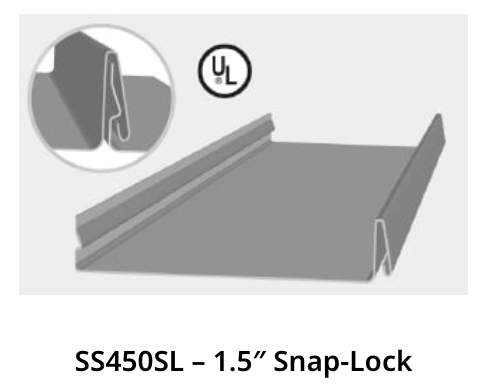

SSQ450SL Profile

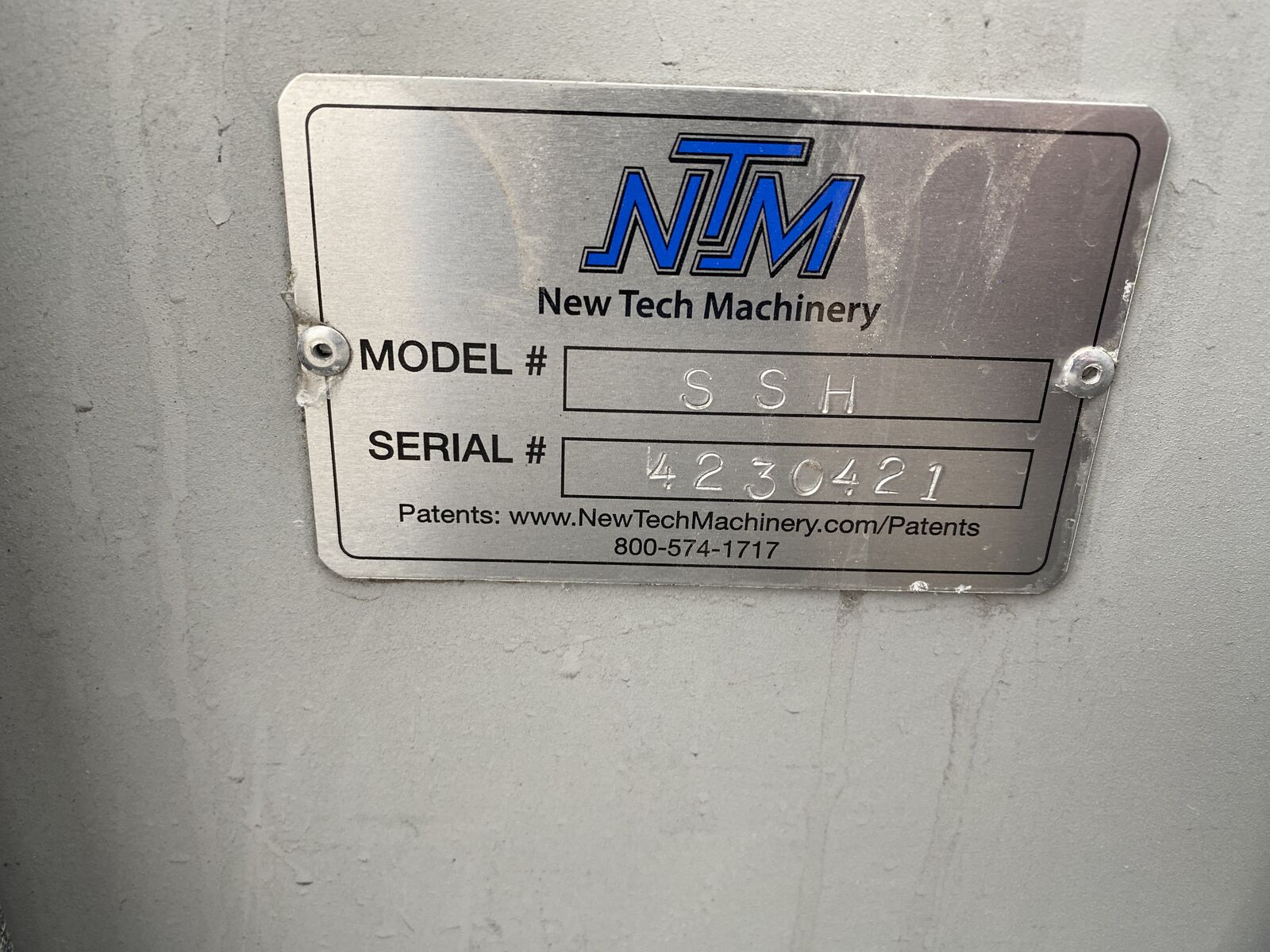

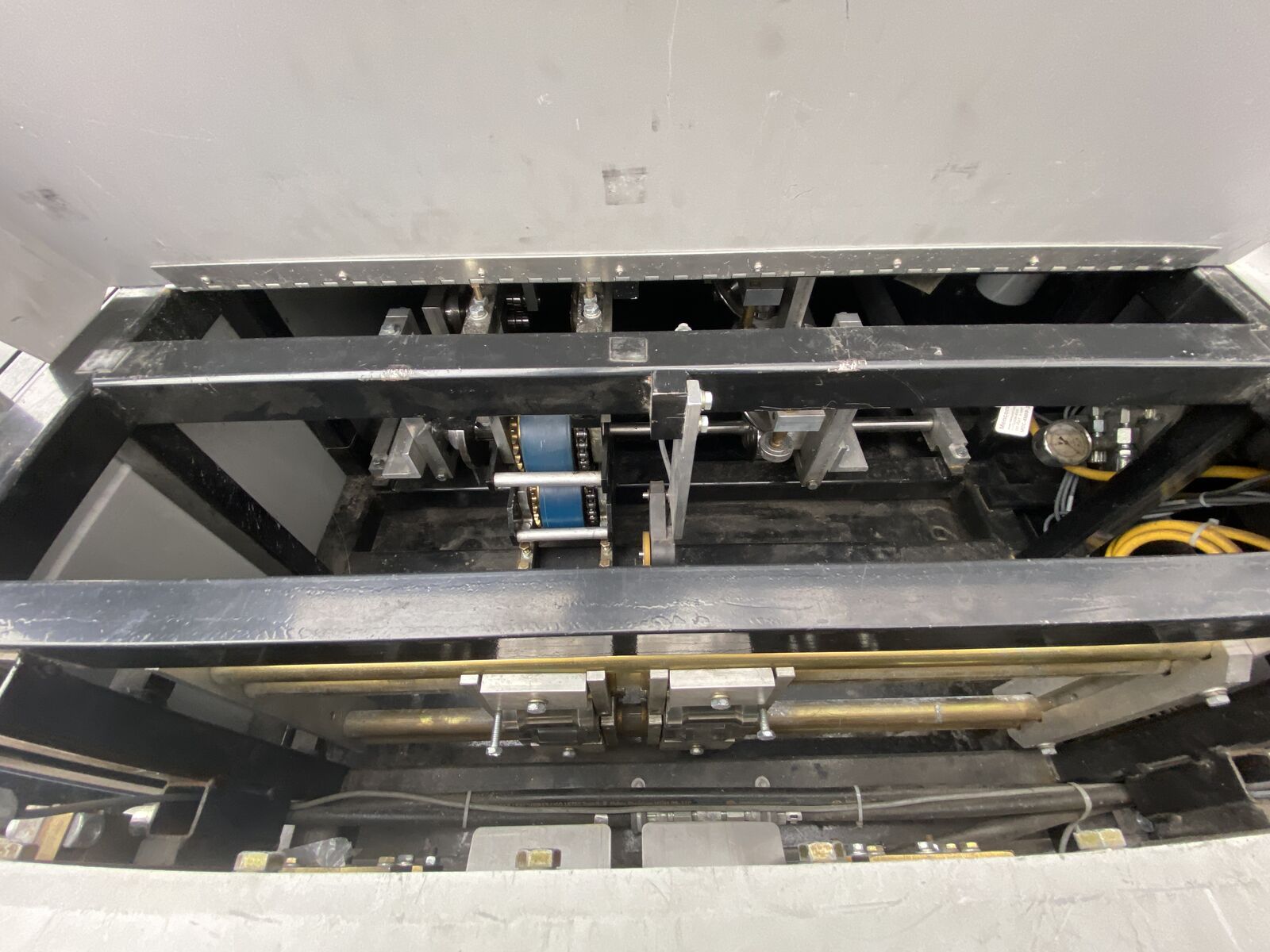

SSH™ MultiPro Roof Panel Machine Details:

Standard Features

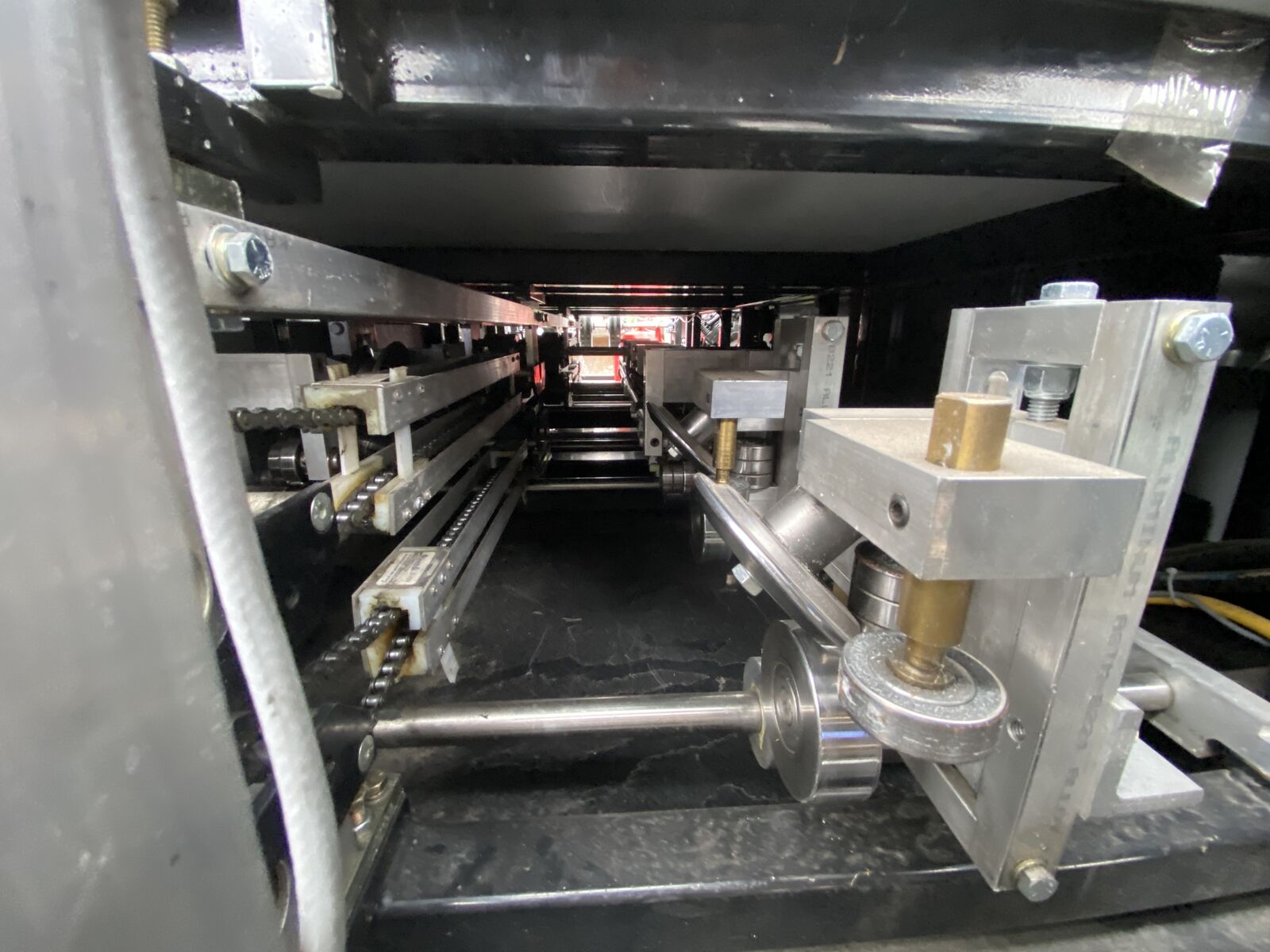

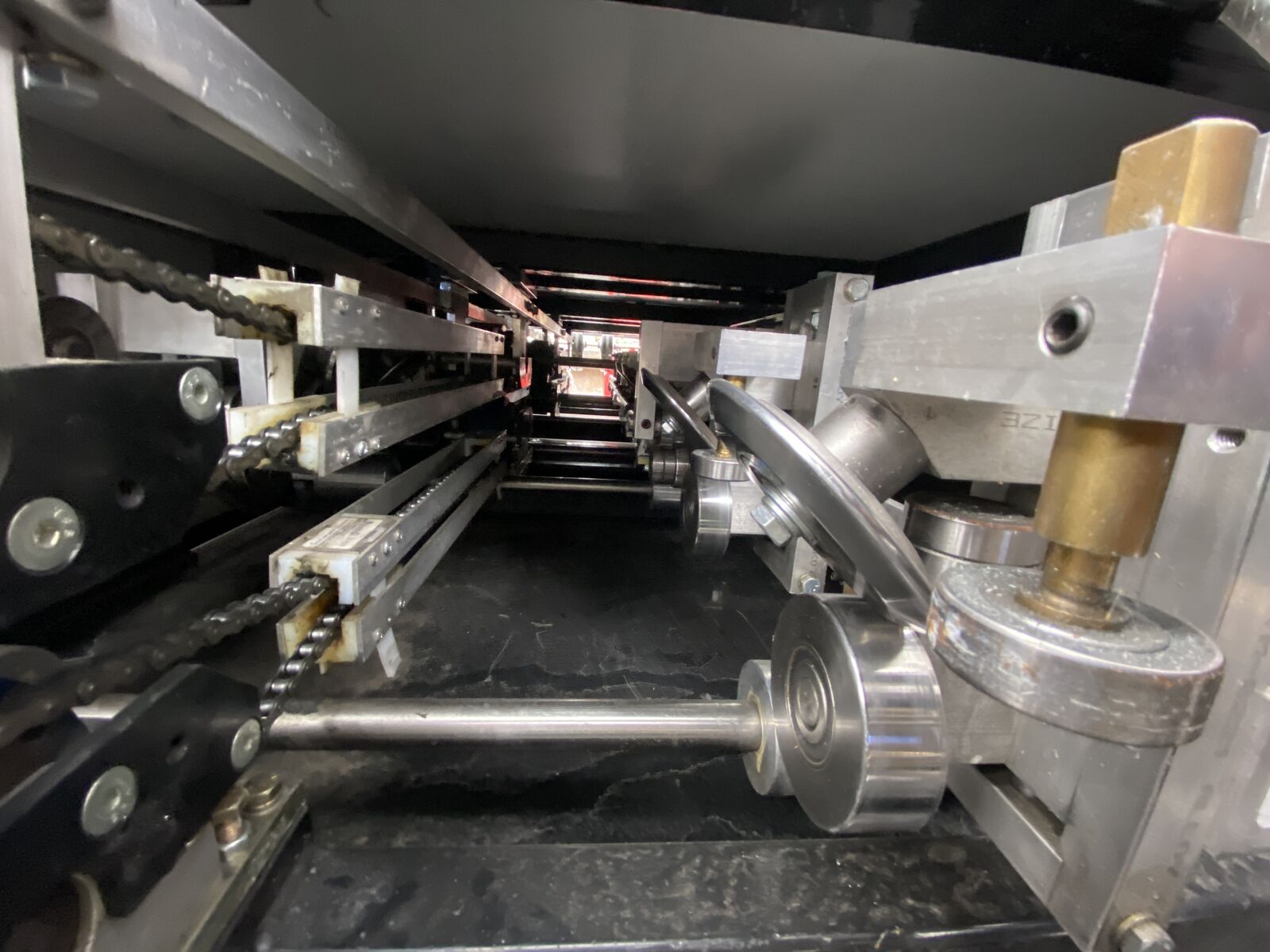

• 8 Polyurethane Drive Rollers

• Powder-Coated Covers

• Power Interruption Safety Circuit

• Runs Up to 24 Gauge Steel

• Hydraulic Drive & Shear

• Length Control Limit Switch

• Included: PLC Batch / Length Computerized Controller

• Welded Tubular Steel Frame

• Choice of: EZE-ChangeTM Profile Roller System

• Push Button RUN/JOG Controls

• Choice of: Quick-ChangeTM Power-Pack (Gas or Electric)

• UL-Rated Panels (Must Be Certified by UL for Recognition)

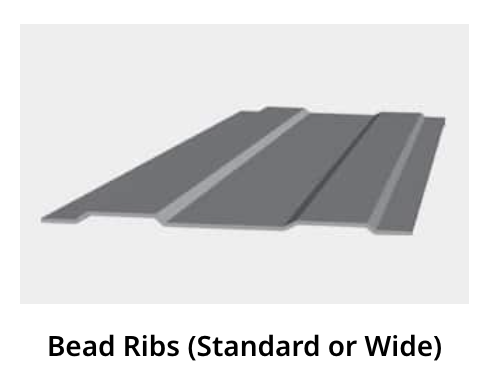

• Choice of: One Pair of Bead, Pencil, Striation or V-Rib

Rollers

Specifications:

SSH Panel Machine

• Length: 12’ 10” (3.9m)

• Width: 4′ 10-1/2″ (1.2m)

• Height with Over Head Rack: 4’ 3” (1.3m)

• Height without Over Head Rack: 2’ 0” (.6m)• Weight (Base Machine with Roller Set, Power Pack, and Rib

Rollers): 2,360 lbs. (1,070kg)

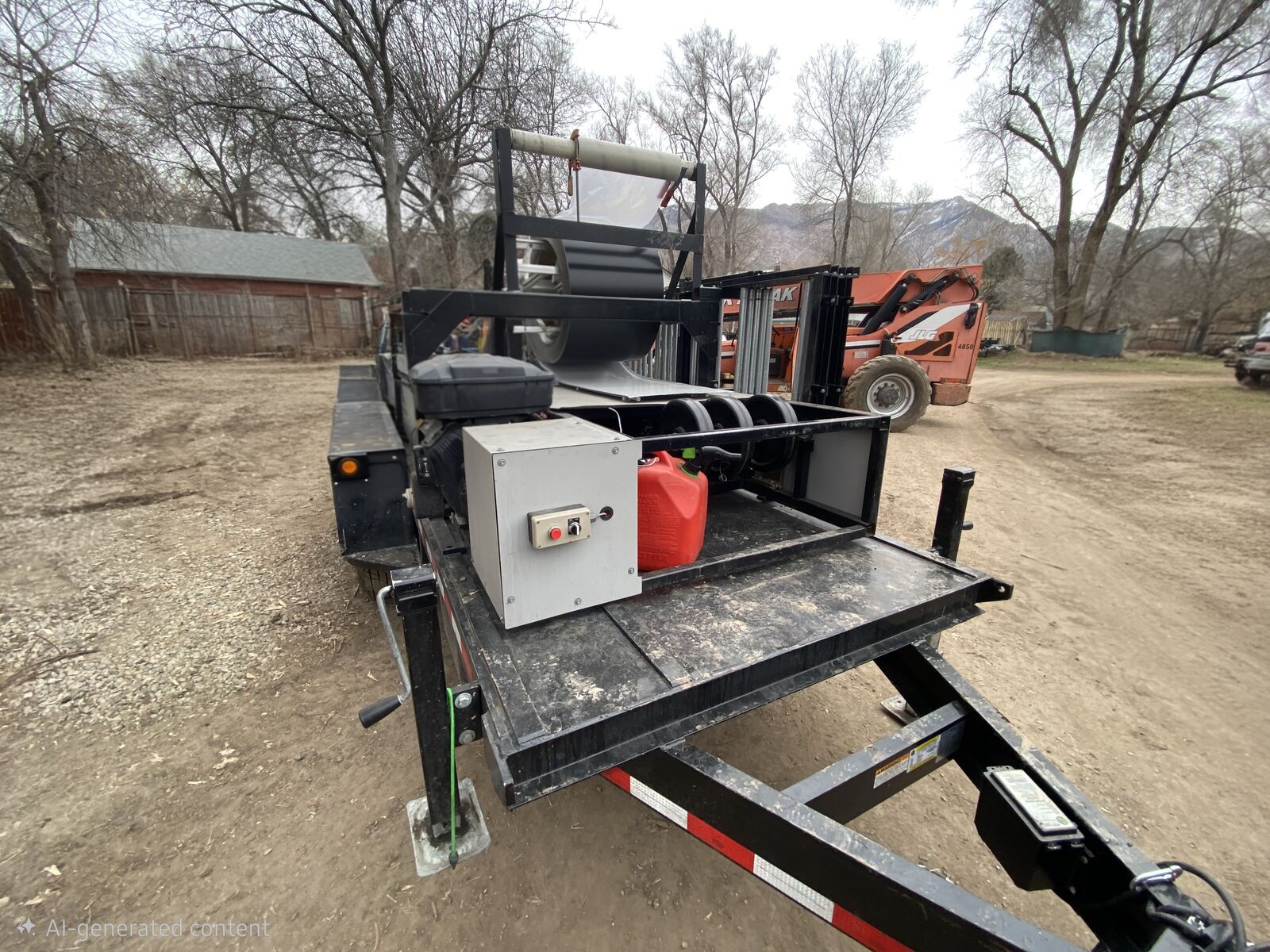

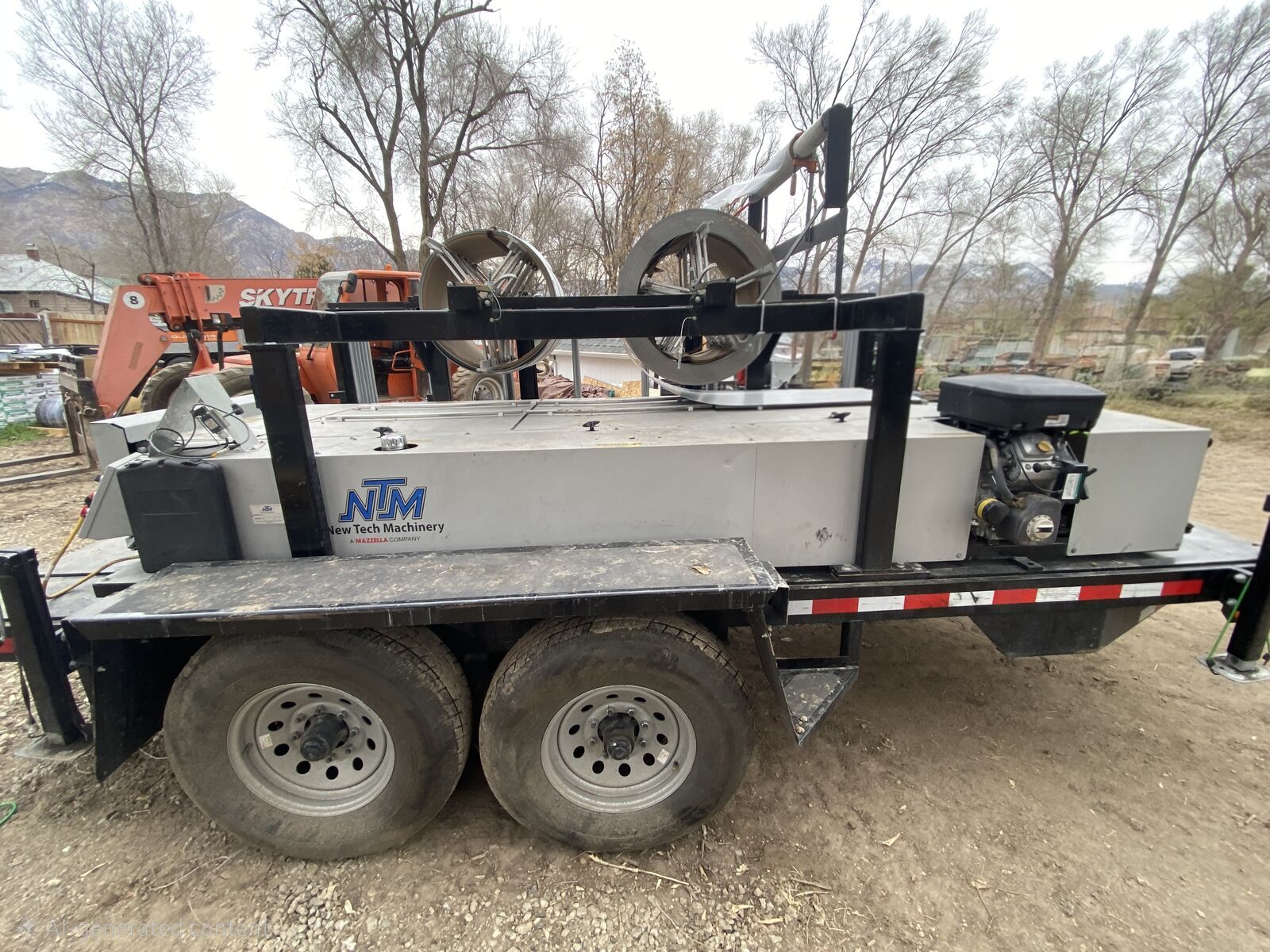

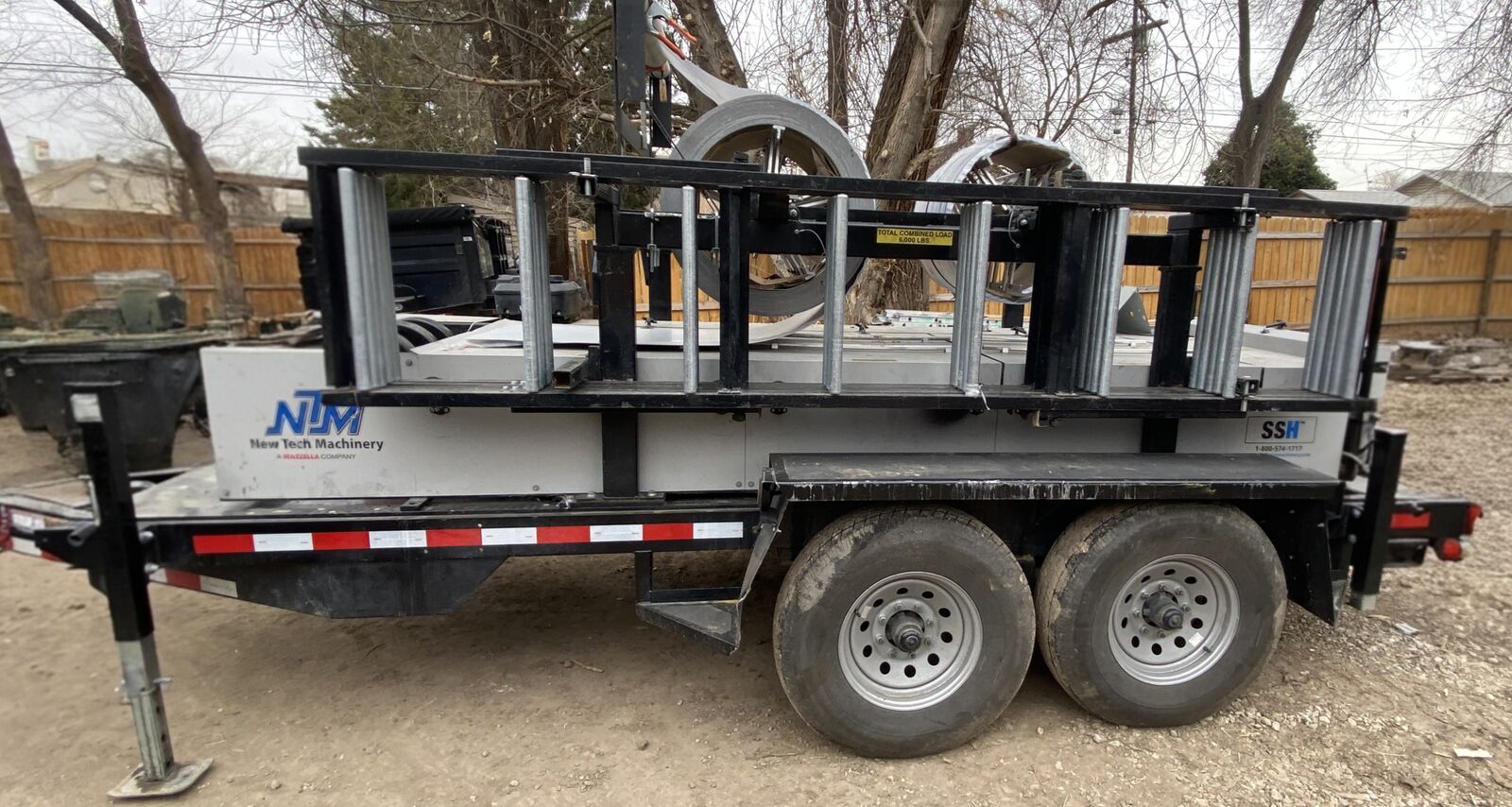

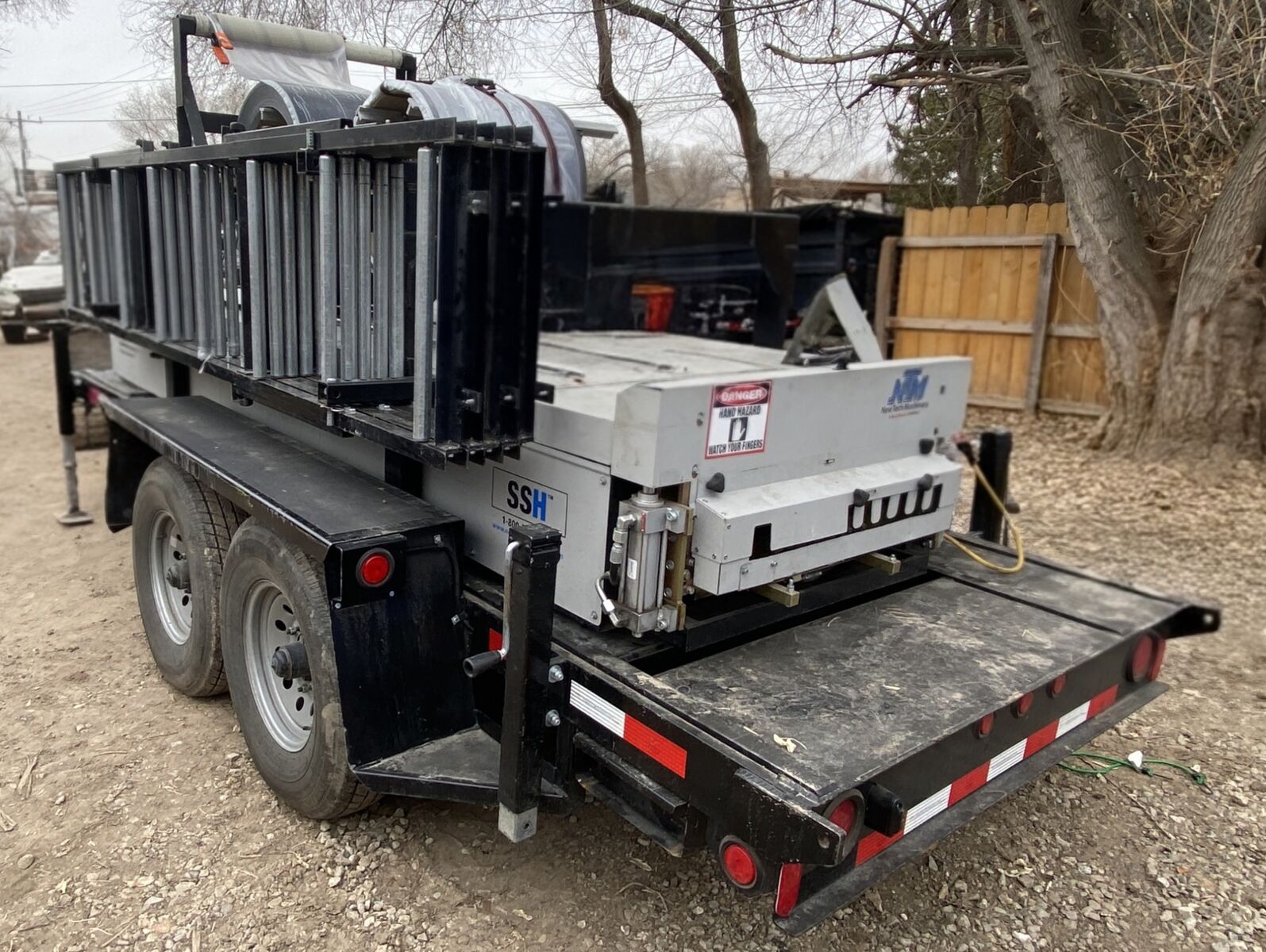

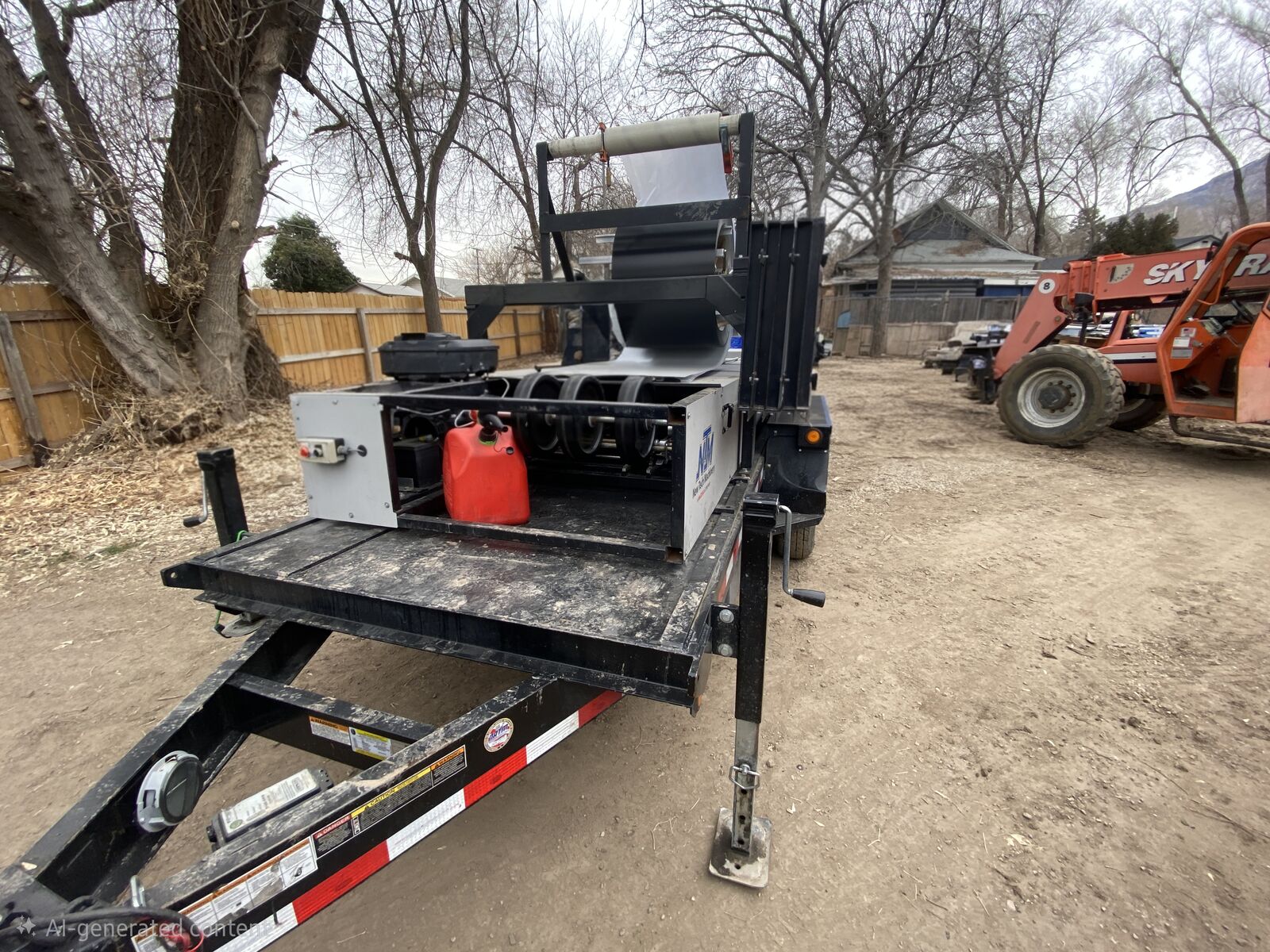

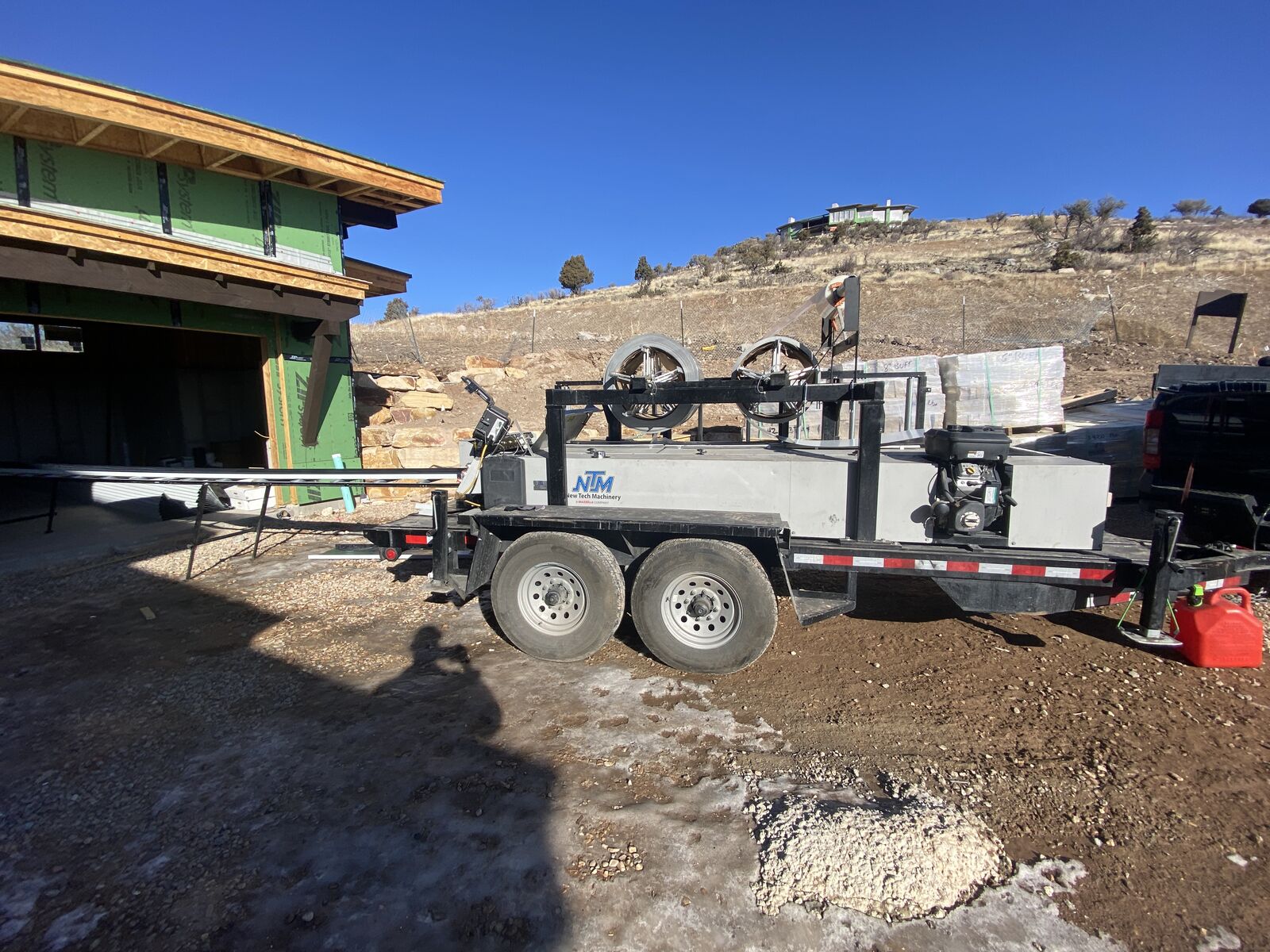

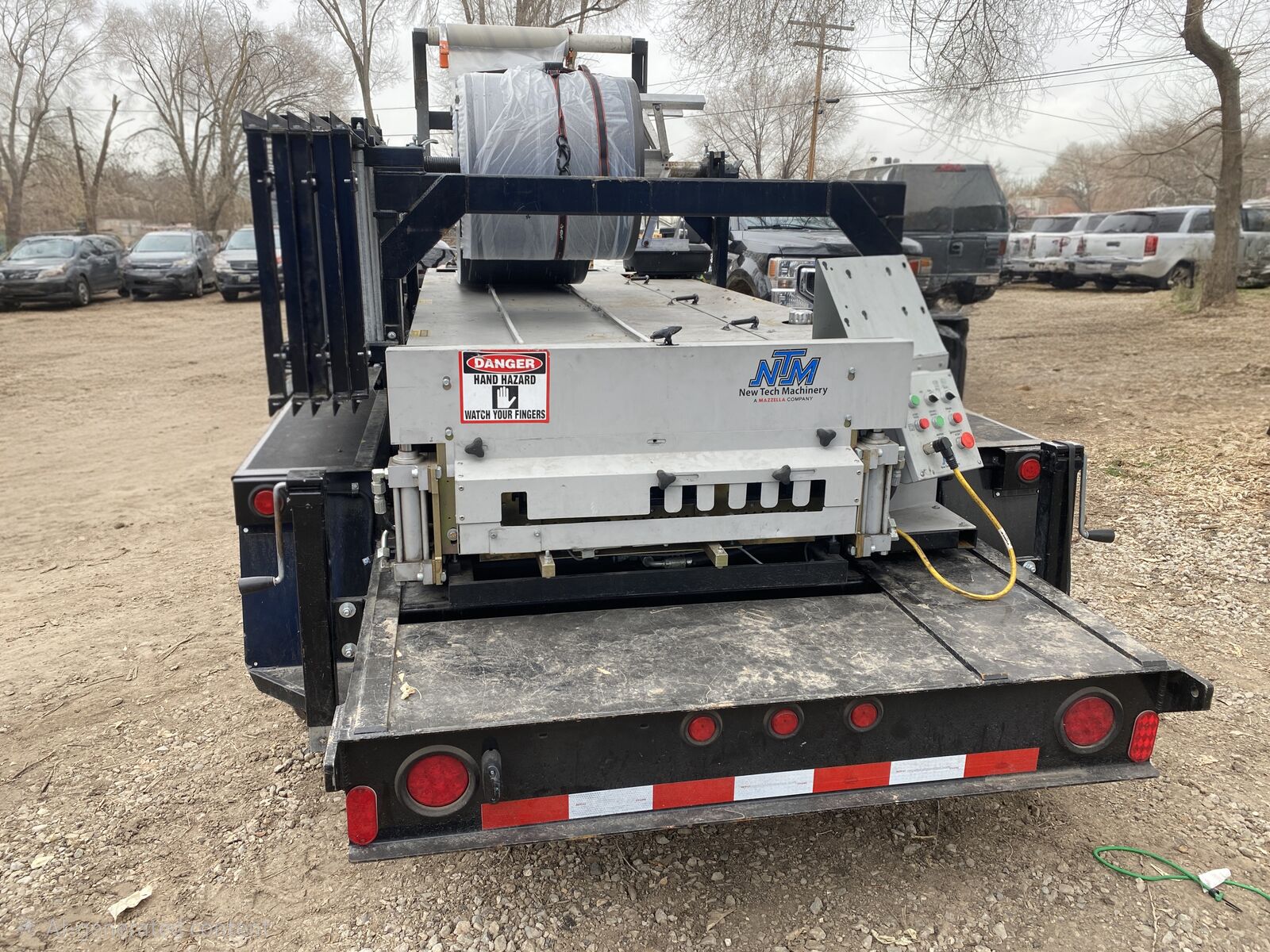

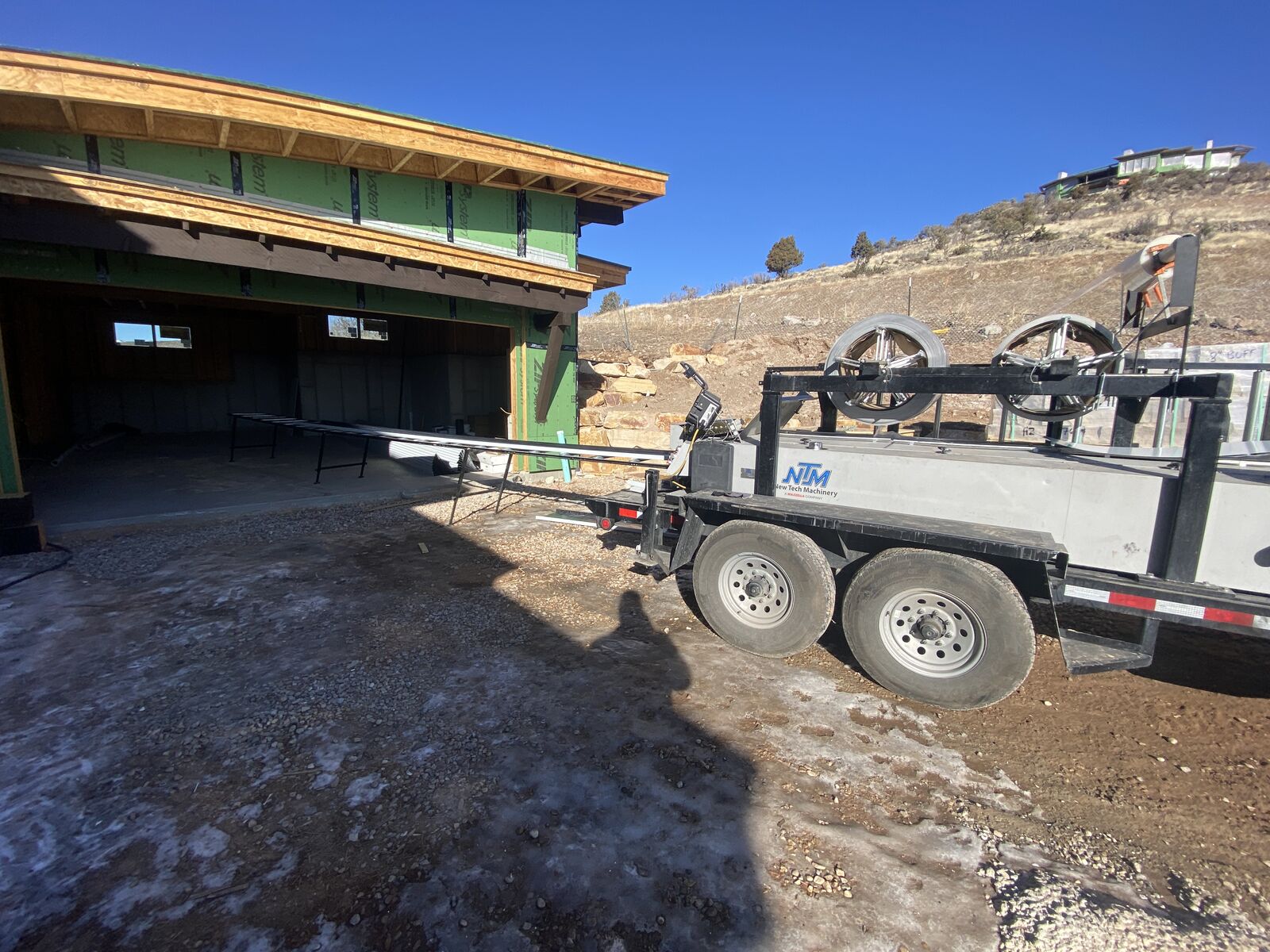

SSH On Trailer

• Length: 18’ 11” (5.8m)

• Width: 7’ 2-1/2″ (2.2m)

• Height with Reel: 6’ 3” (1.9m)

• Weight of machine on trailer (including Roller Set, Power

Pack, and Rib Rollers): 4,620 lbs. (2,090kg)

Shear

• Hydraulically Powered

• Infinitely Adjustable

• Hardened Tool Steel Blades & Shear Dies

• Panel Recognition Safety System

Drive

• Hydraulically Driven via Chain, Sprocket & Gear

Speed

• 60 ft./min (18.3m/min) Approx.

SSH Add-on Option Weights

• Trailer: 2,260 lbs. (1,020 kg)

• Overhead Reel Rack: 336 lbs. (152 kg)

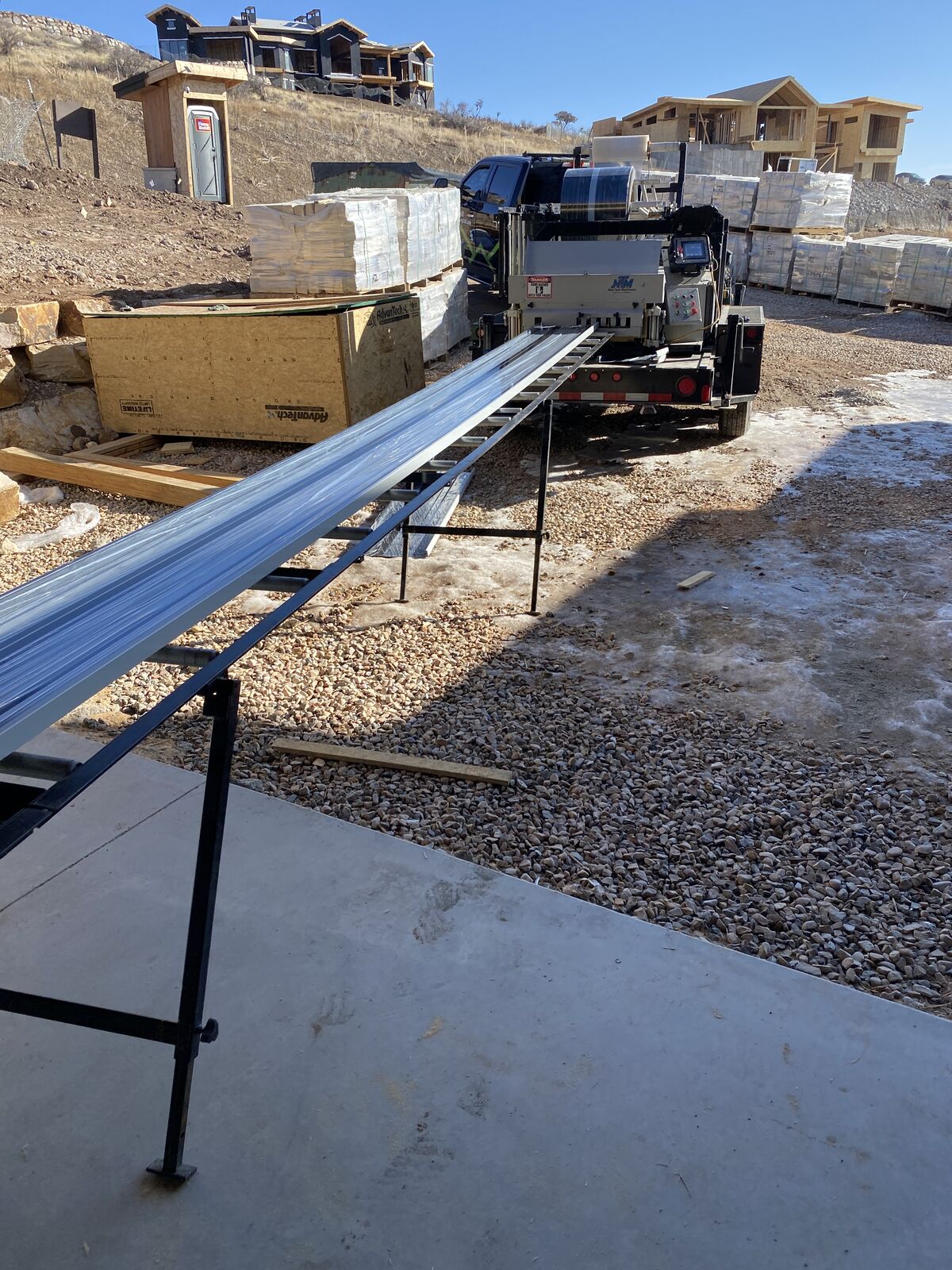

• Expandable Arbor, each: 80 lbs. (36 kg)• 10-foot Run-out Table, each: 62 lbs. (28 kg)

• PVC Strippable Film Applicator: 60 lbs. (27 kg)

Materials Formed

• Painted Steel: 28 ga. to 24 ga. (.4mm to .6mm) (painted,

galvanized, aluminized)

• Painted Aluminum: .027” to .040” (.7mm to 1.0mm)

• Copper: 16 oz. to 20 oz. 3/4 Hard (.5mm to .7mm)

• Terne-Coat Stainless Steel: 26 ga. (.6mm)

Coil Widths

• 14” to 24” (355mm to 610mm)

Finished Panel Widths

• 12” to 20” (254mm to 508mm) – Note: Variable Depending

on Panel Profile

Maximum Coil Diameter

• 32” (812mm) with the Overhead Reel Rack

• 45” (1,143mm) with the Free Standing Decoiler

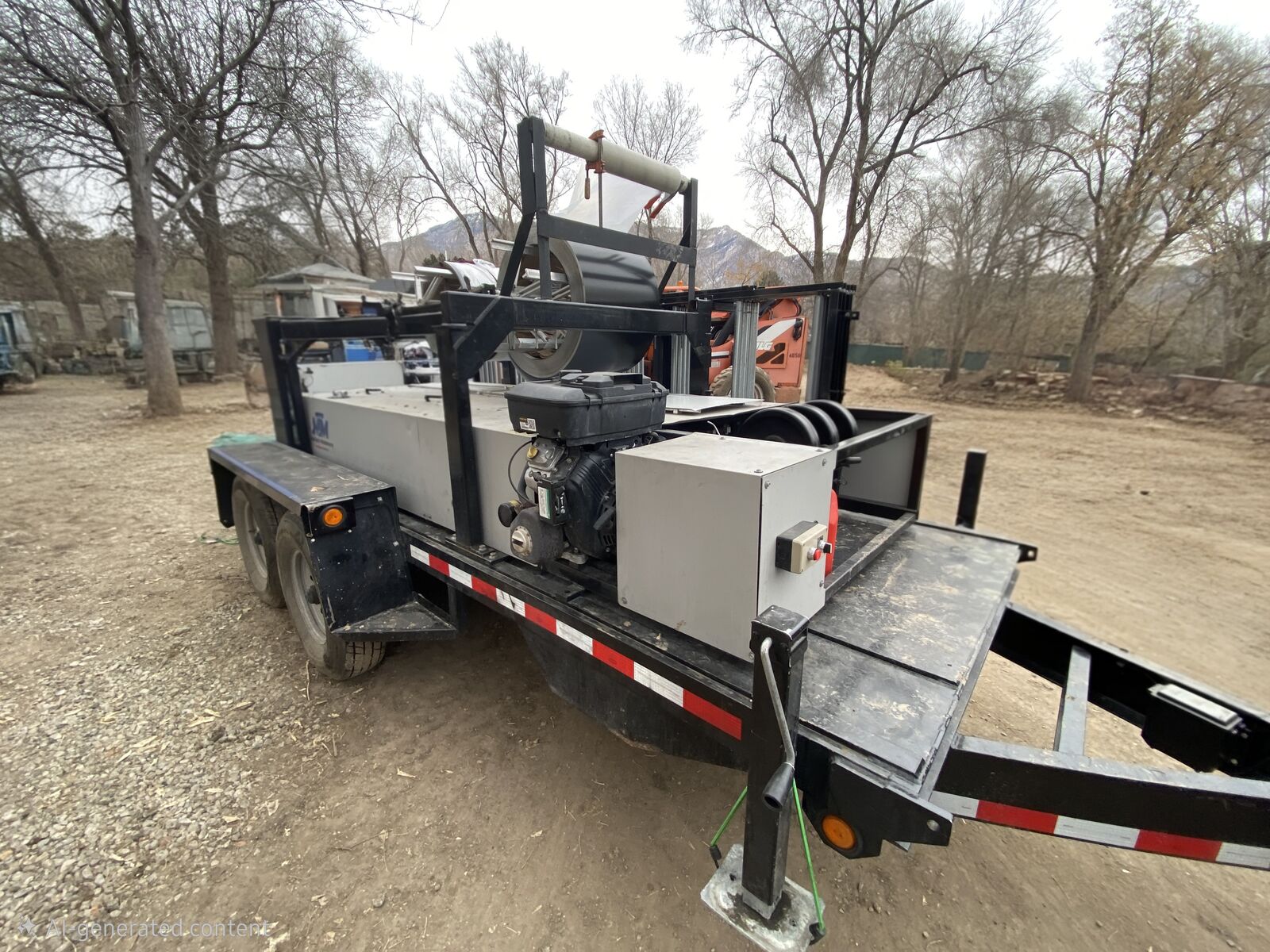

Power Plant

• Gas Power (16 HP Briggs & Stratton Engine)
