4 TON KUBOTA MINI EXCAVATOR

*FINANCING AVAILABLE

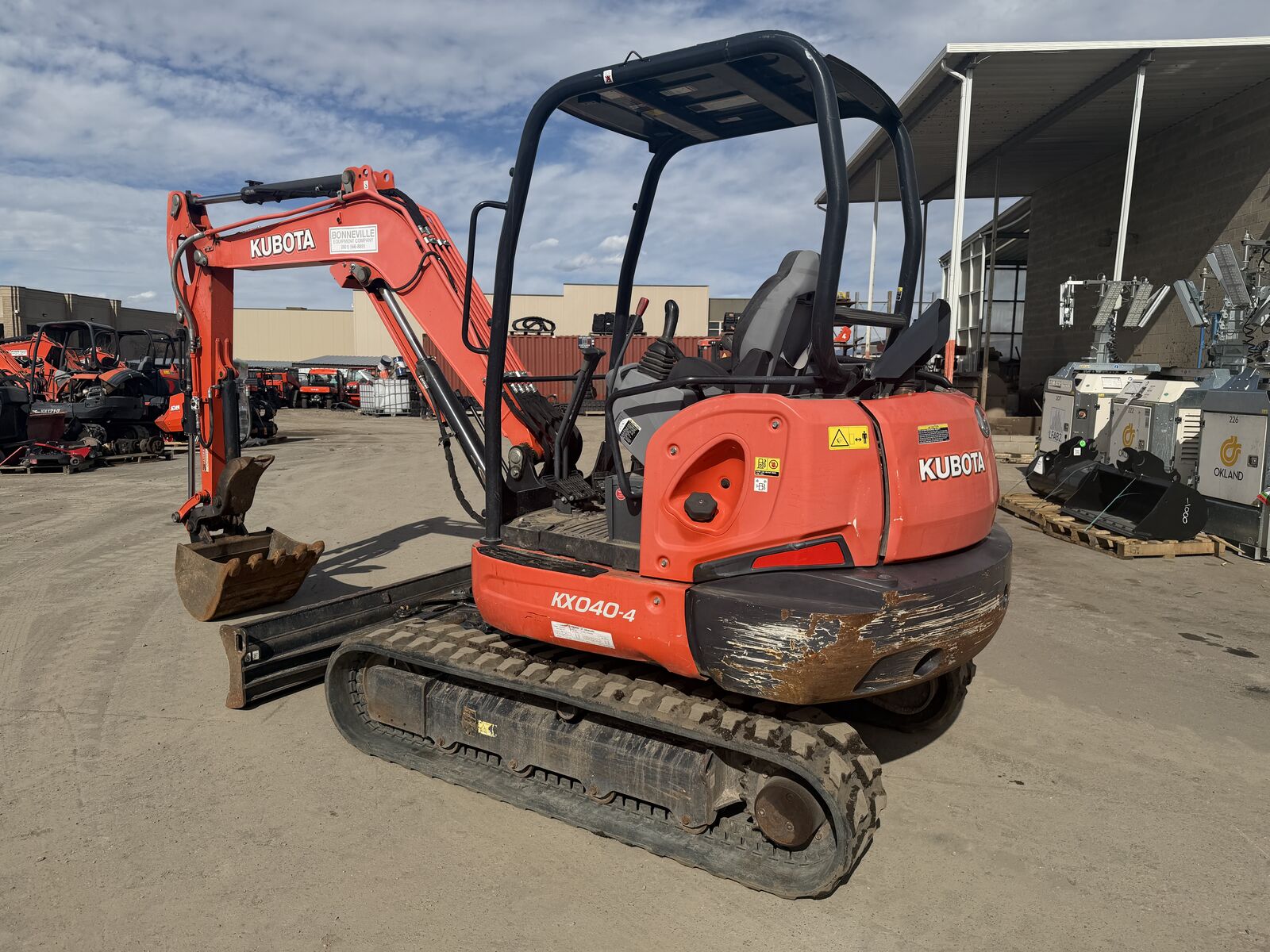

This 2018 KX040-4R1A features an open ROPS/FOPS operating station, hydraulic thumb, and angle dozer blade. Machine shows 2,089 hours and has fairly new rubber tracks installed. It has also just received a fresh Level 1 preventative maintenance service, making it job ready. A 24" trenching bucket is included with the machine. The bucket is usable but fairly worn and will likely need to be replaced in the near future depending on application. This is one of the most popular size excavators in its class and the Kubota line up, offering excellent power, smooth hydraulics, and easy transportability (under 10K pounds) while still providing strong digging performance. This KX040 size machine is ideal for contractors, landscapers, and utility crews needing a reliable 4 ton excavator without the added cost of a full cab. Please feel free to reach out for information on our financing options, or to schedule a time to see it in person.

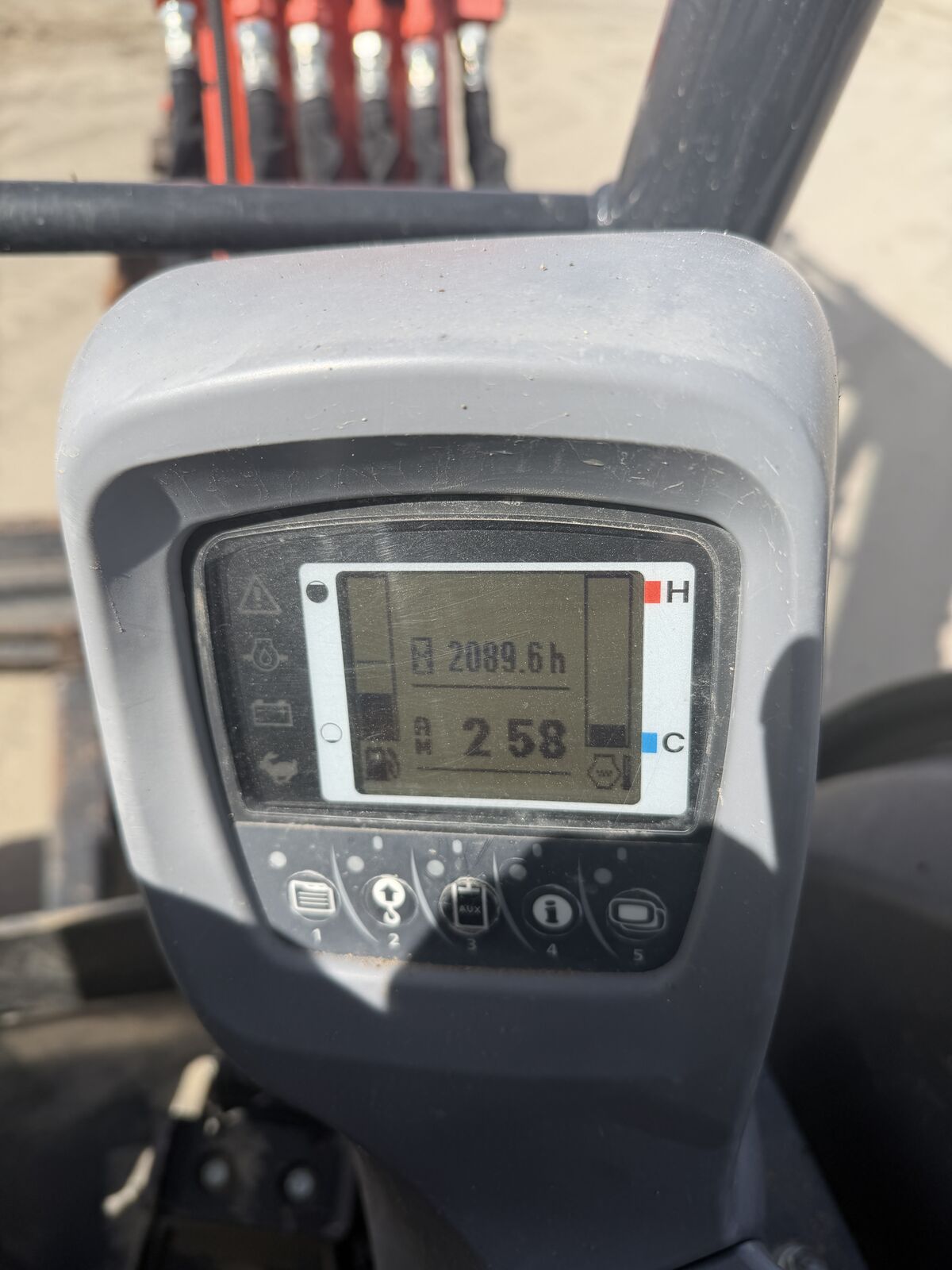

Key Features - Hours: ~2090

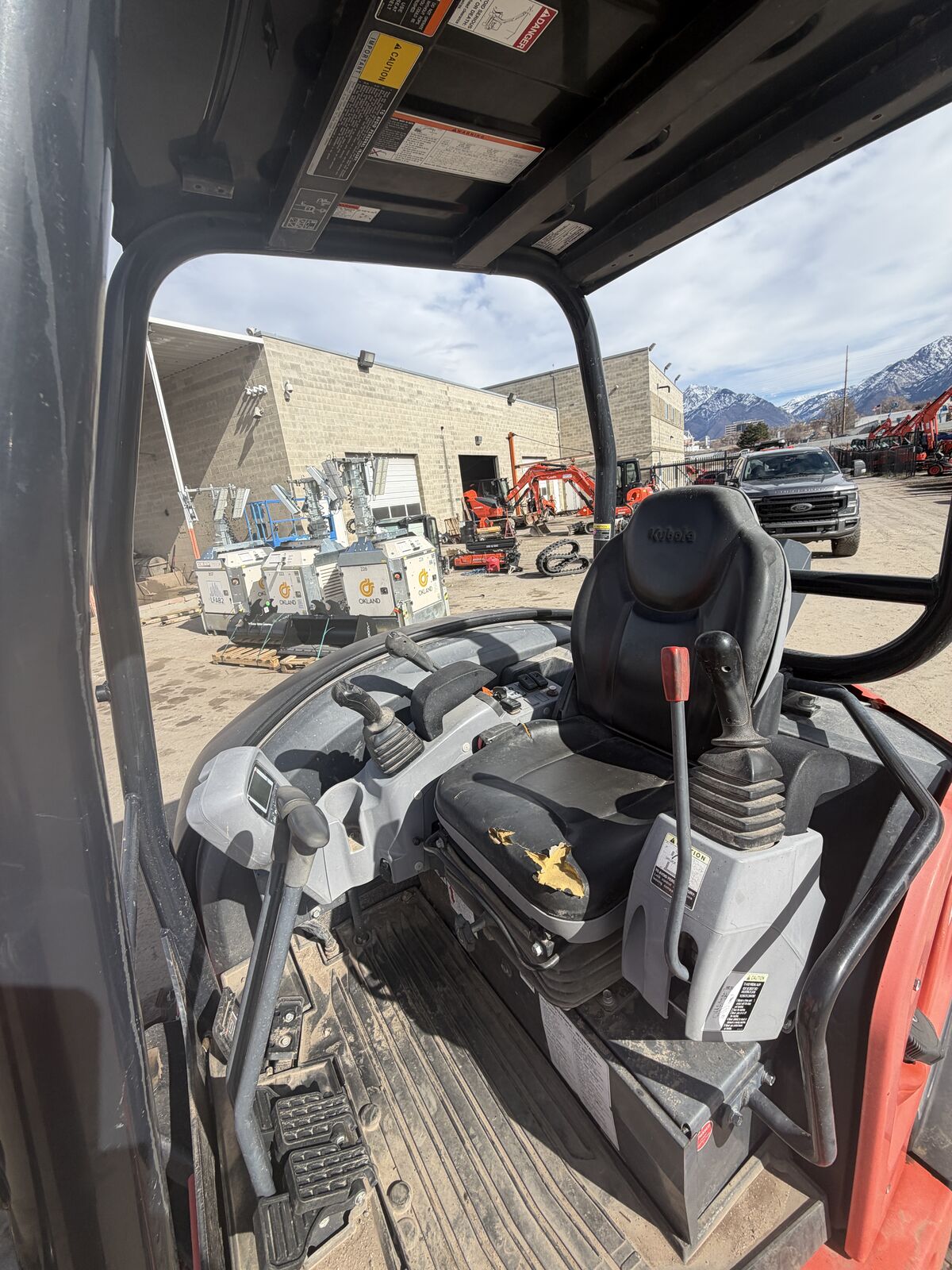

• Open ROPS/FOPS operating station
• Hydraulic thumb
• Hydraulic angle dozer blade
• 24 inch trenching bucket included
• Auxiliary hydraulics to the stick
• 2 speed travel
• Fairly new rubber tracks
• Fresh Level 1 preventative maintenance service completed

Factory Operational Specifications Dimensions & Operating Weight - Operating weight: 9,195 lbs

• Overall length: 16 ft 8.2 in
• Overall width: 5 ft 6.9 in
• Overall height: 8 ft 1.8 in
• Ground clearance: 12.9 in

Engine - Kubota D1803 DI CRS Turbo Tier 4 Diesel

• 3 cylinder, 4 cycle
• Gross horsepower: 40.4 HP @ 2,200 rpm
• Net horsepower: 38.9 HP @ 2,200 rpm

Operational Dimensions - Maximum digging depth: 11 ft 2.7 in

• Maximum digging radius at ground level: 17 ft 9.0 in
• Maximum vertical digging depth: 7 ft 4.8 in
• Maximum dumping height: 12 ft 9.5 in

Standard Dozer Blade Dimensions - Blade width: 66.9 in

• Blade height: 15.75 in
• Lift above ground: 15.17 in
• Drop below ground: 15.94 in

Performance - Bucket digging force: 9,535 lbs

• Dipper arm digging force: 4,112 lbs
• Travel speed low: 1.8 mph
• Travel speed high: 3.1 mph
• Climbing ability: 36 percent
• Lift capacity over front, blade grounded: 4,080 lbs
• Measured at 2.0 ft load point height and 8.0 ft load radius

Condition Notes - Fairly new rubber tracks in good condition

• 24 inch trenching bucket shows heavy wear
• Machine starts, runs, and operates properly
• Hydraulics responsive and smooth
• Cosmetic wear consistent with age and hours
• Fresh service completed including engine oil and filters

DISCLAIMER: This machine is sold "as-is where-is" with no warranty, hours may vary
