General

Manufacturer: Onkyo Model: M-5030, component of the overall system Onkyo MC-6000 Type: Stereo power amplifier Construction period: 1983 - 1987 Color: Black

Power consumption: 580 W max. Dimensions: 450 x 174 x 422 mm (WxHxD) Weight: 17.2 kg Original price approx.: 1'500 DM

Connections

Number of inputs: Line In: 1 V, 20 kOhm Number of outputs: Headphones: 8 Ohm 2 pairs of speakers

Technical Data

Continuous power (at distortion factor) 8 Ohm: 115 Watt 4 Ohm: 160 Watt Frequency response 1 Hz - 100.000 Hz + 0 - 3.0dB at full output power Total harmonic distortion max. 0.005% at nominal output power and 20Hz - 20,000Hz Impedance Ratio (A-weighted) 94 dB Input sensitivities and impedances 1V at 47 kOhm

Special Features

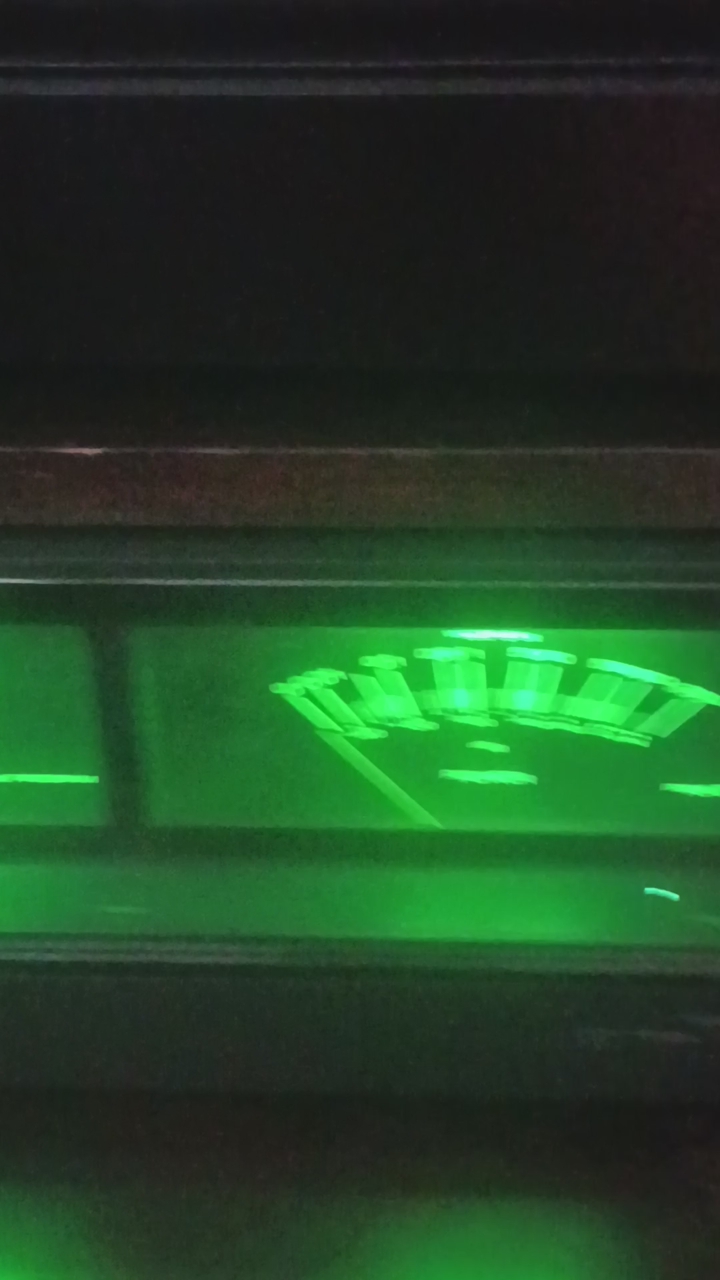

Completely channel-separated construction Two huge power transformers (dual mono) Four large electrolytic capacitors Two large VU meters Full-surface and tinted front panel made of real glass High quality, solid sheet steel cabinet Two speaker pairs switchable the britishes are barely noticeable to the eye. after having my amplifier valued ; I decided there's 750 price is truly Fair given the average selling price has been over $900 for this amplifier. it functiones flawlessly. it is truly one of the most powerful amplifiers I have ever owned . easily performs as well as my Carver t1500 .
