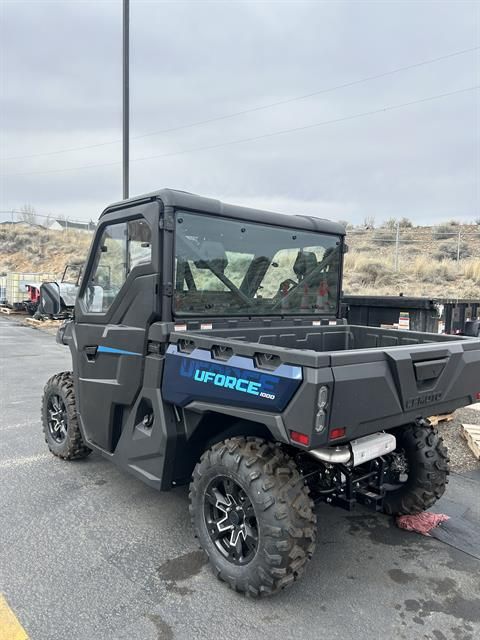

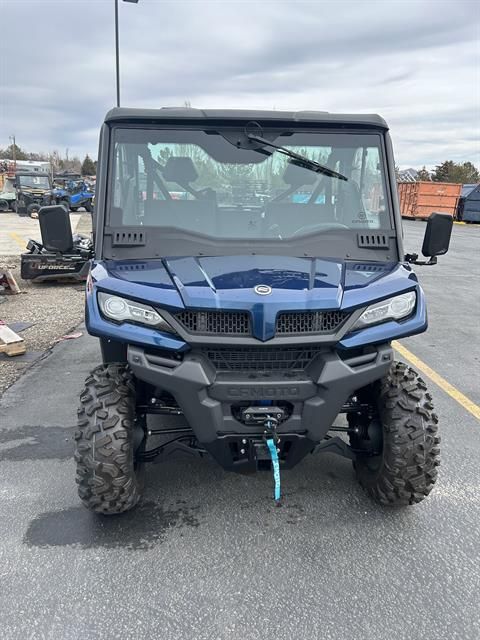

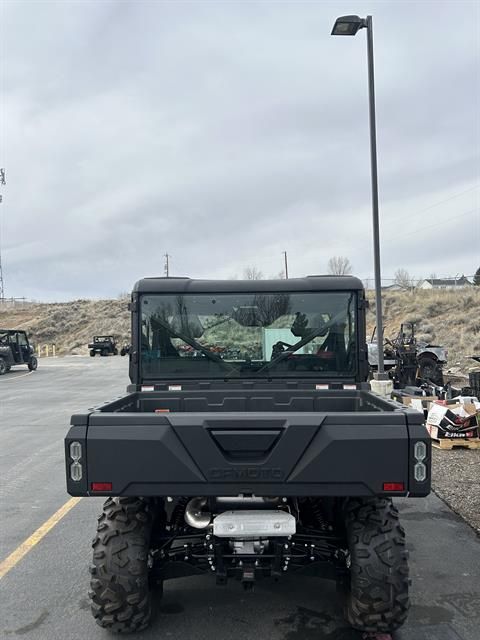

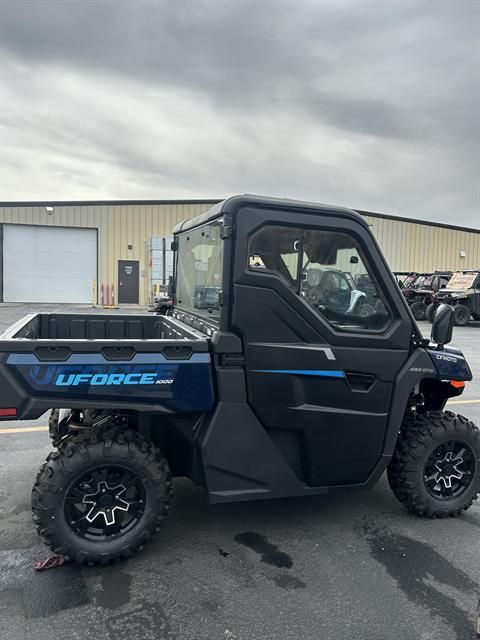

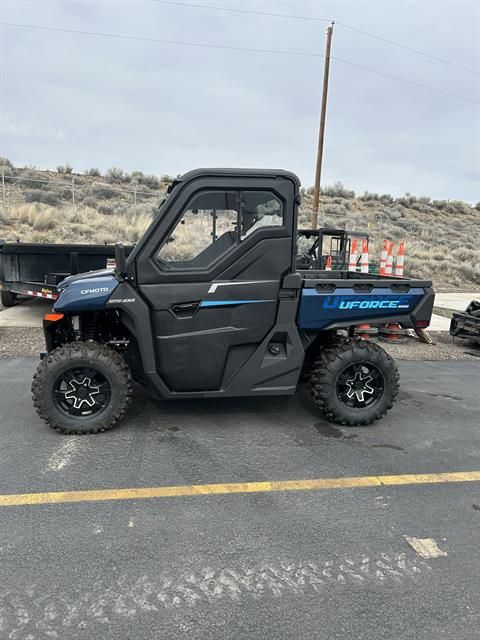

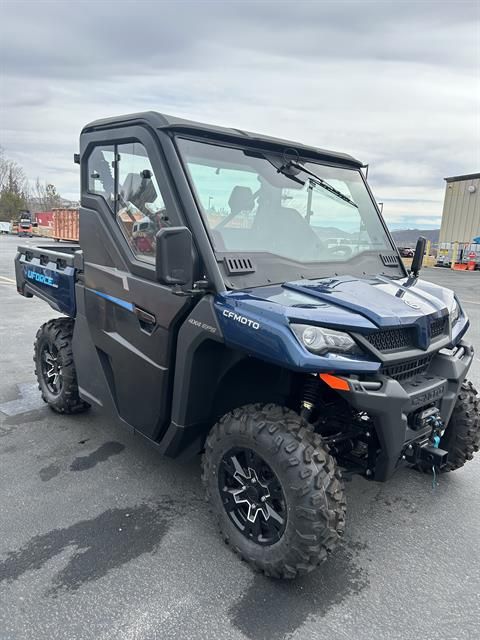

2025 CFMOTO UFORCE 1000

(MILES 5)

CUSTOMER ADDED, WINDHSILED, REAR PANEL, DOORS, SPARE TIRE.

ENGINE TYPE

V-Twin, liquid cooled, 4-stroke, SOHC, 8-valve

DISPLACEMENT

963cc

MAX POWER

71 HP @ 7000 RPM

MAX TORQUE

54 LB-FT @ 6500 RPM

FUEL SYSTEM

Bosch® EFI

COOLING SYSTEM

Liquid cooled

DRIVE

2WD/4WD/4WD lock

TRANSMISSION

CVTech® CVT P/R/N/H/L

CHARGING OUTPUT (Watts)

600W

DIMENSIONS & WEIGHTLENGTH X WIDTH X HEIGHT

116” x 63.5” x 73”

WHEELBASE

80.7”

DRY WEIGHT

1537 lbs.

GROUND CLEARANCE

11.4”

FUEL TANK CAPACITY

10.6 gal.

CARGO CAPACITY

1000 lbs.

TURNING RADIUS

13.4'

CHASSISSUSPENSION

Front: High clearance A-arm independent / Rear: Double A-arm independent

WHEELS

14” Cast Aluminum

TIRES

Front: 27” x 9” x 14” CST / Rear: 27” x 11” x 14” CST

SHOCKS

Spring preload adjustable, oil damped

BRAKES

4-wheel hydraulic disc with parking brake

WHEEL TRAVEL

Front 9” / Rear 9”

STANDARD EQUIPMENTHITCH/RECEIVER

2”

TOWING CAPACITY

2500 lbs. WINCH 3500 lbs.

ADDITIONAL FEATURES

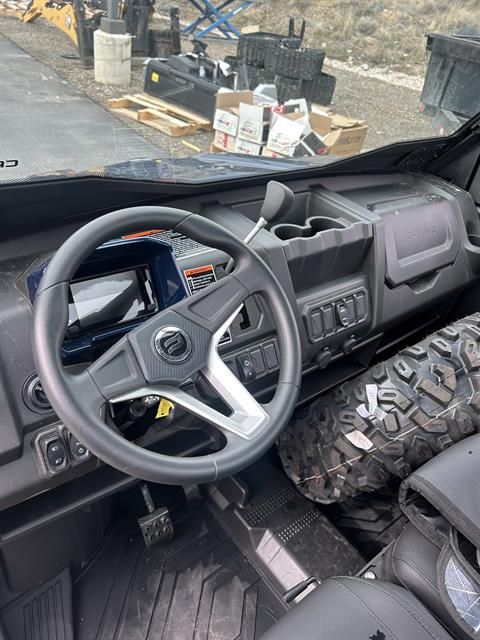

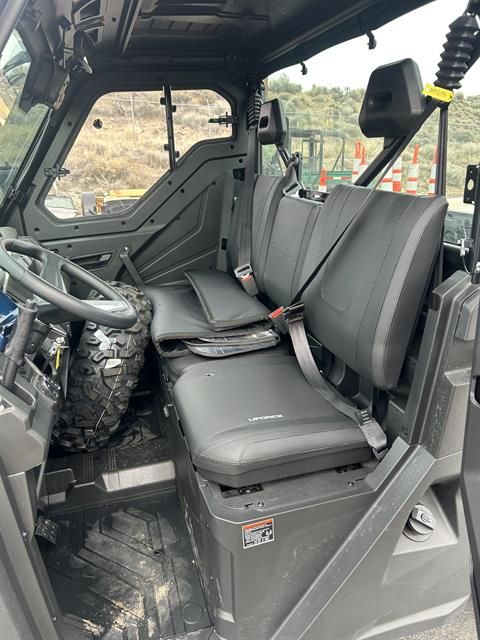

Electronic power steering, Bosch® electronic throttle with work/normal modes, 3500 lb. winch with synthetic rope, 3-person bench seat, dual drive modes, 5” TFT display, CFMOTO RideSync app compatible (T-Box), 12V outlet, USB port, side mirrors, side nets, LED headlights/taillights with back up lights, tilt steering, roof, skid plate, rear sway bar, locking rear differential, large 10.6 gal. fuel tank, 2” receiver, adjustable driver’s seat, under-seat storage area, removable storage box, front bumper

COLORS

Nebula Black, TrueTimber® Kanati, Twilight Blue
