Vestil E-4836 Aluminum Dock Plate
4 Days
19
3
$50.00
Description
Condition
Payment Types Accepted

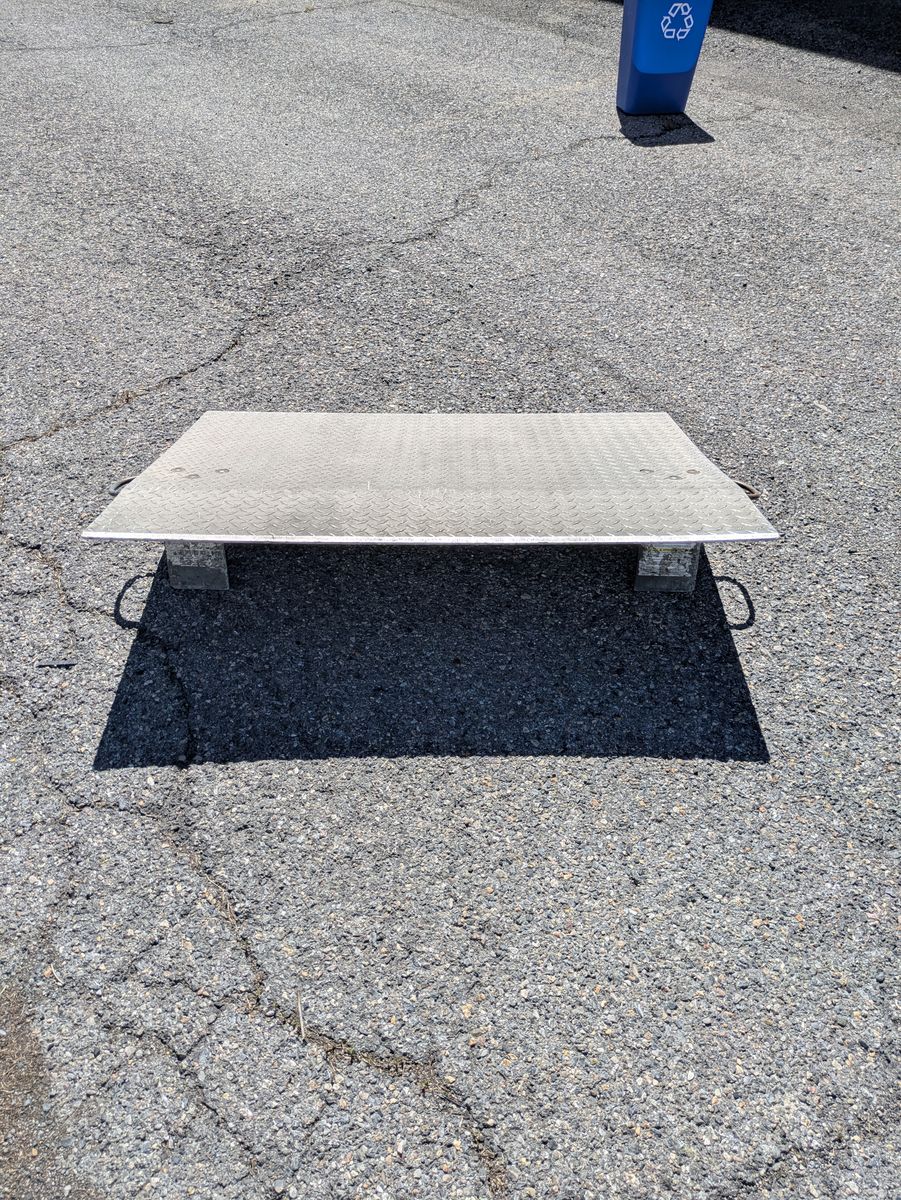

VenmoWe just put a ramp in at our dock and have no use for this dock plate. Let me know if you have any questions. Description below is direct from Vestil. Asking $50

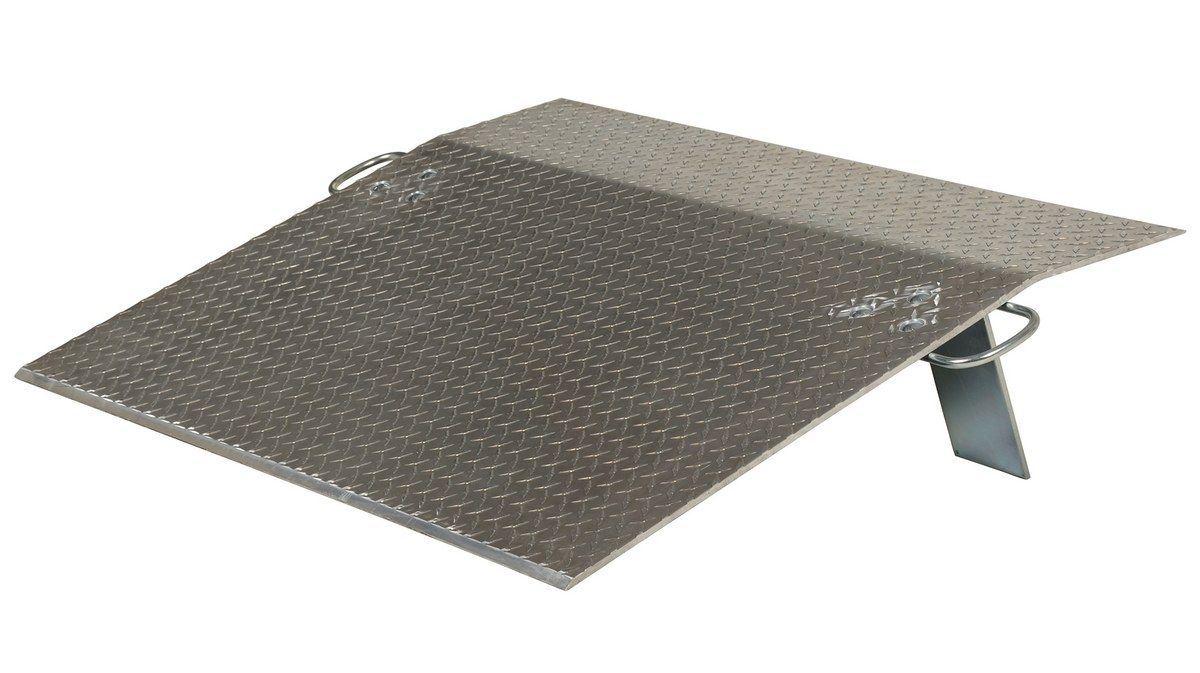

The aluminum economizer dock plate is an economical way to speed up truck loading and unloading. The unit spans the opening between dock and trailer to allow pallet or hand trucks along with traffic to safely move in and out of the trailer. The dock plate is constructed of high strength, non-skid aluminum alloy tread plate. The lightweight design with bolt on zinc plated legs and handles on each side makes portability easy. Locking legs for OSHA compliance. Not for use with fork trucks.

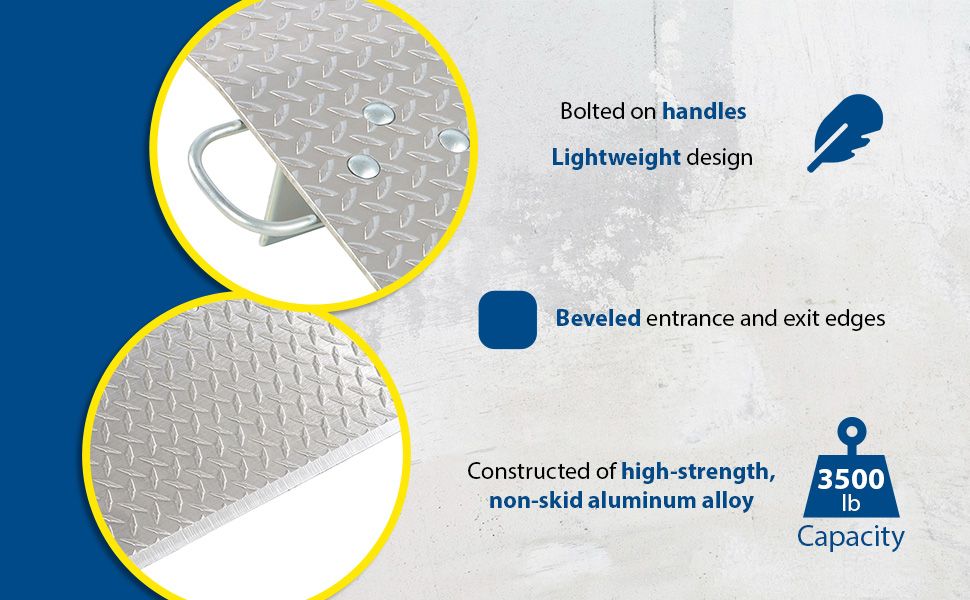

- Sturdy design is ideal for foot traffic, hand trucks and pallet trucks (not for use with fork trucks)
- High-strength aluminum tread plate material is durable yet lightweight
- Zinc-plated locking legs and lifting handles are OSHA compliant
- Beveled entrance and exit edges allow for smoother transition

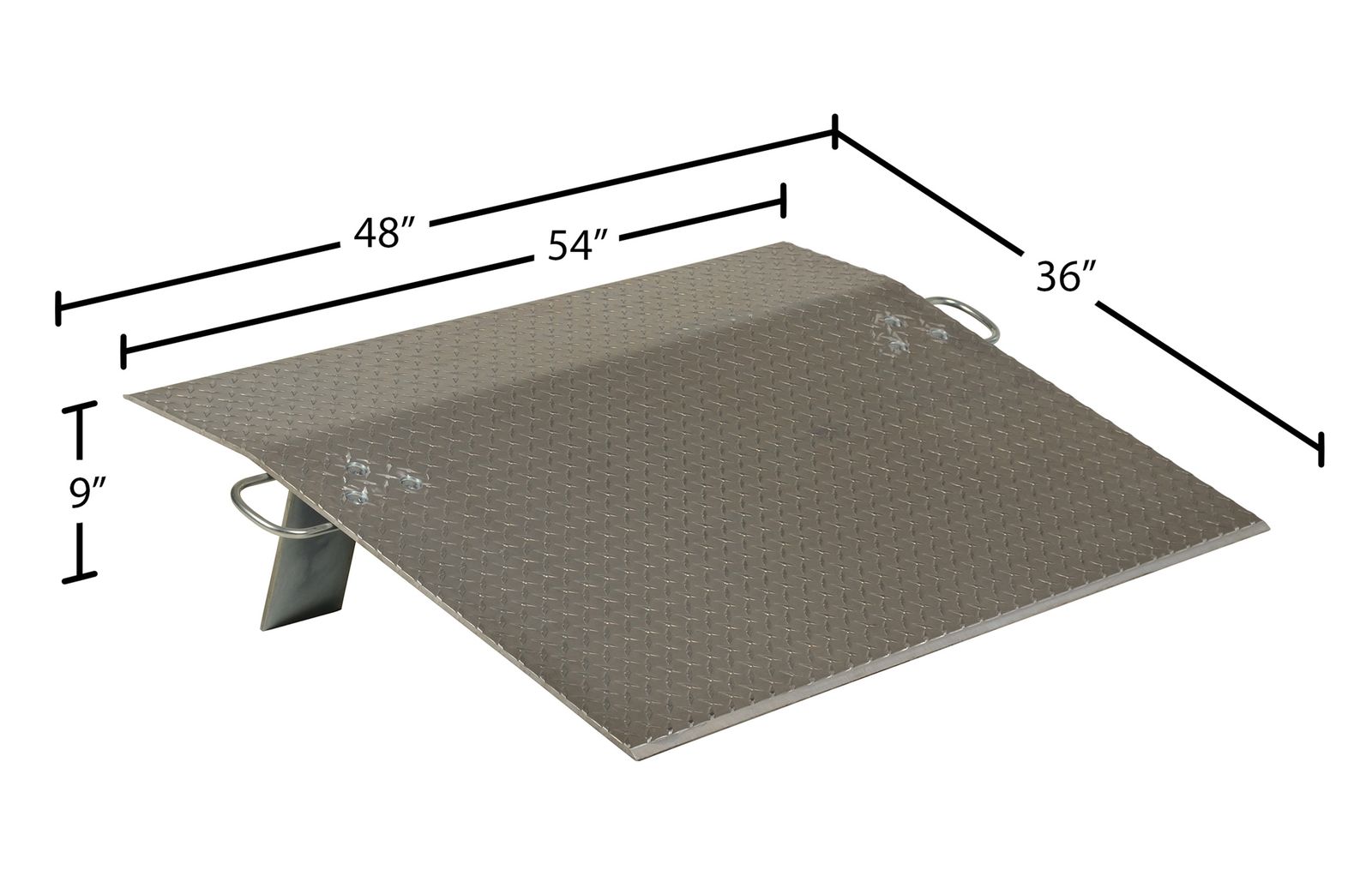

Assembled Wt.(lbs.): 61 Assembled Size: 54"W x 36"L x 9.375"H
Uniform Capacity (lb.): 3500Bend or Crown (degrees): 11Distance Between Bend or Crown From Dockplate Edge (in.): 9Usable Width (in.): 48Usable Length (in.): 36Plate Thickness (in.): 3/8Height Difference Between Truck and Door (in.): 5Leg Height (in.): 9OSHA: 1910.30(a)ANSI: MH 30.2
