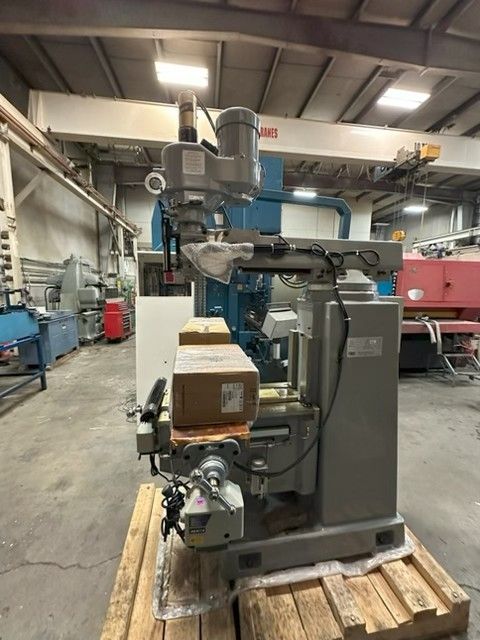

Specifications:

Table Size: 10″ X 54″

T-Slots: 3 x 0.625″ x 2.5″

X Axis Travels: 39″

Y Axis Travels: 16.3″

Z Axis Travels (Quill): 5″

Main Motor: 3 HP

Ram Travel: 18.5″

Knee Travel: 15.3″

Throat Distance: 9.6″ ~ 28.1″

Spindle to Table Top: 5.31″ ~ 20.7″

Spindle Nose: R-8 or #30 NST

Spindle RPM: 60 – 4,500 RPM

Quill Feeds: 0.0016″/0.0031″/0.0063″

Voltage: 230/460V AC ~ 3 PH

Standard Equipment:

Quill Heat Treated, Hardened & Chromed

One Shot Lubrication

Emergency Stop

Meehanite Casting

Dual Cooling Fans
