VenmoThis system has only been used for family events and jamming in the basement--no professional use. It is in excellent condition.

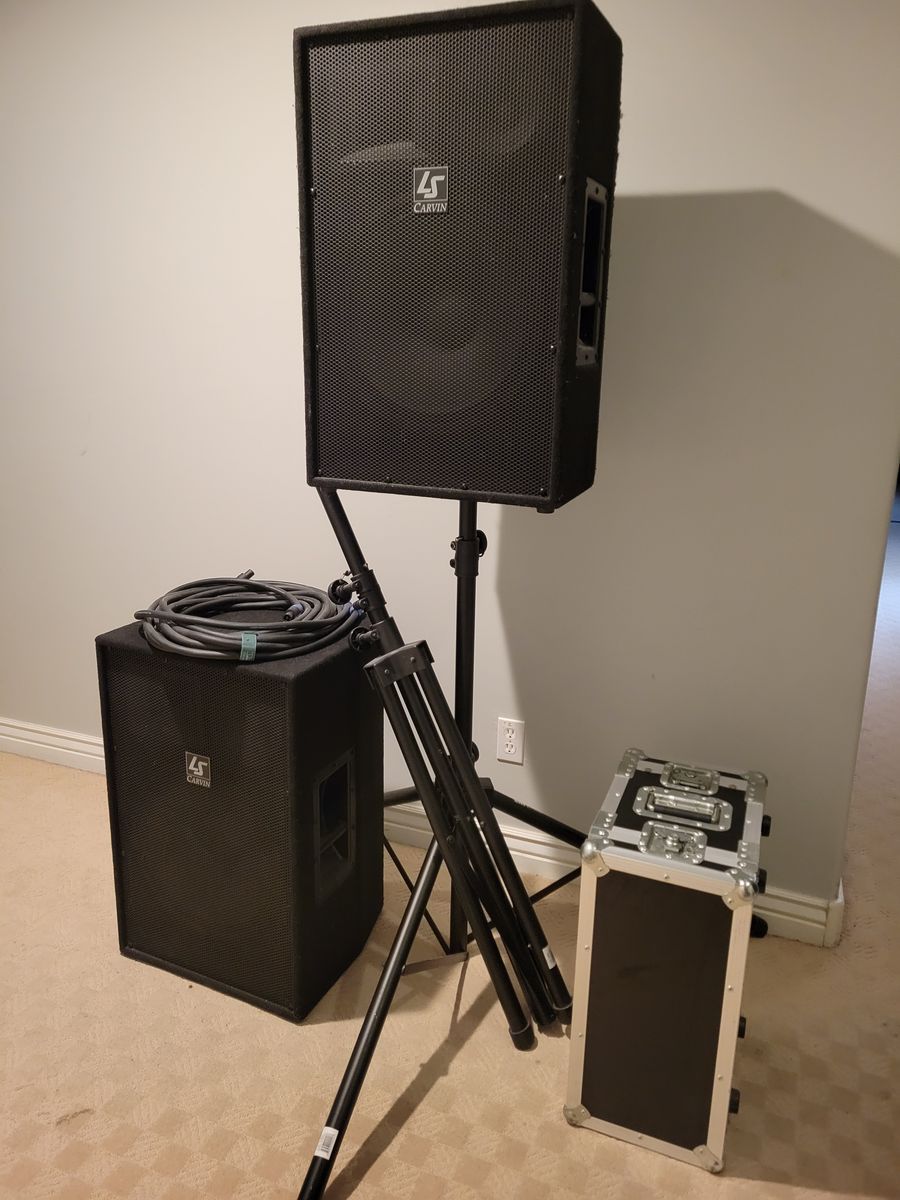

Includes everything in the photos: Carvin RX1200 mixer/amp, Carvin LS1503 3-way speakers, ProLine speaker stands, and 2 25-foot heavy gauge SpeakON cables.

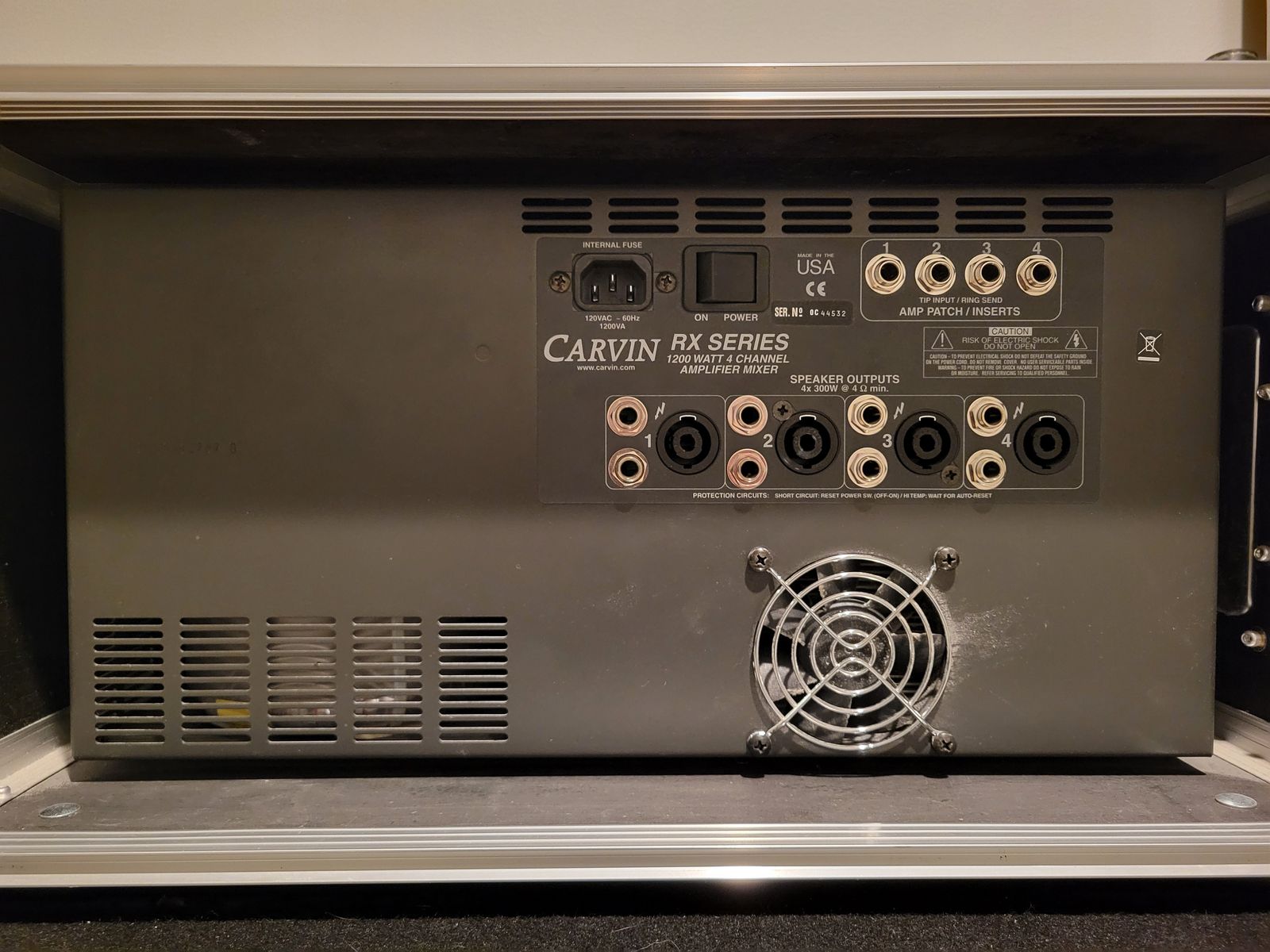

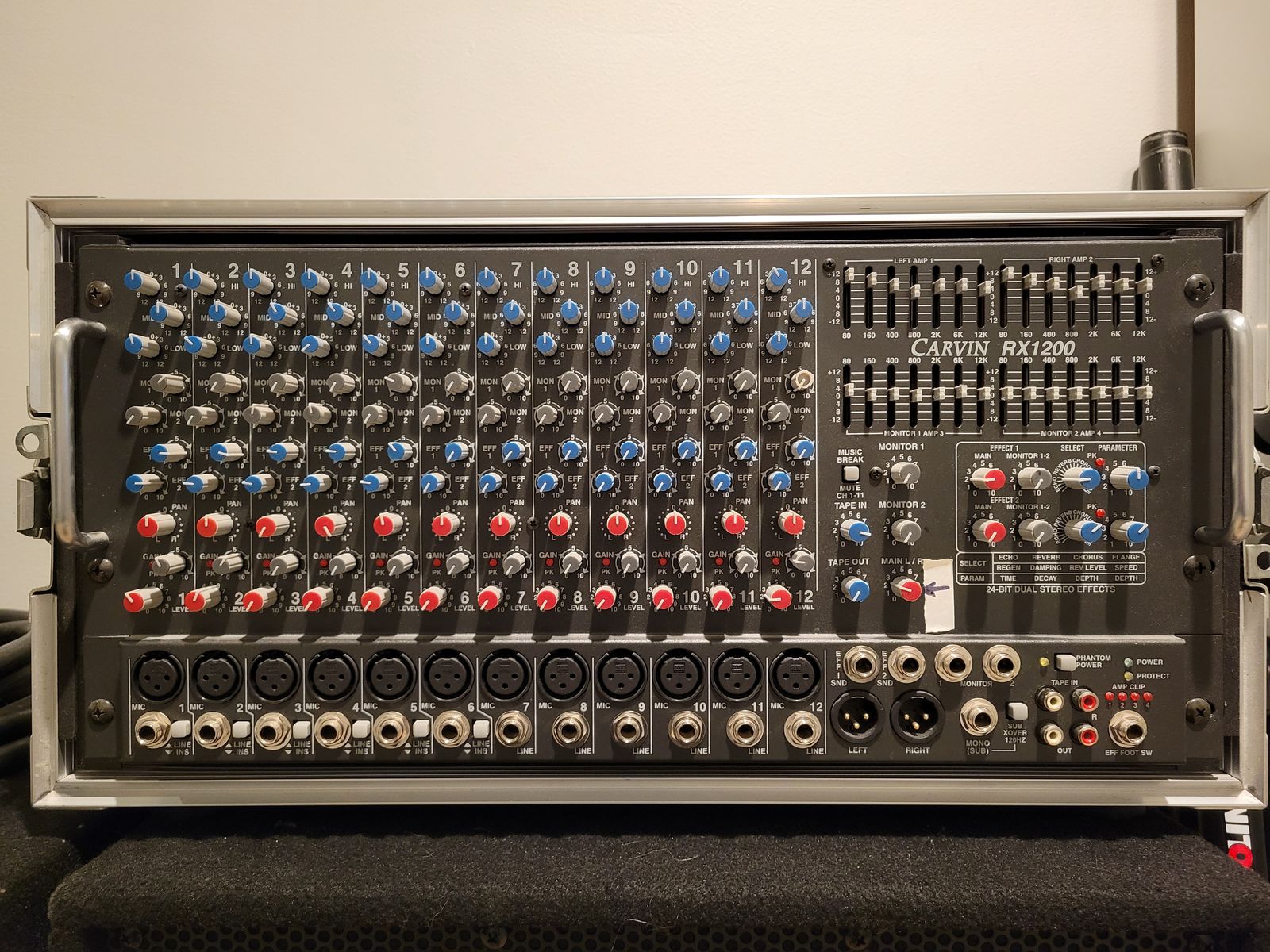

RX1200 Mixer/Amp:
4 HIGH CURRENT AMPLIFIERS deliver 300 watts RMS at 4 ohms each. A total of 600 watts is delivered to your main speakers (300 watts each for the R/L if played in stereo), plus two 300 watt amps to drive your stage monitors for a total of 1200 watts. This is the kind of output required for today''s professionals to maintain purity and integrity of sound. Six output jacks, two for each amp, deliver full power into 4 ohms instead of 2 ohms, making this mixer more powerful than most amplifiers rated at 2 ohms. A peak indicator for each amp and a protect LED provide visual monitoring.
RX1200 power: 4ohm: 300/300/300/300w
8ohm: 150/150/150/150w
Freq. response: 20—20k Hz ±1 dB
THD distortion: less than .01%
Gain: 50 dB
Common mode rejection: -78db AT 1KHzbr> Graphic EQ: 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16k
EQ Section:
HI ±12 dB @ 11.5k Hz
MID ±12 dB @ 750 Hz
LOW ±12 dB @ 80 Hz
Covering: RoadWarrior™ case
Dimension: 19W x 8D x 8.75H
Weight: 30 lbs
Dimension with case: 21.5W x 15.5D x 11H
Weight: 50.5 lbs
Power: 120V 60 Hz, optional 240V 50 Hz
24-bit DSP includes:
PEAK indicator
Master level control
Effect control
Parameter control
Effects: Echo, Reverb, Chorus, Flange
LS1503 SPEAKERS:
The LS1503 is our premier 3-way system that delivers studio quality sound to the audience. The added mid frequency 6-inch driver enhances the clarity and throw of the mid frequencies leaving the 15-inch woofer and 1-inch exit 1.5-inch diaphragm titanium HF driver to work in their optimum frequency ranges. The enclosure is constructed of CNC machined multi-ply Hardwood with heavy gauge steel powder coated font grills. The crossover includes 4 pin NL4 Speakon and 1/4" connectors mounted on FR4 double sided circuit boards for solid construction and durability. Carvin's exclusive Speaker Guard™ HF Driver protection uses a self resetting relay circuit to dim the HF driver 10 dB protecting the voice coil from excessive power. The benefits are the driver is not turned off losing all the high frequencies, the circuit resets as soon as the high frequency content is back to normal levels.
System Type: 15-inch 3-Way, bass-reflex
Frequency Response: 46 Hz - 20 kHz (-10DB); 52 Hz - 18 kHz (-3 dB)
Coverage Pattern: 90H x 60V
Crossover: 3-Way with Speaker Guard™ HF protection
Crossover Frequency: 500 Hz & 3.3 kHz
Power: Full Range 400w continuous /800w program /1600w peak
Recommended Amplifier Power: 450 - 900w
Sensitivity (1w @ 1m): 101dB
Maximum SPL: 130dB
LF Driver: 15-inch woofer
MF Driver: 6-inch woofer
HF Driver: 1-inch titanium
Nominal Impedance Full Range: 8 ohms
Bi-amp LF: 8 ohms 400w /800w /1600w
Bi-amp MF/HF: 8 ohms 200w /400w /800w
Enclosure: 18mm Multi-Ply Hardwood
Suspension/Mounting: 1-3/8-inch pole mount cup
Finish: Black DuraTuff™
Transport: 2 Recessed Handles
Grill: Black Powder-Coated Steel
Connectors: Two NL-4 Neutrik Speakons, Two1/4" phone jacks
Dimensions: 730mm (28.75") high, 480mm (18.75") wide, 380mm (15") deep
Net Weight: 26.4 kg (58 lbs)
