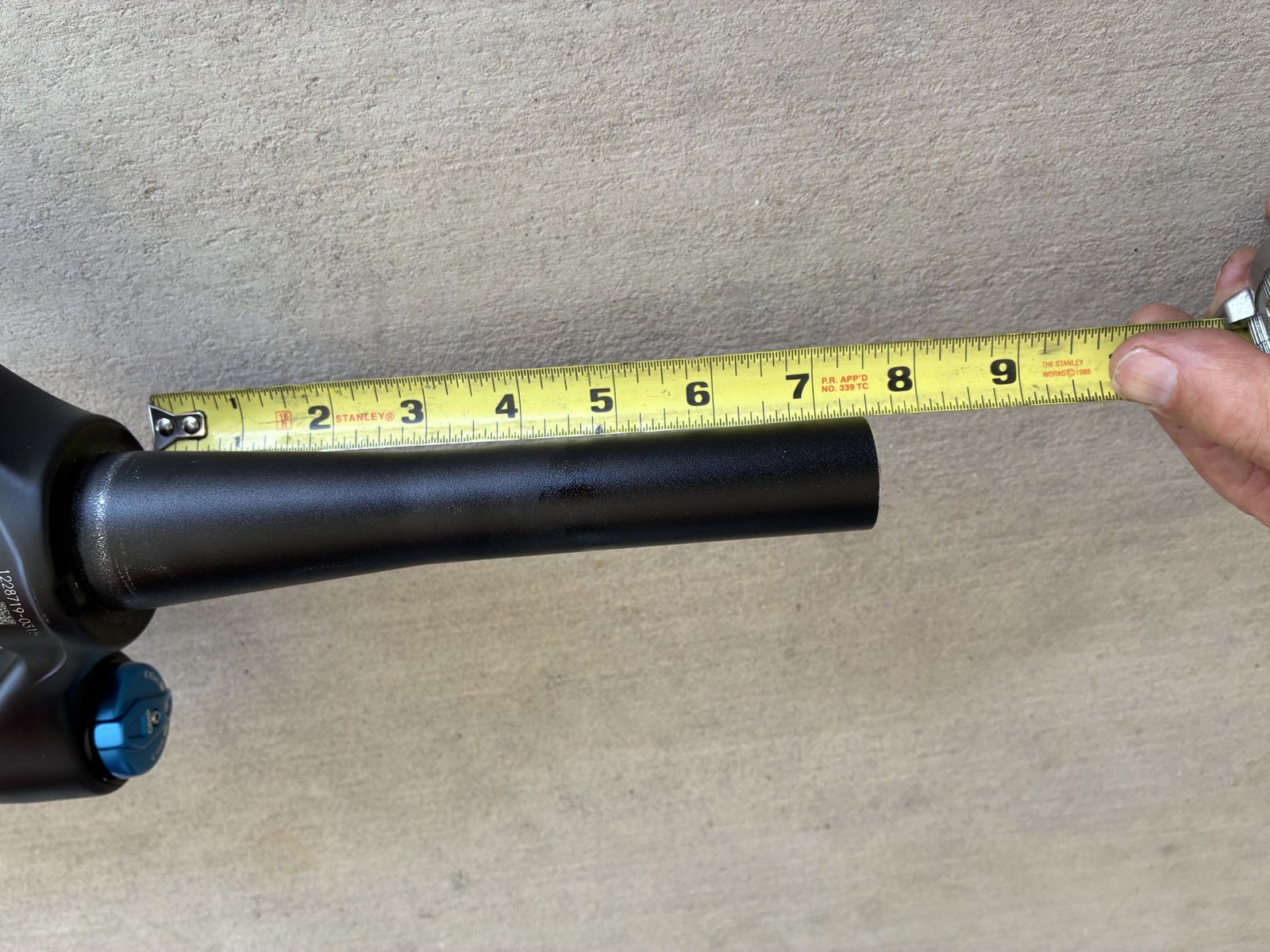

New bike take off Steertube length7 1/2"

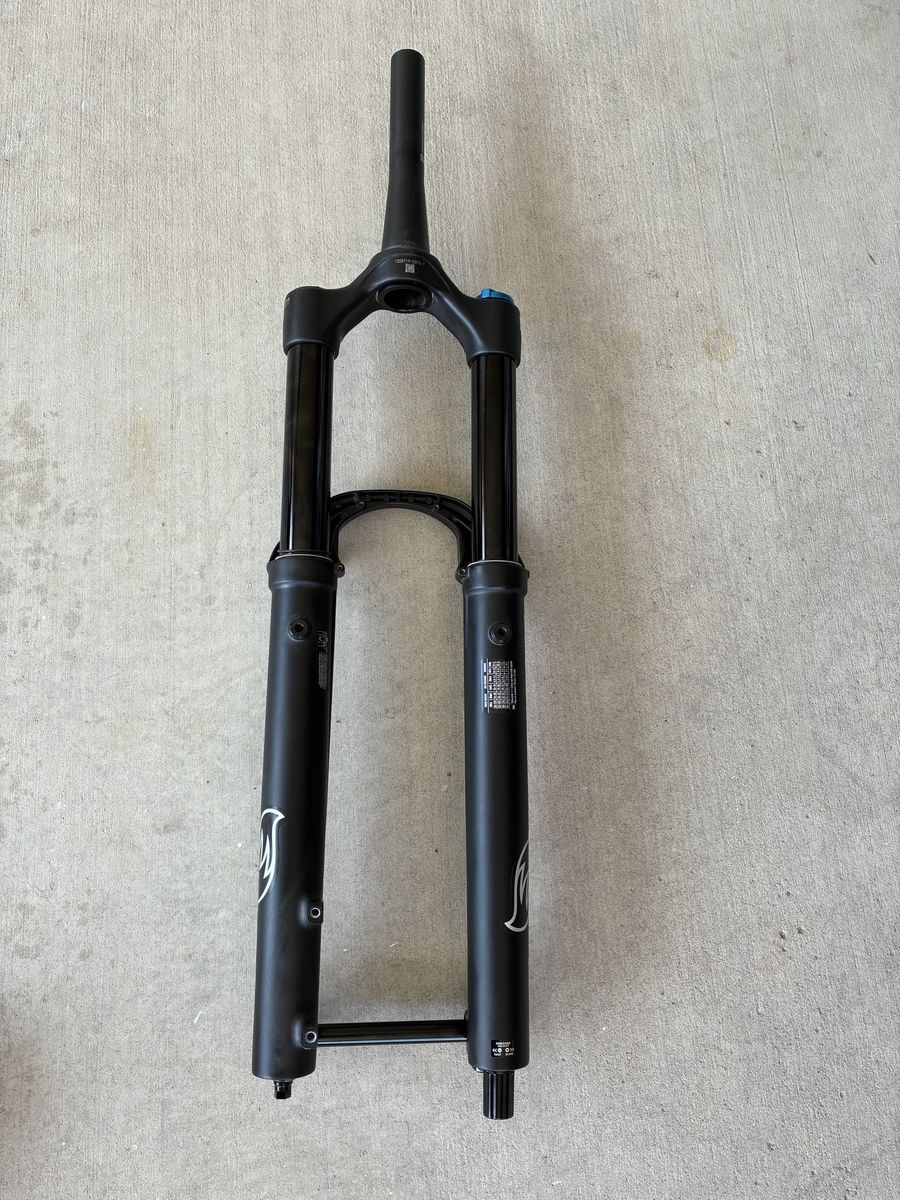

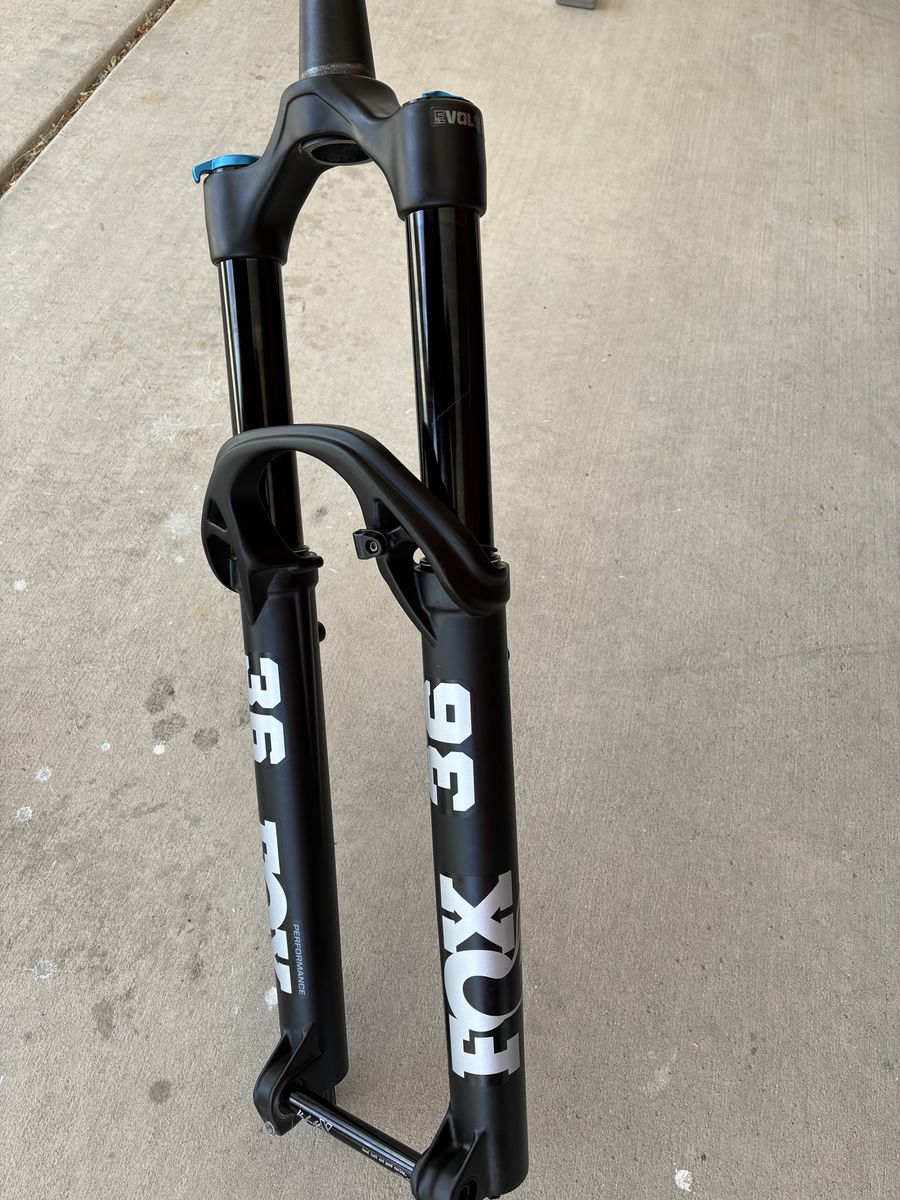

FOX 36 Performance Suspension Fork - 29", 160 mm, 15QR x 110 mm, 44mm Offset, GRIP Damper

Packed with features to dominate the descents, the 36 Performance answers the call from aggressive all-mountain riders. This fork features a GRIP 3-position damper, adjustable FLOAT air spring, and rebound adjust.

• GRIP damper features a 3-position lever for easy set up and firm mode for pedaling efficiency
• Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
• Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
• New compliant FLOAT EVOL air spring design allows for a slight misalignment under load, reducing chassis friction noticeably
• Lower leg bypass channels were relocated 90 inboard to a lower stress area, reducing dynamic friction under bending forces
• Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase
• New air spring top cap for easier air volume adjustments, removable with cassette tool (Sold separately)
• Redesigned bleeders are sleeker and easier to operate
• Kabolt X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
• Black anodized upper tubes for added durability
• SpecificationsAxle to Crown Length576Brake TypePost Mount 200ColorMatte BlackCrown Race40Defined ColorBlackExternal AdjustmentsHigh Speed Compression DampingExternal AdjustmentsLow Speed Compression DampingExternal AdjustmentsRebound DampingFront Axle15mm Thru x 110mmkeyword searchFOX Model Year 26 , FOX MY26Lockout SwitchCrownMaximum Tire Width66Negative SpringAirOffset44Positive SpringAirS.H.I.S. Stem Clamp Diameter28.6Stanchion Diameter36Steerer Tube Length (mm)264Steerer TypeTaperedTravel (mm)160Wheel Size29"
