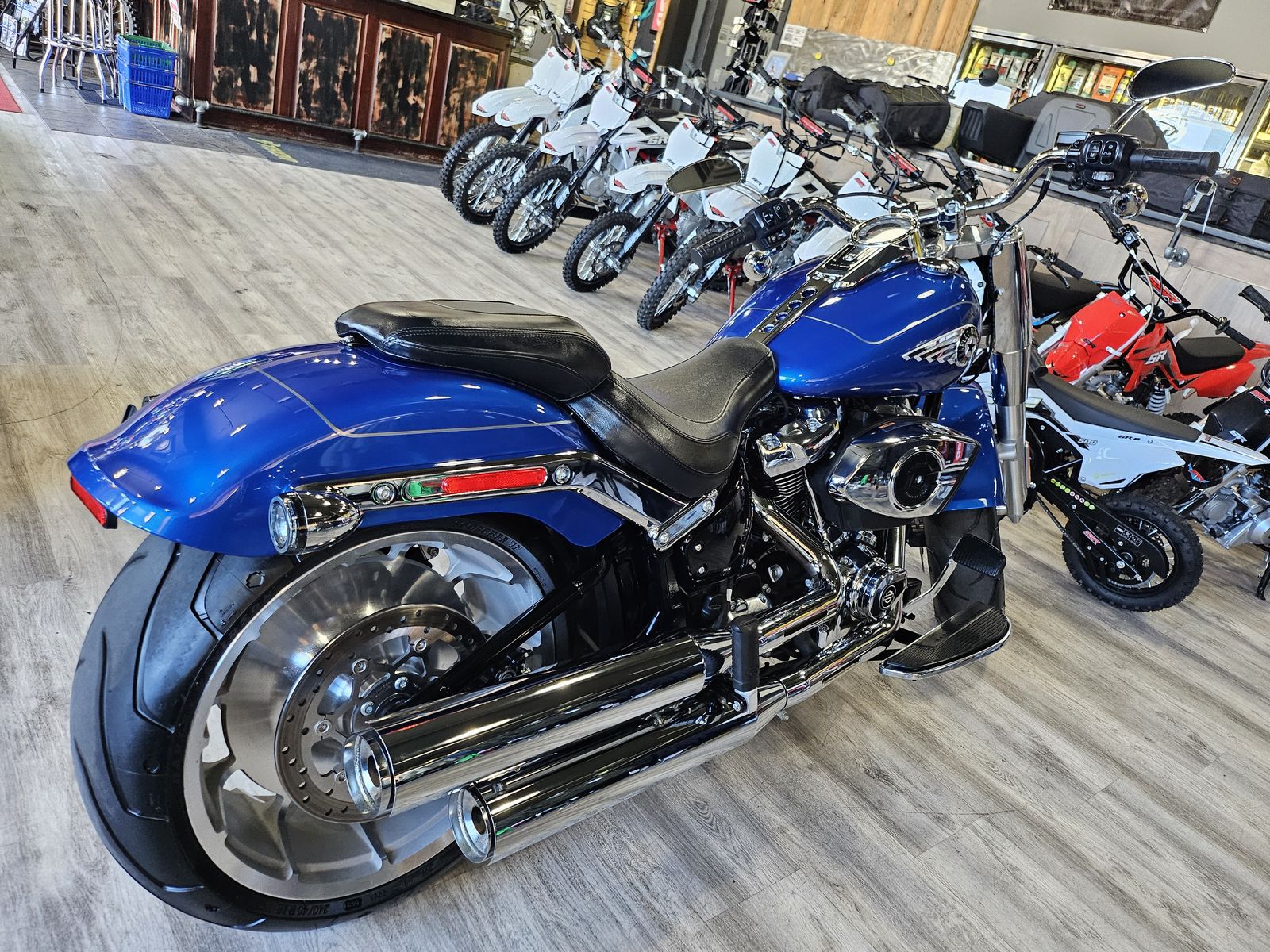

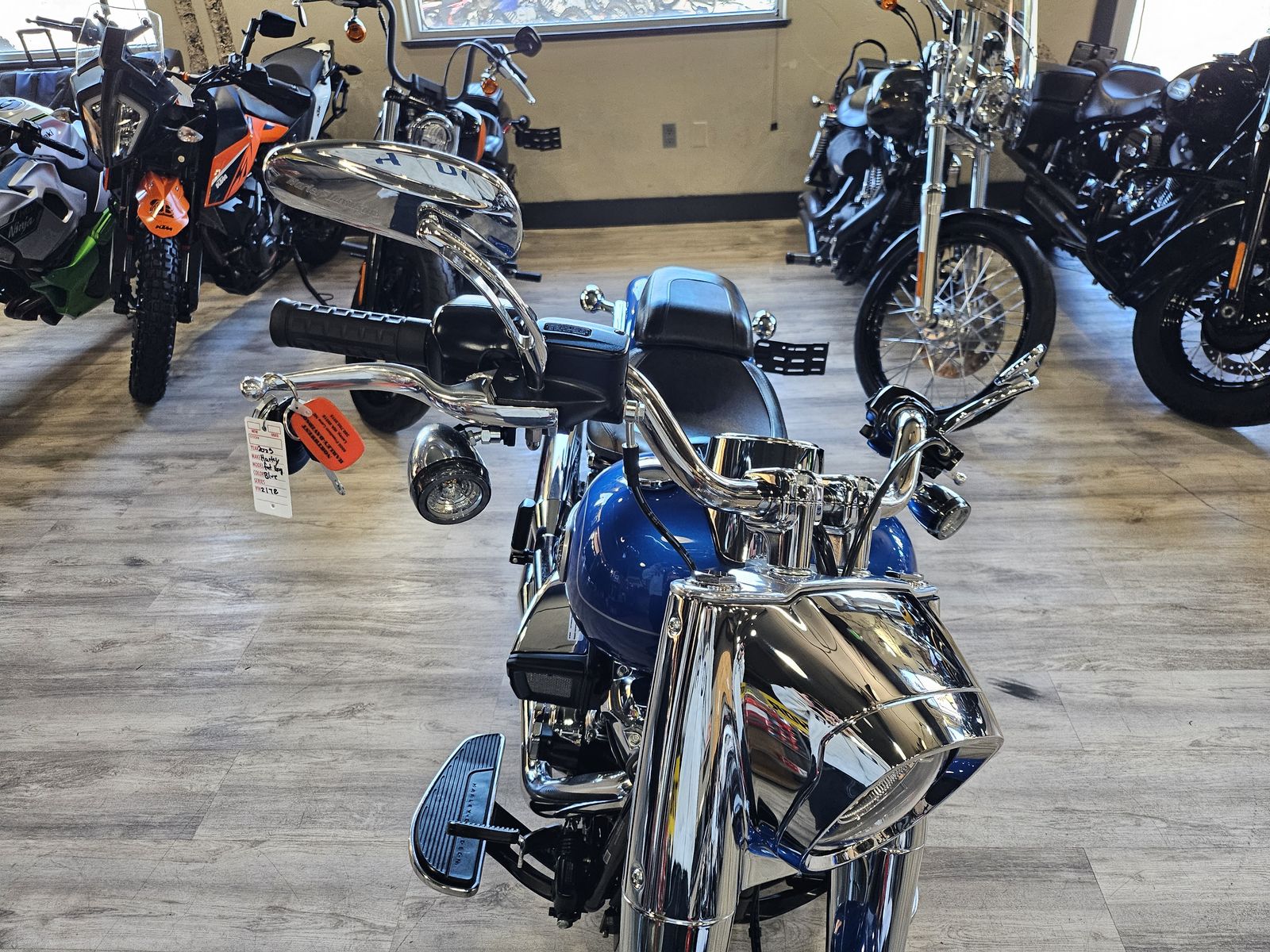

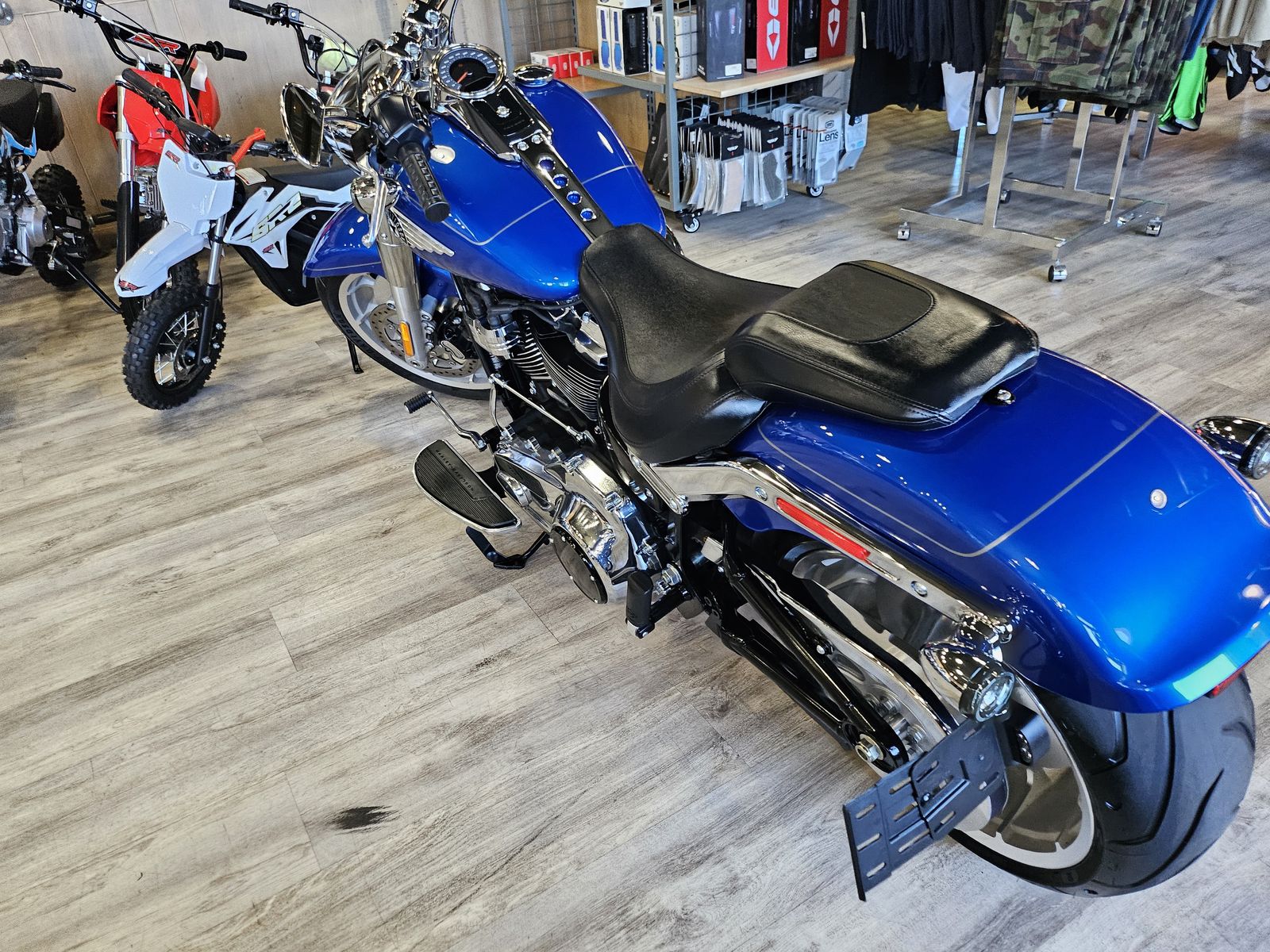

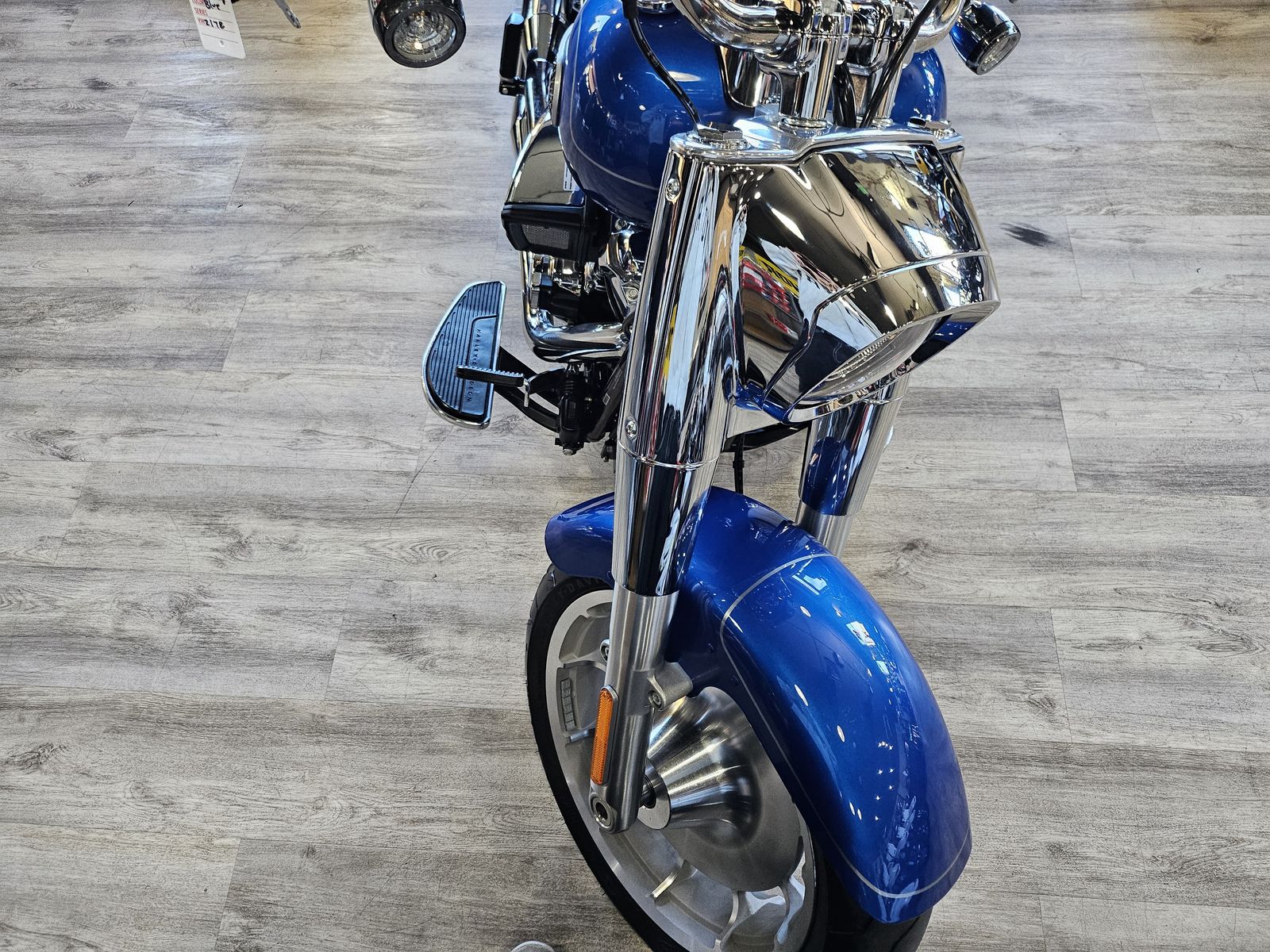

Manufacturer: Harley-Davidson

Model Year: 2025

Model: Fat Boy®Model

Code: FLFB

Stock Number: HAR012178

Color: Blue Burst

Brakes/Wheels/Tires

Brakes

Front Caliper Type - 4-piston fixed

Rear Caliper Type - 2-piston floating

Front / Rear Rotor Type - Silver, Split 7-spoke floating

Front Diameter - 11.8 in. (300 mm)

Rear Diameter - 11.5 in. (292 mm)

Front Thickness - 0.2 in. (5 mm)

Rear Thickness - 0.23 in. (5.8 mm)

Anti-lock Brake System (ABS), Traction Control System (TCS), Cornering Enhanced Anti-lock Brake System (C-ABS), Cornering Enhanced Traction Control System (C-TCS)

Wheels

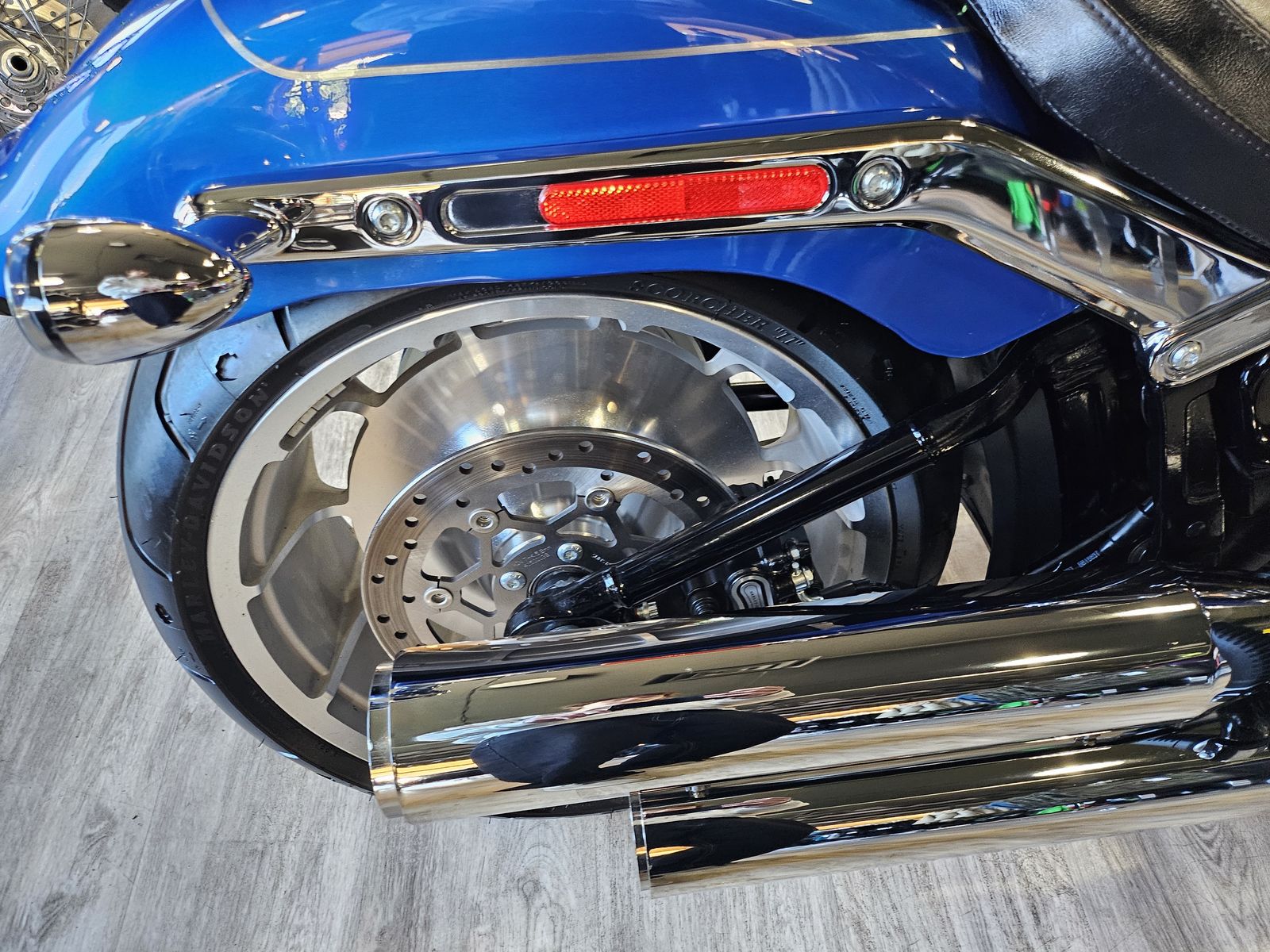

Front / Rear - Machined, Lakester cast aluminum3

Front / Rear Diameter - 18 in. (457 mm)

Front Width - 4.5 in. (114 mm)

Rear Width - 8 in. (203 mm)

Tires

Front / Rear Type - Michelin® Scorcher 11

Front - 160 / 60R18, 70V, BW

Rear - 240 / 40R18, 79V, BW

Front / Rear Model - Scorcher 11

Tire Pressure Monitoring System (TPMS)

Dimensions

Length: 93.1 in. (2,365 mm)

Height: Overall - 44.1 in. (1,120 mm)

Width: 40 in. (965 mm)

Weight

As Shipped - 668 lb. (303 kg)

In Running Order - 694 lb. (315 kg)

Gross Vehicle Rating - 1,175 lb. (533 kg)

Gross Axle Rating, Front - 450 lb. (204 kg)

Gross Axle Rating, Rear - 760 lb. (345 kg)

Ground Clearance

Static - 4.9 in. (125 mm)

Lean Angle Testing Method - J1168

Right / Left Lean Angle - 25.6°

Wheelbase: 65 in. (1,650 mm)

Seat Height

Laden - 25.9 in. (658 mm)

Unladen - 26.6 in. (675 mm)

Drivetrain

Transmission

6-Speed Cruise Drive®

Capacity - 1 qt. (0.95 l)

Primary Drive: Chain, 34/46 ratio

Final DriveBelt, 32/66 ratioChainPrimary Case Capacity - 1.43 qt. (1.35 l)

Electrical

Battery

Sealed, maintenance-free, absorbed glass mat (AGM), 12V, 17.5Ah, 310 CCA at 0°F

Charging - Three-phase, 48A system (364W @13V, 900 rpm, 624W max power @ 13V, 2,000 rpm)

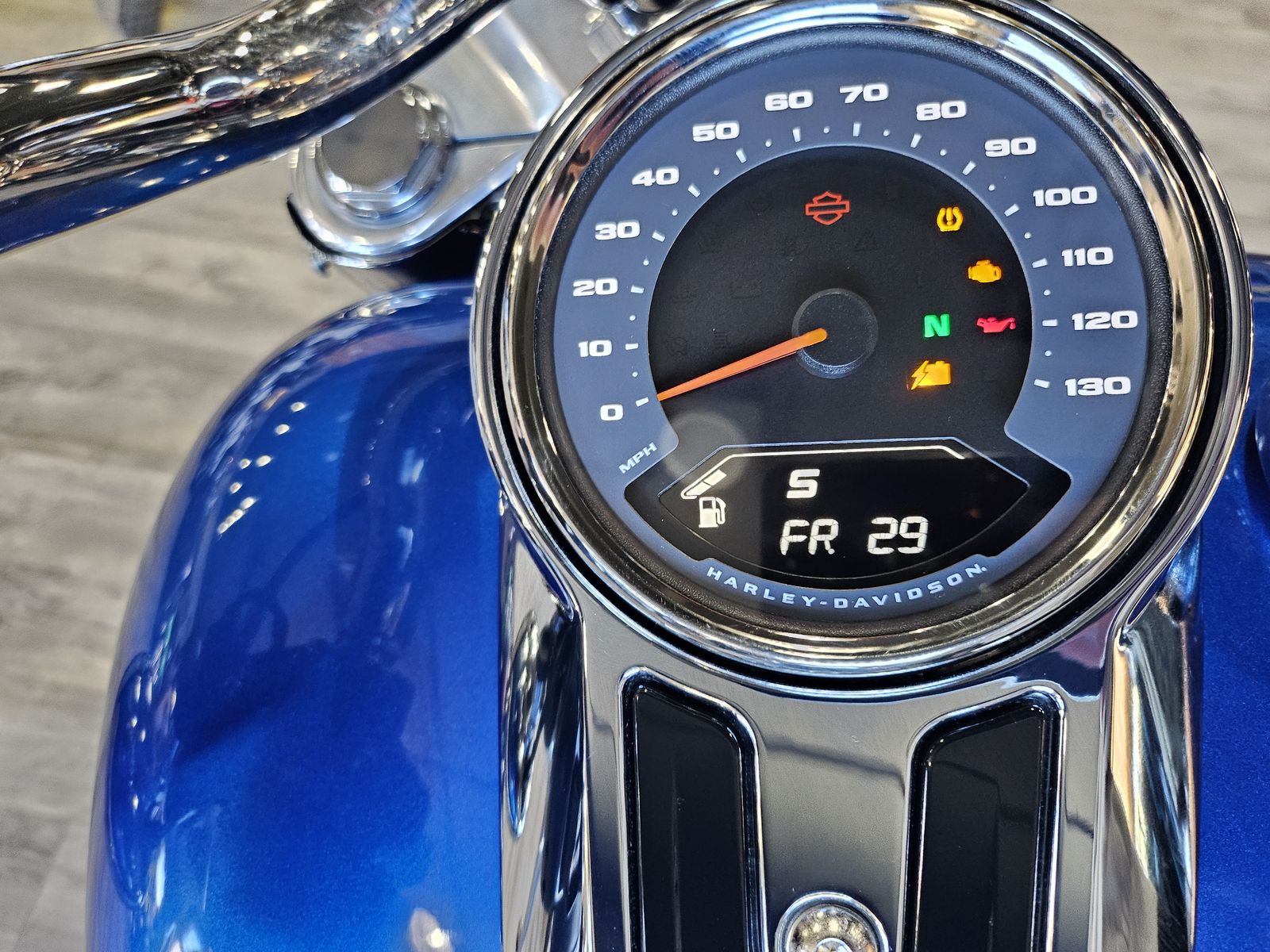

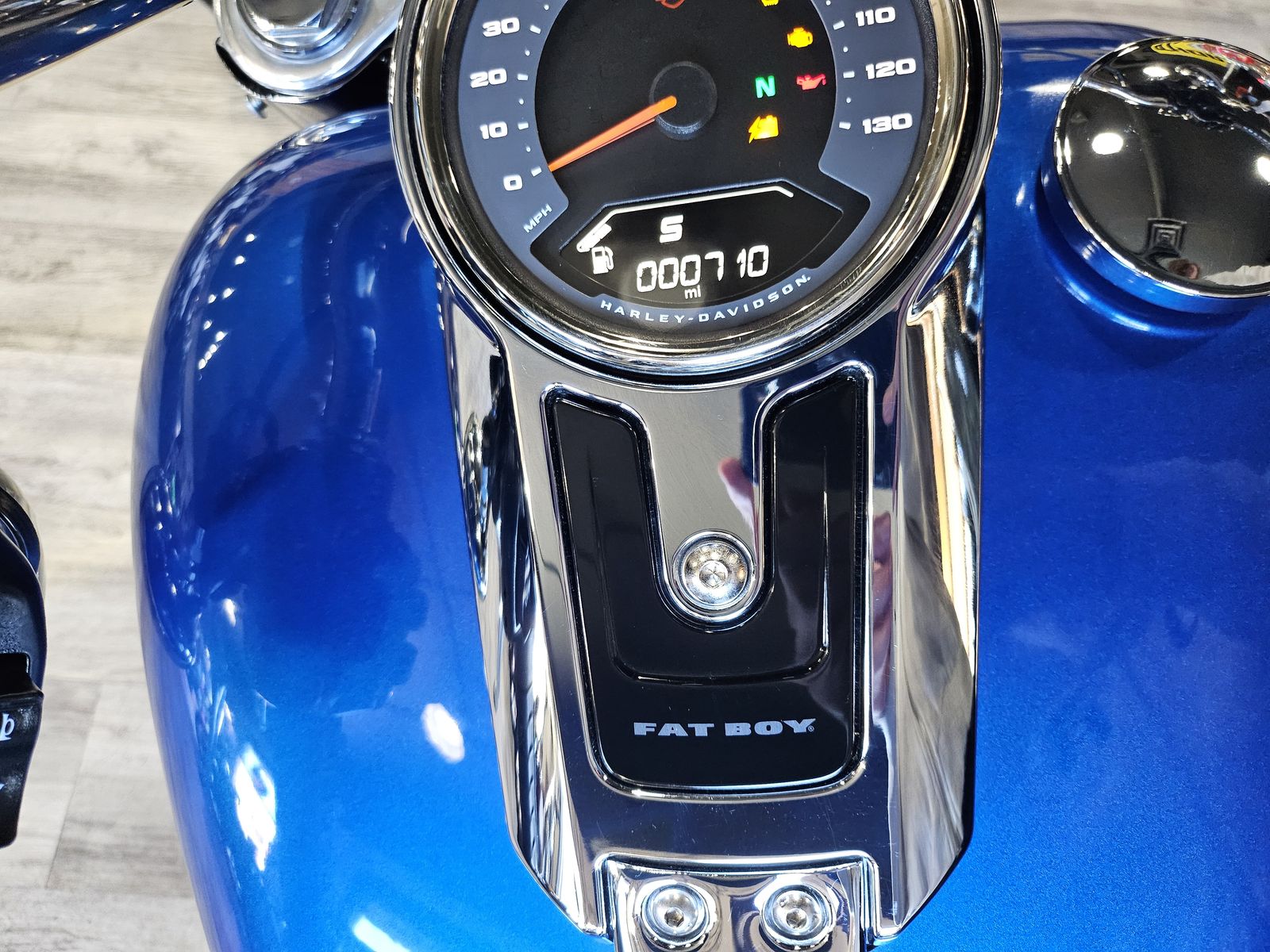

InstrumentationGauges - 5 in. analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication

Lighting

(As per country regulation)2

Headlamp - All LED, low beam, high beam and signature position lamp

Tail / Stop / Front Signal Lights - Bullet-style, LED turn signals, LED Bullet Turn Signals

Electrical System: Electric Power Outlet - USB C-Type, Output 5V at 2.4A

Engine

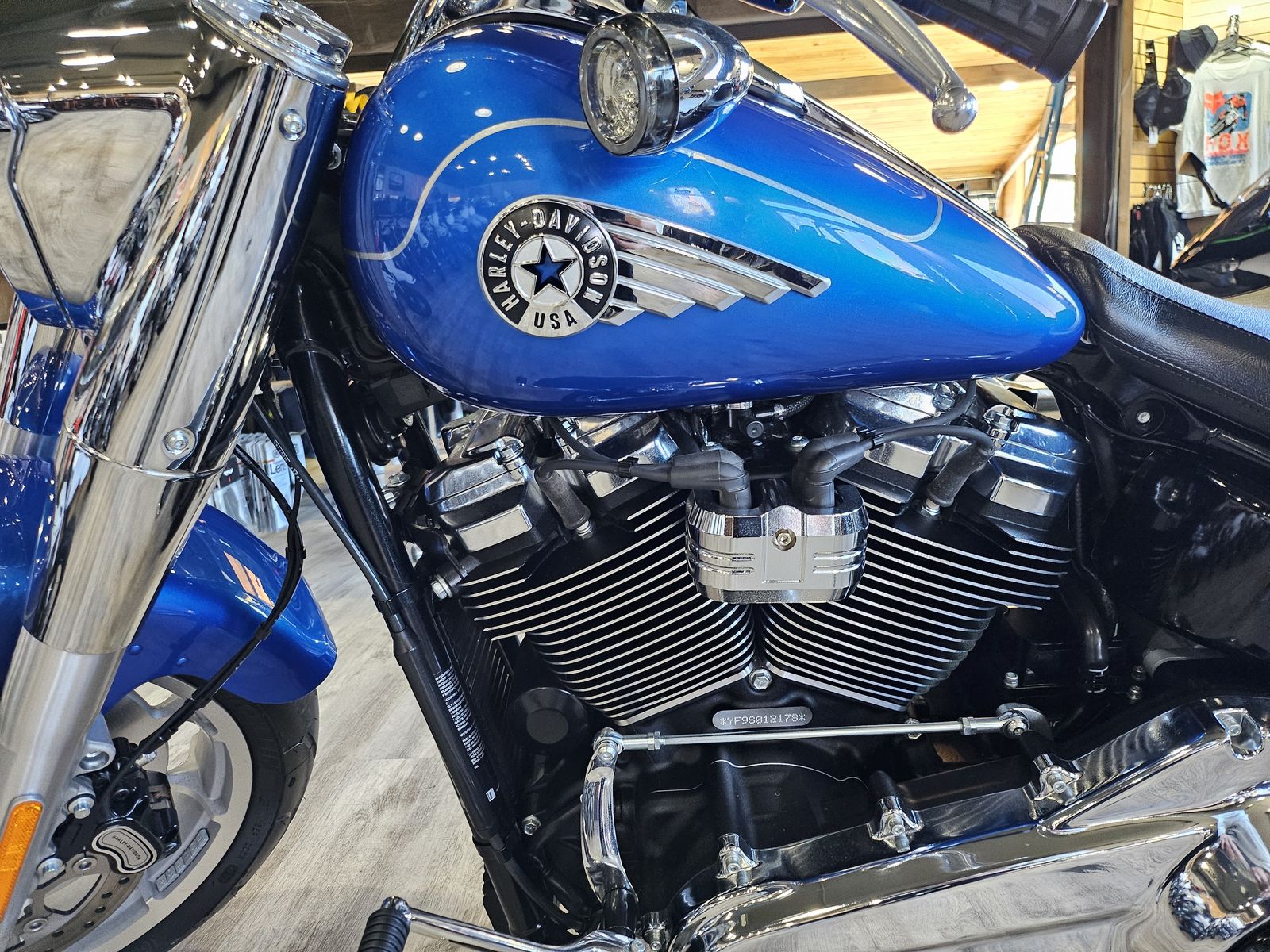

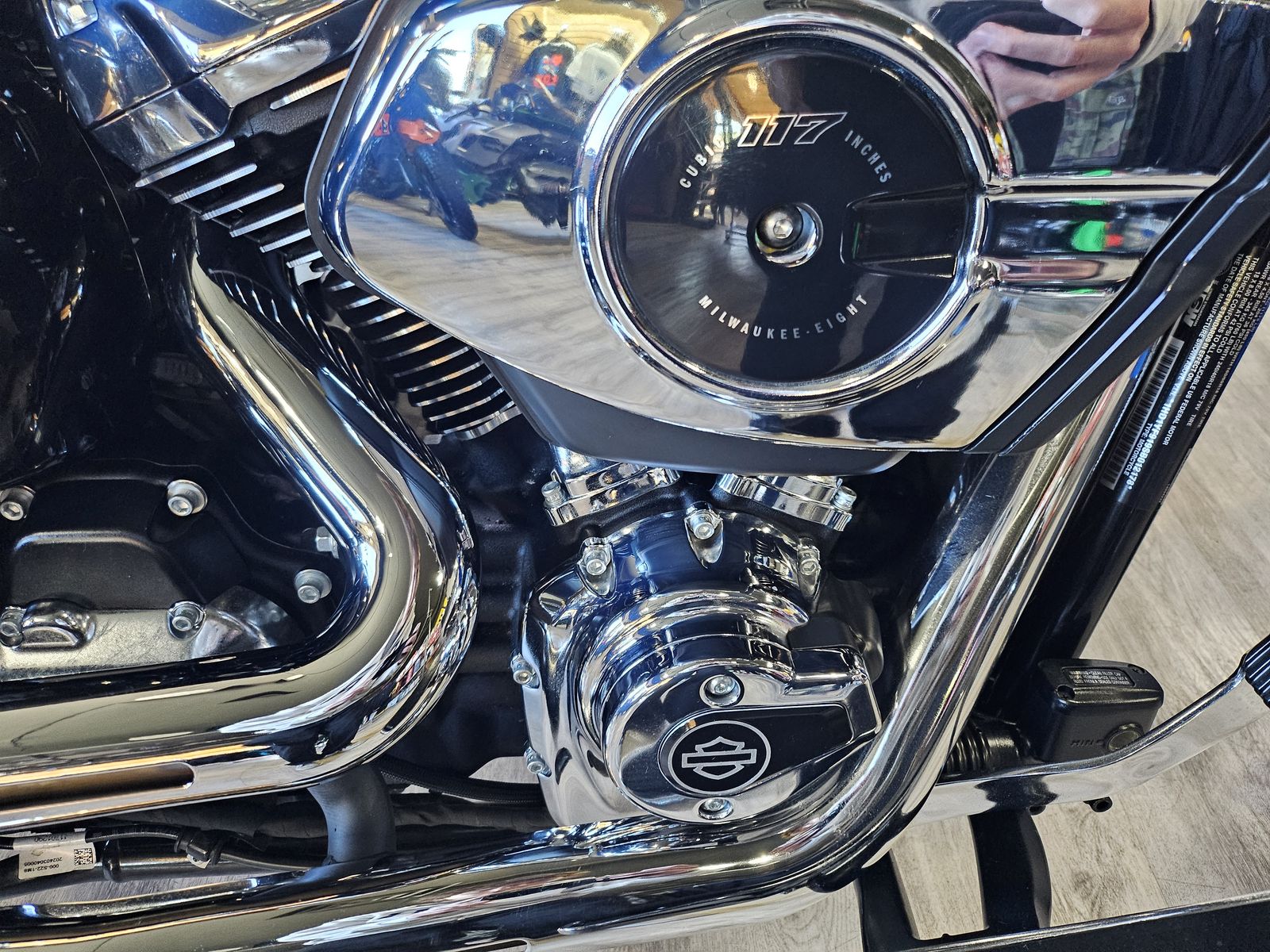

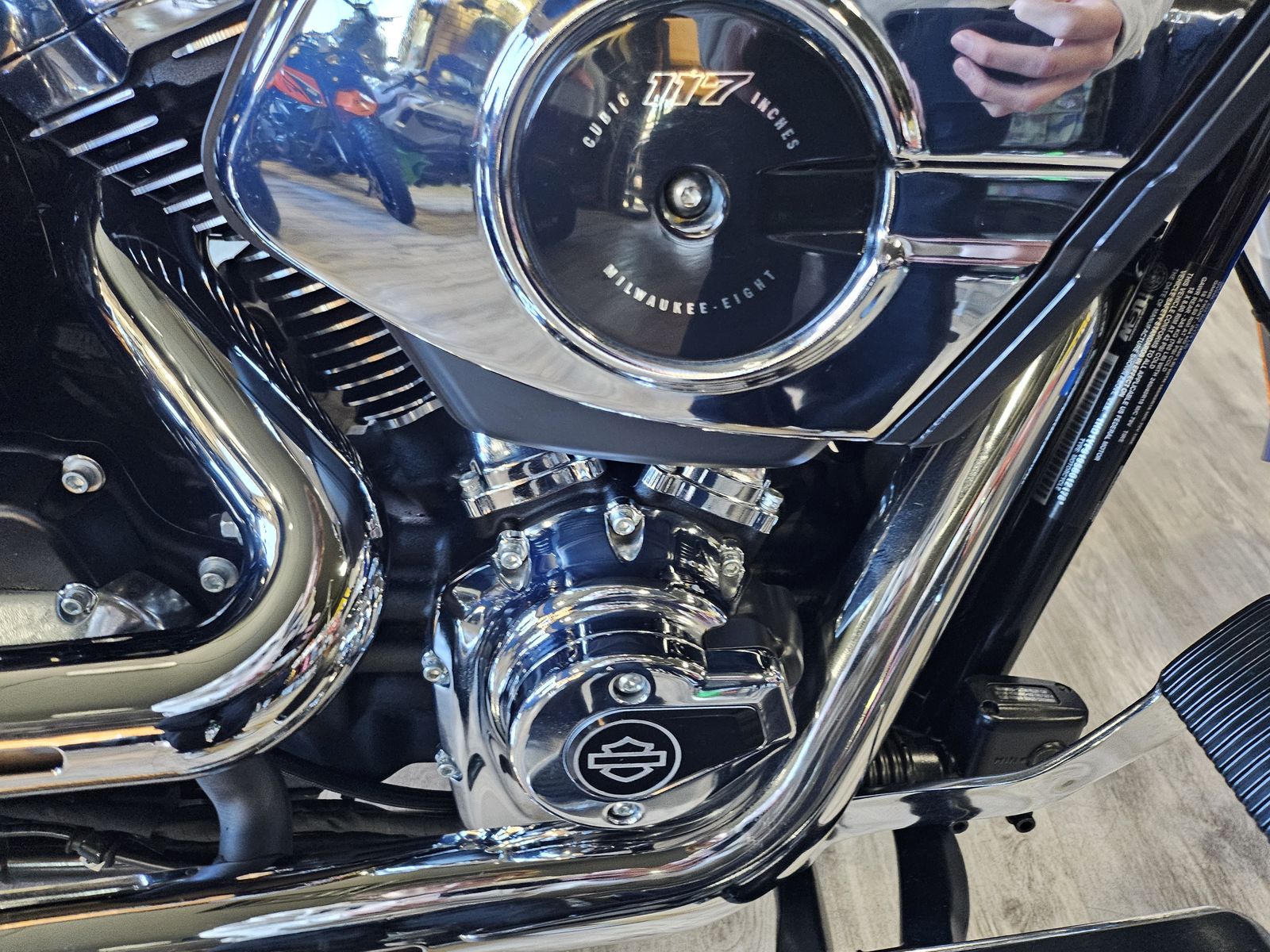

Milwaukee-Eight® 117 Custom7

Valves - Pushrod-operated, overhead valves with hydraulic, self-adjusting lifters, four valves per cylinder

Air Cleaner - Helix style A / C

Horsepower: 104 hp (77 kW) @ 4,800 rpm

Displacement: 1,923 cc (117 ci)Bore x Stroke4.075 x 4.5 in. (103.5 x 114.3 mm)

Torque

126 ft. lb. (171 Nm)5 @ 3,000 rpm

Testing method - J1349

Drag-torque Slip Control System (DSCS), Cornering Drag-Torque Slip Control System (C-DSCS)

Compression Ratio: 10.3:1

Gear Ratio

Overall

1st - 9.311

2nd - 6.454

3rd - 4.793

4th - 3.882

5th - 3.307

6th - 2.79

ClutchMechanical, 10 plate wet, assist and conventional

Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

6 Exhaust 2-into-2 staggered, catalyst in muffler

Starting: 1.6 kW electric with solenoid shift starter motor engagement

Lubrication: System - Pressurized, dry-sump with oil cooler

Fuel Capacity

5 gal. (18.9 l)

Reserve, Fuel Injection (warning light) - 1 gal. (3.8 l)

Oil Capacity With filter - 5 qt. (4.7 l)

MPG Rating: Estimated City / Hwy - 47 mpg (5 l/100 km)4

Operational

Frame

Mild steel, tubular frame, rectangular section backbone, stamped, cast, and forged junctions, MIG welded, aluminum forged fender supports

Mild steel, tubular sections, stamped x-member, forged axle junctions, MIG welded, removable belt spacer

Front SuspensionTravel - 5.1 in. (130 mm)

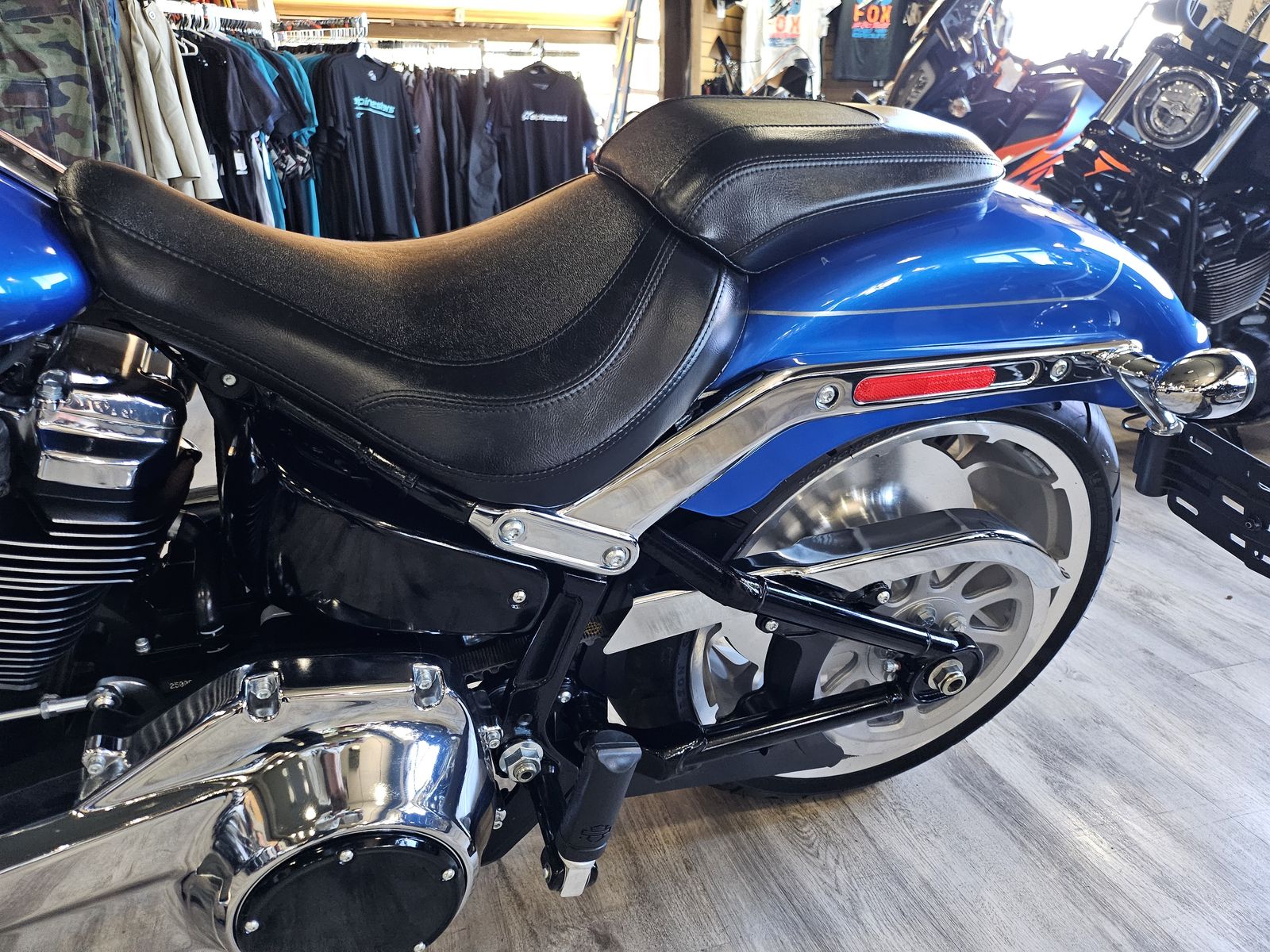

Rear Suspension

Shocks - Hidden, free piston, coil-over monoshock, 43 mm stroke, hydraulic preload adjustment

Travel - 3.4 in. (86 mm)

RakeSteering head - 30°

Trail: 4.1 in. (104 mm)Fork

Front - Dual-bending valve 49 mm telescopic with aluminum fork triple clamps, dual rate spring, "beer can" covers

Angle - 32°

Other

Additional Colors

Billiard Gray

Vivid Black

Blue Burst

Whiskey Fire / Vivid Black

Includes

Security System

Cruise Control

Miles: 707

Financing available on approved credit

Cash and cashier checks accepted

We do accept Credit and debit, however there is a 3% Fee on all Credit Card Transaction

Please call as fees and taxes do apply
