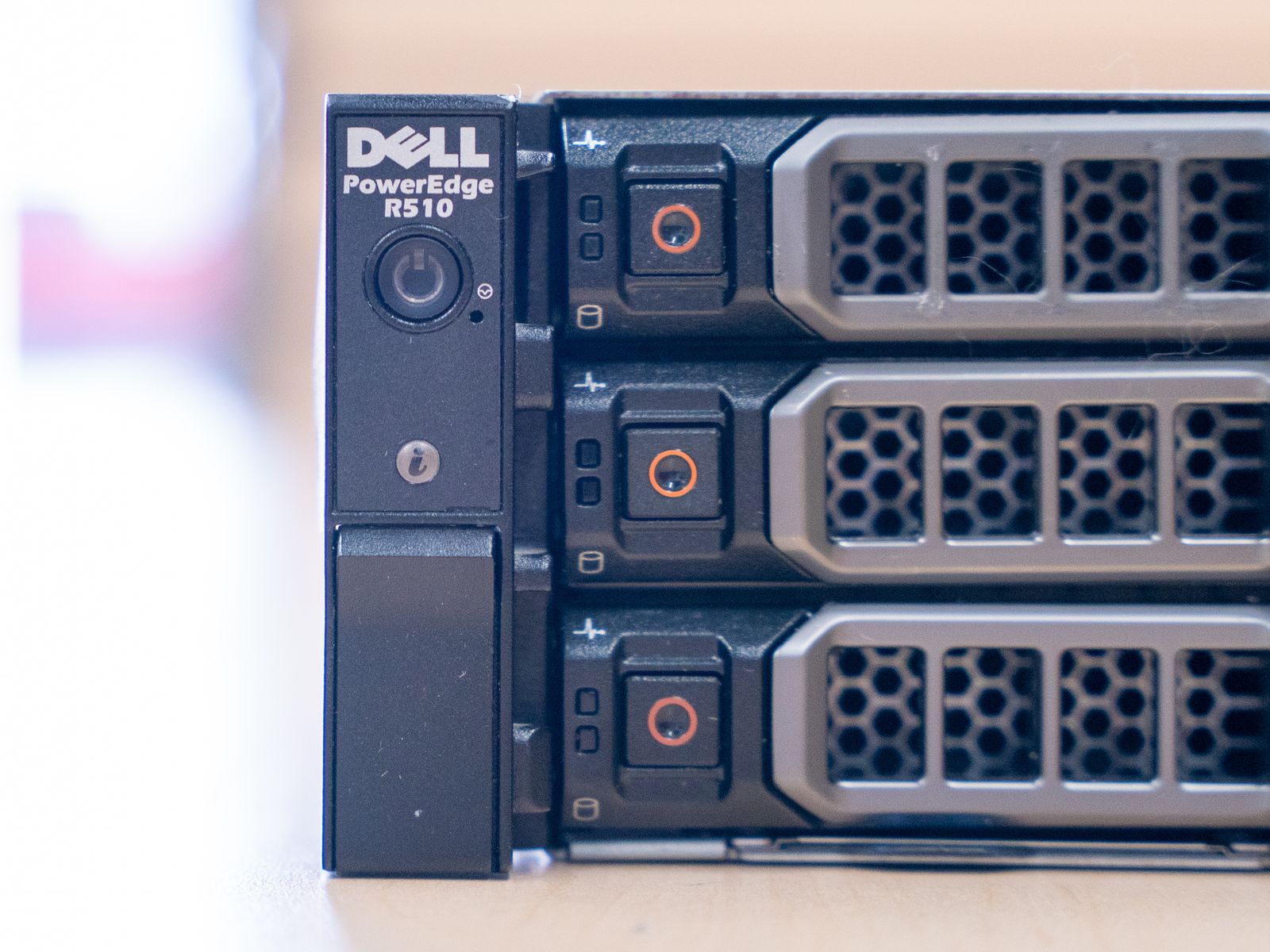

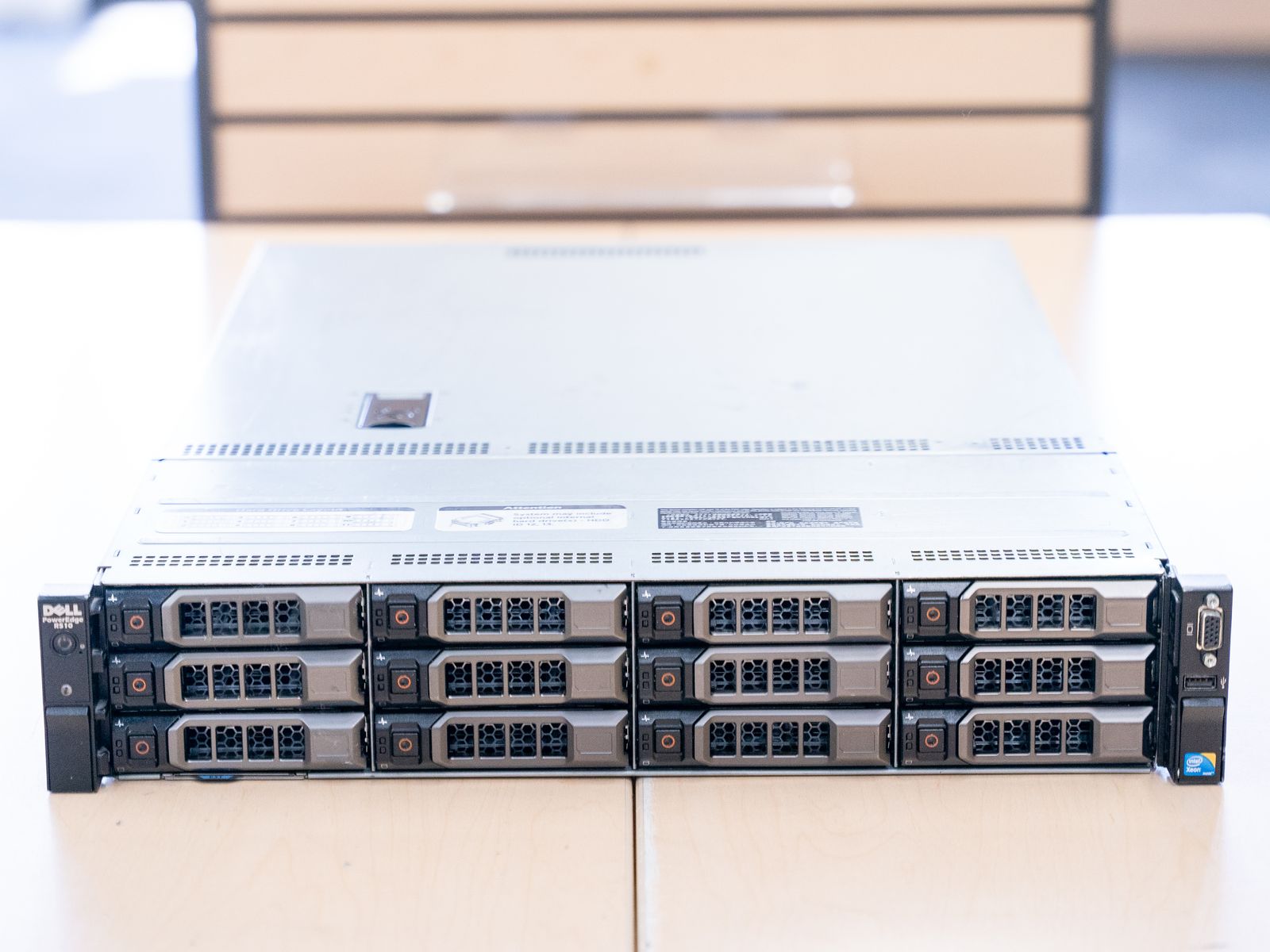

Model: Dell Poweredge R510 - 2U Rackmount Server

CPU: 2x Xeon L5630's - Each one has 4 Cores/8 Threads running between 2.13GHz-2.4GHz | 8 Cores/16 Threads Total

RAM: 128GB Registered ECC DDR3 (8x16GB)

Storage Drives: None, various SSDs/HDDs available for purchase in-store

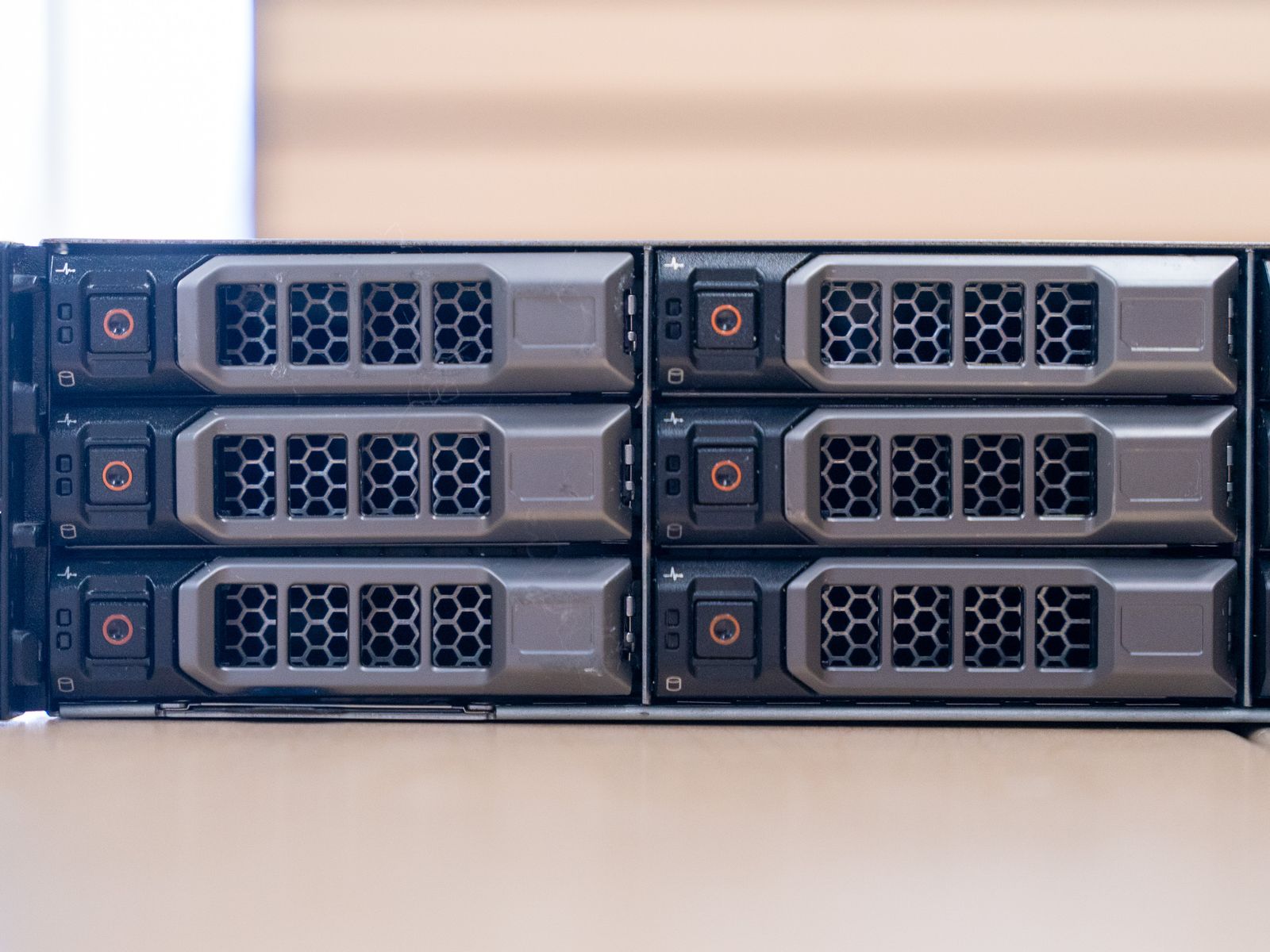

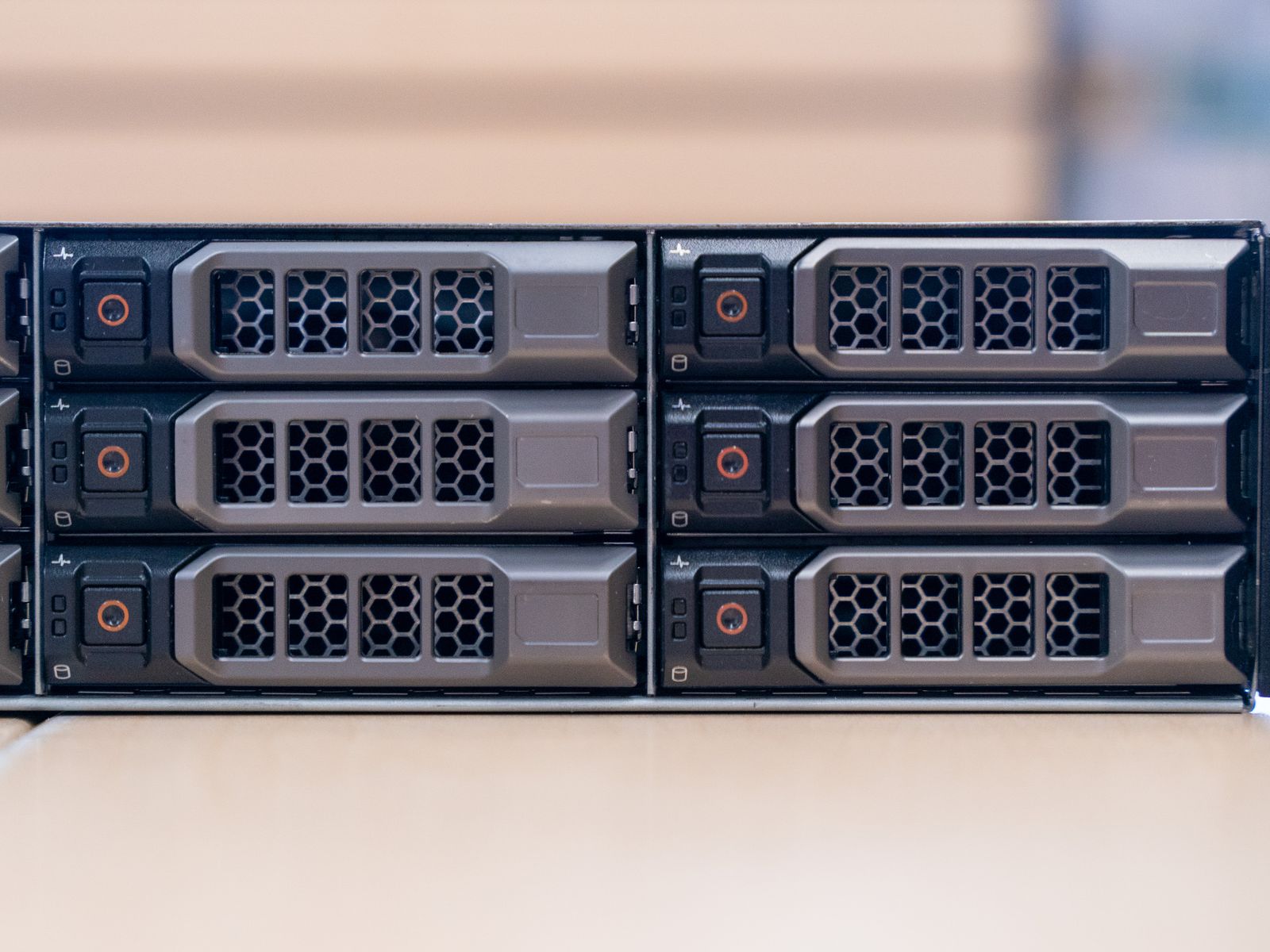

Primary Storage System: 12x Front 3.5" Hot-Swap SAS/SATA Bays

Secondary Storage System: 2x Internal 2.5" SAS/SATA Bays

Storage Controller: Dell H310 running IT Mode firmware (This is now an HBA instead of a RAID Controller)

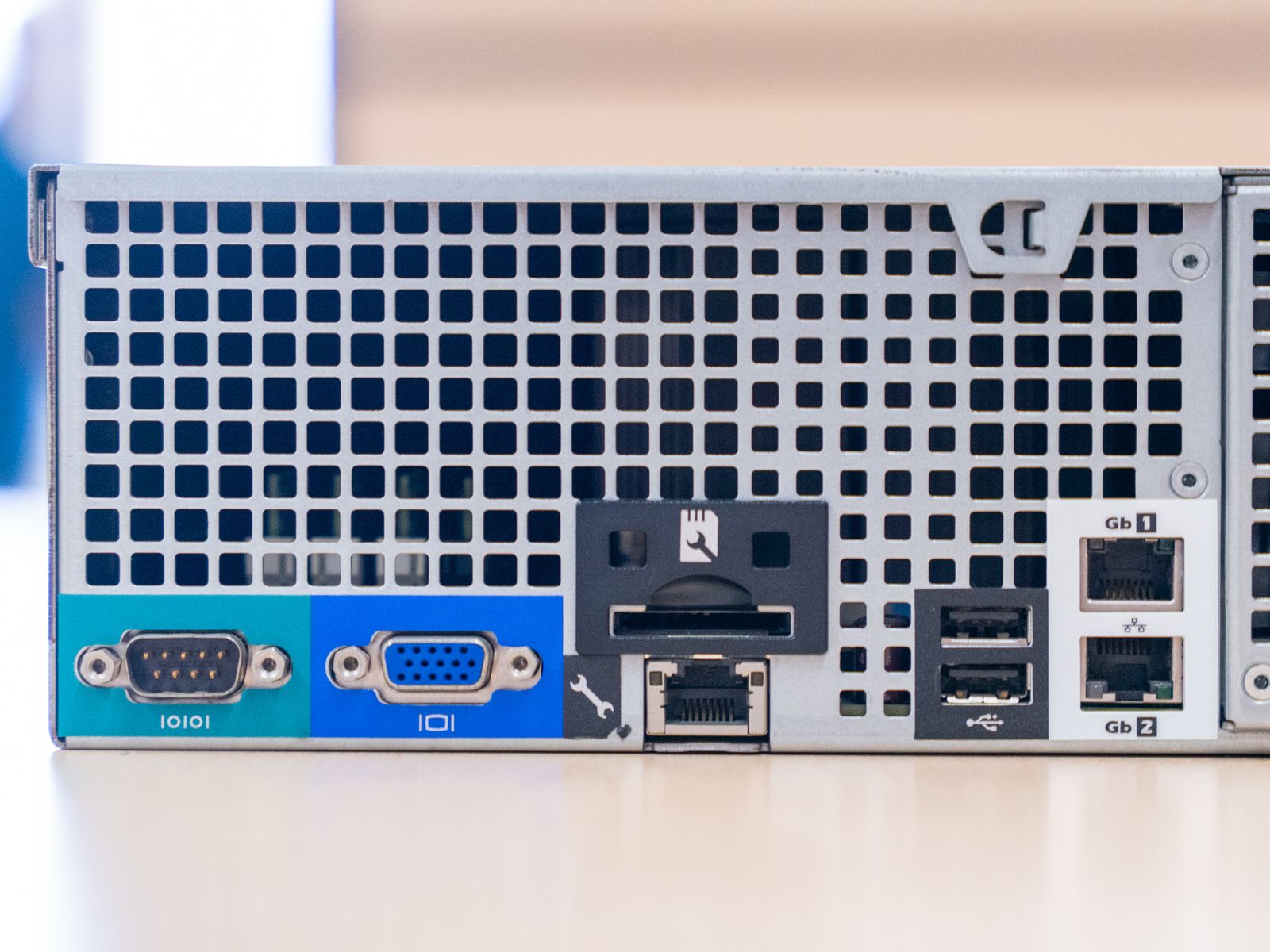

Networking: 2x 1GbE RJ-45 Ethernet Ports

‎

Rails: None

Bezel: None

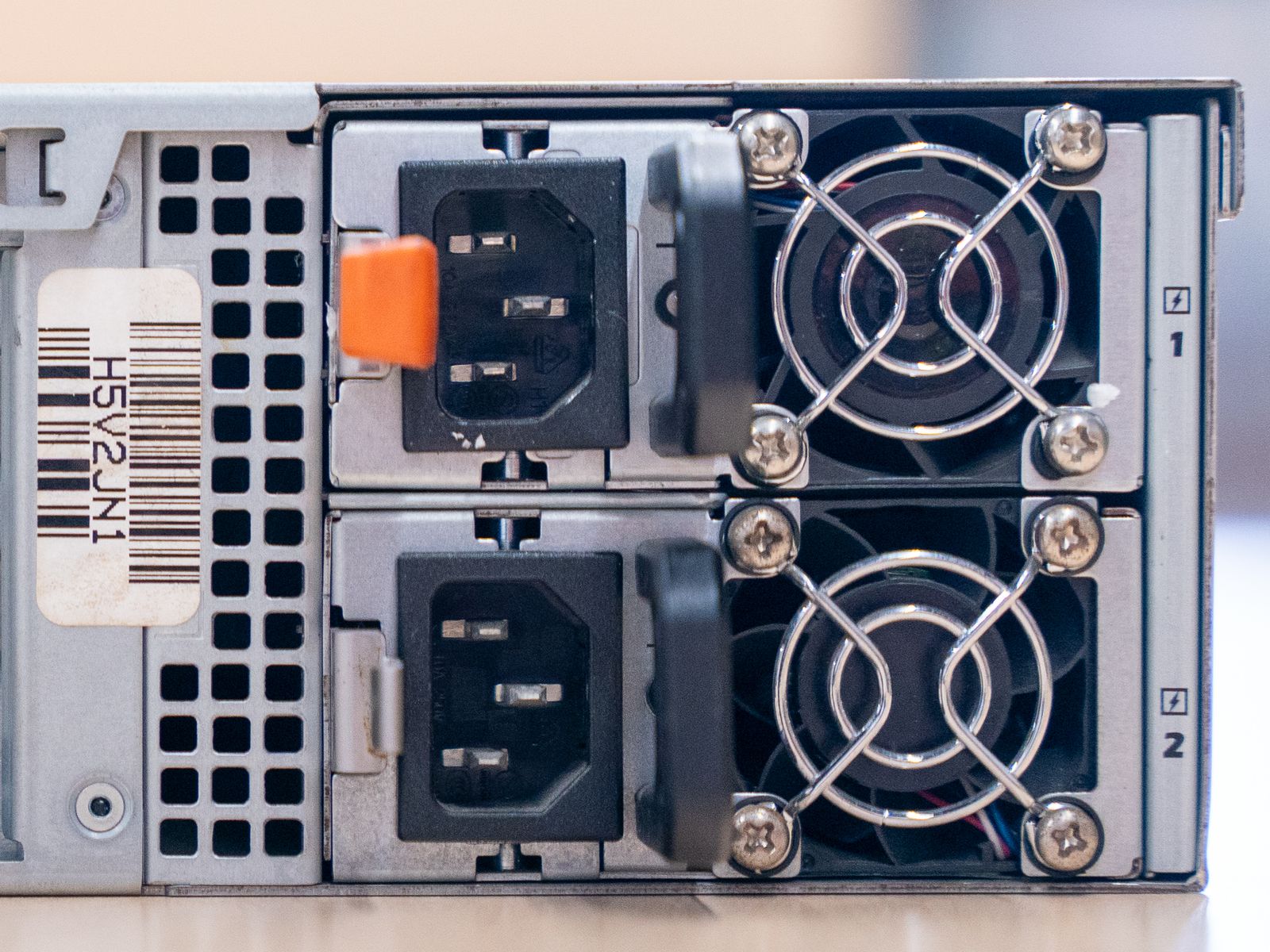

Power: Dual Hot-Swap Redundant 750W PSUs

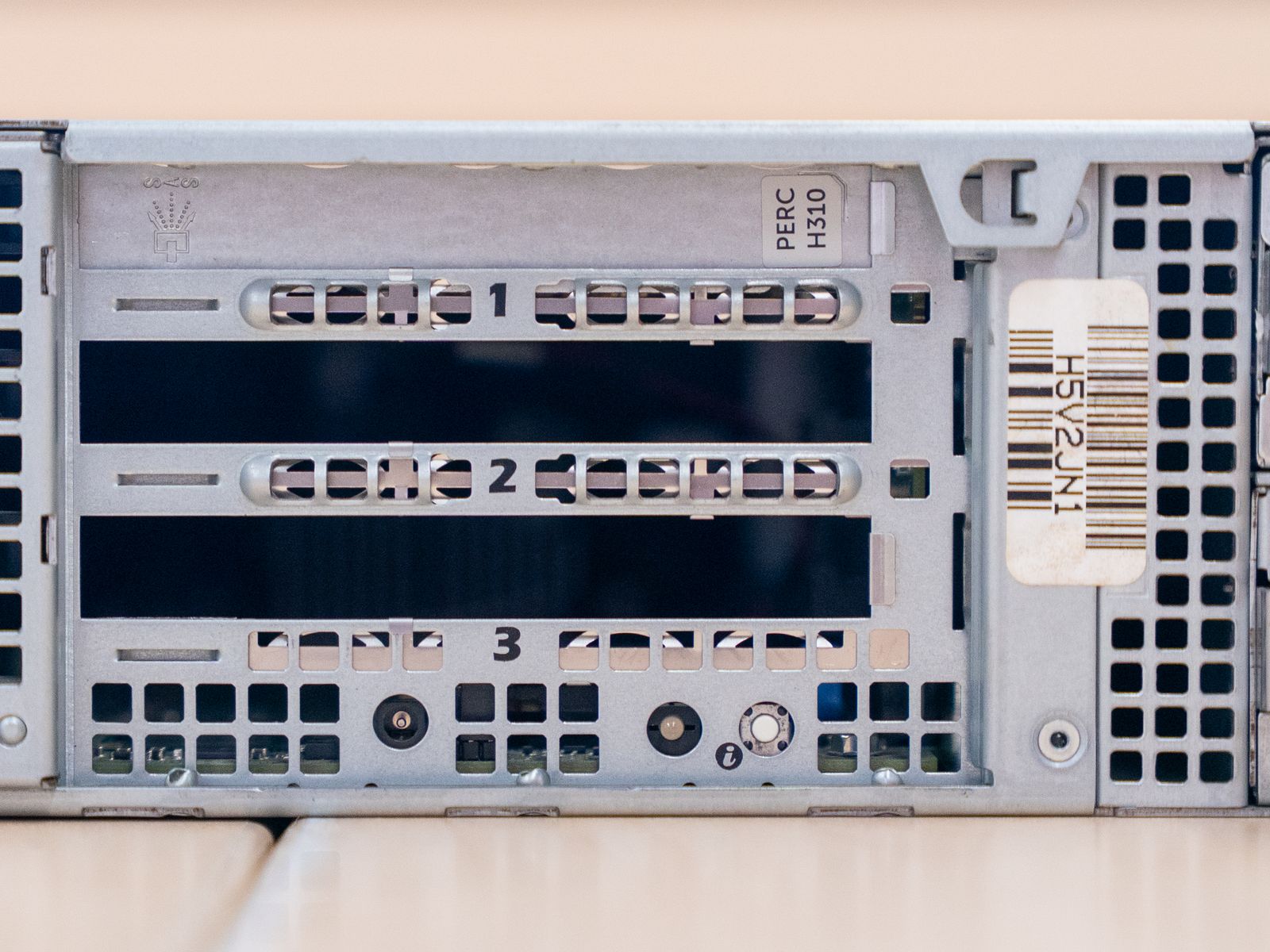

PCI-E Cards: Dell PERC H310

Available Upgrades: Storage, Networking

Additional Notes: This server has had it's original Hardware RAID Controller replaced with an HBA running IT Mode firmware.

Work Done:

• BIOS, iDRAC, LC, and RAID have all been reset and cleared
• The RAM has been replaced with tested modules from our inventory
• The CPUs have been replaced with more power efficient models
• The CPUs and Heatsinks have been thoroughly cleaned, and new Arctic thermal paste has been applied
• The RAID Controller has been replaced with an HBA

‎

Additional information is available upon request

This listing is by GCB Servers, we have a large variety of server/enterprise grade equipment available, such as: Servers, switches, firewalls, routers, and more.

If you need a specific piece of equipment that you don't see listed, please contact us using the listed contact information.

Unit is available at 'GCB Computers', address is 1155 N Main Street, Suite #4 in Layton. Hours are Tuesday-Saturday 10am-6pm.
