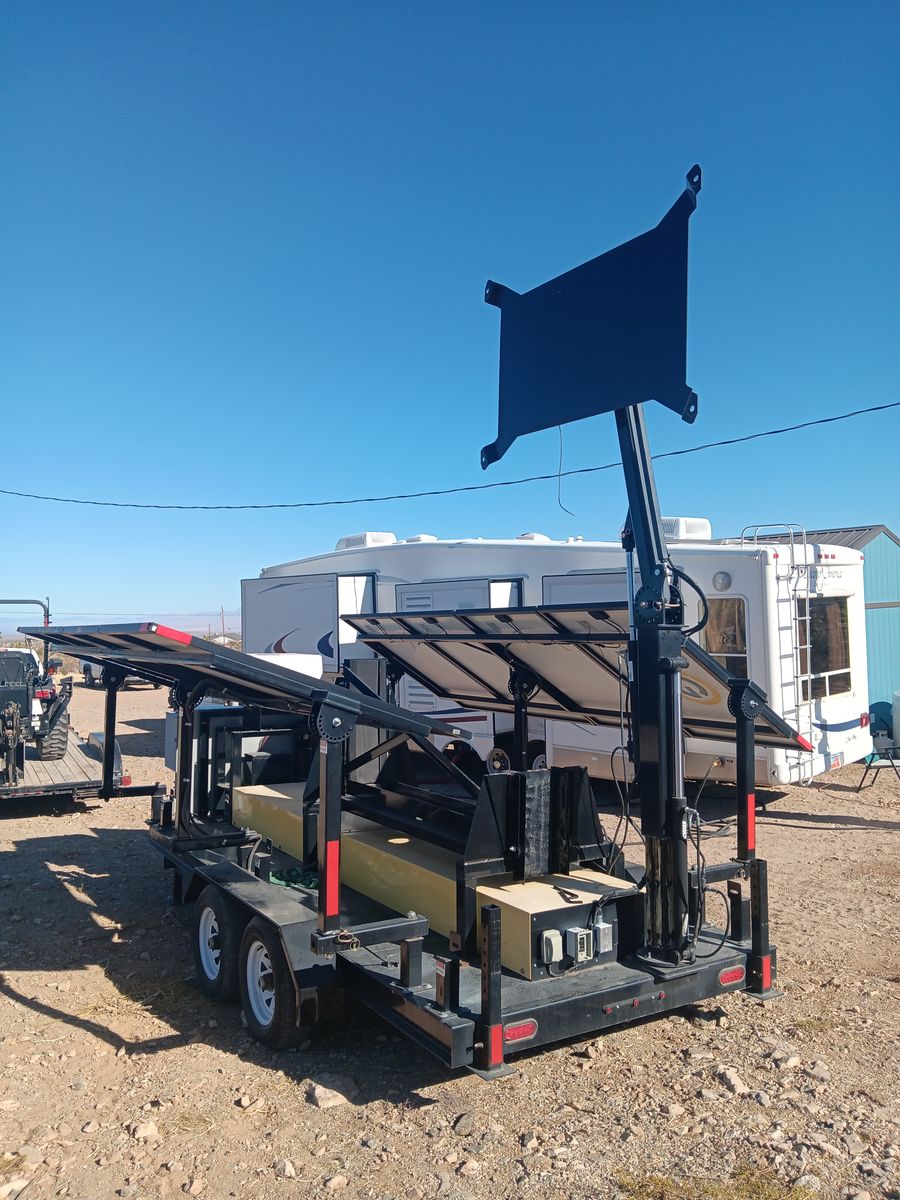

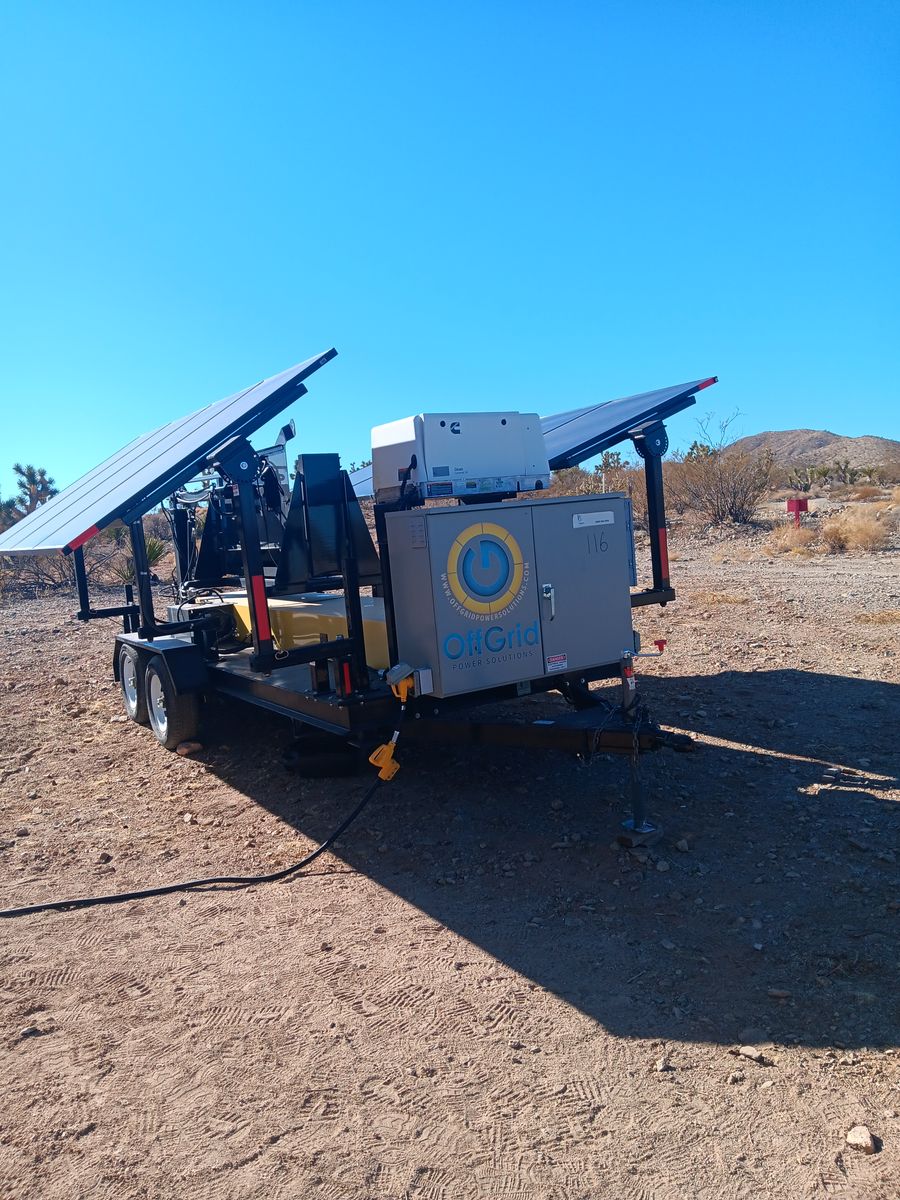

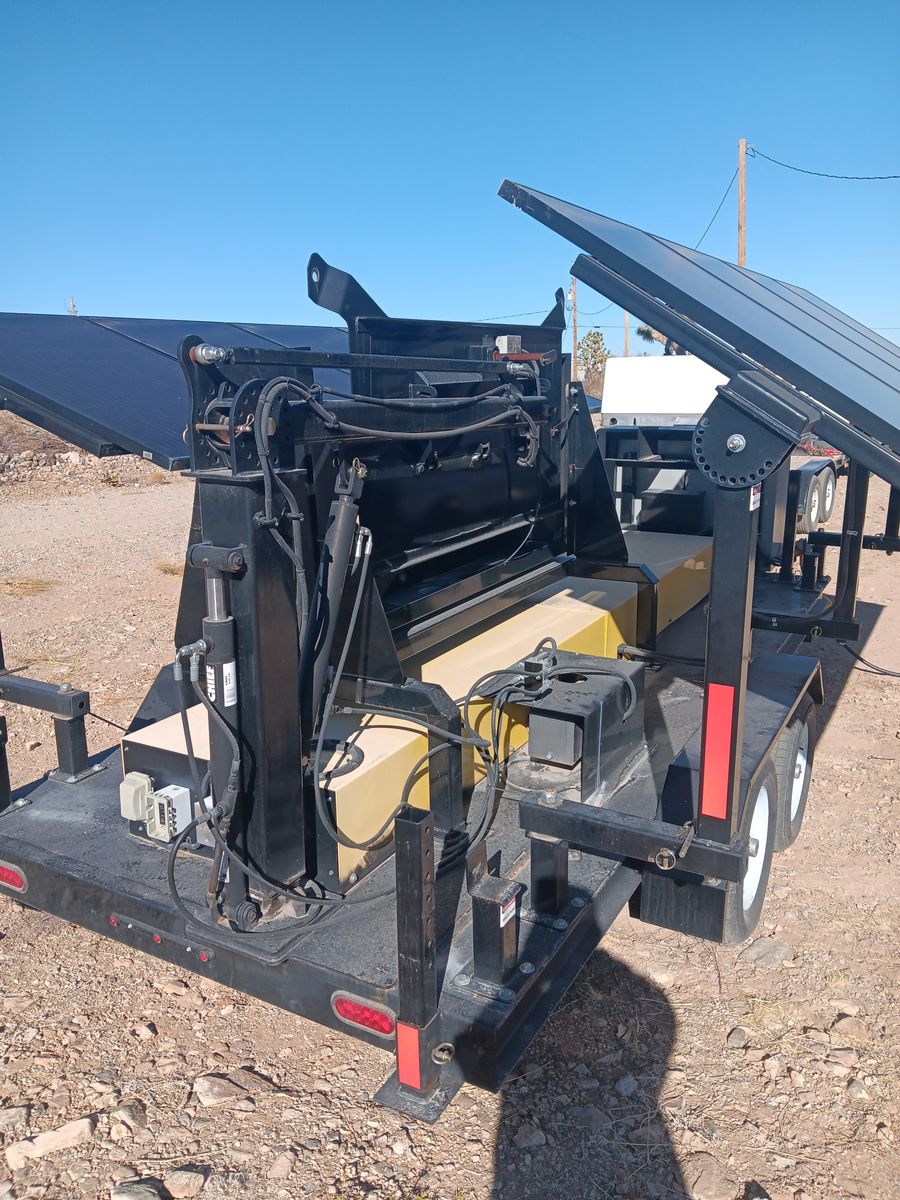

2018 Off Grid Mobile Solar Generator Trailer - Generator Equipment - No title.

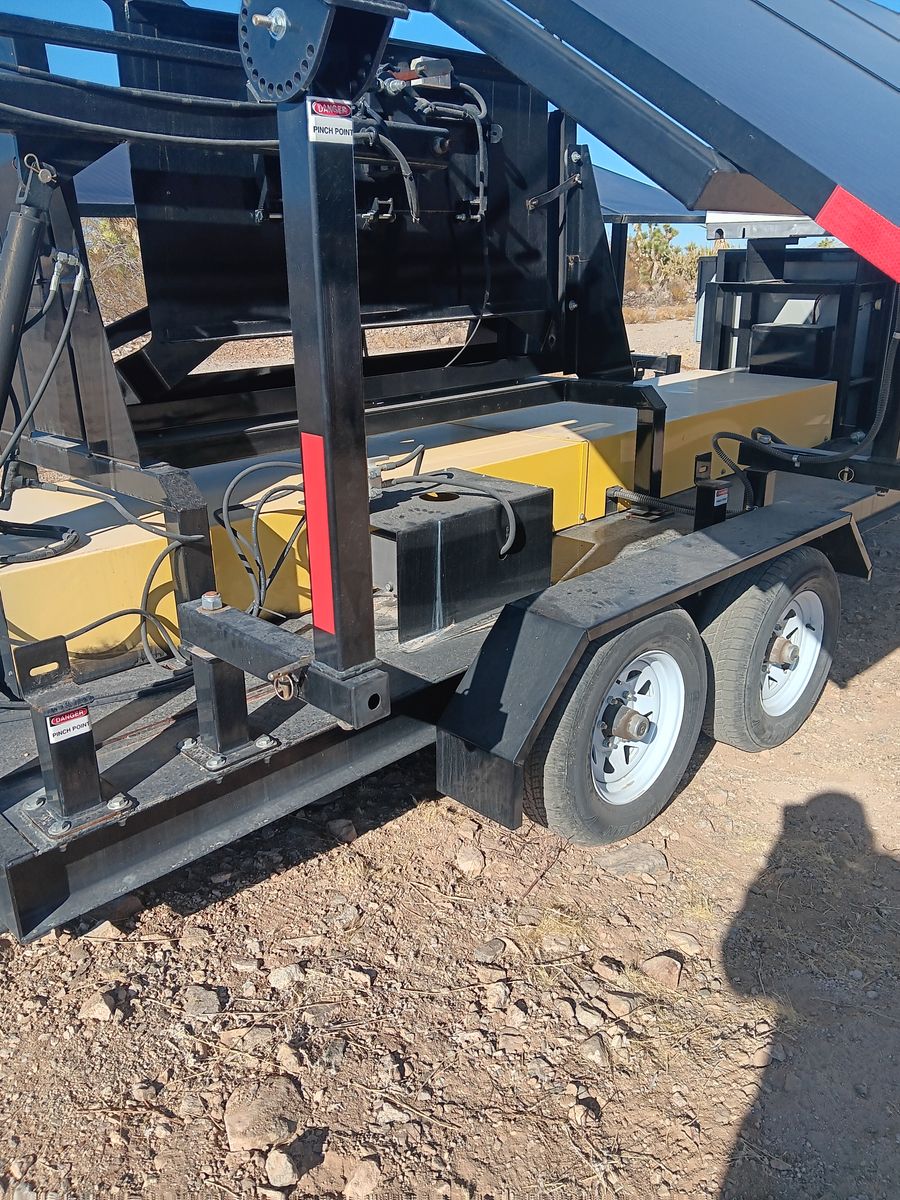

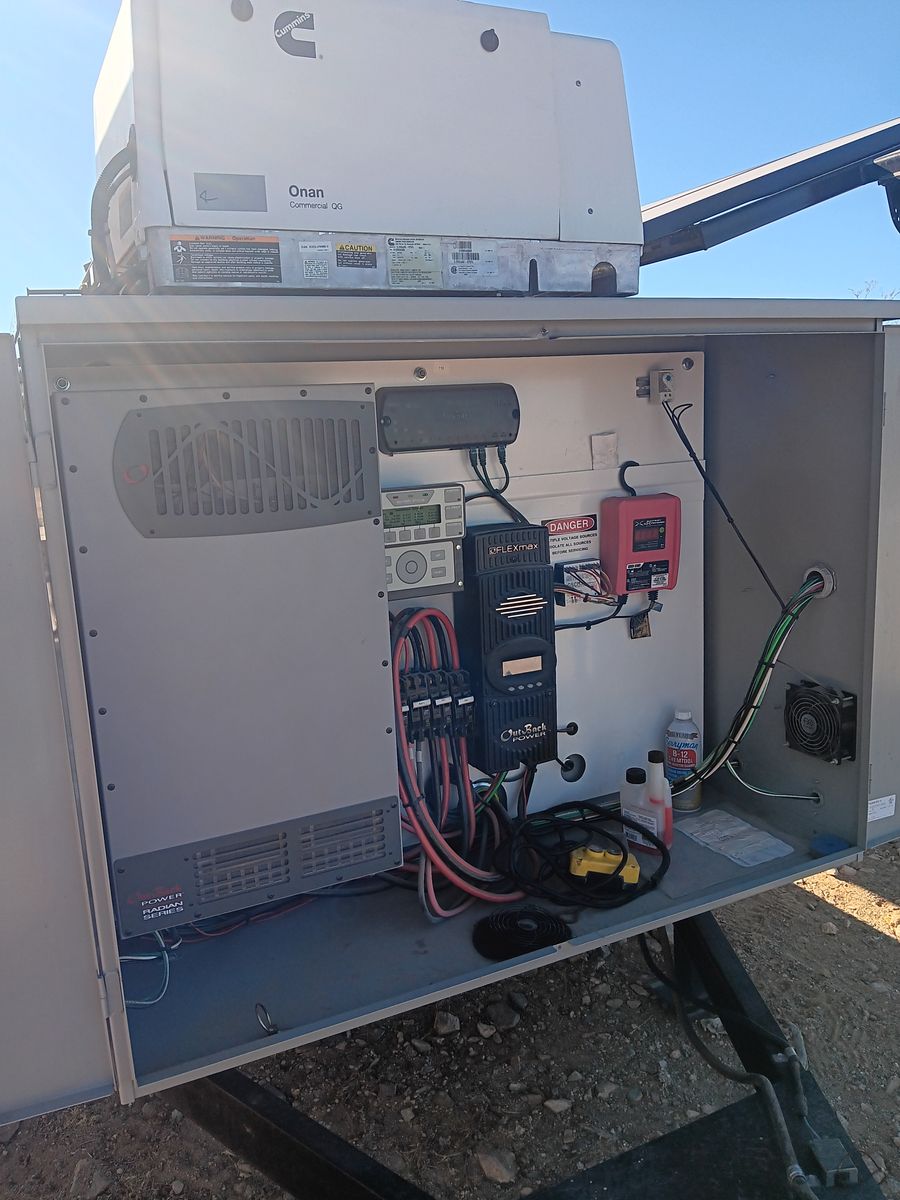

TECHNICAL SPECIFICATIONS: One Outback GS8048A Inverter Continuous 8.0 kW, Surge 12.0kW, Amps @ 120v @ 66.6 Amps@ 240v @ 33.4, Thirty- Two (32) (AGM 12-v bat rated Amp Hours @ 48v 744Ah \High Cycle life, 240 V at 10 A for approximately 10 hours with no supplemental charge. Total Generation (Watts) 2,640W. Panel Movement Manual Cam Mount. 120 Volt 20 Amp back wired Duplex receptacle (2). 30 Amp 120/240 twist lock receptacle (1) Cummins 5.5 HGJAE backup generator. INVERTER (120/240 Volt AC Split Phase). BATTERY (48 Volt Deep Cycle Industrial) SOLAR PANELS Jinko 330-watt panels (8). OUTLETS (Customizable) Outback Flexmax Charge controller. 40-gallon gas tank. Mounted fuel gauge. Trickle charger for Generator battery. TRAILER SPECIFICATIONSMaterials \ Steel Coupler 2 5/16-inch Ball Wiring 7 pin Round Axle (2) \ 6500 lb. capacity Suspension: 6000LB 4- leaf Double Eye Springs. Outriggers (4) 1000 lb. drop legs for leveling. Tires ST225/75R15. Weight (8300 lbs.). Electric drum brakes (rear). In Service: W 16’ 1.5" x H 6’ 4.5 (flat)”- 8’ 9” (45-degree angle) x L 21’ 7.5”. In Travel: W 8’ 3"; x H 9’ 1” x L 21’ 7.5” Also has a hydronic arm lift on the back. Used for Lights or cameras. Previously used for media Screens. Raises to 16 ft
