USED KUBOTA COMPACT EXCAVATOR

*FINANCING AVAILABLE

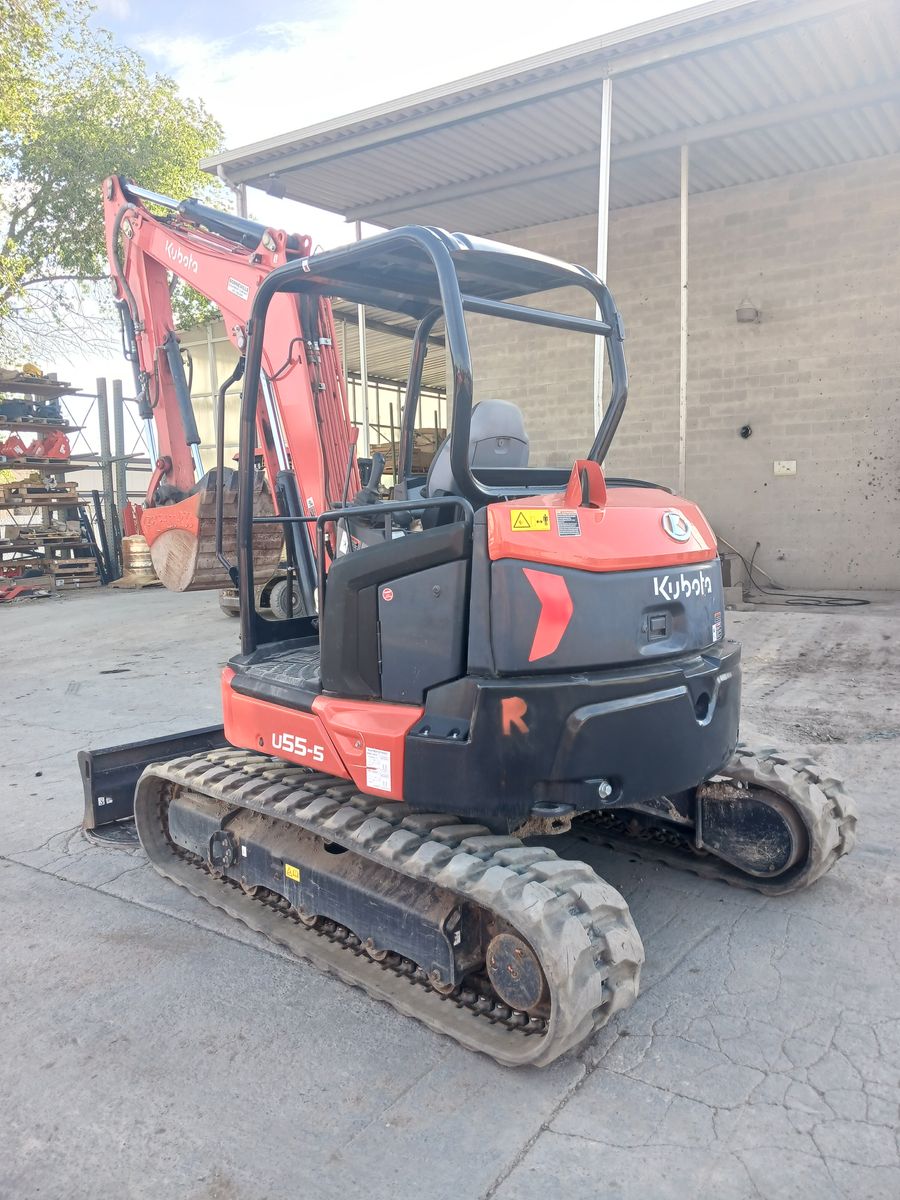

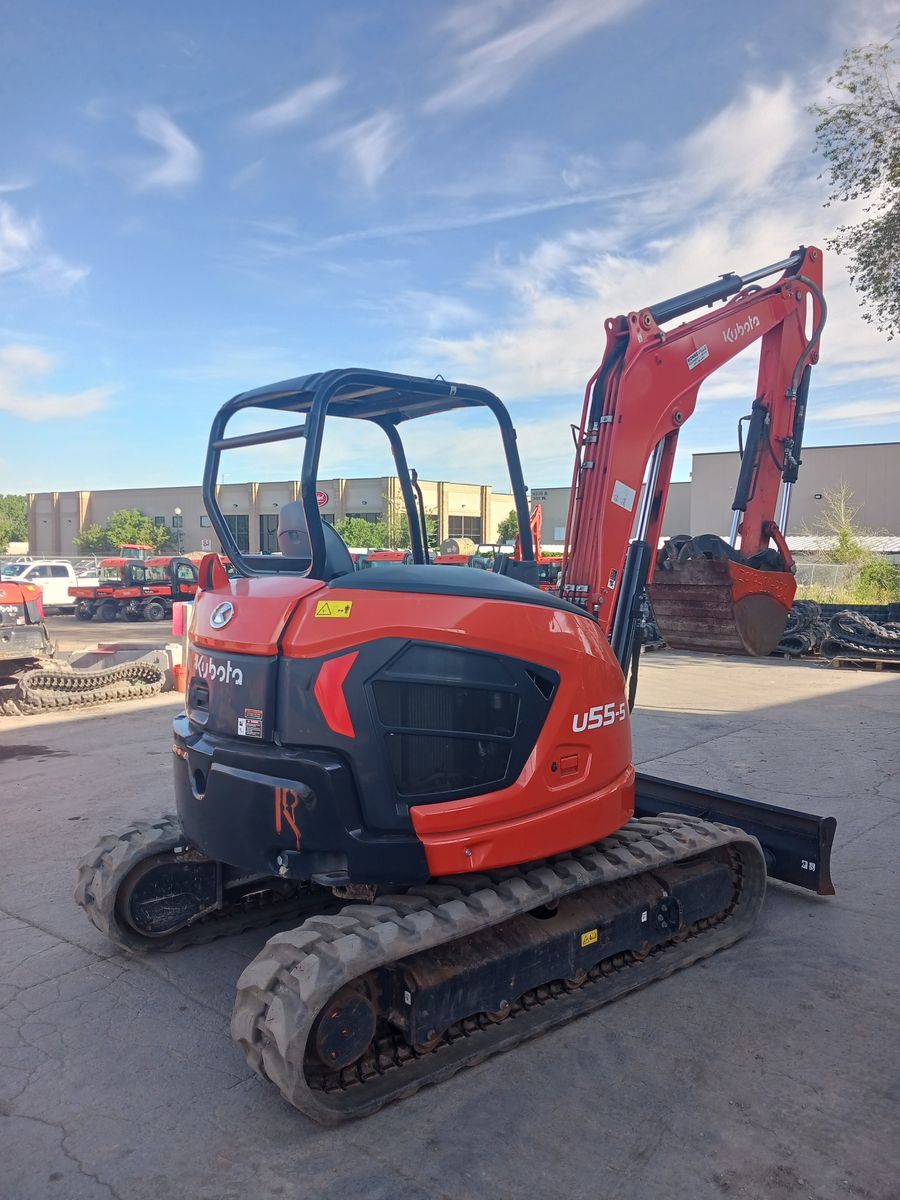

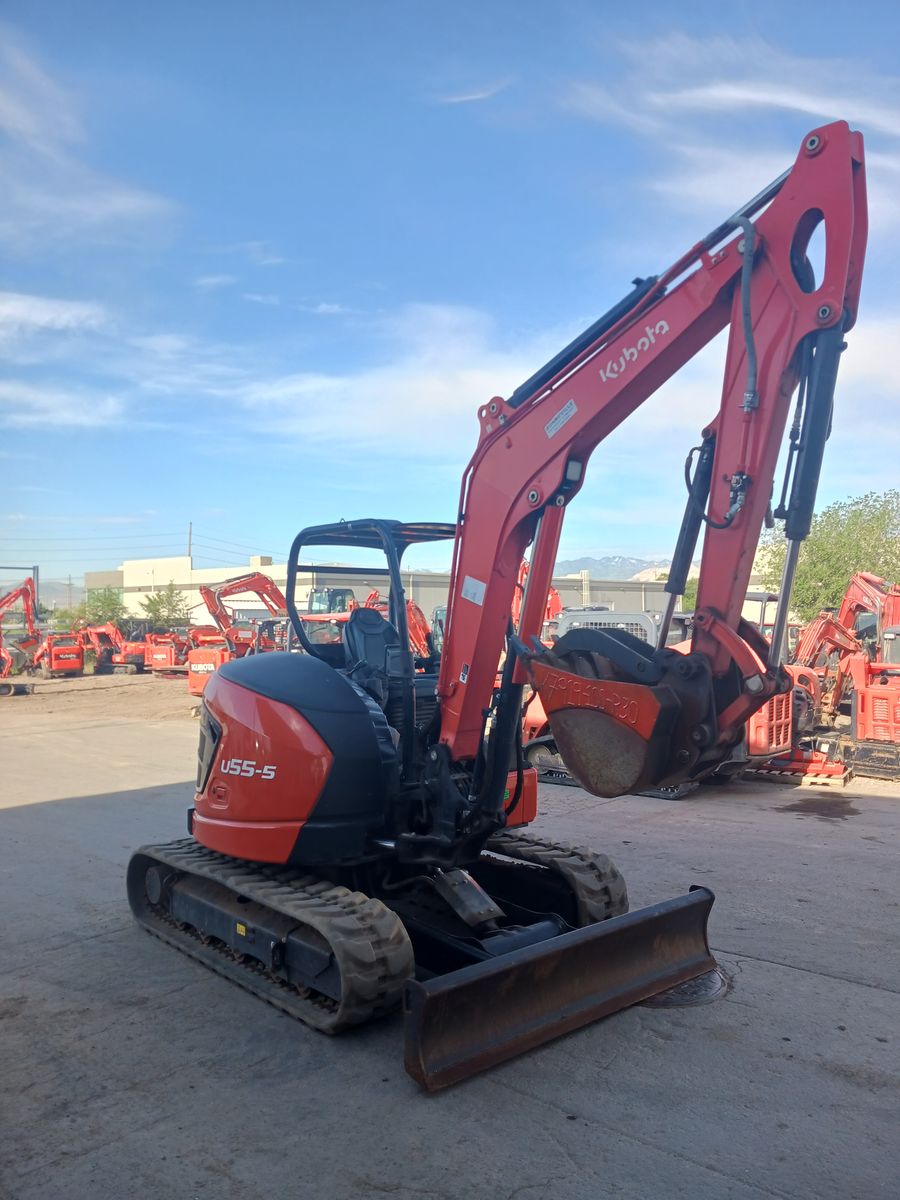

This used 2022 Kubota U55-5R1 is a tight tail swing compact excavator built for contractors, landscapers, utility crews, property maintenance companies, and anyone needing dependable digging power in a compact footprint. This 5-ton class Kubota excavator is a strong fit for trenching, grading, backfilling, material handling, and general excavation work.

This machine is equipped with a single pin quick coupler, 24” trenching bucket, and hydraulic thumb, giving it added versatility for digging, grabbing, sorting, and cleanup work. The U55-5R1 offers the maneuverability expected from a compact excavator while still delivering the hydraulic performance, operator comfort, and digging force needed for demanding jobsite work. This unit is coming out of our dealership rental fleet so hours may vary. Please contact the dealership and schedule a time to inspect the machine in person, confirm current hours, review condition, and verify all included attachments before purchase. Sold as-is with no warranty expressed or implied.

Operational specs

• Hours: ~507 (as of June ‘26)
• Engine: Kubota V2607 DI CRS Tier 4 Final, 4-cylinder, diesel engine
• Gross horsepower: 47.6HP @2,200 rpm
• Operating weight: ~11,900lbs
• Max digging depth: 11’ 10.3”
• Max digging radius at ground level: 19’ 6.1”
• Max vertical digging depth: 4’ 11.6”
• Max dumping height: 13’ 2.3”
• Bucket digging force: 11,177 lbs.
• Dipper arm digging force: 6,261 lbs.
• Auxiliary hydraulic flow: 19.8 GPM (adjustable)
• Travel speed: 1.8 mph low / 3.1 mph high (with auto-downshift)
• Blade width: 77.2”
• Overall length: 18’ 1.3”
• Overall width: 6’ 5.2”
• Overall height: 8’ 4.4”
• Ground clearance: 12.0”
• Track type: Rubber tracks

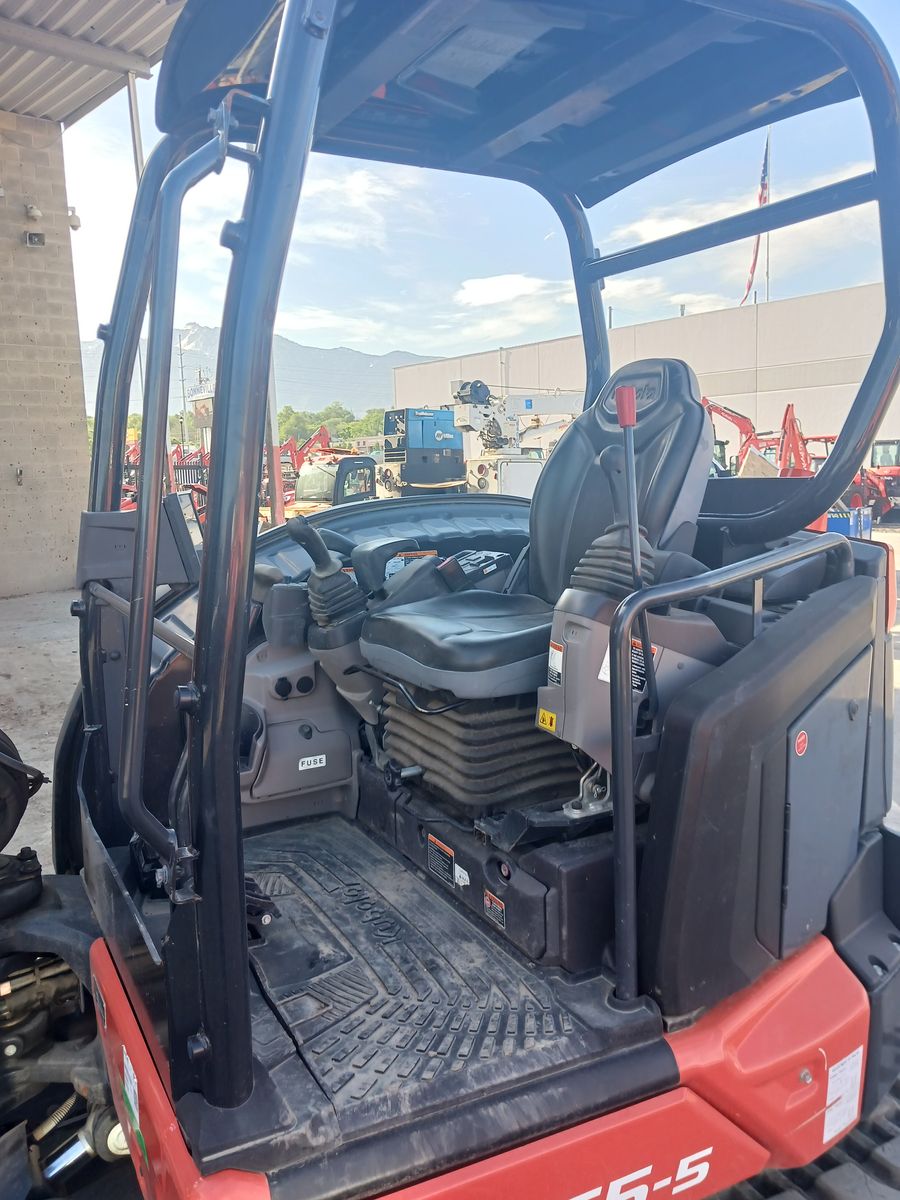

• Operator station: 4-post ROPS canopy
• Controls: Hydraulic pilot controls with two-pattern selection
• Display: Digital control panel with attachment flow presets and service alerts
• Undercarriage: Standard front dozer blade with float
