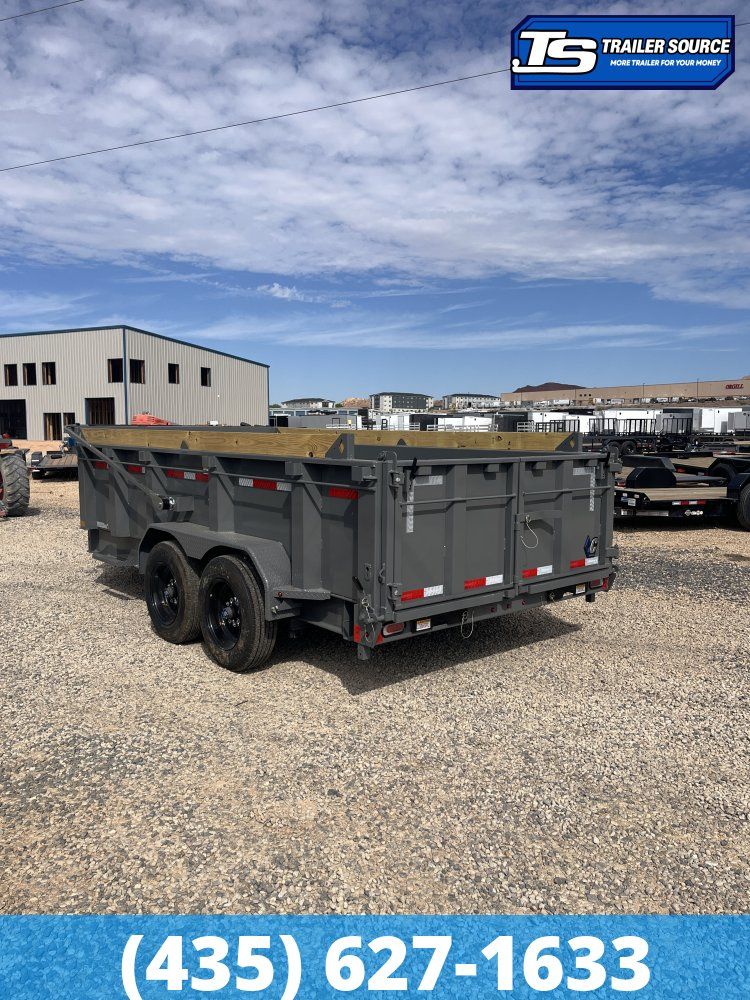

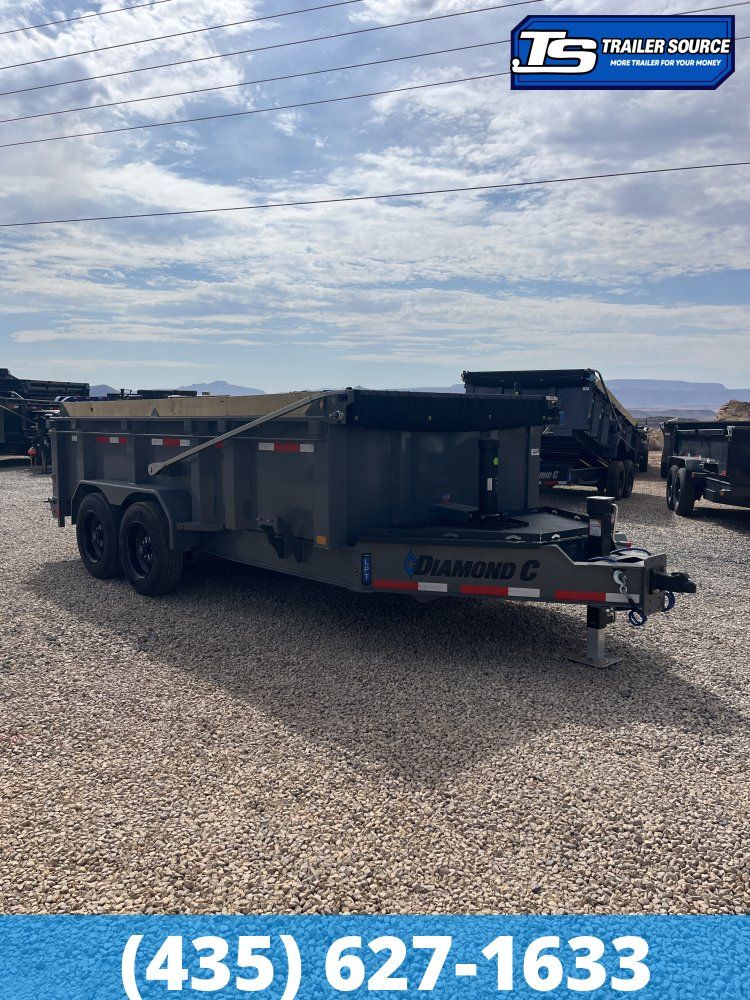

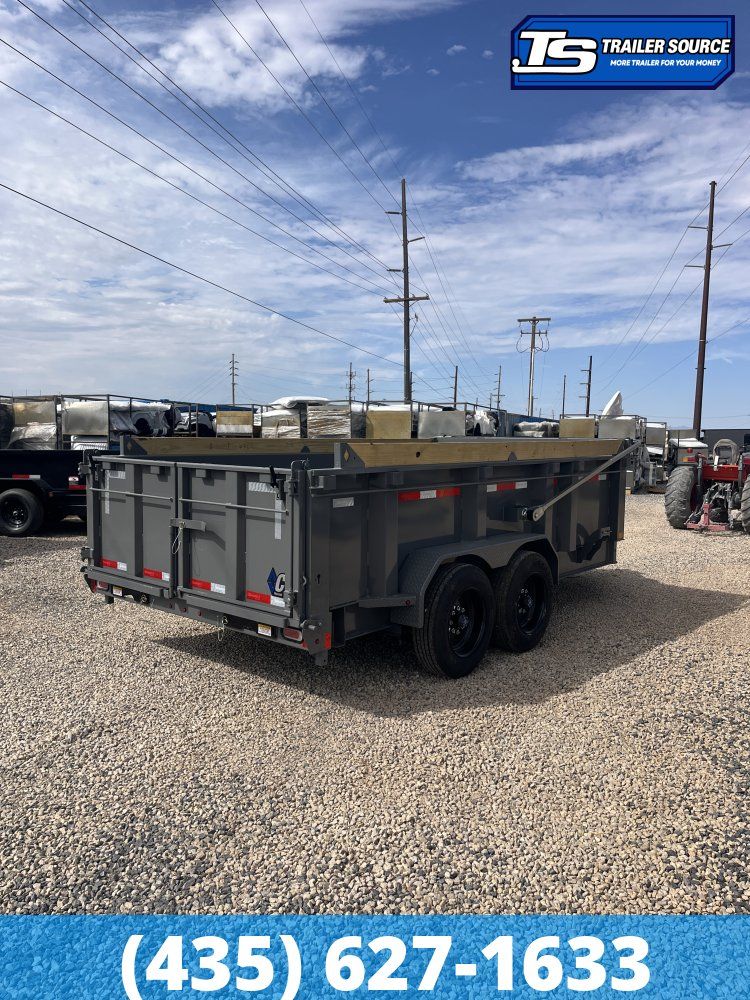

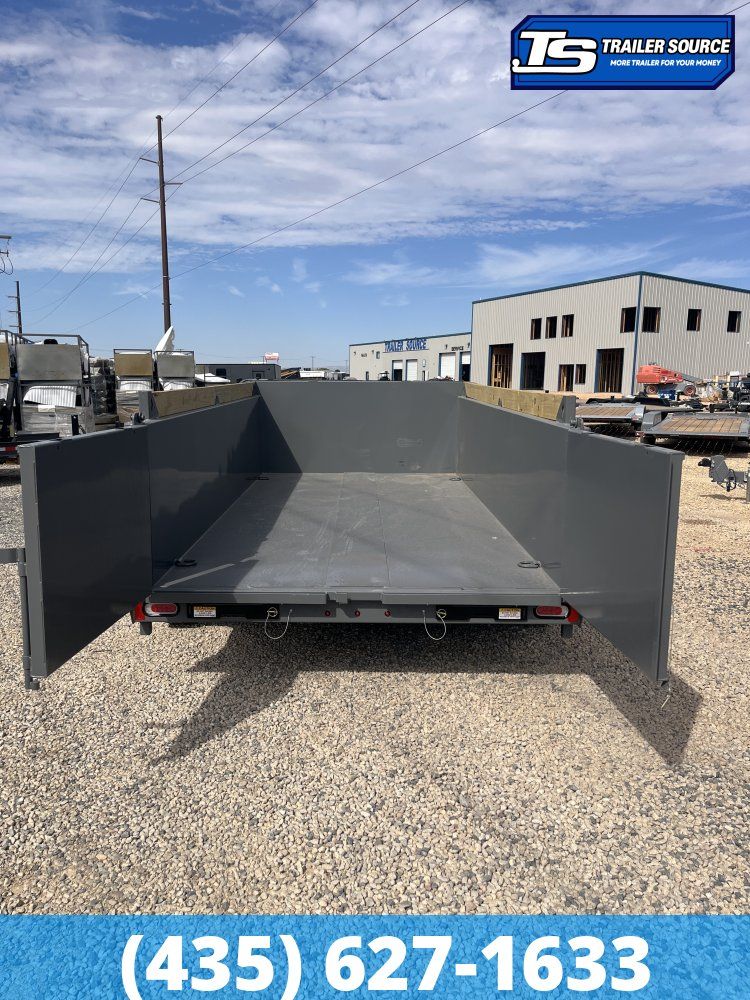

7 x 14 Diamond C LPT 208 18K Dump Trailer – Ready To Work!

18 Ply Tires, Board Brackets

The Diamond C LPT 208 (Low Profile Telescopic) is the heavy-duty "commercial king" of the dump trailer world. While the standard LPT 207 handles 14,000 lbs, the 208 package upgrades the trailer to an 18,000 lb GVWR, making it the primary choice for heavy-duty demolition, rock hauling, and transporting large equipment.

**KEY STANDARD FEATURES

18,000 lb GVWR (Massive Payload Upgrade)**This is the primary reason to buy the LPT208. While the standard LPT207 tops out at 15,500 lbs, the LPT208 upgrades you to an 18,000 lb Gross Vehicle Weight Rating.

• The Benefit: You gain approximately 2,500 lbs of extra legal payload.
• Real World Use: This allows you to legally haul heavier mid-size excavators (like a 6-ton machine) or larger loads of concrete that would put a standard trailer overweight.

8,000 lb Oil Bath AxlesTo support the extra weight, this model swaps standard grease axles for Commercial Duty 8k Oil Bath Axles.

• The Benefit: Oil bath hubs (similar to semi-trucks) provide continuous lubrication to the bearings and run cooler than grease. They feature clear caps, allowing you to visually check oil levels and purity without jacking up the trailer or pulling a cap.

**"Super Single" Tire Package (17.5" Wheels)**You cannot put 18,000 lbs on standard 16-inch trailer tires. The LPT208 comes standard with 215/75R17.5 tires (18 Ply).

• The Benefit: These are solid-steel, commercial-grade tires designed for extreme loads and puncture resistance on construction sites. They are significantly thicker and tougher than standard trailer rubber.

21,000 lb Demco EZ-Latch CouplerA standard 14k coupler is legally insufficient for this trailer. The LPT208 is equipped with an upgraded 21k Adjustable Demco EZ-Latch Coupler.

• The Benefit: Extreme safety rating with the convenience of the "Drop-and-Go" auto-latch system. It ensures your connection point is stronger than the fully loaded trailer.

**Engineered Beam Frame (Optimized for 18k)**Diamond C’s patented Engineered I-Beam frame is critical on this model.

• The Benefit: A standard steel channel frame strong enough to hold 18k lbs would be incredibly heavy, eating up your payload. The Engineered Beam is taller and lighter, maximizing the amount of weight you can put in the trailer rather than on the trailer hitch.

**3-Stage Telescopic Cylinder (Front Mount)**Lifting 12,000+ lbs of payload requires different physics than lifting lighter loads.

• The Benefit: The telescopic hoist pushes from the very front of the dump body, providing maximum leverage. This is essential for the LPT208 because a scissor hoist (which pushes from the center) would struggle or fail under the density of an 18,000 lb GVWR load.

PERFECT FOR

**Hauling "Mid-Size" Excavators (The 6-Ton Class)**This is the #1 reason to buy the LPT208.

• The Problem: A standard 14k dump trailer can only legally haul about 9,500 lbs. A 6-ton mini-excavator (like a Kubota KX057 or Cat 306) weighs around 12,000–13,000 lbs.
• The Work: Transporting these heavier machines to residential backyards for pool digs or foundation work.
• Why LPT208: It gives you the legal payload capacity (~12,500+ lbs) to haul these machines without needing a CDL truck or a massive dually trailer.

High-Density Concrete & Masonry Supply- The Work: Delivering pallets of retaining wall block, pavers, or natural stone.

• Why LPT208: A pallet of pavers weighs ~3,000 lbs.
• Standard 14k Trailer: Can take 3 pallets legally.
• LPT208: Can take 4 to 5 pallets legally.
• The Win: You save an entire trip back to the supply yard.

Tight-Access Commercial Demolition- The Work: Removing concrete driveways, swimming pools, or foundations in crowded subdivisions.

• Why LPT208: You need to haul heavy broken concrete (which is incredibly dense), but a wide "Dual Tandem" trailer is too wide to navigate narrow streets or park in a single-car driveway. The LPT208 handles the weight of a dually but keeps the slim footprint of a single-wheel trailer.

Heavy Scrap Metal Hauling- The Work: Collecting steel beams, old appliances, and car parts.

• Why LPT208: Scrap metal is jagged and heavy. The 17.5" 16-Ply Tires (standard on the LPT208) are much more puncture-resistant than standard trailer tires, and the extra payload allows for maximum profitability at the scale.

Large Scale Roofing (Commercial)- The Work: Stripping roofs on apartment complexes or commercial buildings.

• Why LPT208: Roofing shingles are dense. If you are doing a large job, you want to fill the trailer to the brim. The LPT208 allows you to utilize the full volume of the box with board extensions without exceeding the axle ratings.

Oil Field & Industrial Service- The Work: Hotshotting heavy valves, pipes, generators, or welders to remote sites.

• Why LPT208: These sites are often off-road. The 8,000 lb Oil Bath Axles are built for higher mileage and cooler running temps, and the heavy-duty suspension handles rough lease roads better than lighter consumer trailers.

Forestry & Tree Service (Heavy Wood)- The Work: Hauling large oak/hardwood logs or wet wood chips.

• Why LPT208: Wet wood is deceptively heavy. A full load of fresh oak logs can easily crack the frame or flatten the springs of a 14k trailer. The LPT208's Engineered Beam Frame and upgraded suspension shrug off the weight of massive log rounds.

**WHY CHOOSE THE LPT 208?

The "Dually" Payload without the "Dually" Width**- The Competition: To get over 14,000 lbs GVWR, most brands force you into a "Dual Tandem" (dually) trailer. These are 102" wide, heavy, and a nightmare to back into narrow residential driveways.

• The LPT208 Advantage: It maintains the slim profile of a standard trailer but delivers Heavy Duty payload capacity (approx. 12,000+ lbs).
• Why Buy: You get the weight capacity of a big commercial trailer, but you can still fit it between cars in a suburban driveway.

Commercial "Super Single" Tires (No More Blowouts)- The Competition: Standard dump trailers run on 16-inch, 10-ply or 14-ply tires. When you load them heavy, the sidewalls bulge, they heat up, and they blow out.

• The LPT208 Advantage: It comes standard with 17.5" Solid Steel 16-Ply Tires. These are semi-truck grade.
• Why Buy: Peace of mind. If you are hauling heavy concrete or jagged metal, these tires are practically bulletproof compared to standard trailer rubber.

The Engineered Beam = More Legal Payload- The Competition: When other manufacturers build an 18k trailer, they just use thicker, heavier steel channels. This makes the trailer heavy, which steals from your legal payload capacity.

• The LPT208 Advantage: Diamond C’s Engineered Beam Frame is optimized to be incredibly strong but lighter than traditional heavy-channel frames.
• Why Buy: You make money on what you put in the trailer, not the trailer itself. A lighter trailer means you can legally haul more tonnage per trip.

Oil Bath Axles (Reduced Maintenance)- The Competition: Most bumper-pull dumps use grease axles. You have to repack bearings manually, and if you forget, you burn up an axle.

• The LPT208 Advantage: It uses 8,000 lb Lippert Oil Bath Axles (just like semi-trucks). You can see the oil level through the clear hub cap.
• Why Buy: Lower maintenance costs. As long as you see oil in the cap, you are good to go. They run cooler and last longer under heavy braking.

Telescopic Cylinder vs. Scissor Hoist- The Competition: Many high-capacity trailers still use a Scissor Hoist underneath the bed. At 18,000 lbs, a scissor hoist is under immense stress at the start of the lift and can struggle to dump a dense, centered load.

• The LPT208 Advantage: The 3-Stage Telescopic Cylinder pushes from the very front, giving it maximum leverage.
• Why Buy: If you overload the trailer with wet clay or concrete, the telescopic cylinder will still lift it. A scissor hoist might stall, leaving you to shovel it out by hand.

5/8" Heavy Duty D-Rings- The Competition: Standard D-Rings are often rated for 4,000–6,000 lbs.

• The LPT208 Advantage: Because this trailer is meant for machinery, it features upgraded 5/8" D-Rings.
• Why Buy: When you strap down a $60,000 Mini-Excavator, you don't want standard D-rings snapping during a sudden stop. These are built for the heavy iron this trailer is designed to carry.

Resale Value & Brand Recognition- The Competition: Generic "safety yellow" or "budget" dump trailers flood the market. They rust quickly and lose value fast.

• The LPT208 Advantage: Diamond C is the "Cadillac" of the industry. The powder coat (DM Difference) is durable, and the design is recognizable.
• Why Buy: When you are done with it in 5 years, an LPT208 will sell faster and for significantly more money than a generic 14k dump trailer.
