"More Trailer For Your Money"

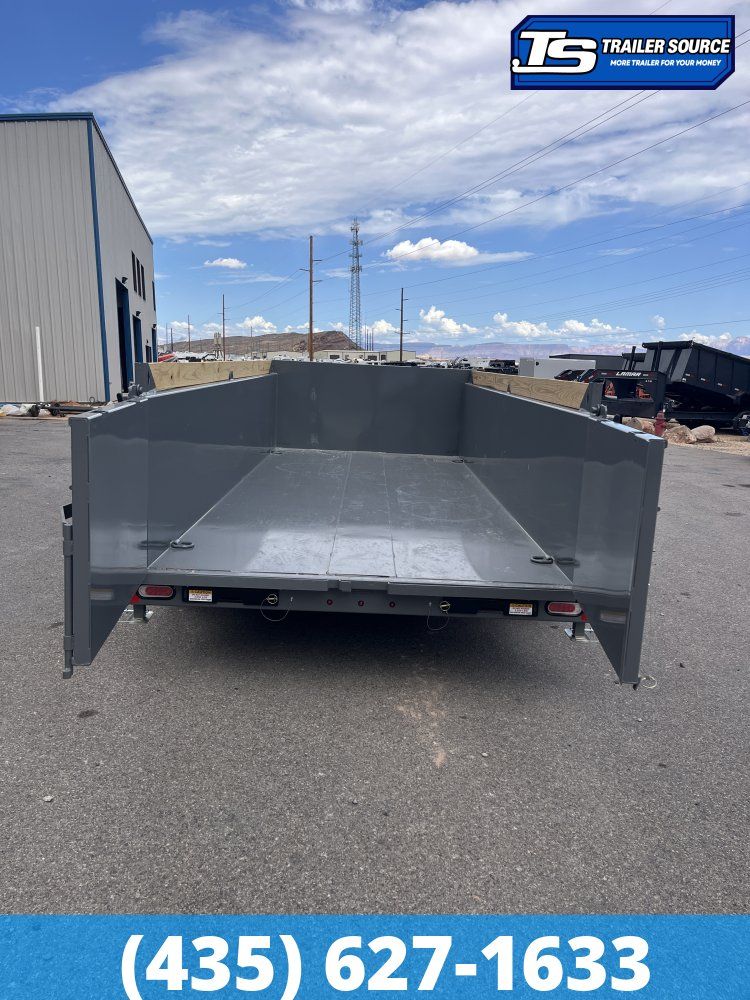

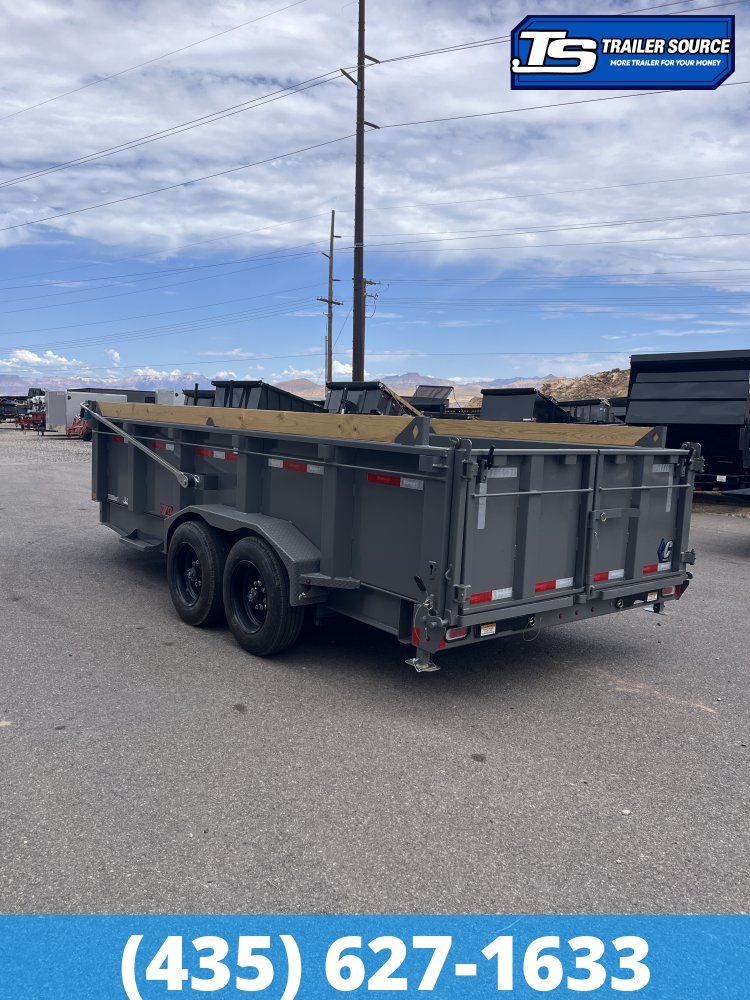

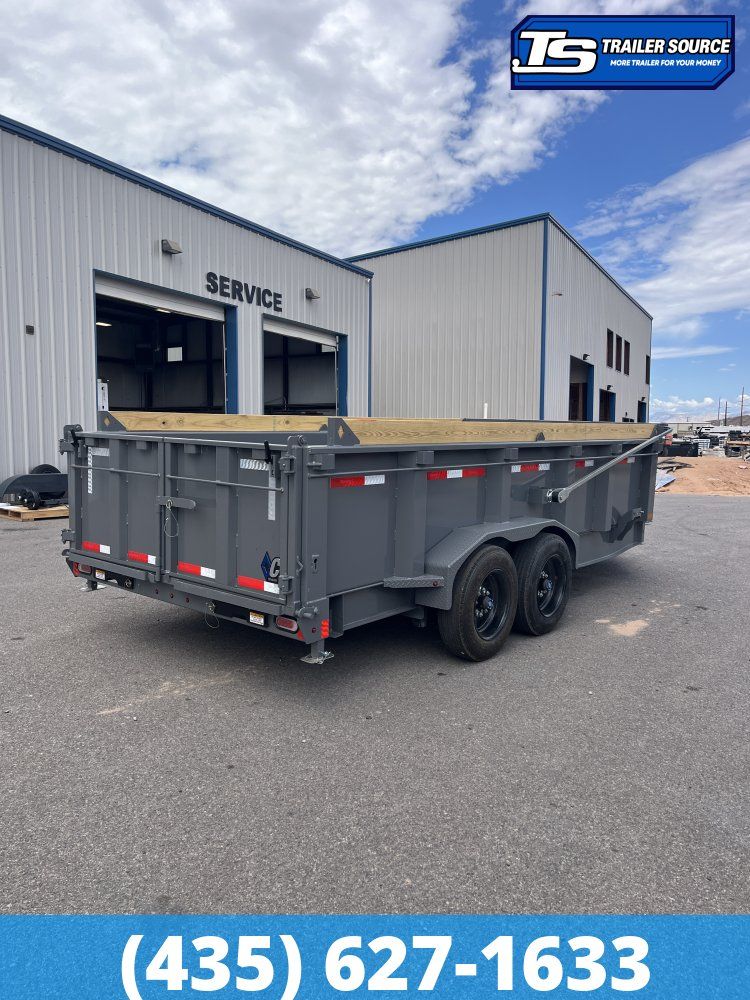

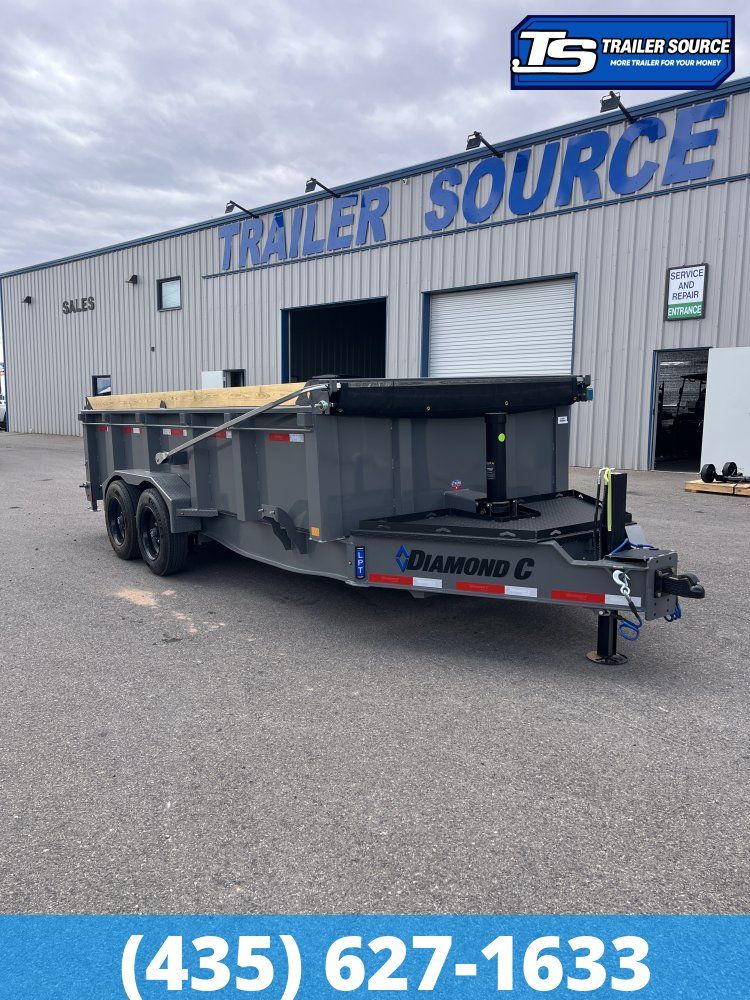

7 x 16 Diamond C LPT 208 Pacesetter Pkg 18K Dump Trailer – Ready To Work!

7 Gauge Floor and Walls

The Diamond C LPT 208 Pacesetter Edition is the heavy-duty evolution of the industry-leading LPT series. While the "207" is the standard dump, the 208 package pushes the GVWR to 18,000 lbs using dual 8,000 lb oil-bath axles.

The Pacesetter Edition is a curated "pro-spec" bundle that includes the most critical upgrades for commercial demolition, gravel hauling, and equipment transport.

KEY FEATURES OF THE LPT 208 PACESETTER3-Stage Telescopic Cylinder (Front-Mount) The defining feature of the LPT is the telescopic hoist. Unlike a scissor lift that pushes from the middle, this hoist pushes from the front of the bed.

• The Benefit: It provides maximum leverage at the start of the dump, where it’s needed most. It handles unevenly distributed loads (like heavy wet clay or concrete) with far less stress on the trailer frame, reaching a full 45-degree dump angle faster and more efficiently.

Dual 8,000 lb Oil-Bath Axles (18K GVWR) The "208" upgrade swaps standard axles for 8k Lippert Oil-Bath axles and 17.5" 18-ply radial tires.

• The Benefit: You gain an extra 3,000 lbs of legal payload over a standard dump trailer. The oil-bath hubs provide superior lubrication for long-distance highway hauling, and the 18-ply tires are nearly bulletproof against job site punctures.

Single 20,000 lb Hydraulic Jack (Pacesetter Upgrade) The Pacesetter replaces the manual crank jack with a 20k hydraulic jack.

• The Benefit: No more manual labor. You can unhook a fully loaded 18,000 lb trailer in seconds. The Pacesetter package also includes a Bluetooth Wireless Controller, allowing you to operate the jack (and the dump bed) from your phone or a remote while standing safely clear of the trailer.

7-Gauge "Super Duty" Body & Sides Standard dump trailers use 10-gauge steel. The LPT 208 Pacesetter features a 7-gauge (3/16") one-piece floor and integral sides.

• The Benefit: 7-gauge steel is approximately 25% thicker than 10-gauge. This prevents the "oil-canning" and floor denting that happens when dropping heavy rip-rap, boulders, or concrete debris into the bed.

Engineered I-Beam Frame Built with Diamond C’s patented Engineered Beam technology, featuring 12" on-center crossmembers.

• The Benefit: The frame is taller and stronger where it needs to be, but lighter overall. This lower profile makes the trailer more stable on the highway and easier to load equipment into, as the deck sits closer to the ground than a traditional tube-frame dump.

SolarPulse® 7-Watt Charging System Integrated into the HD V-Tongue lid is a 7-watt solar panel.

• The Benefit: Dump trailers are notorious for dead batteries due to the high draw of the hydraulic pump. The SolarPulse system provides a continuous trickle charge, ensuring your battery is topped off and ready to dump even after sitting on a job site for days.

3-Way Gate & HD Slide-In Ramps The trailer features the 3-Way Dump Gate (Spreader, Barn Door, and Truck Style) and 78" heavy-duty slide-in ramps.

• The Benefit: You can spread gravel evenly, swing the doors wide for debris, or drop the gate like a pickup for loading. The 3" I-beam ramps allow the LPT to double as an equipment hauler for skid steers or mini-excavators.

THE DEMOLITION SPECIALIST****WHY THE LPT 208 PACESETTER IS THE ONLY DUMP YOU’LL EVER NEED

Stop struggling with "standard" dumps that stall under heavy loads. The LPT 208 is built to work as hard as you do.

THE HOIST: 3-Stage Telescopic Power

• Positioned at the front of the bed for maximum leverage, our telescopic hoist handles "impossible" loads that would snap a scissor lift.

THE STRENGTH: 7-Gauge Steel Floor & Sides

• Throw the big rocks. With 3/16" thick steel throughout the body, the LPT 208 is designed to take the impact of heavy debris without denting or bowing.

THE TECH: Bluetooth & Hydraulic Jack

• Control your trailer from the palm of your hand. With a 20k hydraulic jack and wireless Bluetooth operation, you spend less time cranking and more time hauling.

THE AXLES: 18,000 lb GVWR & 18-Ply Tires

• Built on 8k oil-bath axles and rolling on 18-ply commercial-grade radials, this trailer is designed for the long haul and the heaviest payloads.

IDEAL USERS FOR THIS TRAILERThe LPT 208 Pacesetter is the ultimate tool for demolition contractors, heavy excavators, and roofing companies. It is the perfect choice for anyone hauling concrete, boulders, or large equipment who needs a trailer that can dump a full load every single time without hesitation.
