Up for sale is a Universal Analyzers Model 530 Single-Stream Thermoelectric Gas Cooler / Conditioner. Designed for continuous emissions monitoring systems (CEMS) and precision laboratory gas analysis, the Model 530 removes moisture from sample gas streams to ensure accurate readings and protect sensitive downstream analyzers.

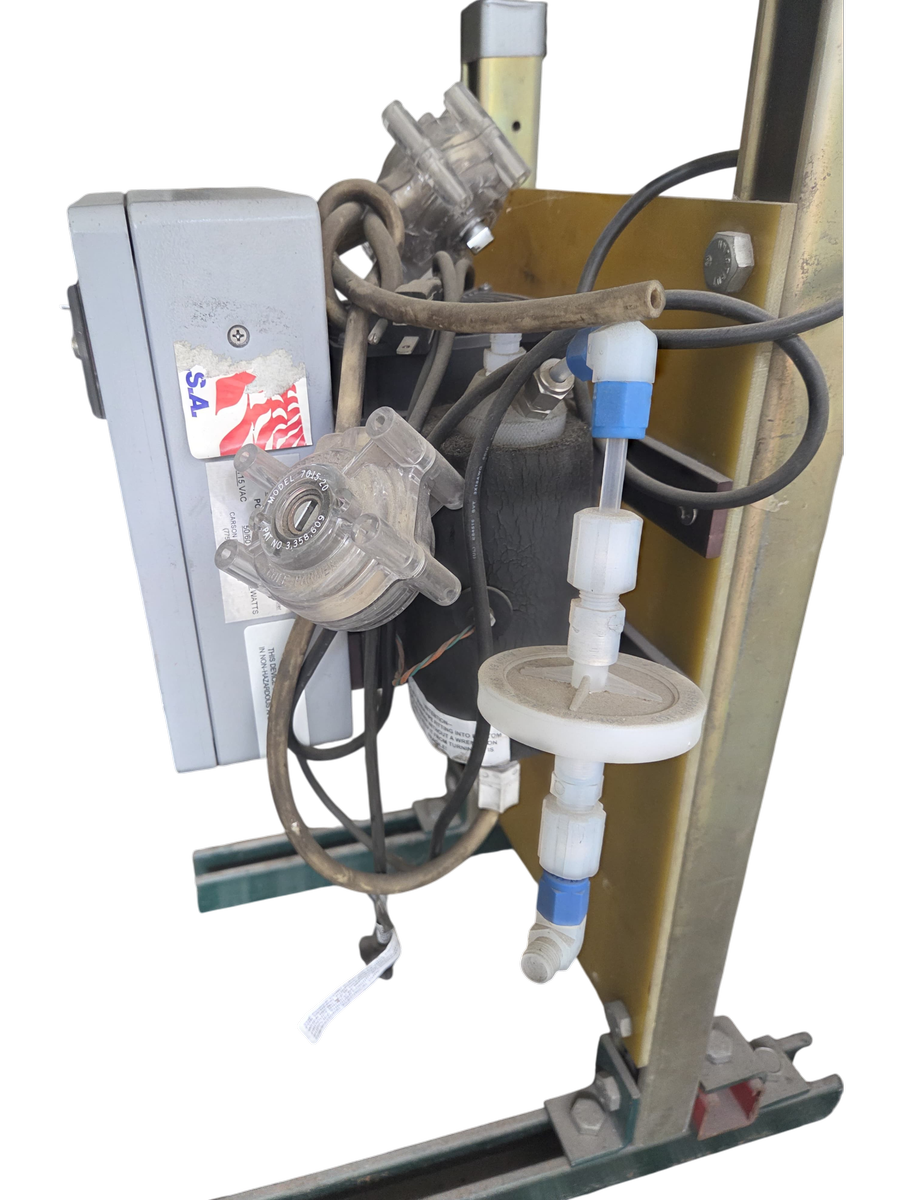

This robust assembly features an integrated controller box with digital status indicator lights ("Cool", "Dry", "Rly Set"), a front cooling fan, dual clear-body peristaltic condensate removal pump heads, and pre-installed particulate/moisture filtration.

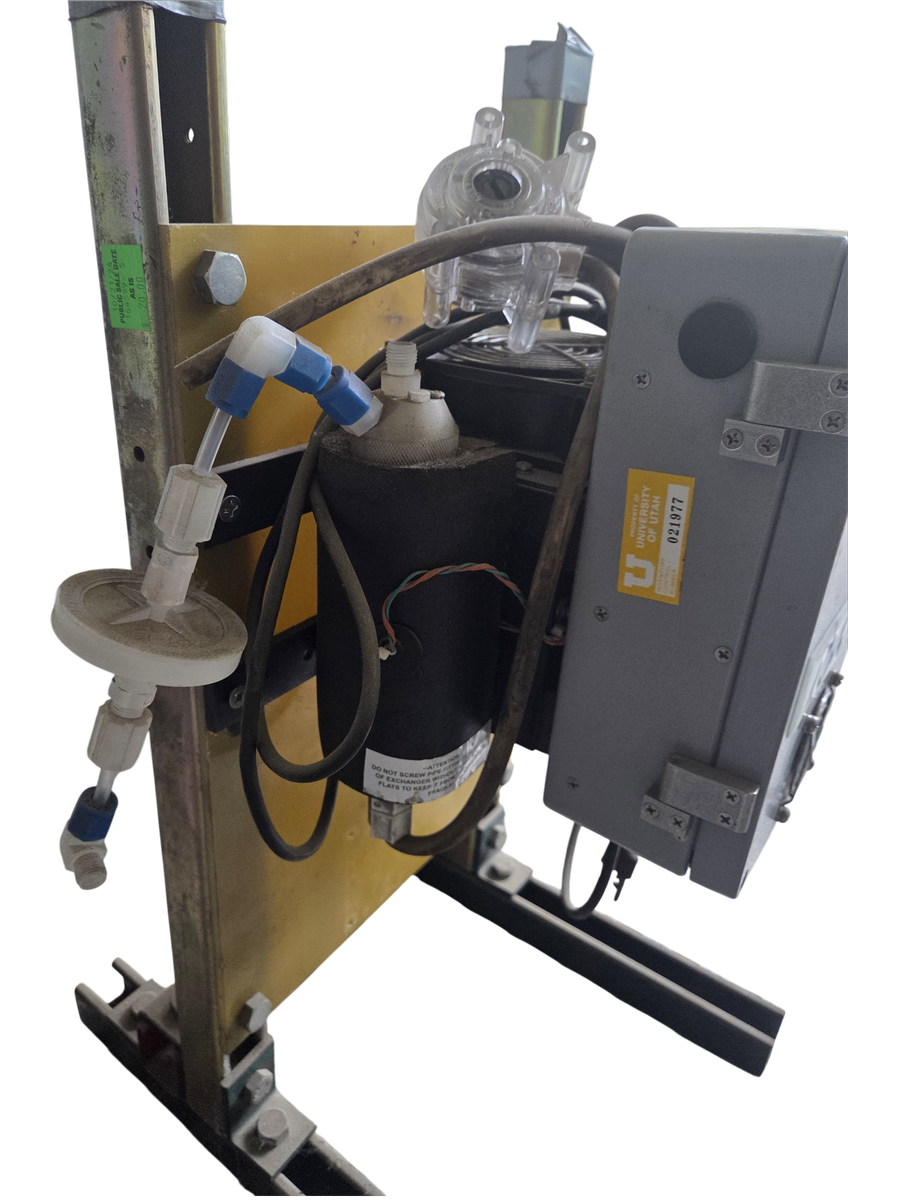

This item is an industrial surplus unit acquired from the University of Utah (original inventory asset tag still intact).

Technical Specifications

• Manufacturer: Universal Analyzers Inc. (An AMETEK Brand)
• Model: 530
• Application: Single-Stream Thermoelectric Gas Sample Conditioning
• Sample Flow Rate: 0 to 5 Liters per Minute (L/M) at STP
• Cooling Capacity: Up to 63 BTUs per hour / 60 kJ/hr
• Outlet Dew Point: Constant 41°F (5°C)
• Power Requirements: Multi-voltage capable (typically 90-132 / 180-264 VAC, 50/60 Hz)
• Heat Exchangers: Features two 5" heat exchangers (1 passive prep-cooler, 1 active thermoelectric cooler)
• Enclosure Rating: General Purpose / NEMA 1
• Origin: Made in the USA
