Model: Dell Poweredge R630XL (OEM)

CPU: 2x Intel Xeon E5-2697 V3's - Each one has 14 Cores/28 Threads running between 2.6GHz-3.6GHz | 28 Cores/56 Threads Total

RAM: 128GB Registered ECC DDR4 (4x32GB)

Storage Drives: None, various SSDs/HDDs available for purchase in-store

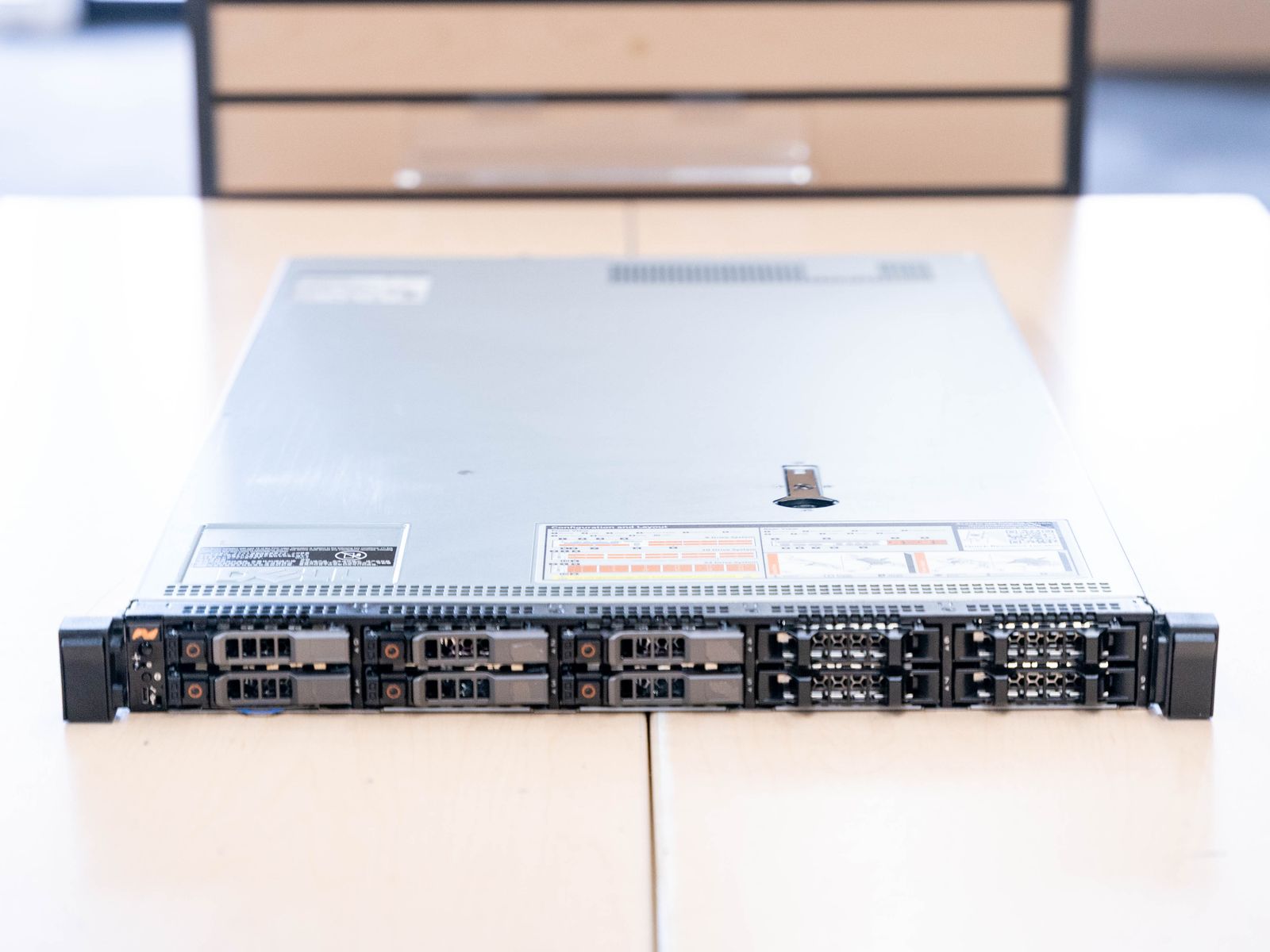

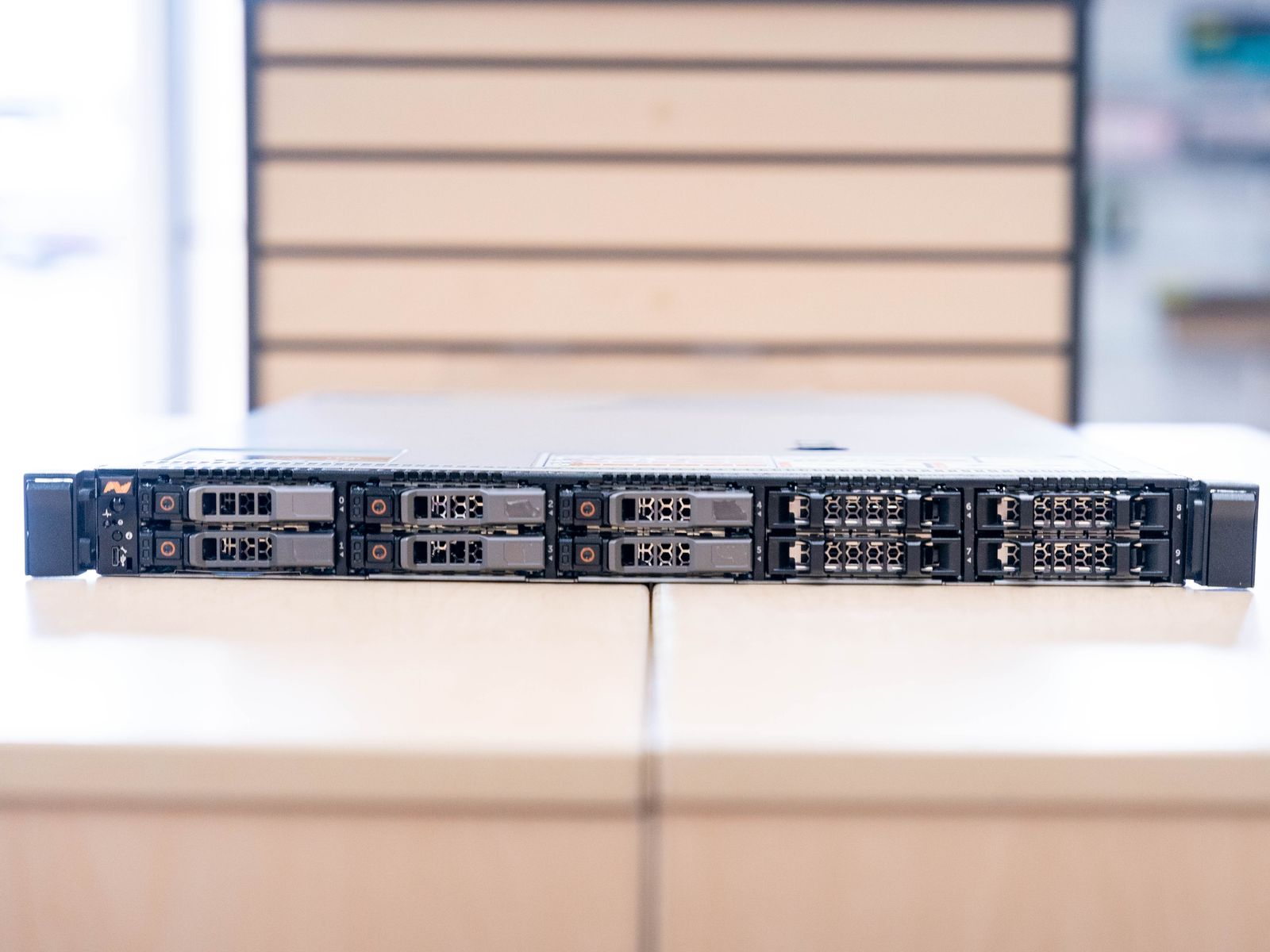

Primary Storage System: 10x Front 2.5" Hot-Swap SAS/SATA Bays

Secondary Storage System: Rightmost 4 bays can also accept U.2 NVMe SSDs

Storage Controller: Dell PERC H730P Mini - Dual Mode Controller, supports both RAID Mode and HBA Mode for Software RAID

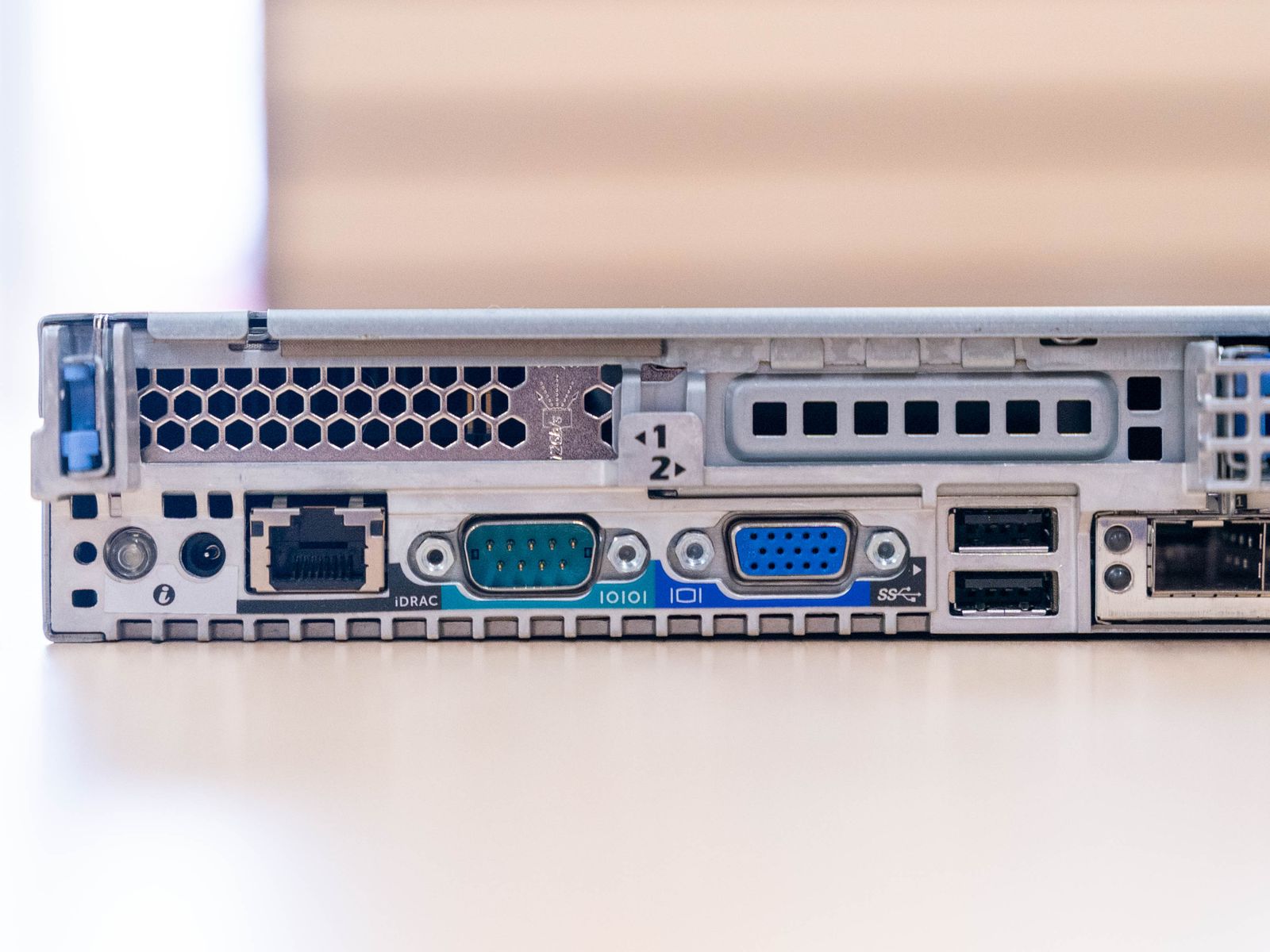

Remote Management: iDRAC 8 Enterprise

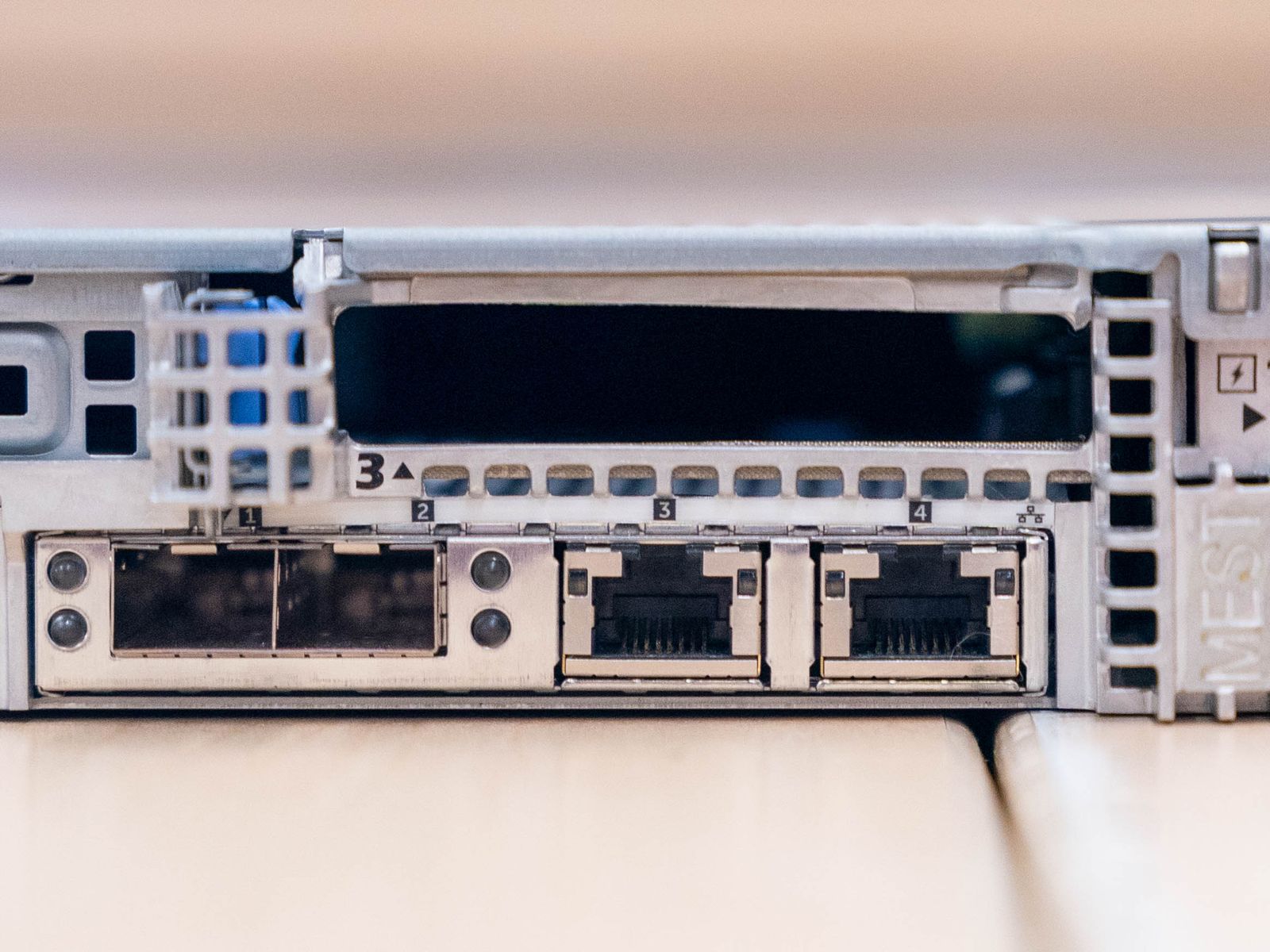

Networking: 2x 10G SFP+ Ports & 2x 1GbE RJ-45 Ports

Rails: Available for $30, with purchase of this server

Bezel: Available for $10

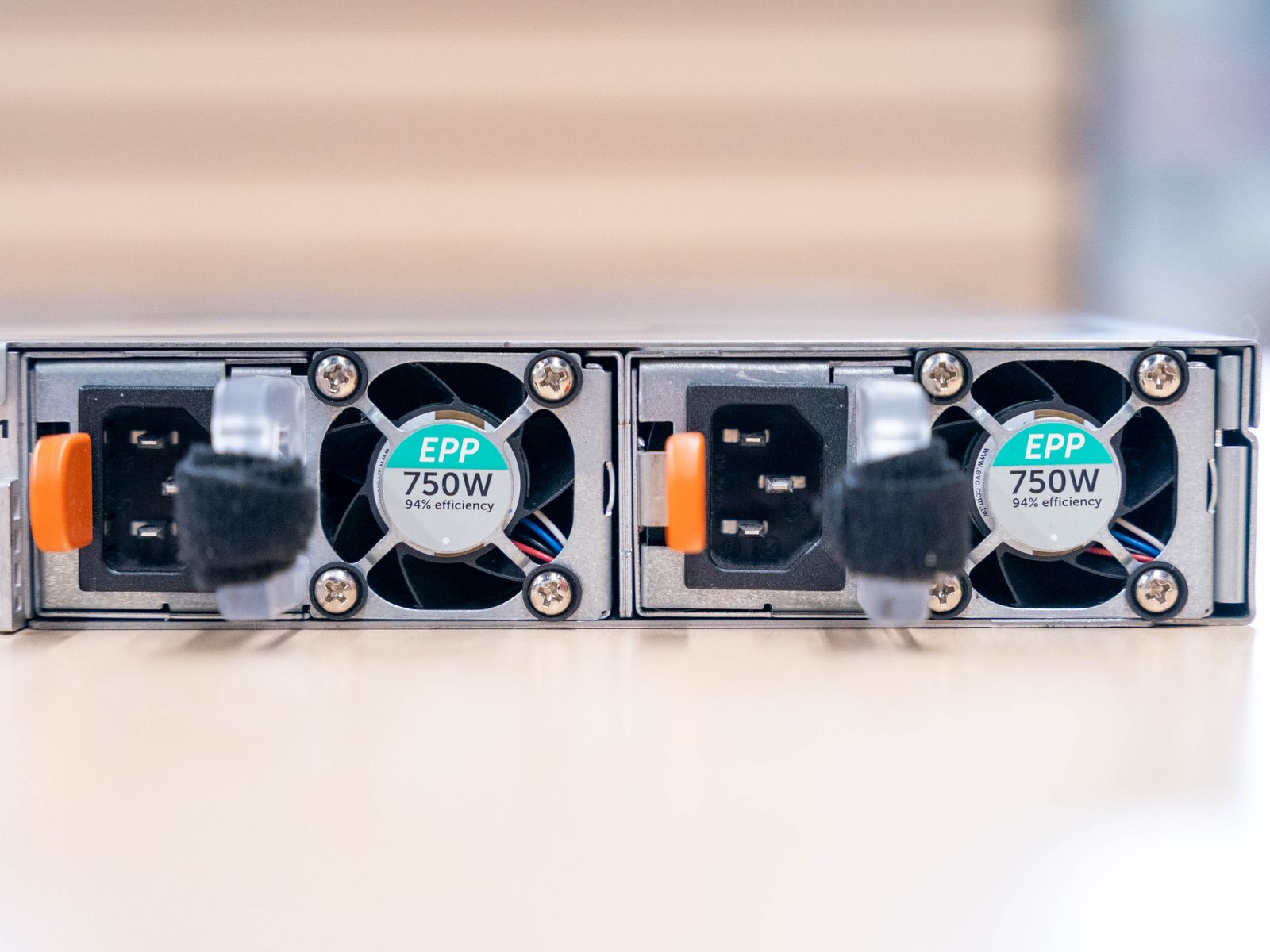

Power: Dual Hot-Swap Redundant 750W PSus

PCI-E Cards: Dell P31H2 NVMe Controller

Available Upgrades: Storage, Networking, PSUs, Rails, Bezel

Additional Notes: This server can accept up to 4x NVMe SSDs in the rightmost 4 bays. It does NOT have any M.2 slots, the NVMe bays are U.2, it's a 2.5" formfactor that looks very similar to traditional SSDs.

Work Done:

• BIOS, iDRAC, LC, and RAID have all been reset and cleared
• All available firmware updates have been applied
• The RAM has been replaced with tested modules from our inventory

Additional information is available upon request

This listing is by GCB Servers, we have a large variety of server/enterprise grade equipment available, such as: Servers, switches, firewalls, routers, and more.

If you need a specific piece of equipment that you don't see listed, please contact us using the listed contact information.

Unit is available at 'GCB Computers', address is 1155 N Main Street, Suite #4 in Layton. Hours are Tuesday-Saturday 10am-6pm.

www.gcbcomputers.com
