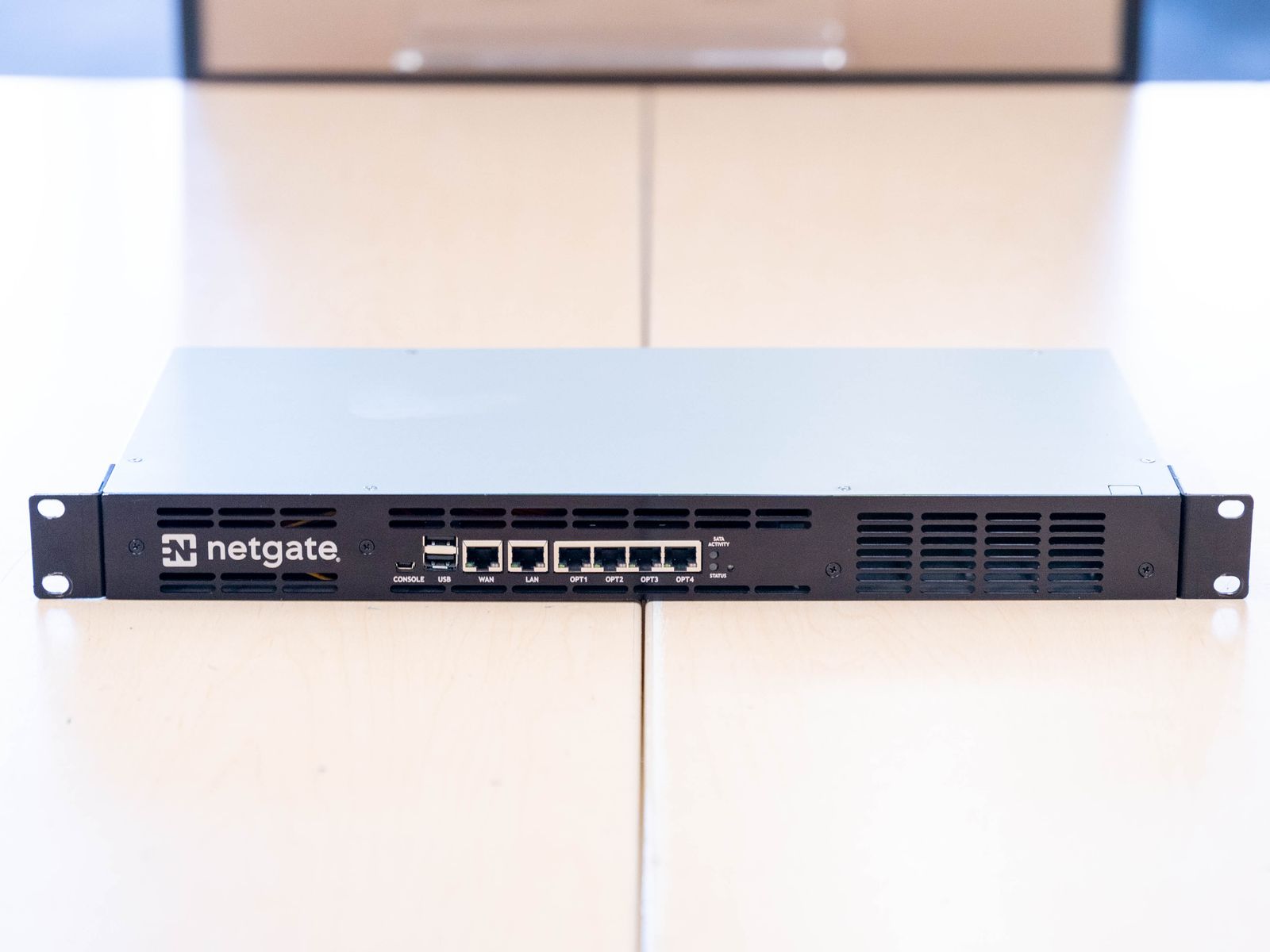

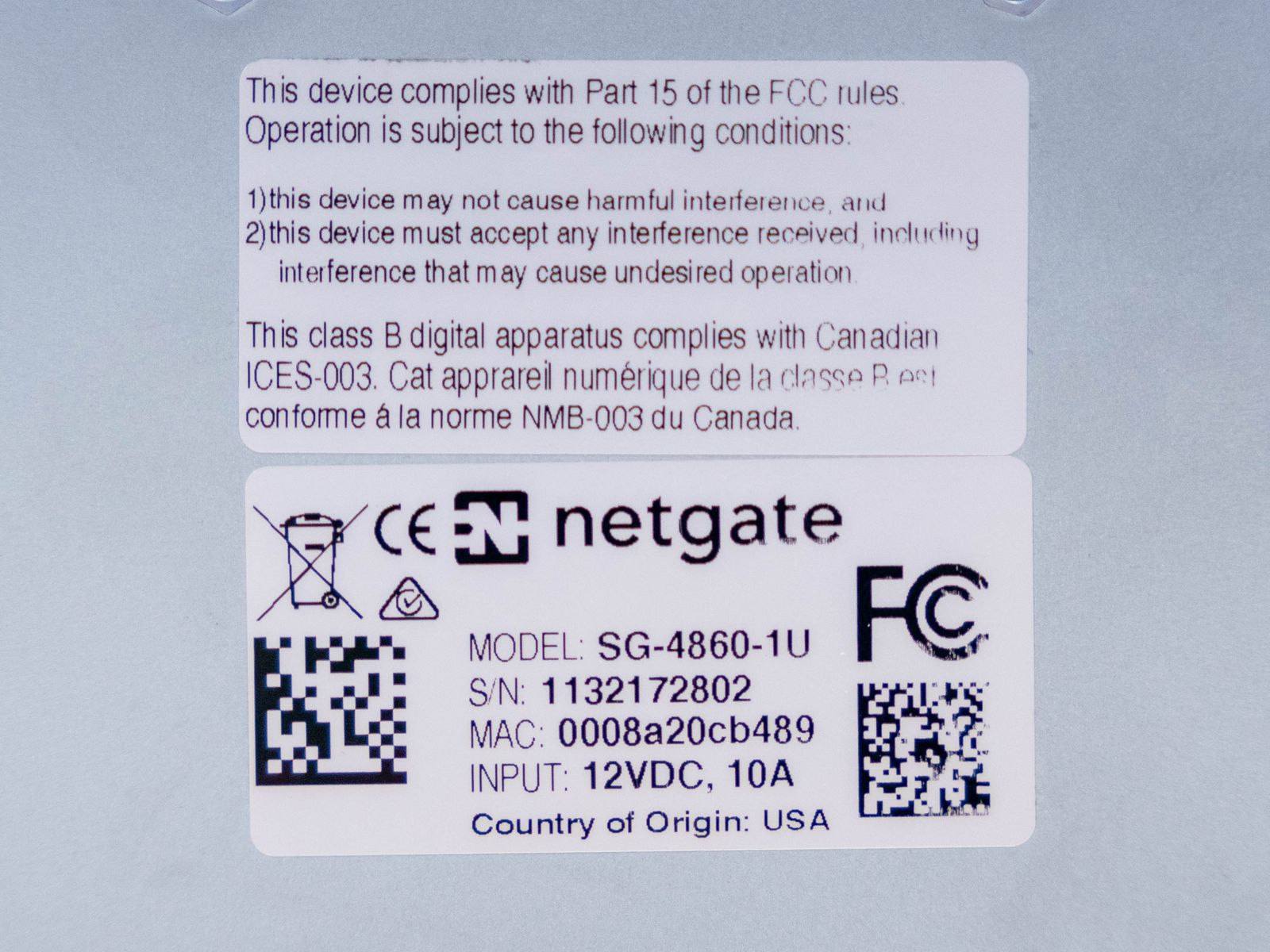

Model: Netgate SG-4860-1U

CPU: Intel Atom C2558 - 4 Cores/4 Threads running at 2.4GHz

RAM: 8GB DDR3 (Soldered)

Storage Drives: 250GB Samsung 860 Evo mSATA SSD

Storage System: Single mSATA Slot

Storage Controller: Integrated SATA Controller

Remote Management: None

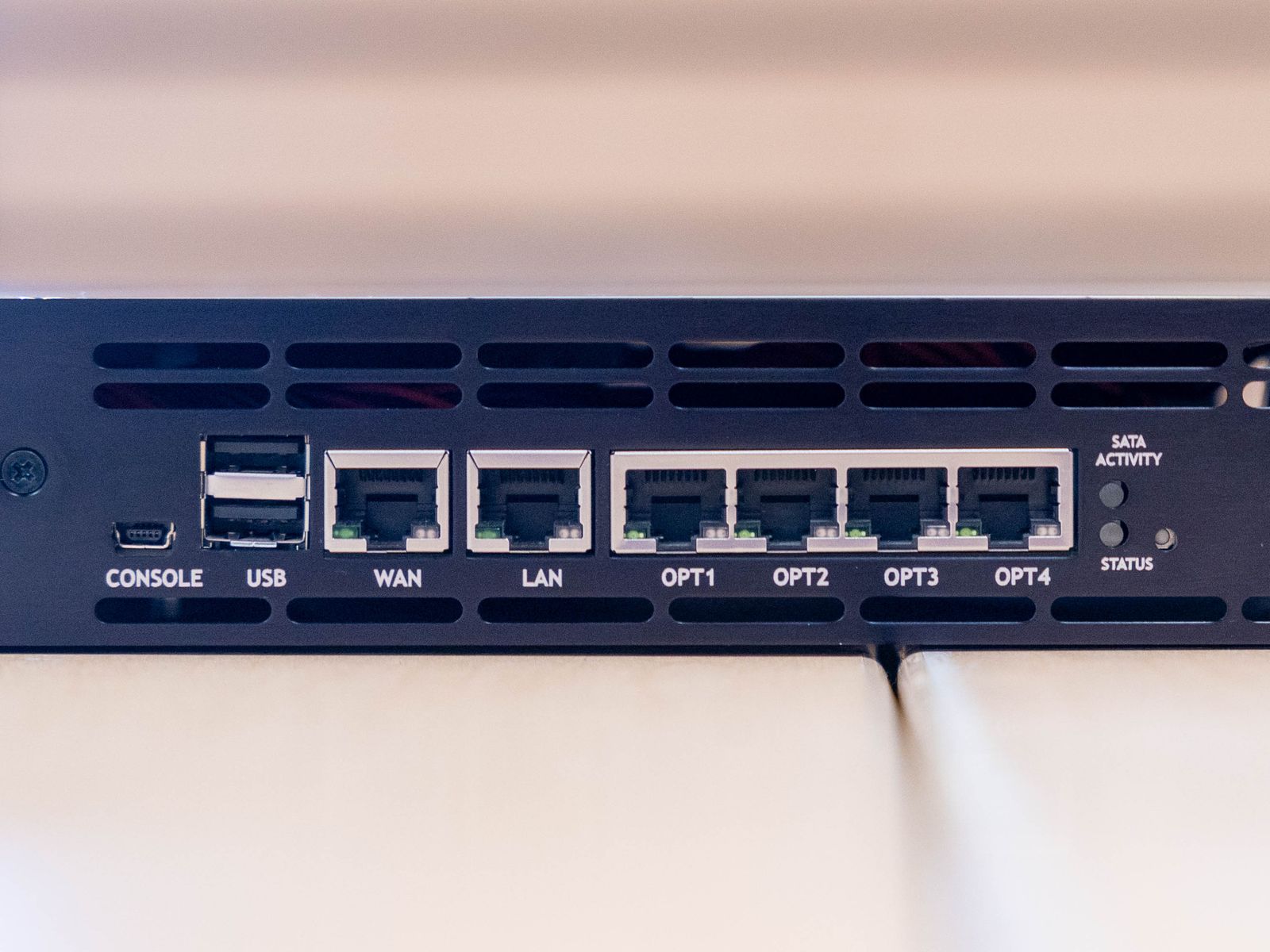

Networking: 6x Gigabit RJ-45 Ethernet Ports 4x Intel I350 & 2x Intel I211)

Rails: N/A, mounts via front ears

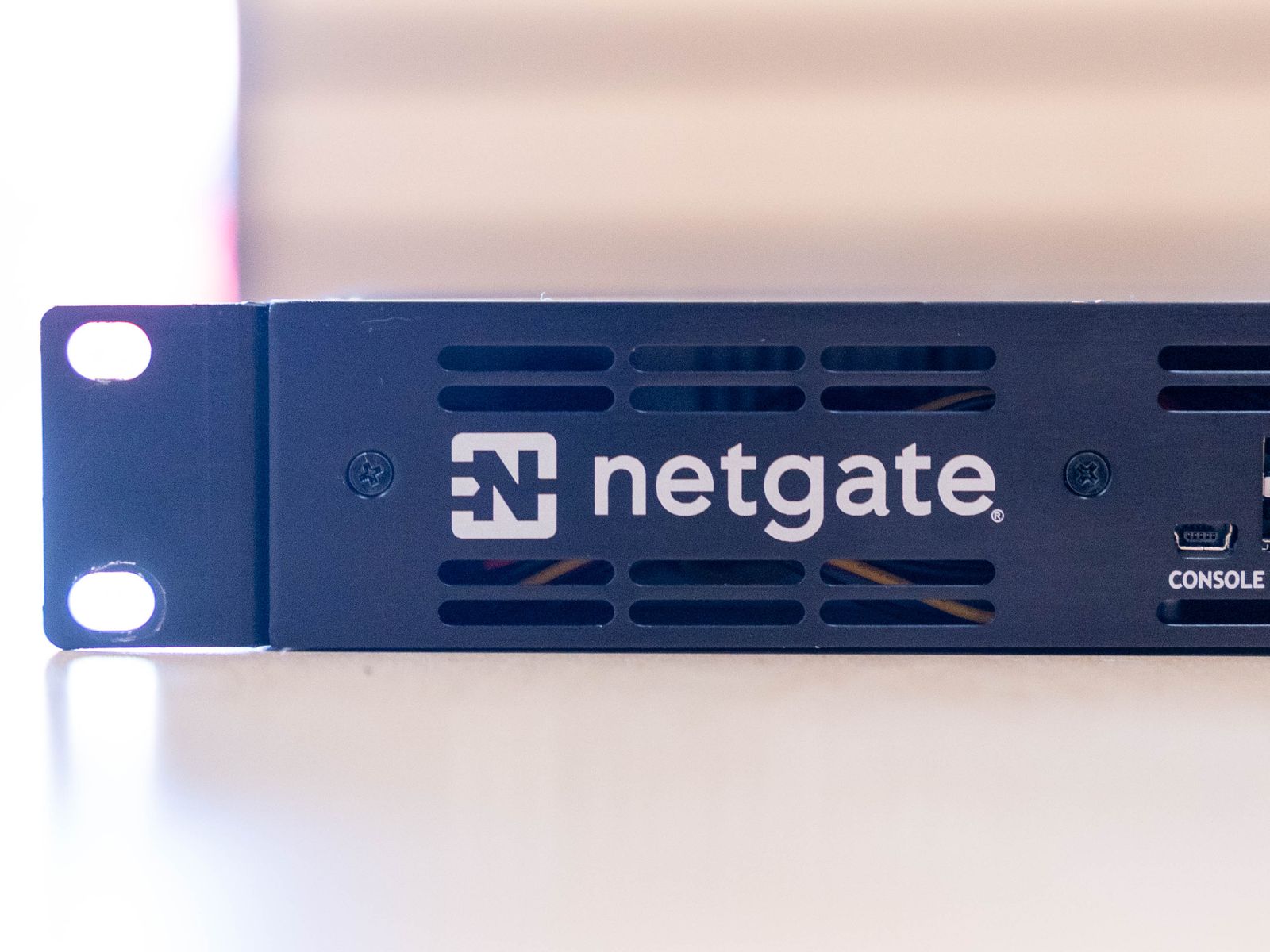

Bezel: Netgate branding

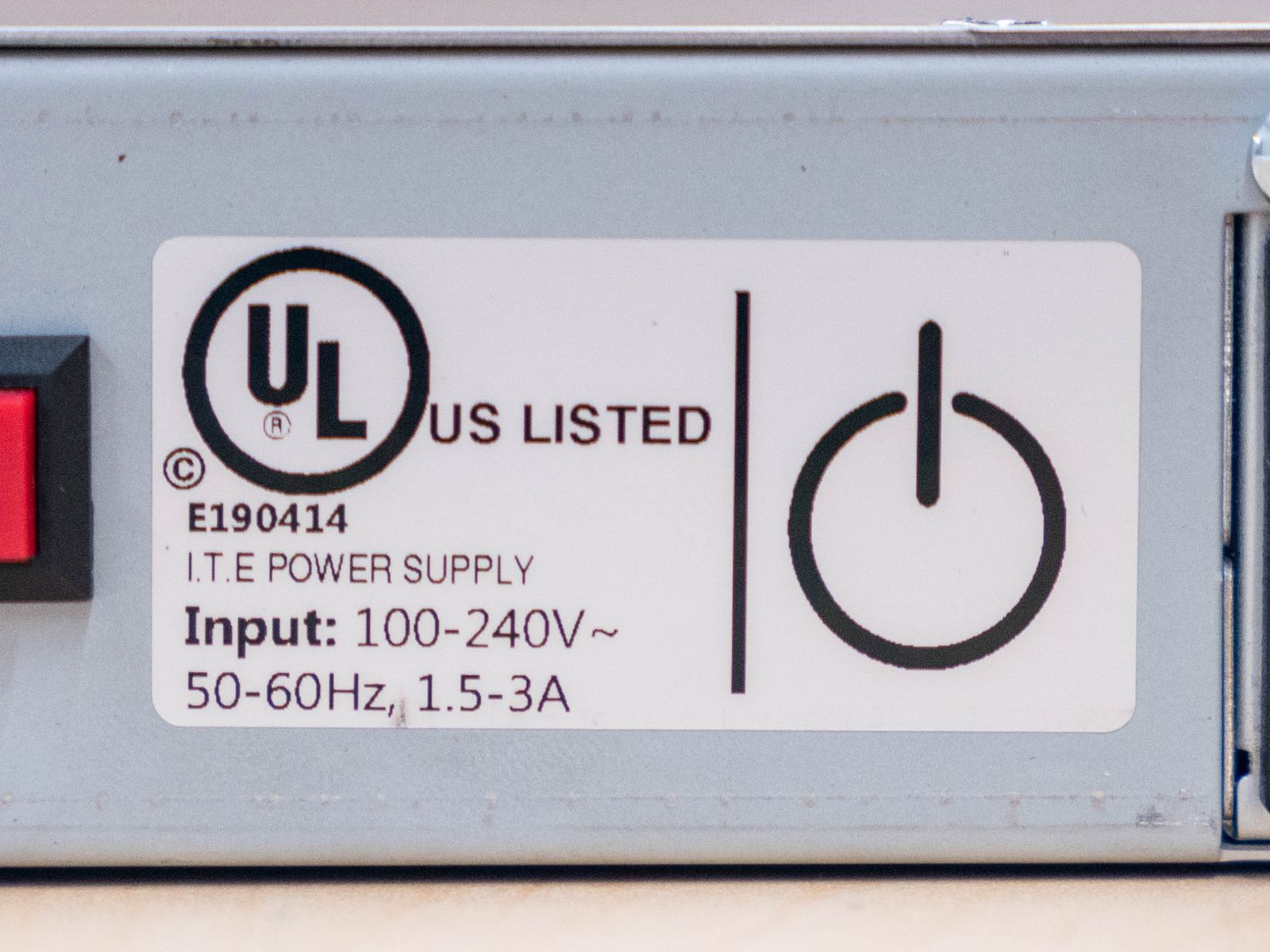

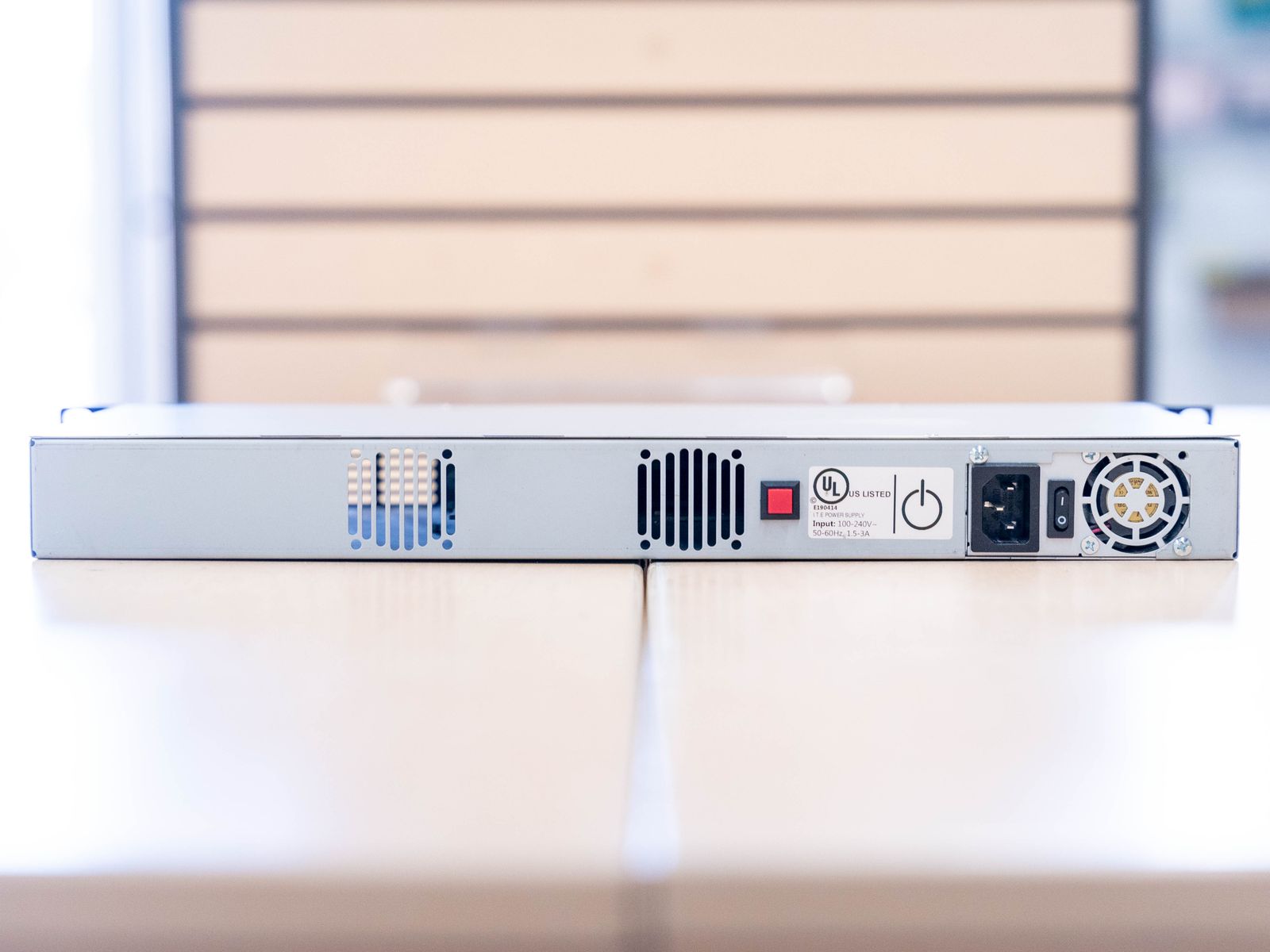

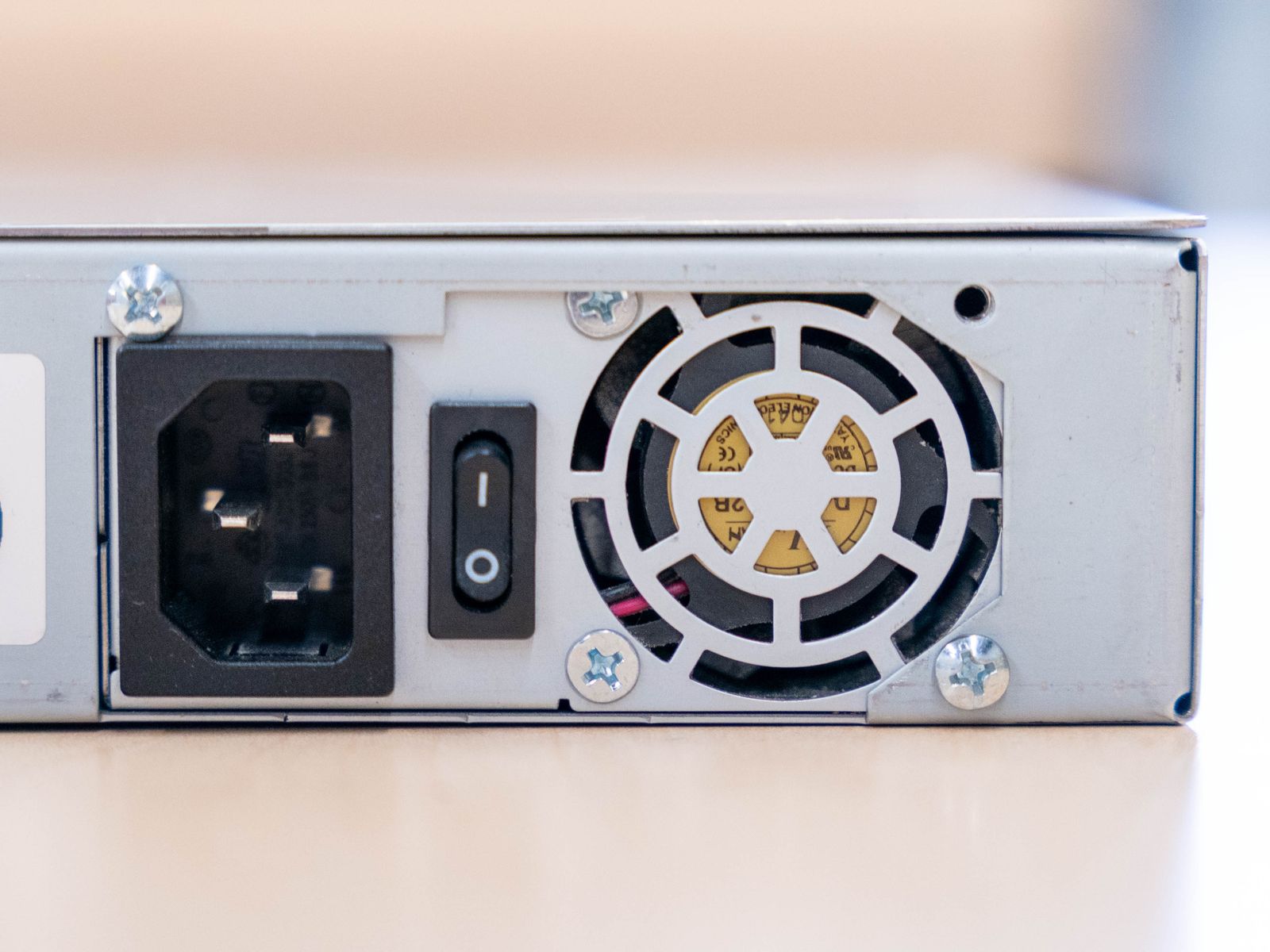

Power: Integrated PSU

Available Upgrades: None

Additional Notes: This unit generally comes with a 32GB eMMC SSD soldered to the motherboard, this one does not have that. Because of that, we installed a 250GB mSATA SSD. We also attempted to install OPNsense, however the unit would not boot to the OPNsense installer.

Work Done:

• Boot order has been reset to factory defaults

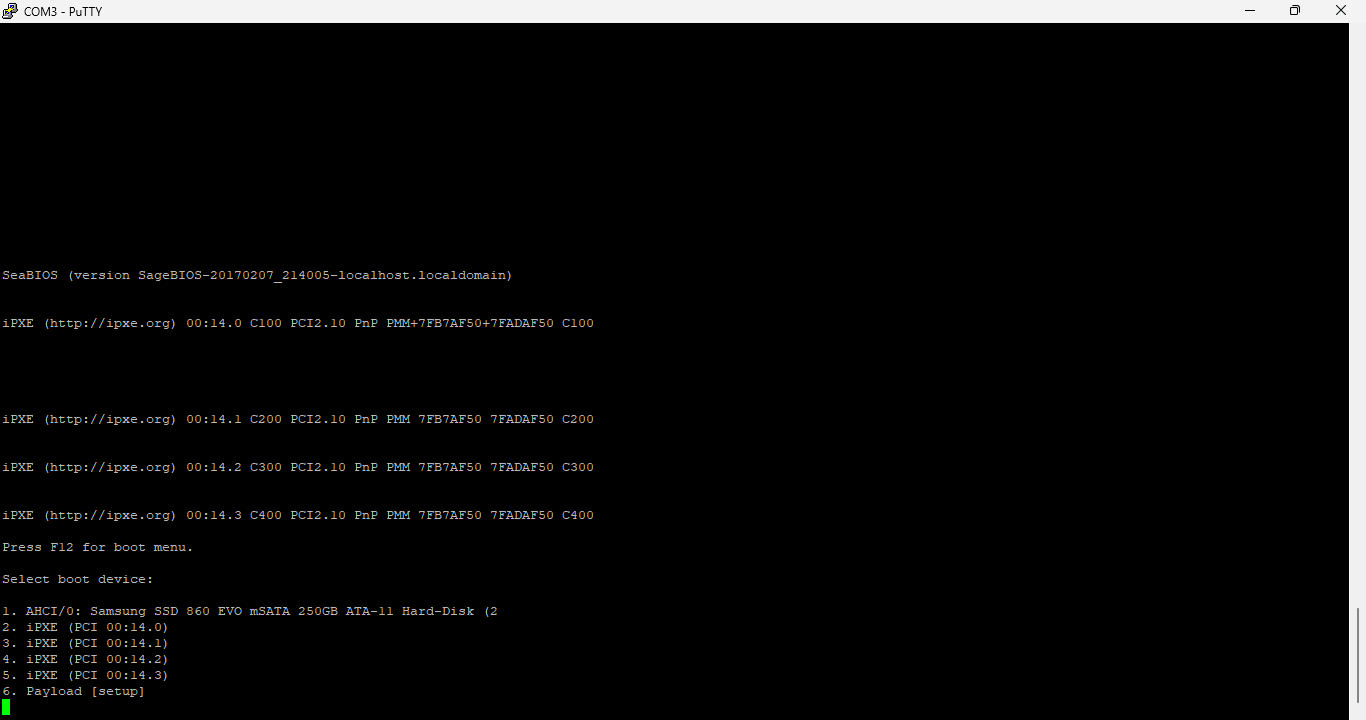

• Unit has been tested to power on and display console output (mini-USB, 115200, 8-N-1)
• The SSD was wiped prior to installation into the system

Additional information is available upon request
