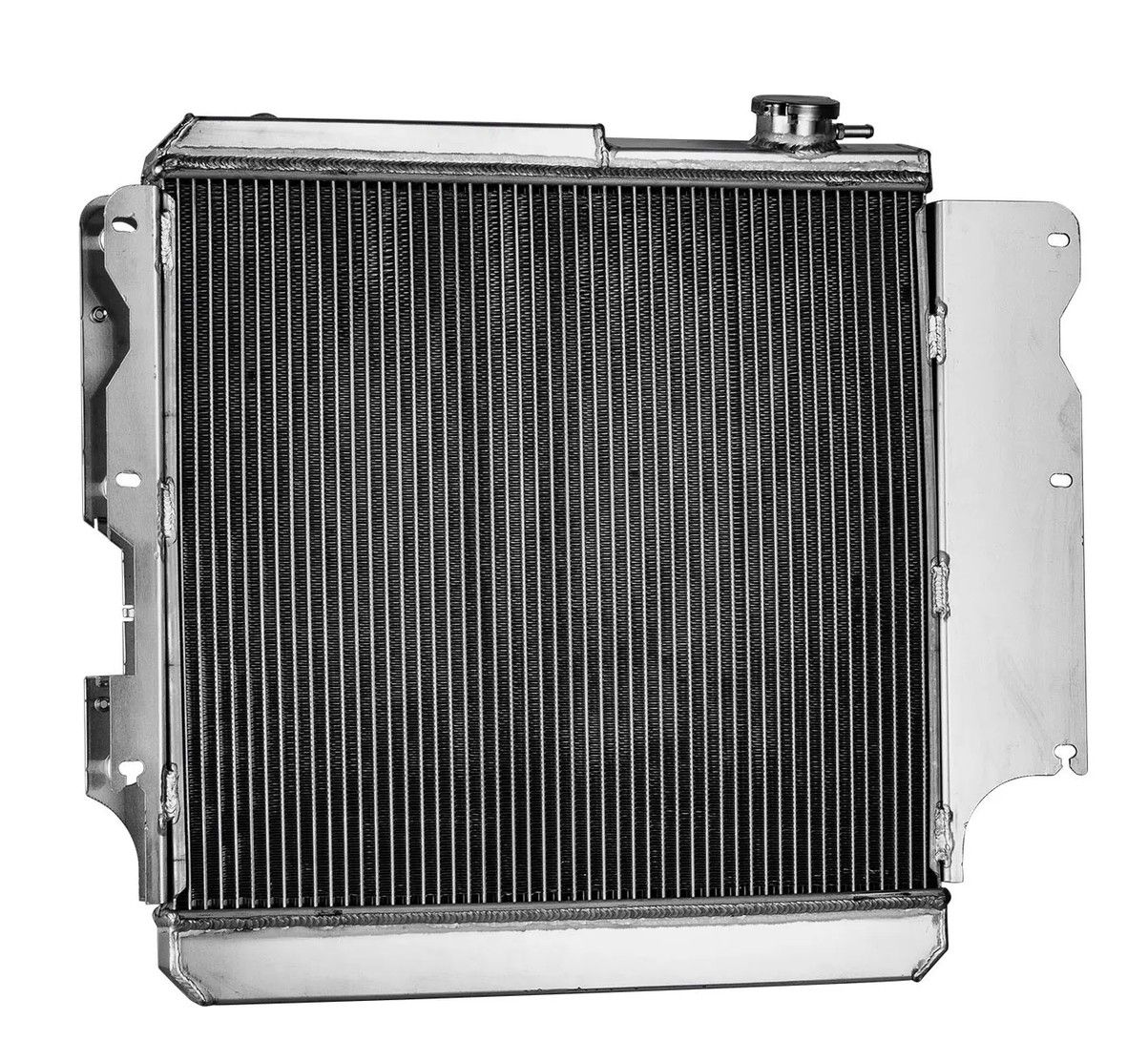

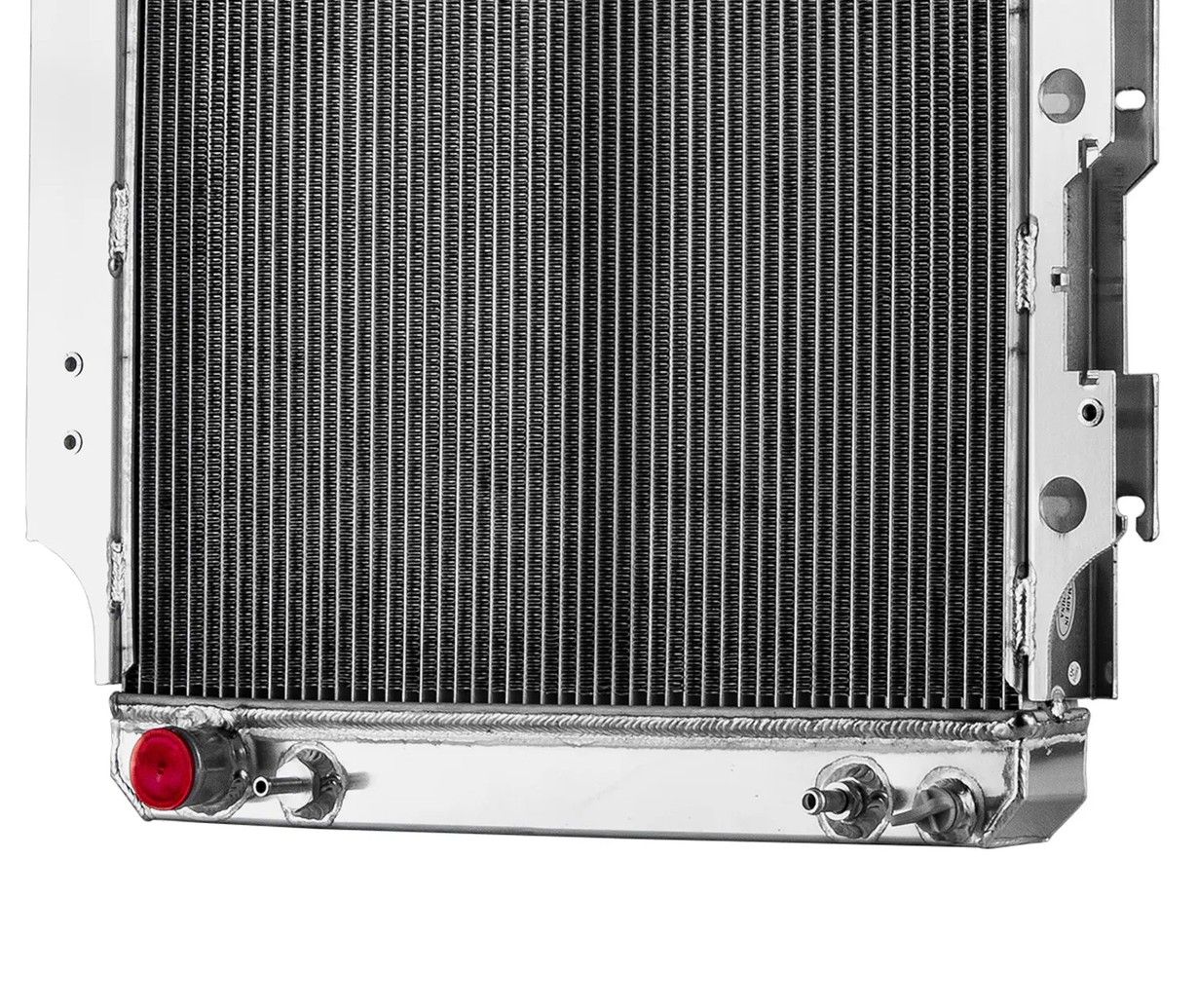

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enabling the heat to dissipate more efficiently. This Aluminum Radiator is at least 40% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.

Specifications:

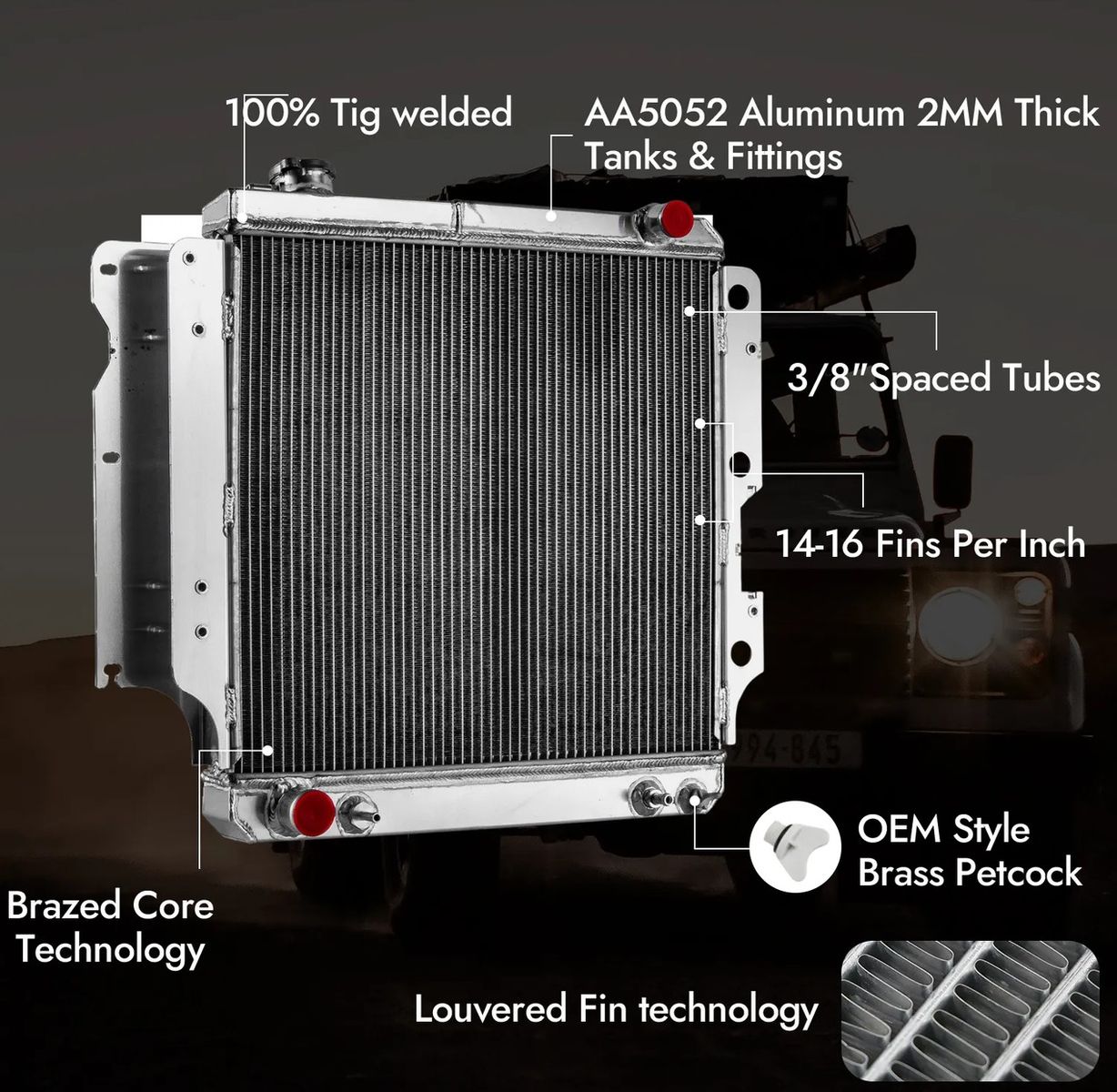

• High Performance Racing Spec.

• 3-Row of tubes Core Racing Design

• Tank Material: Aluminum

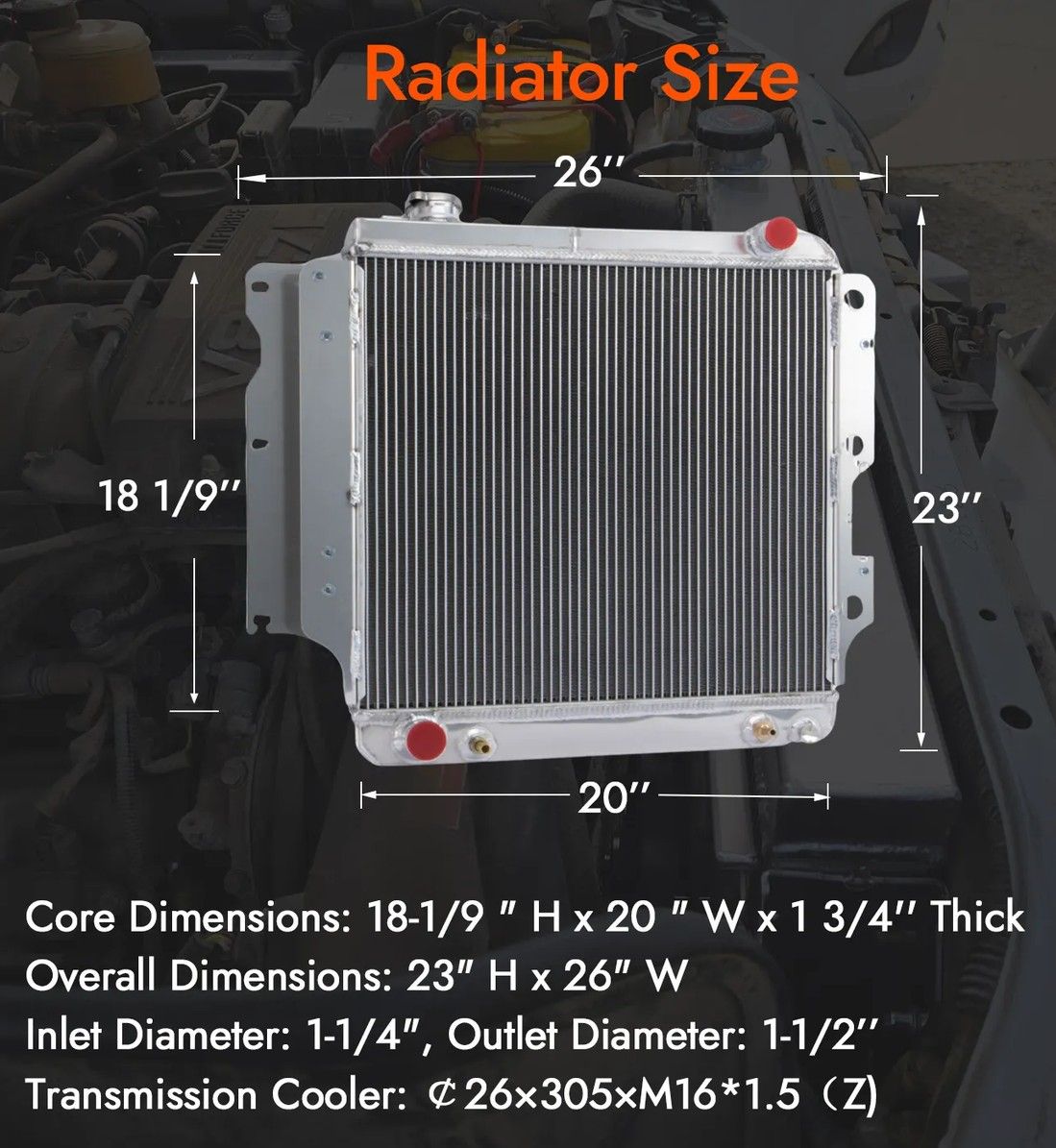

• Core Size: 18-1/9 " H x 20 " W x 1 3/4'' Thick

• Overall Size: 23" H x 26" W

• Inlet Hose Connection: 1 1/4 " Passenger Side

• Outlet Hose Connection: 1 1/2 " Driver Side

• Tank Size: 2 5/8 x 20 1/2

• Transmission Oil Cooler: ￠26×305×M16*1.5(Z)

• Mounting Bracket Specs

• 24 3/8" Wide Bolt Holes Center to Center

• 13 1/4" Vertical Bolt Holes Center to Center

Fits:

• 2003 2005 2006 Jeep TJ 2.4L 148Cu. l4

• 1997-2002 Jeep TJ 2.5L 150Cu. l4

• 1997-2006 Jeep TJ 4.0L 242Cu. l6

• 2003-2006 Jeep Wrangler 2.4L 148Cu. l4

• 1987-2002 Jeep Wrangler 2.5L 150Cu. l4

• 1991-2006 Jeep Wrangler 4.0L 242Cu. l6

• 1987-1990 Jeep Wrangler 4.2L 258Cu. l6
