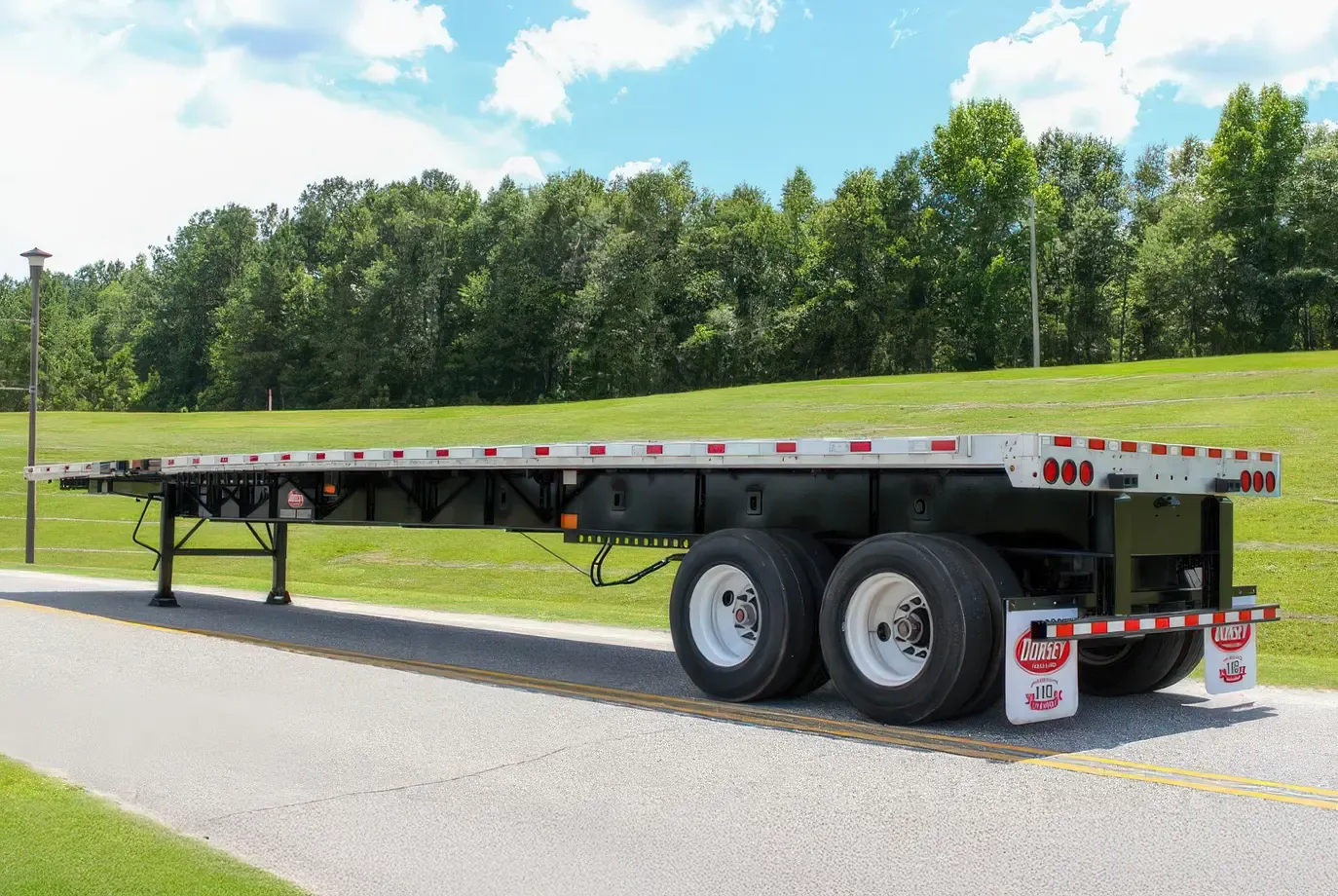

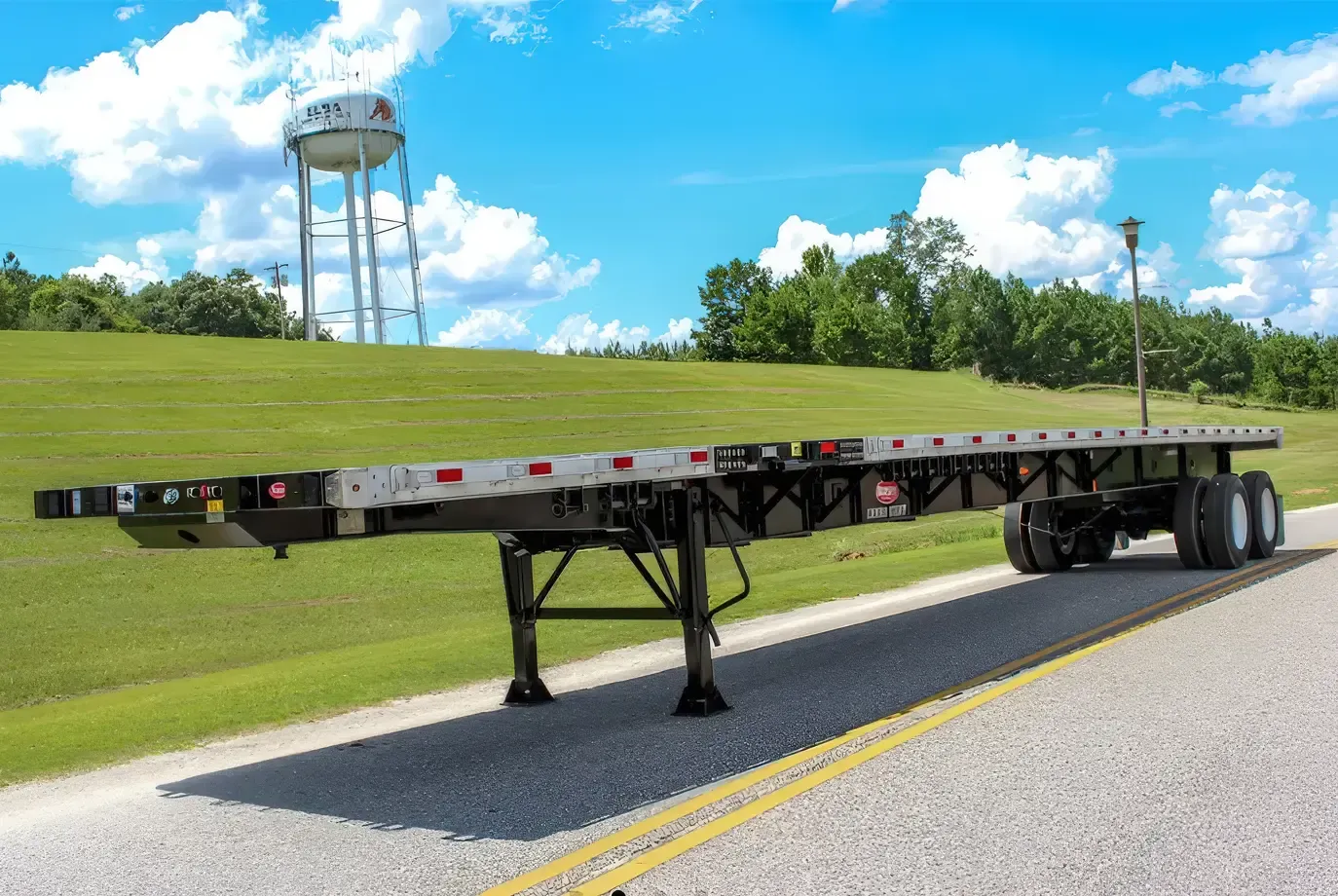

2025 Dorsey Extendable Combo Flat 48-80' Trailer

The 2025 Dorsey Extendable Combo Flat EF48-80 is a high-capacity, versatile flatbed trailer designed for heavy-duty transport. With an extendable length of up to 80 feet, this trailer provides exceptional adaptability for various hauling needs.

General Specifications - Capacity: Standard Beam Package – 80,000 GVWR (60,000 in 10' Span)

• Overall Length: 48' - 80' Extendable
• Overall Width: 8' 6"

Coupling - King Pin Setting: 24"

• Upper Coupler Plate: 1/4"
• Upper Coupler Height: 48"

Frame & Deck - Main Frame: 26" Fabricated Outer & 17" Fabricated Inner – 1/2" x 6" Top & Bottom Flanges – 1/4" Webs

• Inter-Frame Cover: 1/8" Smooth Steel Plate
• Side Rails: 6" Aluminum-Extruded with Double L Track
• Floor Sills: 4" Steel I-Beam 12" O.C.
• Decking: 1-1/8" Heavy Duty Extended Aluminum with (2) Apitong Nailers

Winches & Securement - Winch Track: Aluminum – Entire Length of Driver Side

• Winches: 12
• Straps: None
• Stake Pockets: 24" O.C. Sides, 5 Across Front, 5 Across Rear
• Rub Band Steel: 3/8" x 3" Recessed for DOT Tape
• Pipe Spool: Triangular Shaped

Landing Gear - Type: Two-Speed – JOST A500

Suspension & Axles - Suspension: Air Ride – Hendrickson 23K – 2 Axles – R.A.S.

• Suspension Location: R.A.S. CAL Legal (Center of KP to Center of Rear Axle 40' in Closed Position)
• Axles: (2) 25K Capacity – Type 30 Chambers – Auto Slacks – ABS
• Axle Spacing: RAS – 49" Closed & 10' 2" Spread Open
• Lift Axle: None
• Dump Valve: Electric Wired Through AUX 7-Way Plug at Front – Dump Rear Axle (+9#)
• Parking Brakes: All Axles

Brakes & Wheels - ABS System: WABCO ABS System 2S/1M

• Dust Shields: None
• Wheels: Disc – Hub Piloted – 22.5 Steel
• Tires: 295/75R 22.5 Firestone

Additional Features - Anti-Sail Mud Flaps: Behind Rear Axle

• Dock Bumpers: Rubber Inboard

Storage & Toolboxes - Toolbox Material: Aluminum – Smooth

• Toolbox Type: 24Hx24Dx60L – Aluminum Box – Barn Style Double Door – Smooth Aluminum Door (Cam Lock)
• Toolbox Location: Driver Side – Behind Landing Gear
• Tire Carriers: None

Lighting & Electrical - Lights: Sealed Wiring Harness – 2 Micros Per Side & Mid Turn – 3/3/3 Rear

Finish & Paint - Paint: Black

Why Choose the 2025 Dorsey Extendable Combo Flat EF48-80? The 2025 Dorsey Extendable Combo Flat is engineered for maximum flexibility, allowing for a range of cargo sizes with its extendable frame. Featuring a heavy-duty aluminum deck, advanced suspension, and securement options, this trailer is an ideal solution for long-haul applications.
