ASRock B250M-HDV Motherboard Intel B250 LGA 1151 DDR4 M.2 Micro ATX HDMI USB2.0

Exclusive features

ASRock Super Alloy

• 50A high efficiency inductor
• Gem Black PCB
• High density moisture proof fiber circuit board

ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)

ASRock Full Protection

ASRock Instant Update & App Market

CPU

• Supports 6th and 7th Gen Intel® Core™ i7/i5/i3/Pentium/Celeron processors (socket 1151)
• Digitally powered
• 5-phase power supply design
• Supports Intel® Turbo Boost 2.0 Technology

Chipset

-Intel® B250

RAM

• Dual channel DDR4 memory technology
• 2 x DDR4 memory slots
• Supports DDR4 2400/2133 (non-ECC), un-buffered memory*
• Supports ECC UDIMM memory modules (operating in non-ECC mode)
• Maximum system memory capacity: 32GB**
• Supports Intel® Extreme Memory Profile (XMP) 2.0 technology
• DIMM sockets feature 15µ gold plated headers

*7th Gen Intel® CPU supports DDR4 up to 2400; 6th Gen Intel® CPU supports DDR4 up to 2133.

**Due to operating system limitations, the actual memory available under Windows® 32-bit operating system will be less than 4GB. Using a 64-bit CPU under Windows® 64-bit operating system does not have this limitation.

BIOS

• Multilingual 128Mb AMI UEFI Legal BIOS with GUI support
• Compliant with ACPI 6.0 Compliant Wake Events
• Support SMBIOS 2.7
• CPU, GT_CPU, DRAM, PCH 1.0V voltage multi-function regulator

Onboard graphics card

• Supports Intel® HD Graphics built-in visual technologies: Intel® High Speed Sync Video Technology (AVC, MVC (S3D) and MPEG-2 Full HW Encode1), Intel® InTru™ 3D, Intel® Clear Video Technology, Intel® Insider™, Intel ® HD Graphics
• Gen9 LP, DX11.3, DX12
• HWA Encode/Decode: VP8, HEVC 8b, VP9, HEVC 10b (for 7th Gen Intel® CPUs)
• HWA Encode/Decode: VP8, HEVC 8b; GPU/Software Encode/Decode: VP9, HEVC 10b (for 6th Gen Intel® CPU)
• Maximum shared display memory 1024MB**

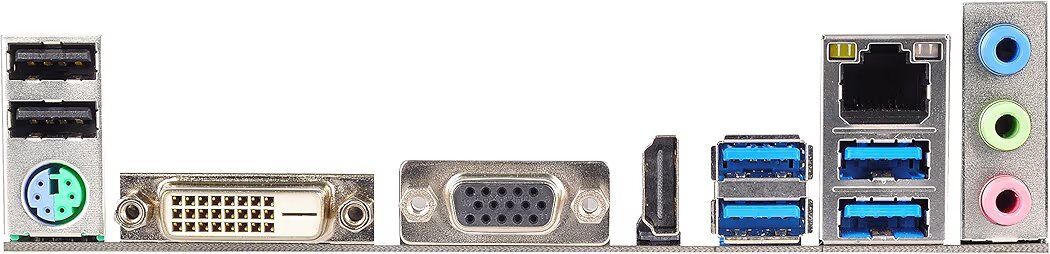

• Three display output options: D-Sub, DVI-D and HDMI
• Supports simultaneous output of three monitors
• Supports HDMI, up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz
• Support DVI-D, maximum resolution up to 1920x1200 @ 60Hz
• Supports D-Sub, up to 1920x1200 @ 60Hz
• Supports HDMI port auto-sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) (Requires HDMI Compatible Display)
• Supports HDCP via DVI-D and HDMI ports
• Supports 1080p Blu-ray Disc (BD) HD playback via DVI-D and HDMI ports

*Only processors with built-in GPU can support Intel® HD Graphics built-in visual technology and display output.

**The size of shared display memory depends on the operating system.

***Due to chipset limitations, Blu-ray playback with Intel® HD Graphics only supports Windows® 8 / 8 64-bit / 7 / 7 64-bit.

****Intel® InTru™ 3D only supports Windows® 8 / 8 64-bit / 7 / 7 64-bit.

Sound effect

• 7.1 channel high definition audio (Realtek ALC887 audio codec)*
• Support anti-surge (ASRock full protection)
• ELNA Professional Audio Capacitors

*To configure 7.1-channel high-definition audio, use the front panel audio module and enable multi-channel audio through the audio driver.

local area network

• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel® I219V
• Support Wake-On-LAN function
• Support anti-lightning / anti-ESD static electricity (ASRock full protection)
• Supports Energy Efficient Ethernet 802.3az
• Support PXE

Expansion slot

• 1 x PCI Express 3.0 x16 slot (PCIE1: x16 mode)*
• 2 x PCI Express 3.0 x1 slots (flexible PCIe slots)

*Support NVMe SSD boot

Storage

• 6 x SATA3 6.0 Gb/s ports, support NCQ, AHCI and hot plug*
• 1 x Super M.2 port, supports M Key 2230/2242/2260/2280 type M.2 SATA3 6.0 Gb/s and M.2 PCIe module to Gen3 x4 (32 Gb/s)**

*If the M2_1 slot is occupied by a SATA type M.2 device, SATA3_5 will be turned off.

**Support ASRock U.2 kit

Supports Intel® Optane™ Technology

Support NVMe SSD boot

Onboard interface

• 1 x Printer Port Header
• 1 x COM port header
• 1 x TPM header
• 1 x Chass
