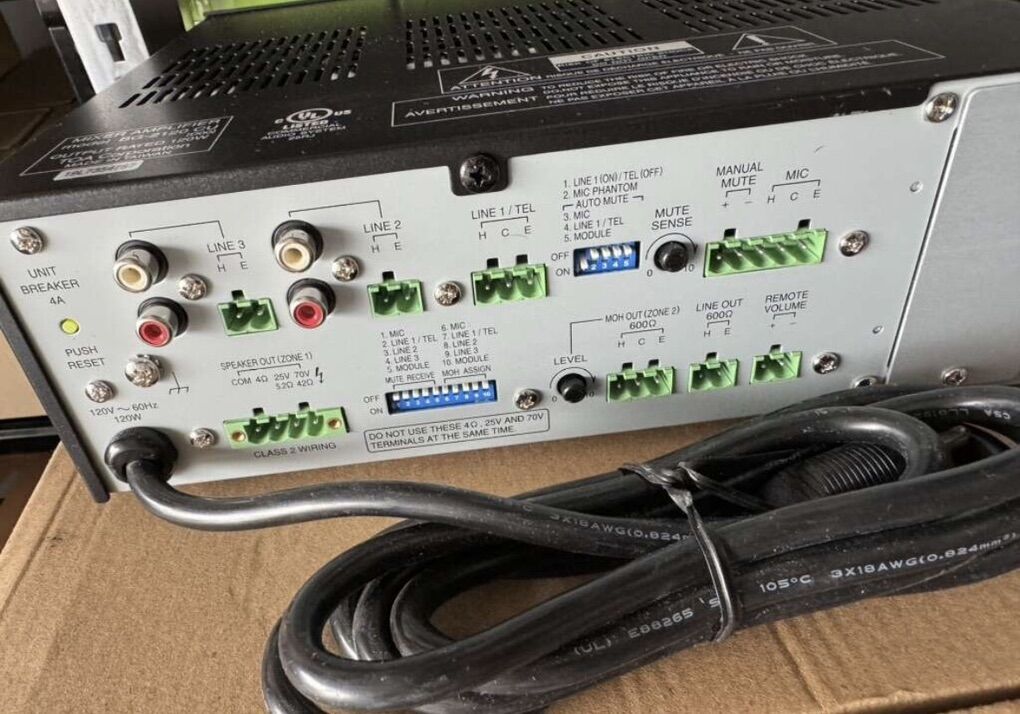

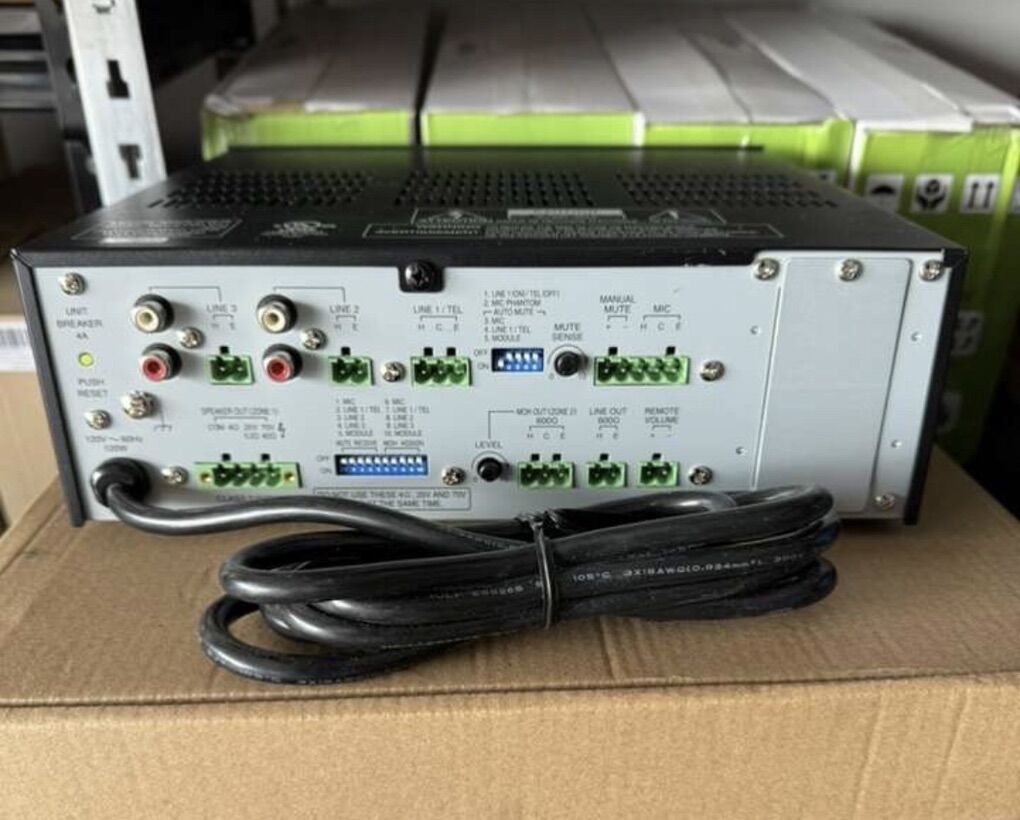

The amplifier is New- missing packaging. TOA Electronics BG-2120 CU is 120W Mixer/Amplifier
Retail price is $789
The BG-2120 is 120W Mixer/Amplifier. It is a total redesign of the highly successful BG-1000 Series and not just for design�s sake. We spoke with our customers, who told us exactly what they wanted in a commercial background music & paging amplifier. We responded with a newly-engineered chassis, designed to not only look better, but perform better and most of all-install easier. Starting with removable euro-block connectors to make wiring a snap, we added assignable MOH/Second Zone source assignment and provided access to mute priority and other settings via rear panel DIP switches - no more �popping the top�. Lastly, we�ve upped the power to 35W on the lower end model. Of course, we kept all the good stuff-solid, reliable performance for which TOA has been renowned.
Power Source 120 V AC, 60 Hz Rated Output 120 W Power Consumption 265 W (rated output), 120 W (based on cULus standards) Frequency Response 50 Hz - 20 kHz Total Harmonic Distortion 0.5 % or less, at 1 kHz, rated output Input Mic: -60 dB*, 600 Ω, electronically balanced, removable terminal block Line 1: -10 dB*/ TEL: -20 dB* Line 1/TEL selectable, 10 kΩ, electronically balanced, removable terminal block Line 2, 3: -10 dB*, 10 kΩ, unbalanced, removable terminal block and RCA jacks Module Output Speaker: 4 Ω, 25 V (5.2 Ω), 70 V (42 Ω), balanced, removable terminal block MOH: 0 dB*, 600 Ω, balanced, removable terminal block Line: 0 dB*, 600 Ω, unbalanced, removable terminal block Output Regulation 2 dB or less, no load to full load (1 kHz) Phantom Power On/Off switch for Mic, +24 V DC S/N Ratio Mic: 60 dB or more, Line 1/TEL, Line 2, 3, Module: 75 dB or more (Band Pass: 20 Hz - 20 kHz, Tone Controls: Centered) Muting Manual mute/Automatic mute Tone Control Bass: ±10 dB at 100 Hz, Treble: ±10 dB at 10 kHz Control Mic gain control, Line 1/TEL gain control, Line 2 gain control, Line 3 gain control, Module gain control, Bass tone control, Treble tone control, MOH out gain control, Mute control (Manual mute), Remote volume control, Mute sense control, Line 1/TEL selector switch, Phantom power switch (Mic), Auto mute switch (Mic, Line 1/TEL, Module), Mute receive switch (Mic, Line 1/TEL, Line 2, 3, Module), MOH assign switch (Mic, Line 1/TEL, Line 2, 3, Module), Power ON/OFF switch Indicator Power LED, Signal level LED, Peak LED Operating temperature 0 ℃ to +40 ℃ (32 ゜F to 104 ゜F) Operating Humidity 35 % to 80 %RH (no condensation) Finish Panel: ABS resin, black Case: Steel plate, black, paint Dimensions 264 (W) × 94.3 (H) × 267.3 (D) mm (10.39 × 3.71 × 10.52) Weight 6 kg (13.23 lb) Accessory Volume control cover: YA-920 ……5, Removable teminal plug (2 pins) ……4, Removable teminal plug (3 pins) ……2, Removable teminal plug (4 pins) ……1, Removable teminal plug (5 pins) ……1 Option Rack mounting bracket: MB-1000 See Less
