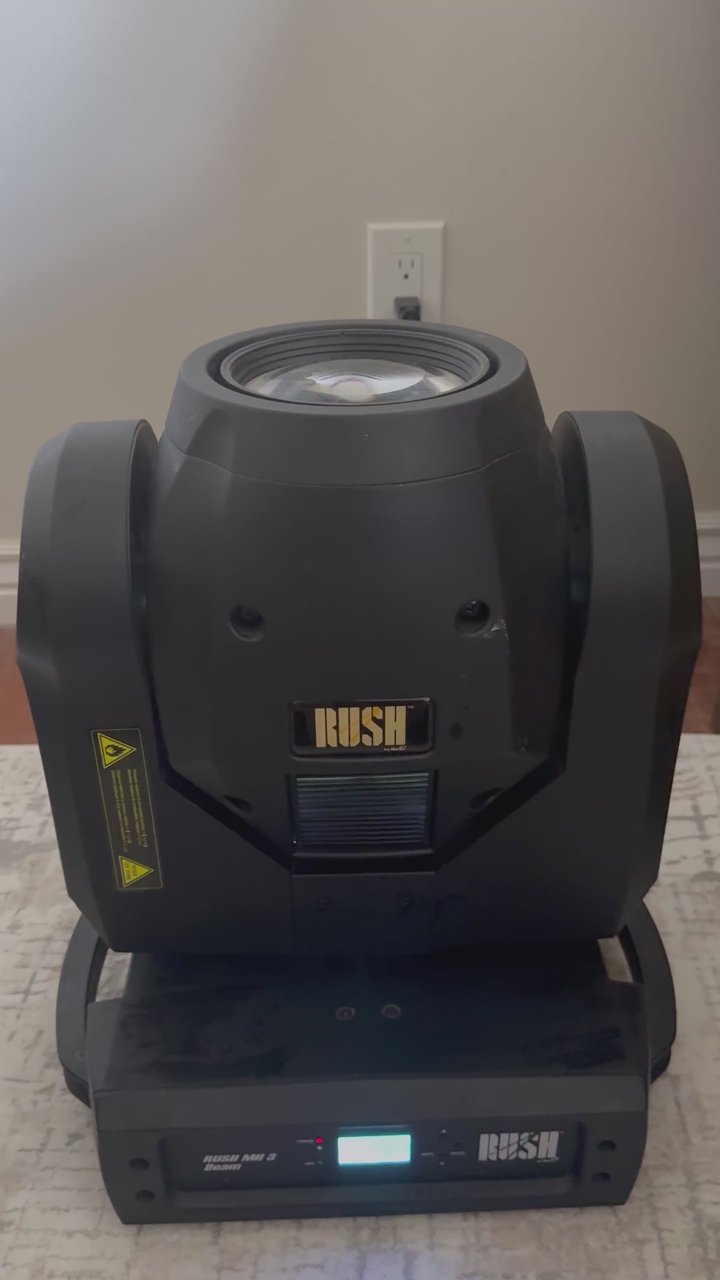

The RUSH MH 3 Beam is a powerful beam moving head that blasts an intense and narrow long-throw beam for spectacular mid-air looks and effects. It houses a fixed gobo wheel and color wheel with a multitude of effects possible from a dimmer, strobe effect, 8-facet prism and focus.

Martin RUSH MH 3 Beam Features:

Powerful beam moving head Sharp, narrow long-throw beam Mid-air effects Fixed gobo wheel Color wheel Mechanical dimming and strobe Frost effect 8-facet prism Motorized focus 3 & 5 pin XLR Martin RUSH MH 3 Beam Specifications:

Physical

Length: 418 mm (16.5 in.) Width: 321 mm (12.6 in.) Height: 489 mm (19.3 in.) Weight: 20.5 kg (45.2 lbs.) Lamp

Approved lamp: Philips MSD Platinum 5R Color temperature: 8000 K CRI (Color rendering index): 75 Average lifetime: 2000 hours Dynamic Effects

Color wheel: 14 colors plus open, rotation with variable direction and speed Static gobo wheel: 17 gobos plus open, wheel rotation and shake Pre-programmed effects: 31 pan and tilt macros, adjustable speed Shutter: Strobe effect, pulse effects, instant open and blackout Prism: 8-facet, indexing and rotation with variable direction and speed Frost: Fade in/out Zoom: Motorized Focus: Motorized Dimmer: 0 – 100%, four dimming curve options Pan: 540° Tilt: 270° Pan and tilt speed: Adjustable via onboard control panel and DMX Control and Programming

Control: DMX DMX channels: 19 Setting and addressing: Control panel with LCD display DMX compliance: USITT DMX512/1990 Optics

Beam angle: 1 degree – 3.8° Construction

Color: Black Housing: High-impact flame-retardant thermoplastic Protection rating: IP20 Installation

Minimum distance to illuminated surfaces: 12 m (39.4 ft.) Mounting points: Two quarter-turn brackets for rigging clamps Location: Indoor use only, must be fastened to surface or structure Orientation: Any Connections

AC power input: Neutrik PowerCon DMX data in/out: 3-pin and 5-pin locking XLR Electrical

AC power: 100-240 V nominal, 50/60 Hz Typical total power consumption: 350 W Typical Power and Current

110 V, 60 Hz: 3.1 A, 348 W, PF 0.990 230 V, 50 Hz: 1.6 A, 330 W, PF.0.917 Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
