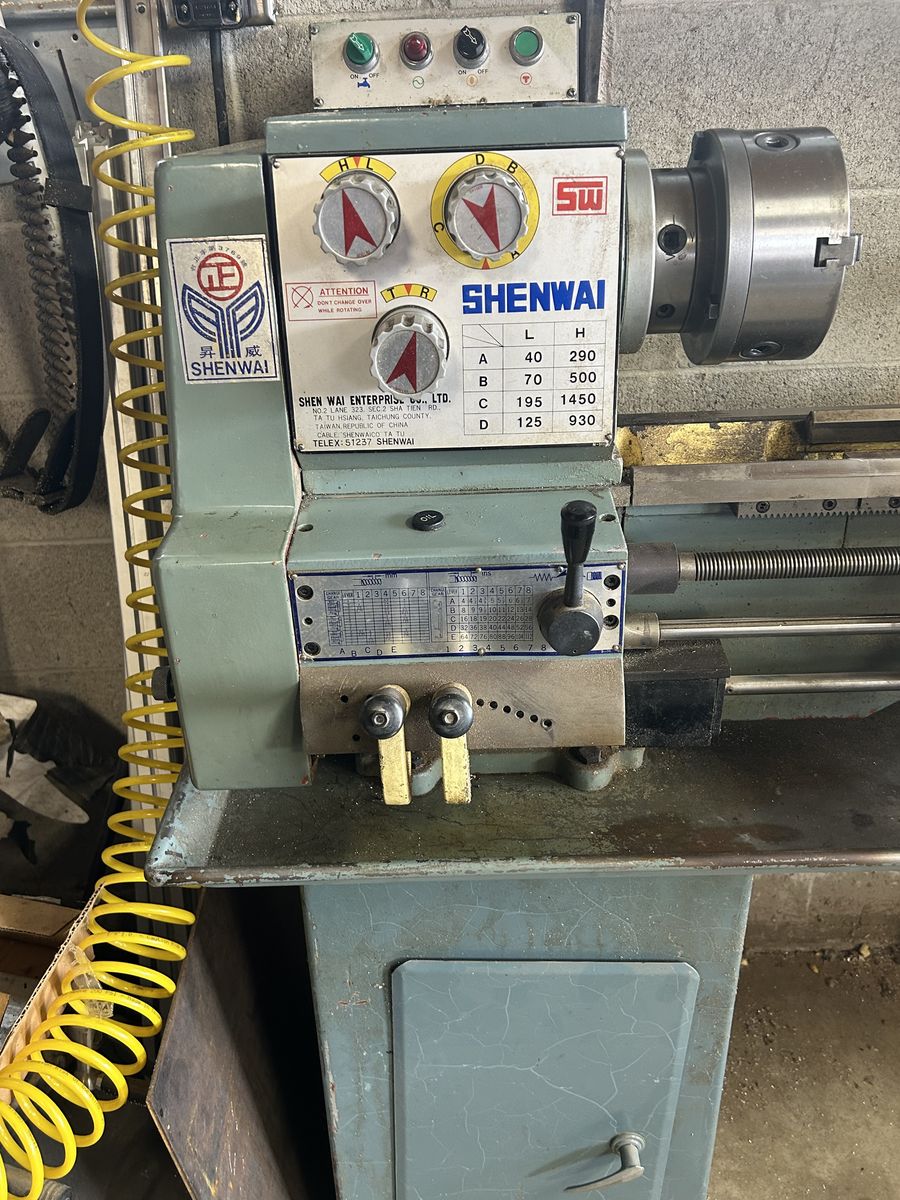

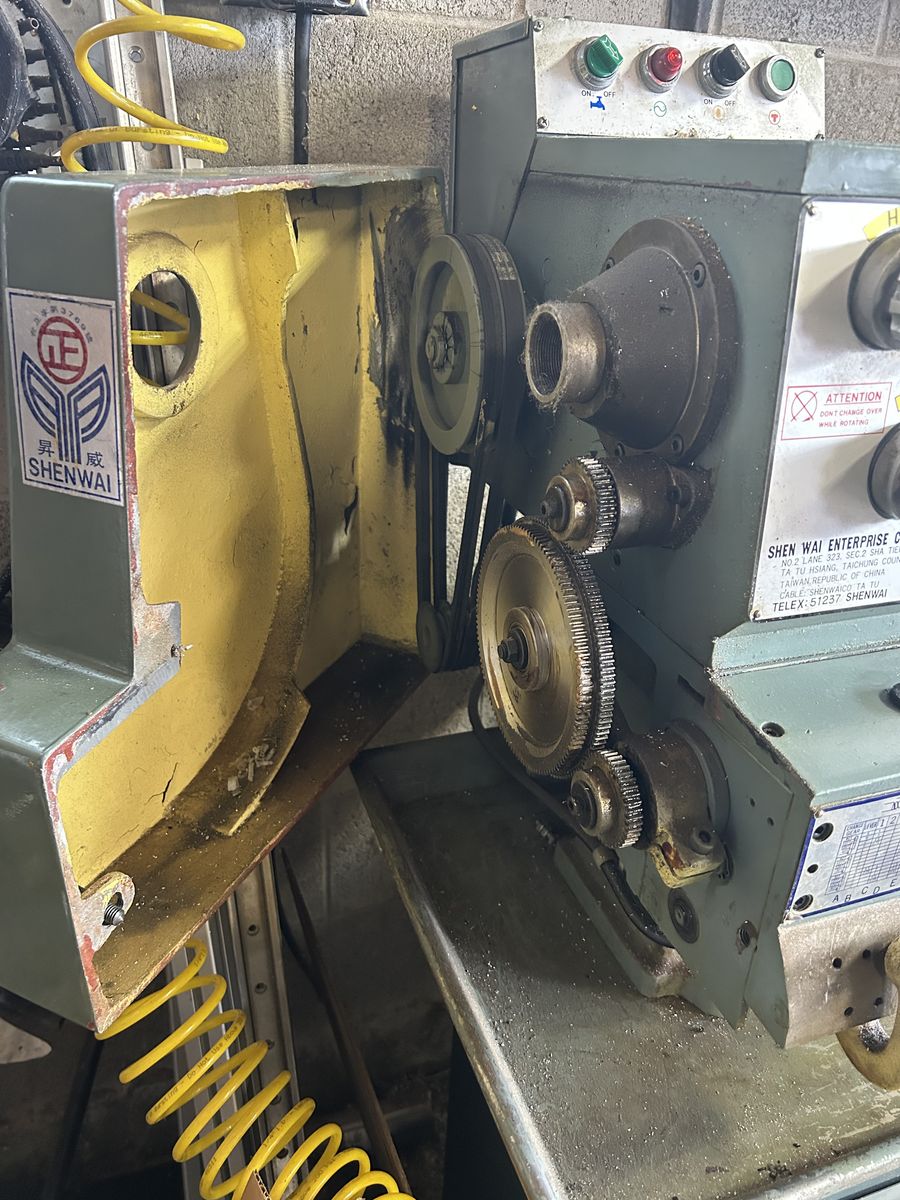

Shenai Lathe - 12 X 36-inch lathe

$3150 or best offer.

The Shenwai 12x36 engine lathe (specifically SW-900 model) is a Taiwanese-made precision machine tool regarded by many machinists as a higher-quality alternative to typical entry-level imports.

12-inch swing lathes are typically compact machines designed for light metalworking, featuring variable speed controls, robust motor, and a 12-inch swing over the bed to accommodate larger diameter workpieces.

Key Specifications

· The Shenwai 12x36 features the following capabilities:

· Swing over Bed: 12 inches (often up to 17 inches in the gap).

· Distance Between Centers: 36 inches.

· Spindle Bore: Approximately 1 7/16" (36mm to 40mm).

· Spindle Speeds: ranges from 60 to 1050 RPM (some variants reach 1450 RPM).

· Threading: Capable of cutting both S.A.E. (Inch) and Metric threads.

· Motor: Often equipped with a 2 HP motor, 220V single-phase configurations.

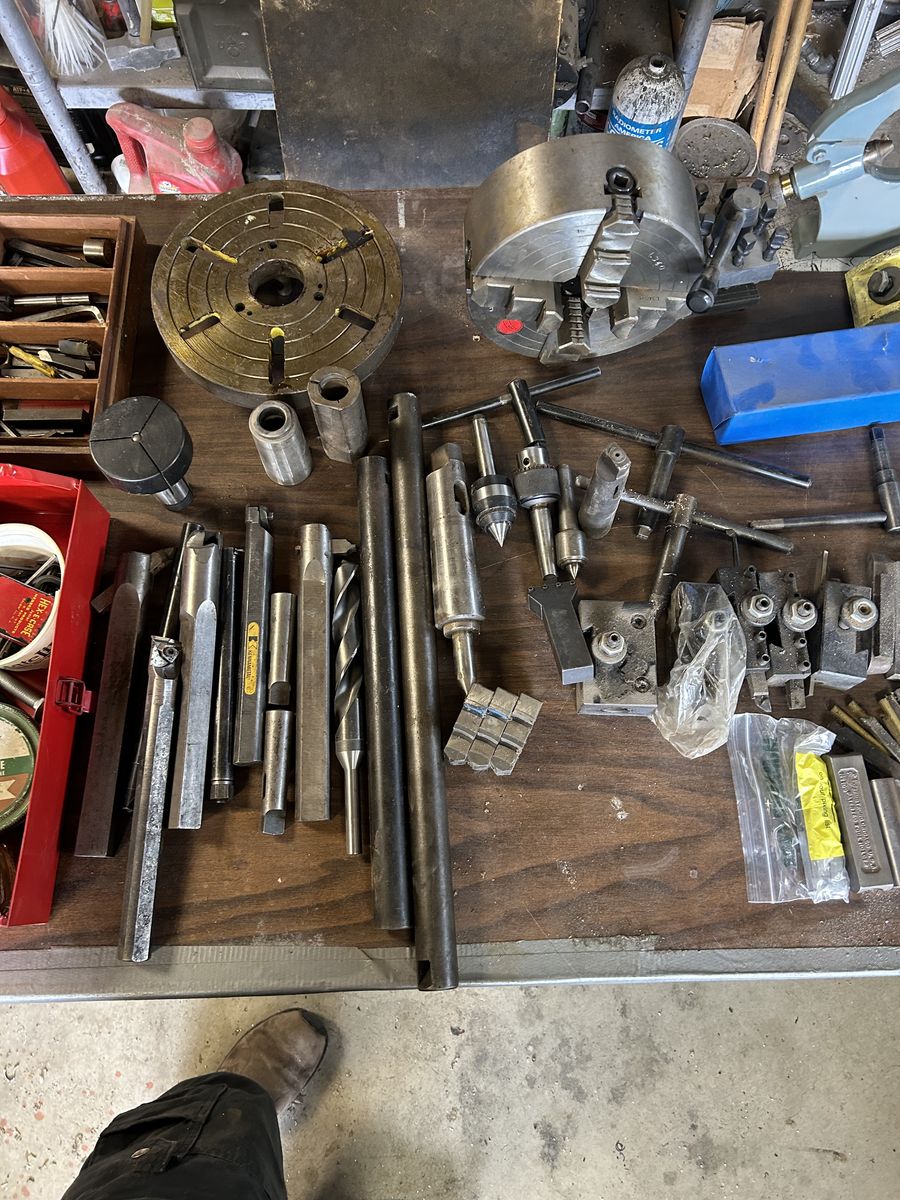

· Standard Tooling: come with a 3-jaw and 4-jaw chuck, faceplate, steady rest, and follow rest.

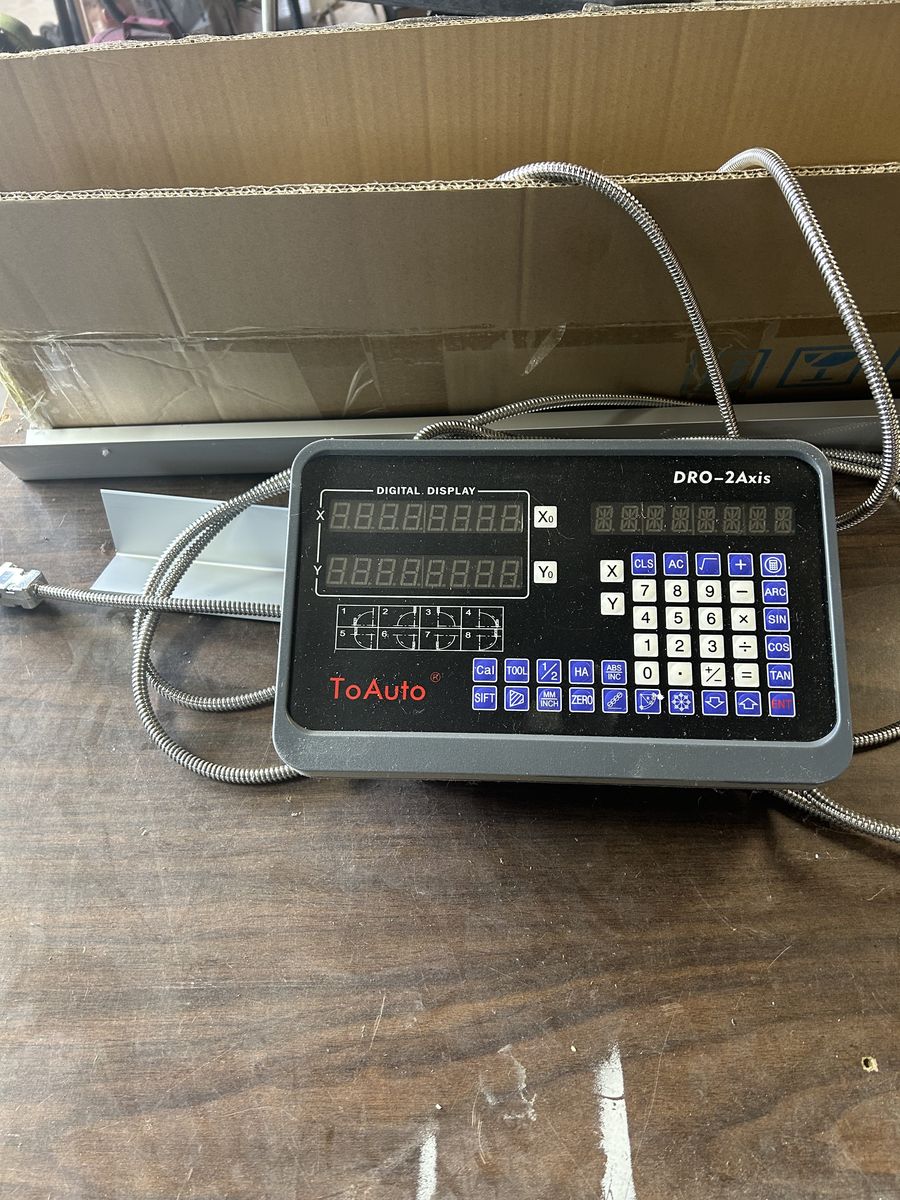

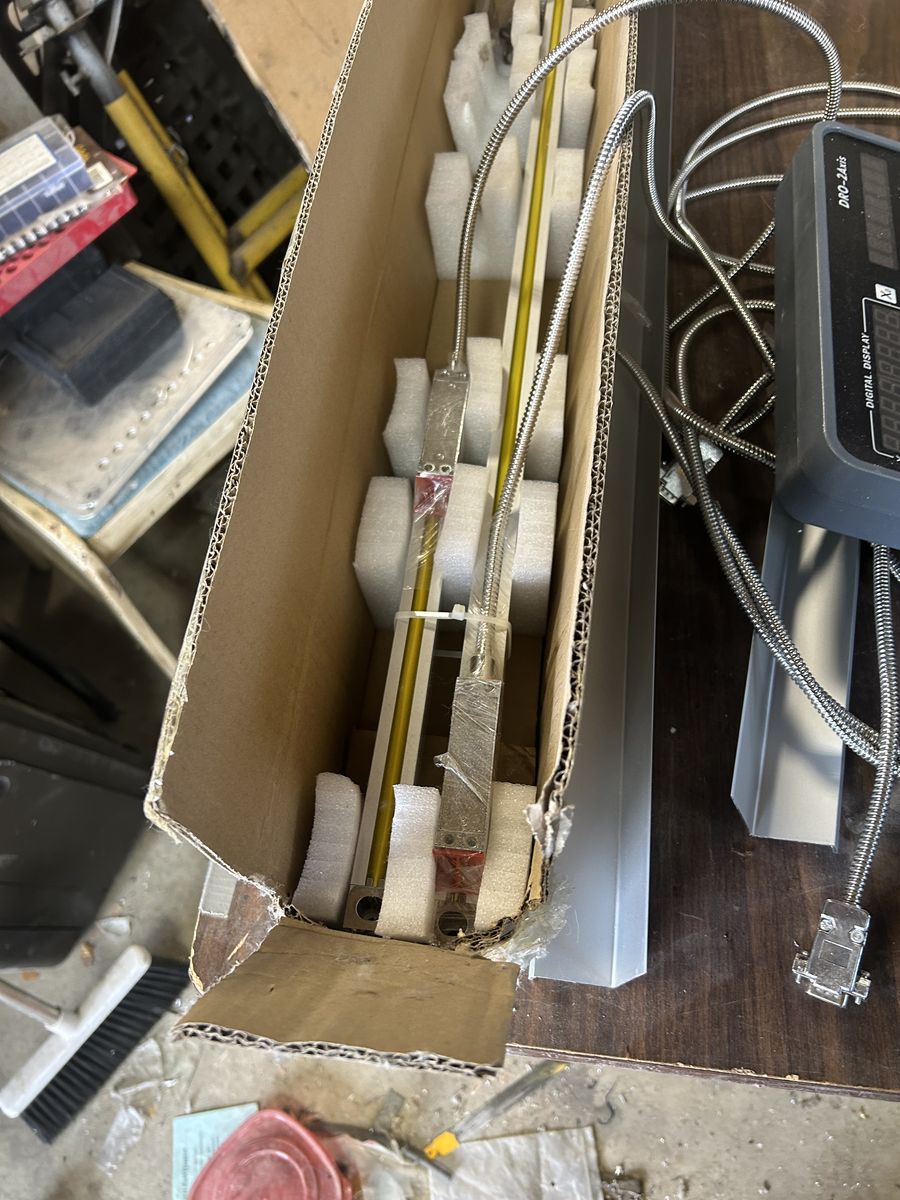

Has digital readout ready to install.

Taiwanese Origin: These machines were part of the first wave of high-quality Taiwanese machine tools and are generally considered robust.

Swing over bed 12 inches

Range of spindle speeds 50 – 1000 RPM

Hole through spindle 1-1/2”

Motor one horsepower 1HP

Coolant pump catch tray and hose

Height of centers 6”

Tapering spindle nose Bush #4 Morse

Taper of spindle center #2 Morse

Width of bed weighs 7-1/8”

Total travel of cross slide 6”

Total travel of top slide 3”

Total travel of tailstock barrel 3-1/2”

Taper of tailstock barrel #2 Morse

Number of spindle speeds 12

Diameter and pitch of Lead screw 8 TPI

Diameter of feed shaft 5/8”

Approximate weight 600 lbs.

Key Aspects of Shenwai Lathes

• Model SW-900 A very common model, often identified as a 12" x 36" (12" swing over bed, 36" between centers) gap-bed lathe.
• Structure: They often feature heavy, cast-iron construction with hardened and ground bedways.
• Capacity: Many models have a removable gap, allowing for larger diameter work (often 17" or more) near the chuck.
• Drive Systems: While many are geared head, some older, 1970s-80s models use a V-belt drive with an open back gear.

Common Uses and User Feedback

• Versatility: Used in small machine shops, maintenance departments, and for school training.
• Replacement Parts: While specialized Shenwai parts might be rare, many 12x36 Taiwan-made lathes of that era share common components with Enco, Grizzly, or Jet, often making parts findable.

Will need help loading, will not deliver.
