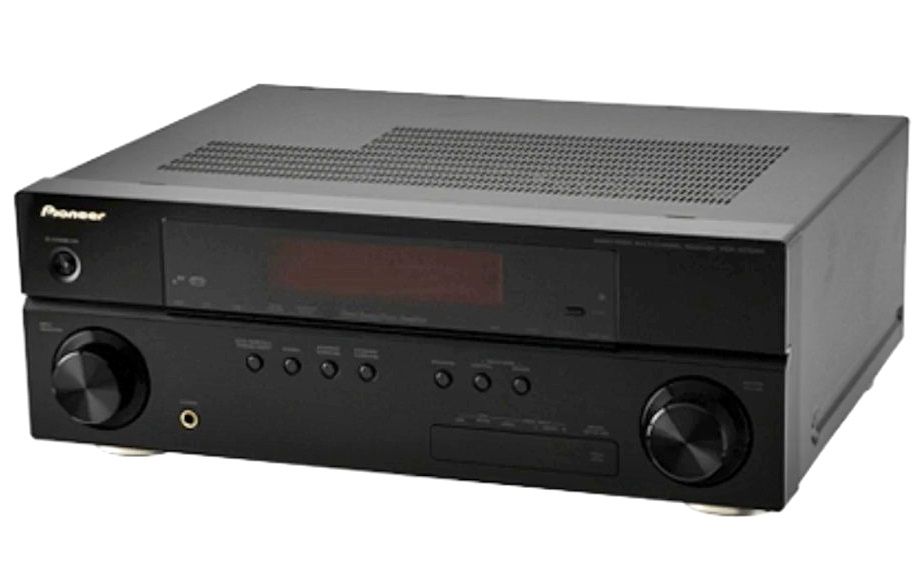

The Pioneer VSX-1019AH is a 7.1-channel A/V receiver. It features ==120 watts per channel (at 8 ohms), advanced MCACC room calibration, 1080p analog-to-HDMI video upscaling, and robust lossless audio decoding (including Dolby TrueHD and DTS-HD Master Audio.==

• Channels: 7.1
• Power Output: 120 watts per channel (at 1 kHz, 0.05% THD)
• Supported Formats: Dolby TrueHD, Dolby Digital Plus, DTS-HD Master Audio, DTS-HD High Resolution Audio, and Neural-THX Surround
• Room Calibration: Advanced Multi-Channel Acoustic Calibration Circuit (MCACC)
• Audio Enhancements: Advanced Sound Retriever (restores compressed audio) [1, 2, 3]

Video & Processing

• Video Processing: Analog video signals can be converted and upscaled to 1080p via HDMI
• Video Chip: Faroudja 1080p Video Scaler
• Deep Color & xvYCC: Yes [1, 2]

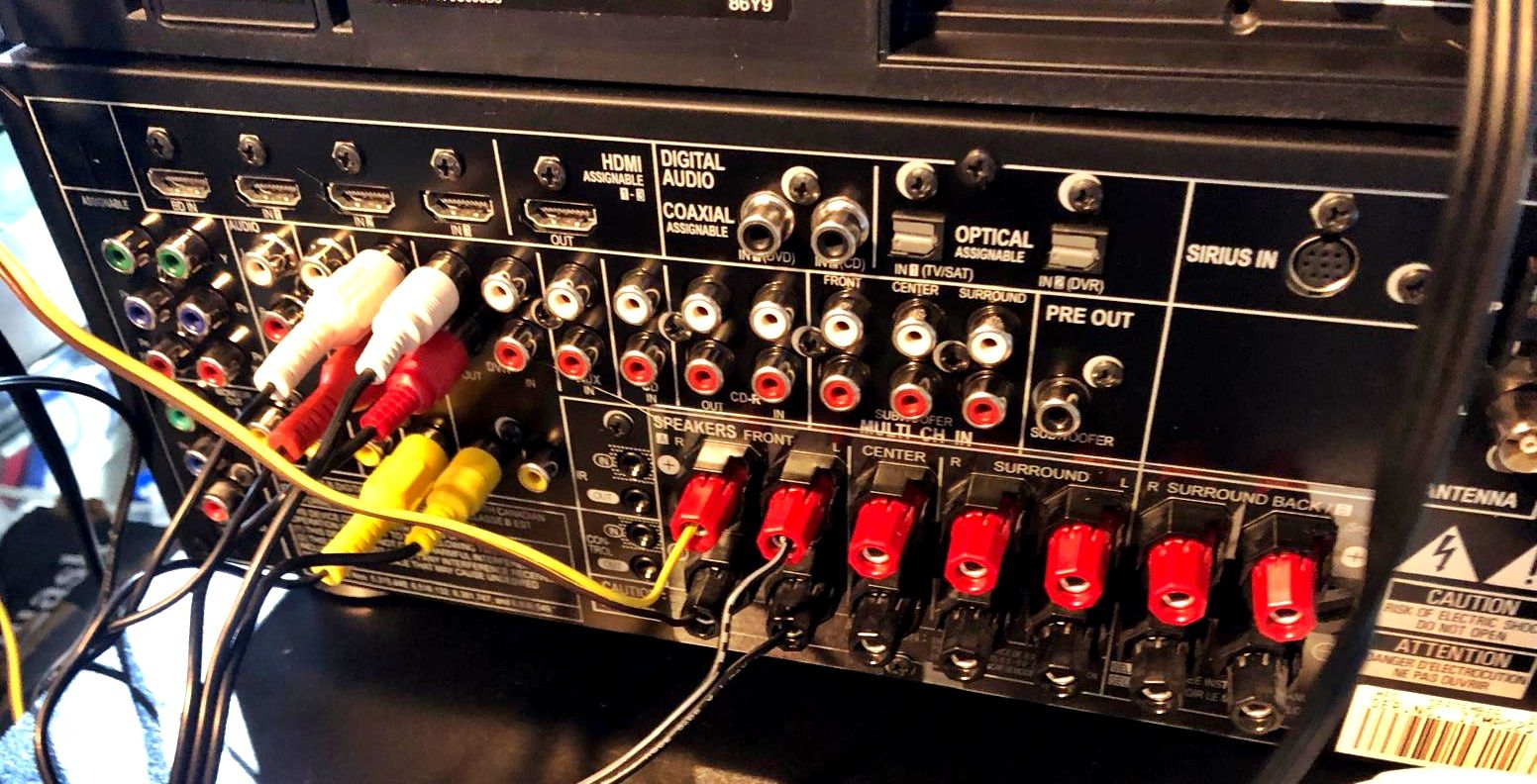

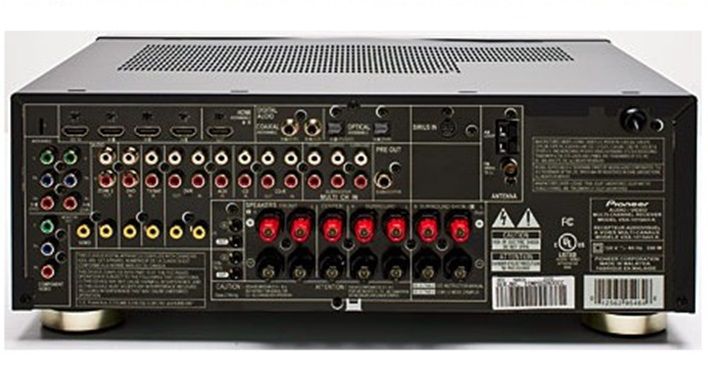

Connectivity

• HDMI Inputs: 4 (Rear)
• HDMI Outputs: 1 (Rear, supports HDMI-CEC)
• Component Video: 2 inputs / 1 output
• Composite Video: 4 inputs / 1 output
• Digital Audio: 2 optical inputs, 2 coaxial inputs

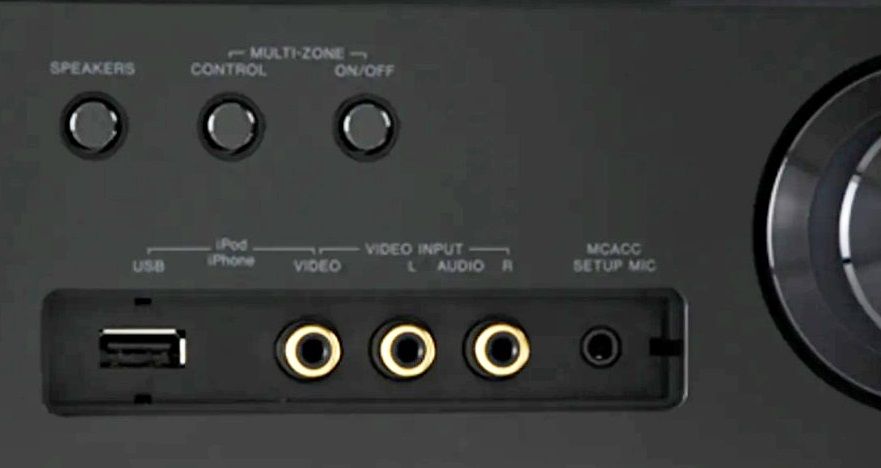

• Front Inputs: USB port (Made for iPod / Works with iPhone certified), Composite Video/Audio
• Multi-Zone: Dual-zone A/V distribution (Zone 2) with OSD capability [1, 2, 3, 4, 5]

Dimensions & Power

• Dimensions: 16.5" (W) x 6.2" (H) x 13.7" (D)
• Weight: 19.18 lbs
• Power Consumption: 350W (Operational) [1, 2]

For a video overview of the receiver's physical connectivity and features like the included iPod cable:

Pioneer VSX-1019AH-K
