Brand:

Aeromotive

Manufacturer's Part Number:

18361

Part Type:

Fuel Cells

Product Line:

Aeromotive Brushless A1000 Fuel Cells

Summit Racing Part Number:

AEI-18361

UPC:

00684980008999

Capacity:

20 gallons

Foam:

No

Baffled:

Yes

Fuel Cell Material:

Aluminum

Fuel Pump Included:

Yes

Flow Rate:

100 gph/380 lph

Sending Unit Included:

Yes

Sender Ohm Range:

0 ohms empty, 90 ohms full

Length (in.):

24.000 in.

Width (in.):

20.000 in.

Height (in.):

10.000 in.

Fuel Cell Color:

Natural

Outlet Fitting Quantity:

One

Outlet Fitting Size:

-10 AN

Vent Fitting Size:

-8 AN

Return Fitting Size:

-8 AN

Tip Over Valve Size:

-8 AN

Sump:

No

Quantity:

Sold individually.

Notes:

Includes a 100 micron stainless steel pre-filter and Aeromotive Brushless A1000 electric fuel pump built into the fuel cell.

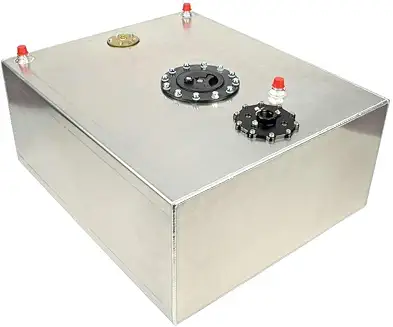

Aeromotive Brushless A1000 Fuel Cells

Aeromotive offers various brushless A1000 fuel cells, featuring the pump and a fluted pickup with a 100-micron prefilter for worry-free installation. Simply strap the fuel cell in, hook up your fuel line and wires, then get ready to drive! The innovative interior baffling system helps keep a constant column of fuel at the pump inlet during extreme driving conditions, making them ideal for off-road vehicles, drag racing, autocross, drifting, and more! Enjoy top-level performance with advanced technology when you order the Aeromotive Brushless A1000 Fuel Cells best suited for your application.

More product features, items, and specifications include:

* All models include the fuel cell, an A1000 brushless fuel pump, and aircraft-style filler cap * All-aluminum construction with a natural finish * Integral, external brushless controller for clean installation, cooler fuel, and enhanced reliability * Available in 6-, 15-, or 20-gallon capacities * Sizes are 10 in. tall (all models) and 12 in. X 12 in. (6-gallon), 20 in. X 18 in. (15-gallon), 20 in. X 24 in. (20-gallon) * Universal 0 to 90-ohm built-in fuel level sending unit (where applicable) * In-cell pump reduces noise and prolongs proper functioning with extended service life in ethanol and methanol * Pump is lighter and quieter than traditional A1000 models and uses a reduced current draw at higher EFI pressures * Outlet ports are female ORB-10 * Return ports are female ORB-08 * Roll-over protected -8 AN vent * Requires straight 12 VDC to 16 VDC power supply (16 V charge systems require voltage regulator or step-down to 12 V) * Not compatible with pulse modulated systems or fuel pump speed controllers * Carburetor rated flow of 900 lbs./hr. at 9 psi, 13.5 volts * EFI rated flow of 700 lbs./hr. at 45 psi, 13.5 volts * Threaded male studs/3-wire
