2021 Haas VF-2SS CNC Mill w/ TRT160 5-Axis - Low Hours, Loaded
8 Hours
38
3
$109,000.00
Note: KSL, its service providers, and the seller receive data from this message. See our Privacy Notice and TOU for details.
Description
Condition
Payment Types Accepted

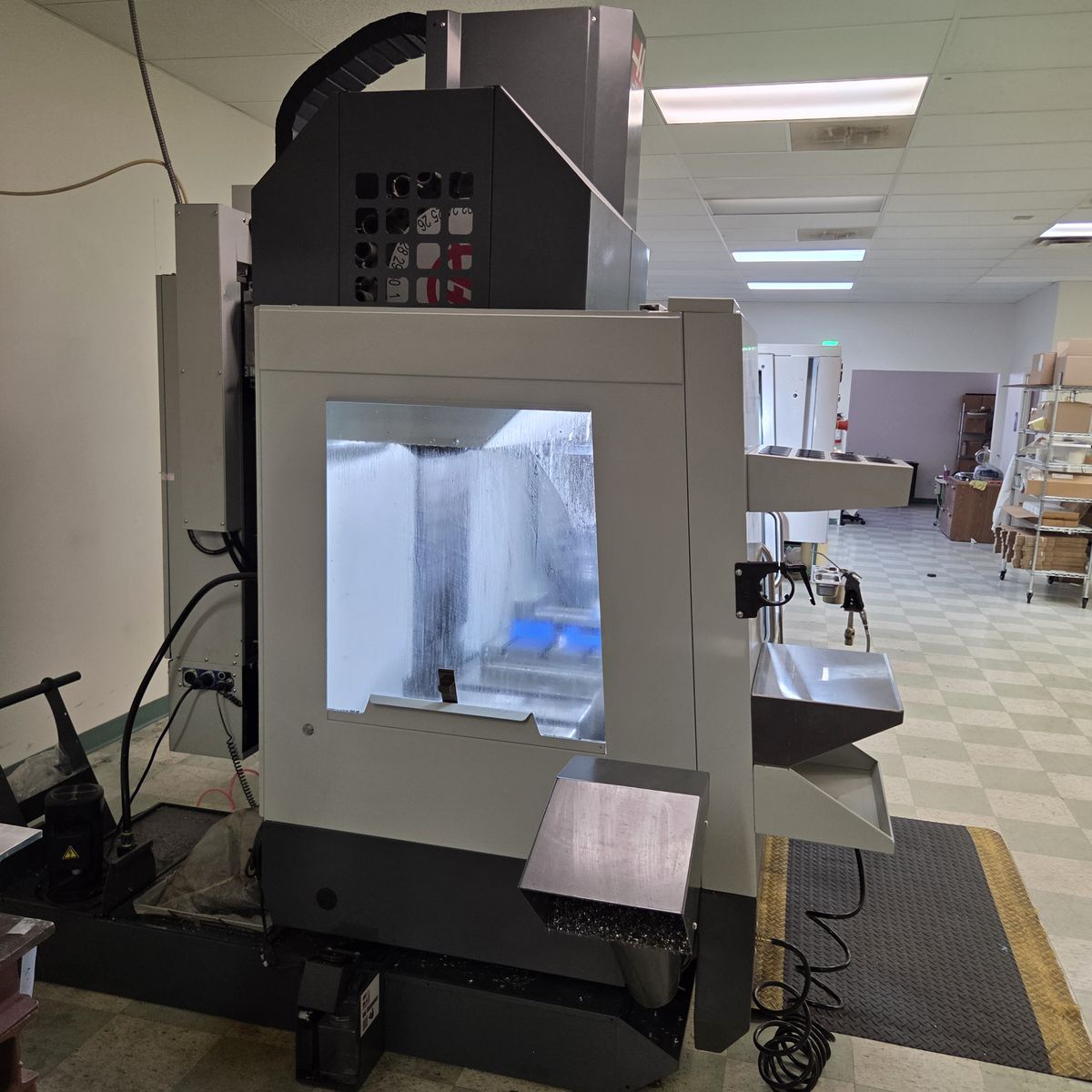

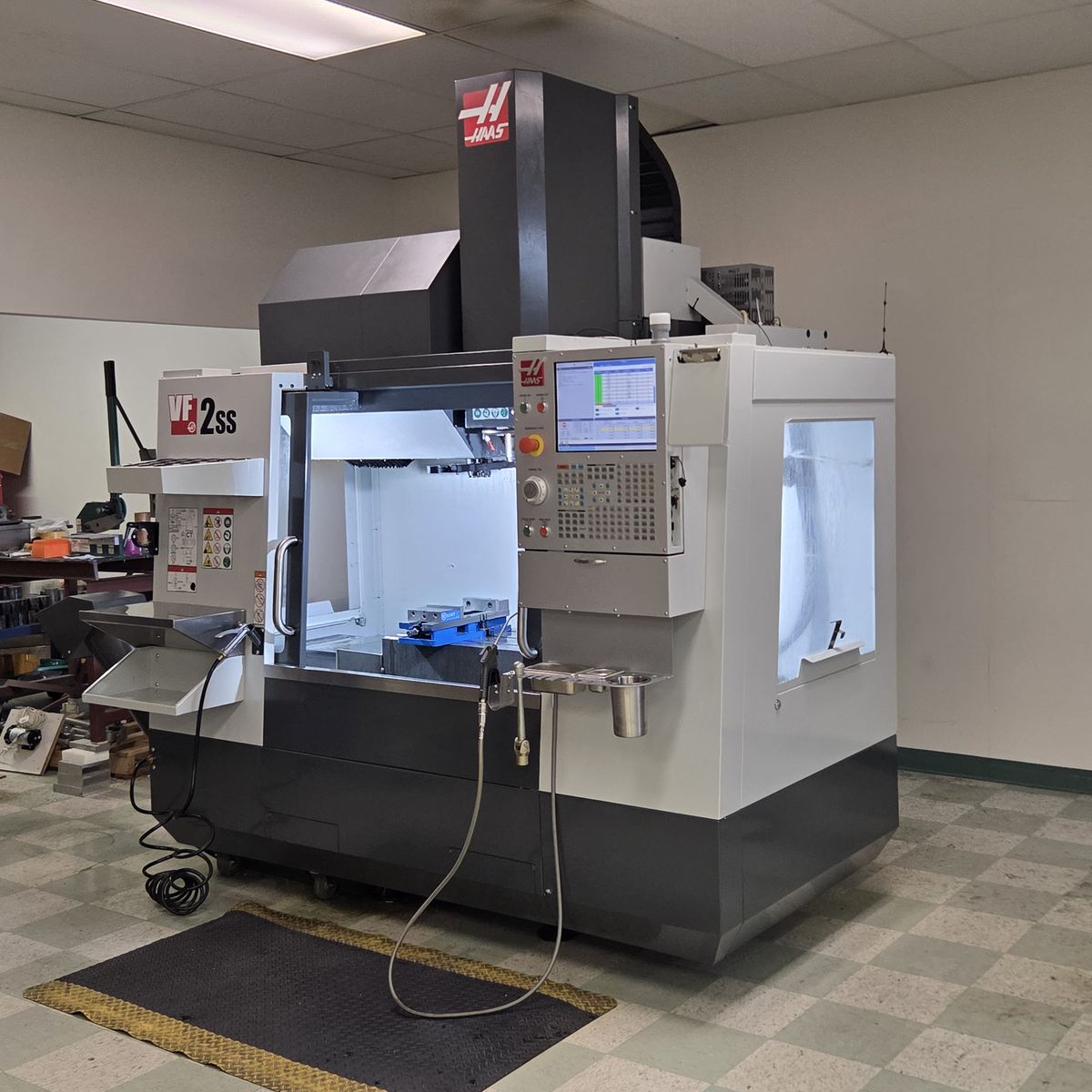

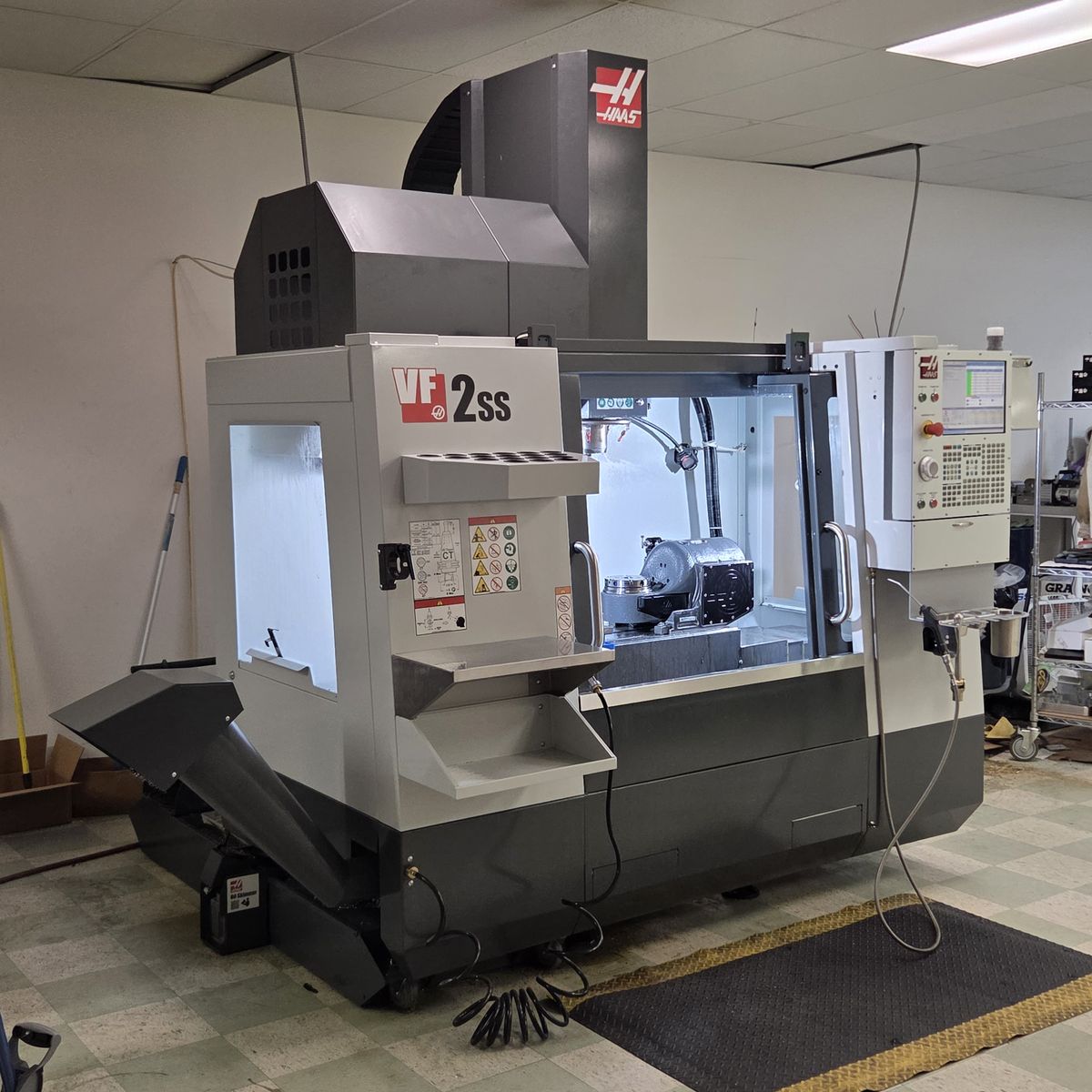

Zelle2021 Haas VF-2SS Super-Speed CNC Vertical Machining Center with TRT160 5-axis rotary table. Fully optioned, low hours, excellent condition, under power in Sandy, UT.
Ordered with many high-value factory option including full 4th/5th-axis drives and the Haas TRT160 tilting rotary ($31,995 option alone) for true simultaneous 5-axis machining. One owner, prototype/short-run use in a medical device shop.

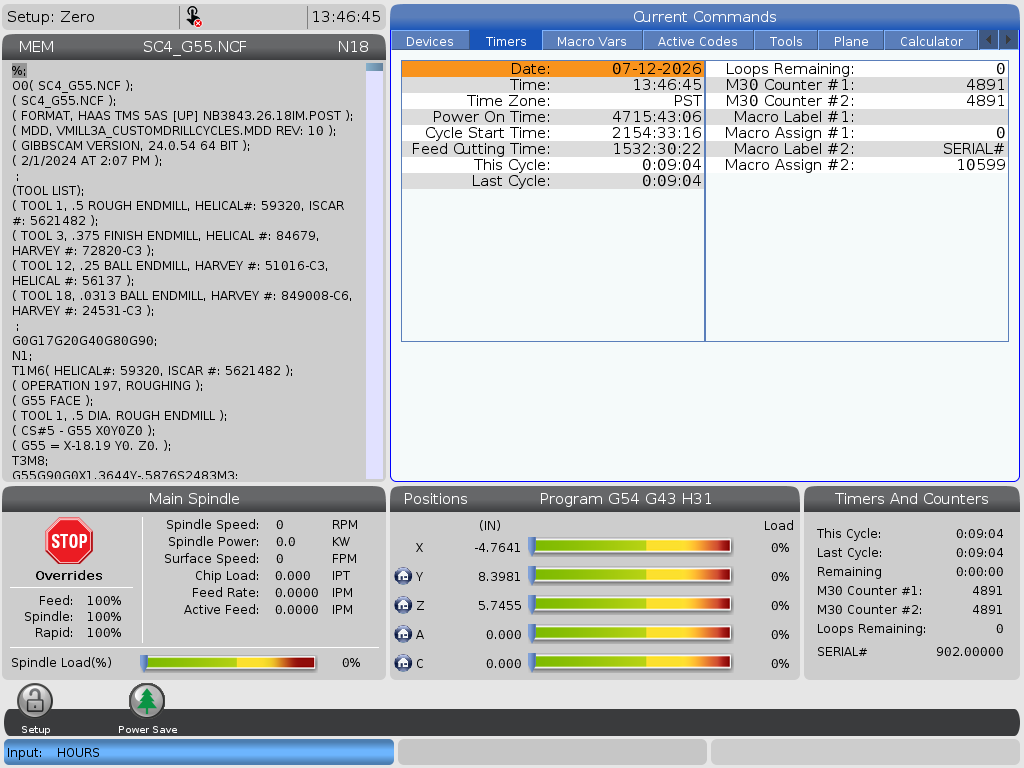

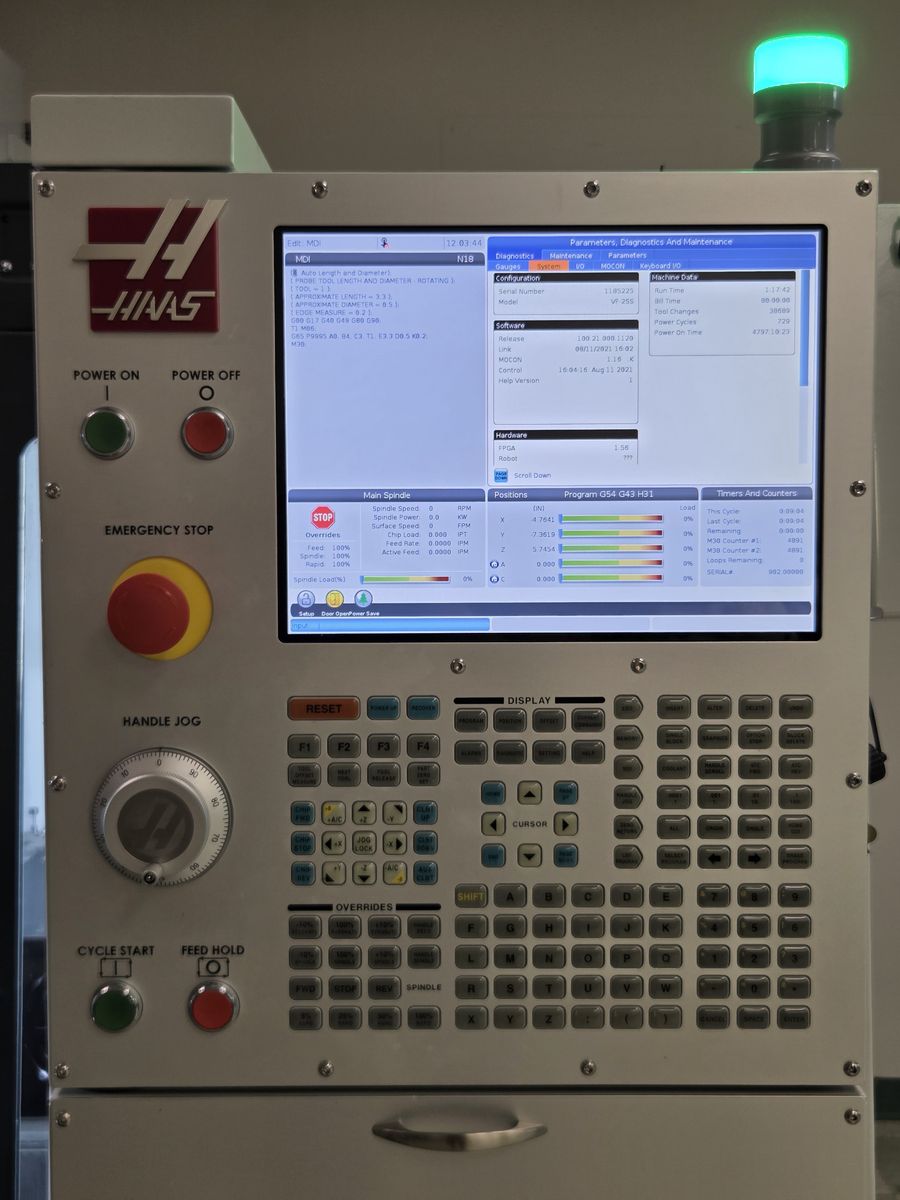

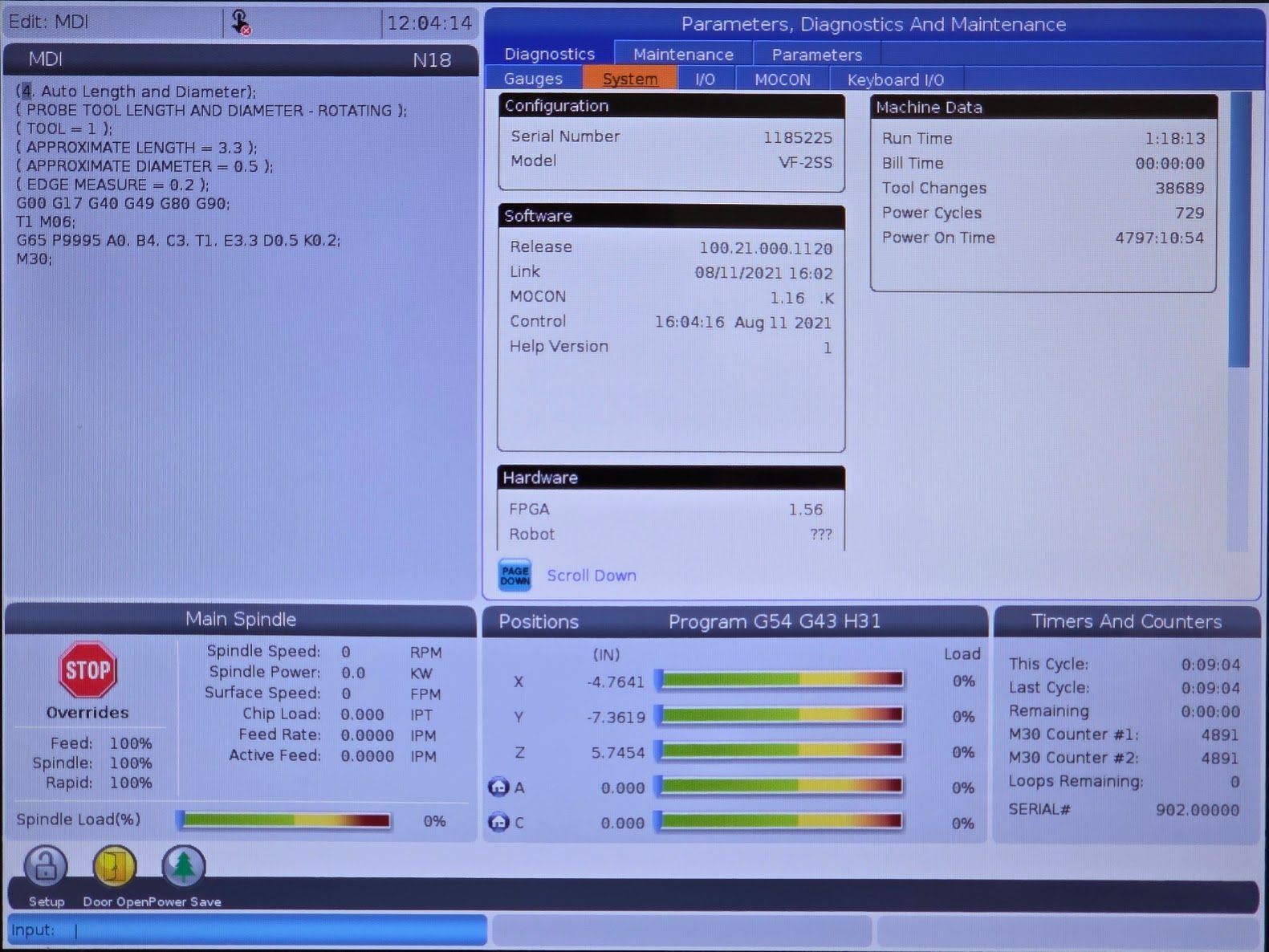

DOCUMENTED HOURS (control screenshot in photos):
- Feed cutting time: 1,532 hours (actual in-the-cut time)
- Cycle start time: 2,154 hours
- Power on time: 4,715 hours
- M30 counter: 4,891 cycles
That's roughly 300 cutting hours per year since new.
MACHINE SPECS:
- Travels: 30" x 16" x 20"
- Spindle: 12,000 RPM, 30 HP vector drive, inline direct-drive, 40 taper
- Rapids: 1,400 IPM
- Side-mount tool changer
- Haas Next Generation Control, 15" LCD, 1 GB memory, USB
- Rigid tapping, 55-gallon flood coolant, power-failure detection
FACTORY OPTIONS (over $32,000 as configured new):
- 4th-Axis Drive and Wiring
- 5th-Axis Drive and Wiring

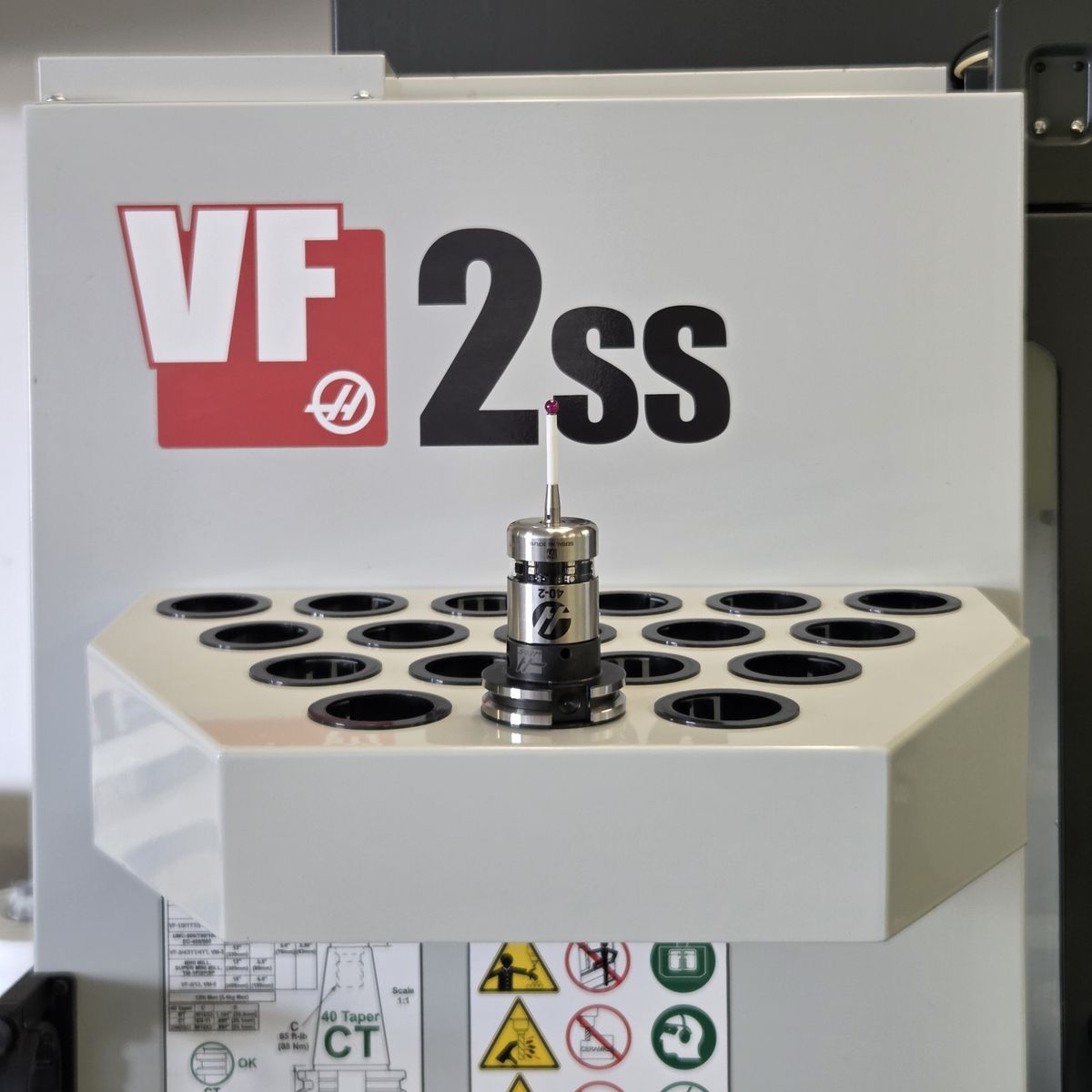

- WIPS-R Wireless Probing (spindle probe + tool setter, VPS, macros)
- DWO/TCPC (Dynamic Work Offsets & Tool Center Point Control)
- HSM High-Speed Machining

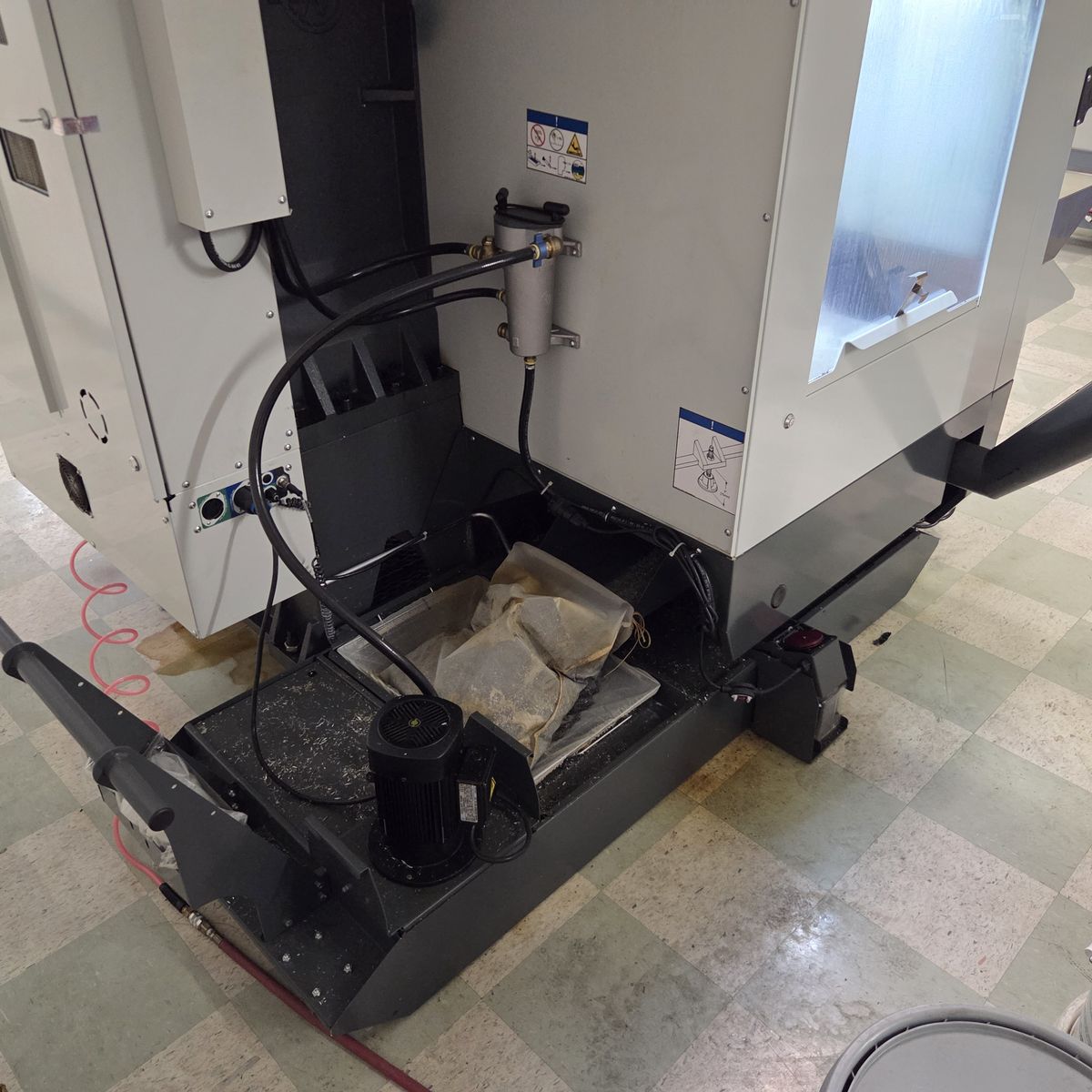

- Chip Auger
- Programmable Air (M-code activated)
- Second Home Position
- Chip Tray Filter Kit (200-micron filter, metal chip basket)
- Coolant Tank Oil Skimmer
- TSC-Ready (pre-configured for Haas Through-Spindle Coolant)

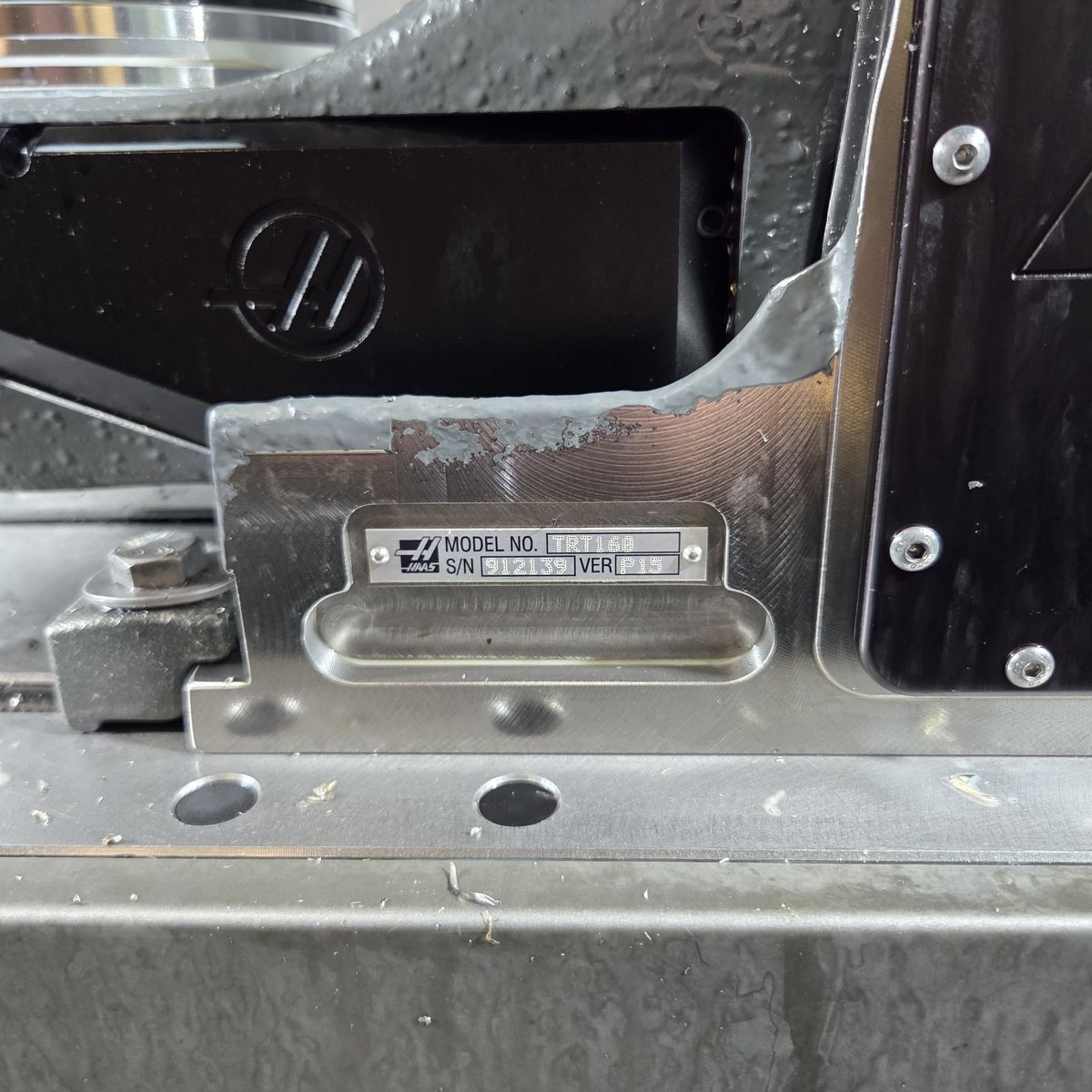

INCLUDED ROTARY:

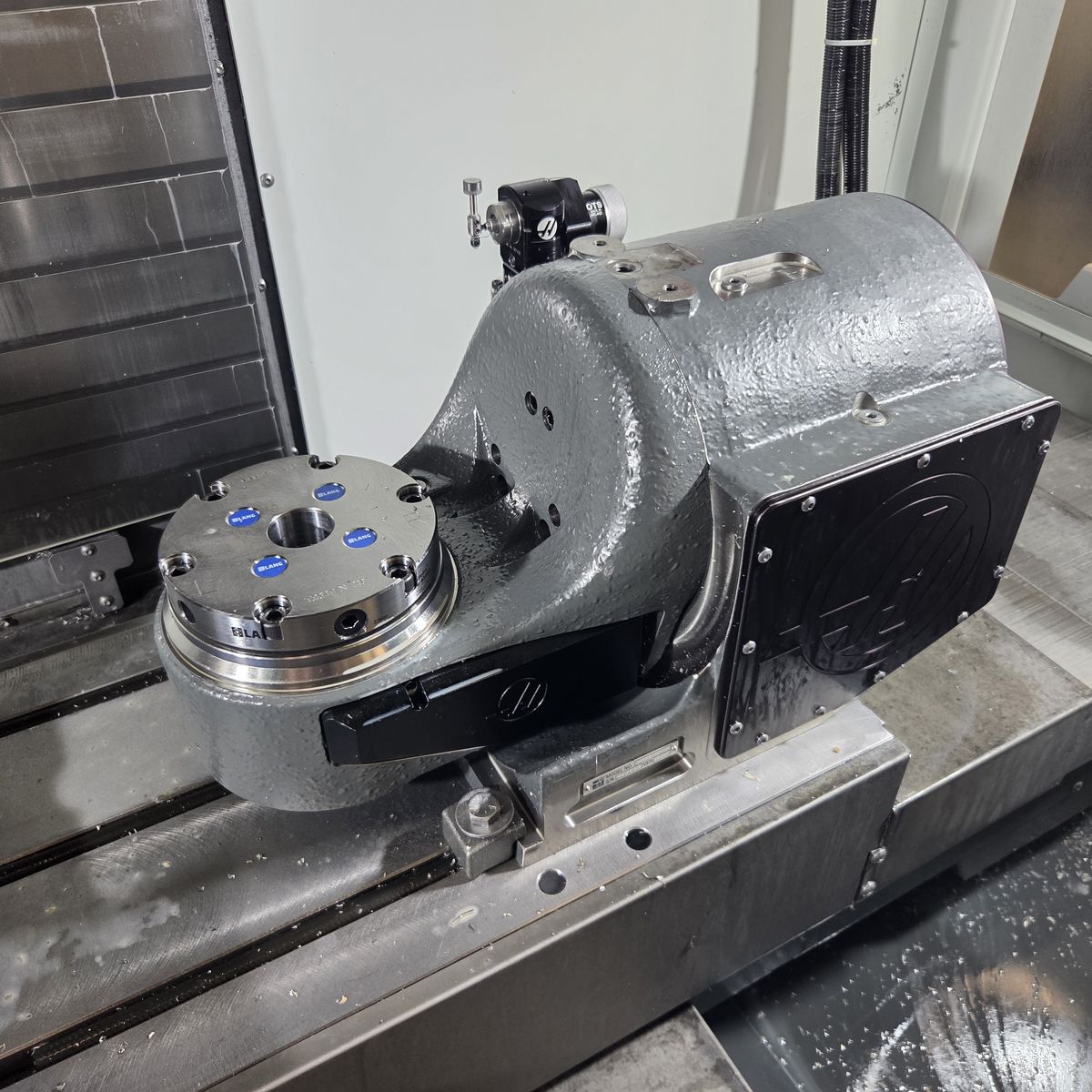

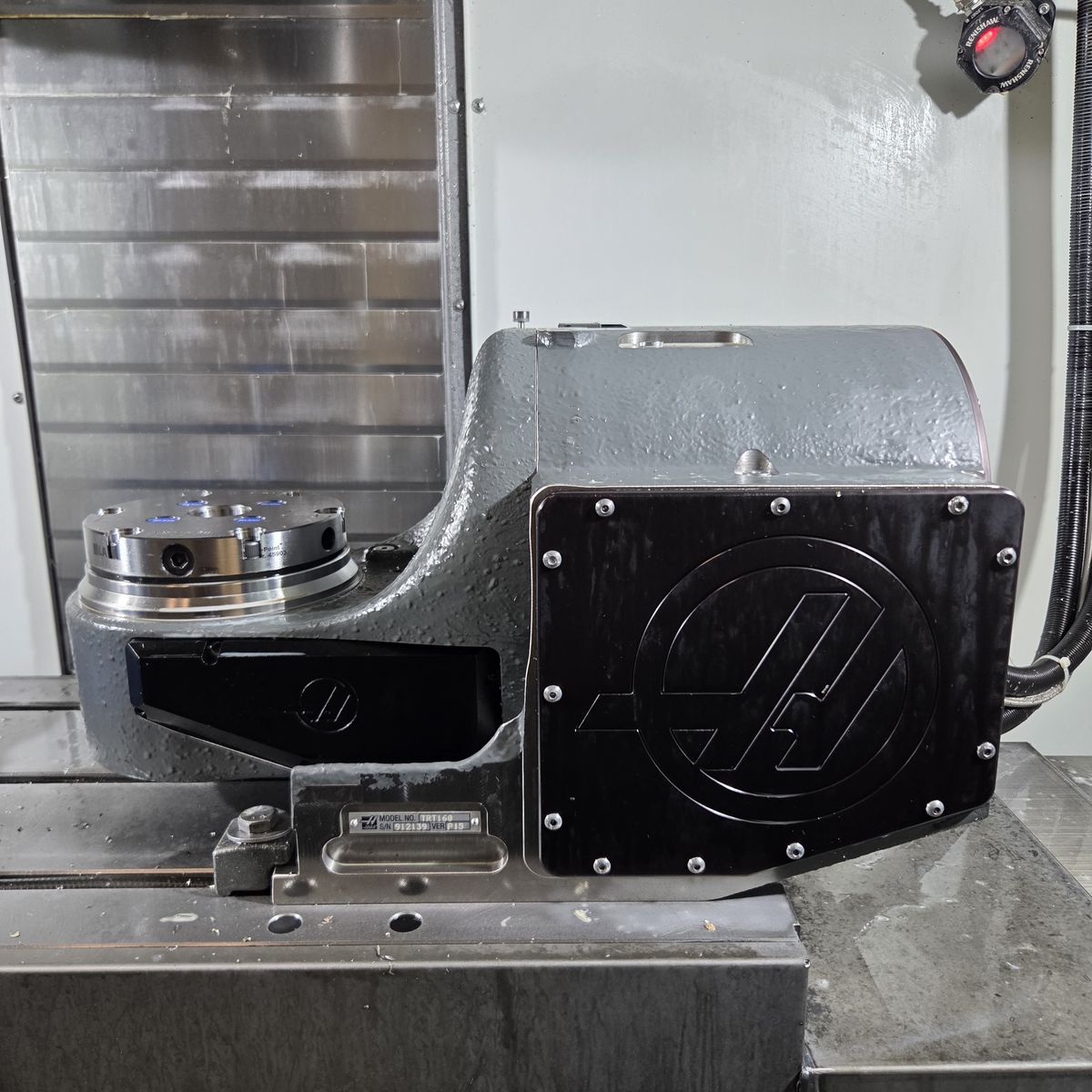

Haas TRT160 tilting 160 mm rotary table, 2-axis. With the 5th-axis drive, DWO/TCPC.

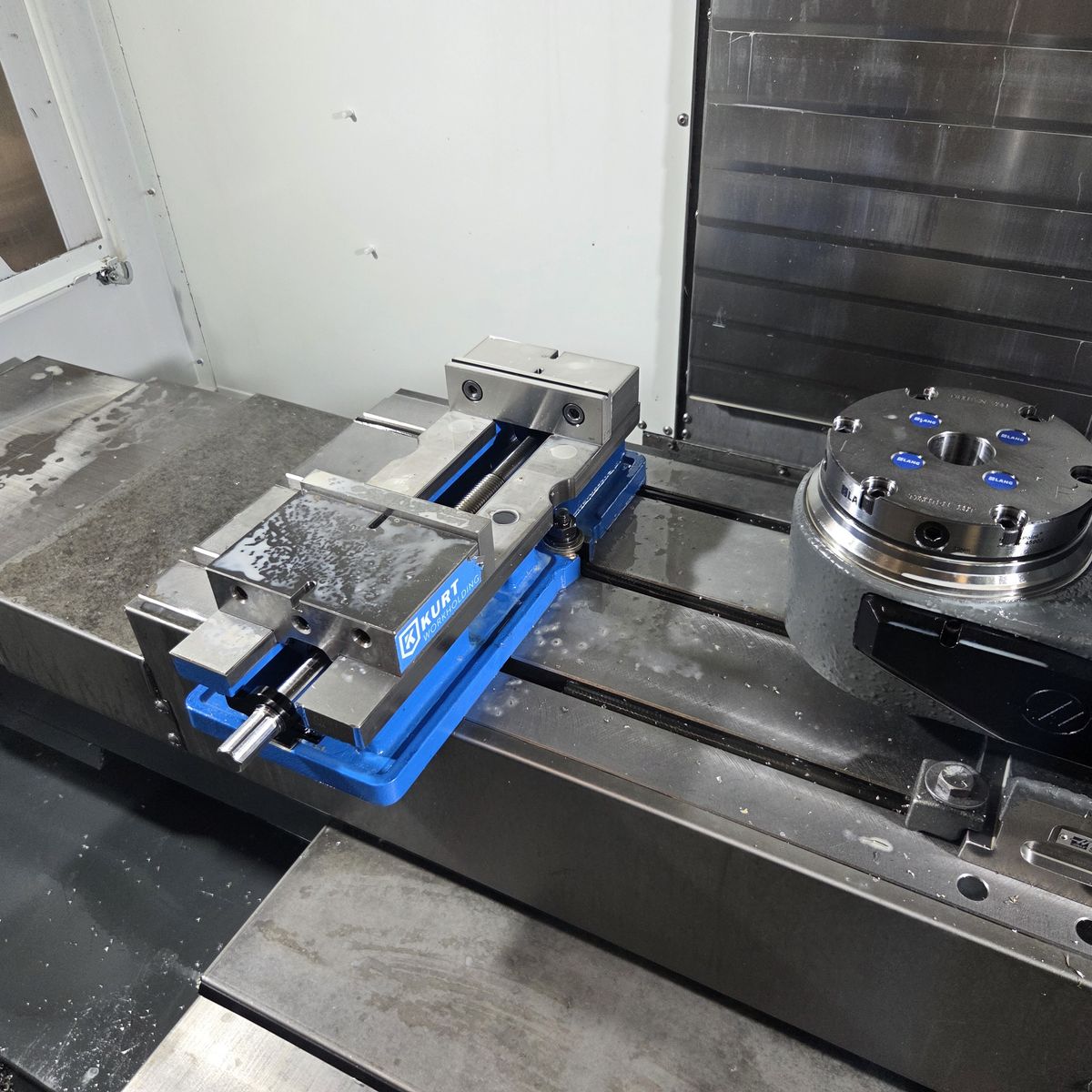

INCLUDED WORKHOLDING:
- LANG Quick-Point 52 round plate (No. 45903), already drilled and mounted to the TRT160 platter with a 1-3/8" through bore machined in the center. Fitted, ready-to-run zero-point setup — compatible with LANG Makro-Grip 46 and 77 series 5-axis vises. And other brands like 5th Axis as long as you use the Lang studs. Probe your offset once and start swapping pallets.

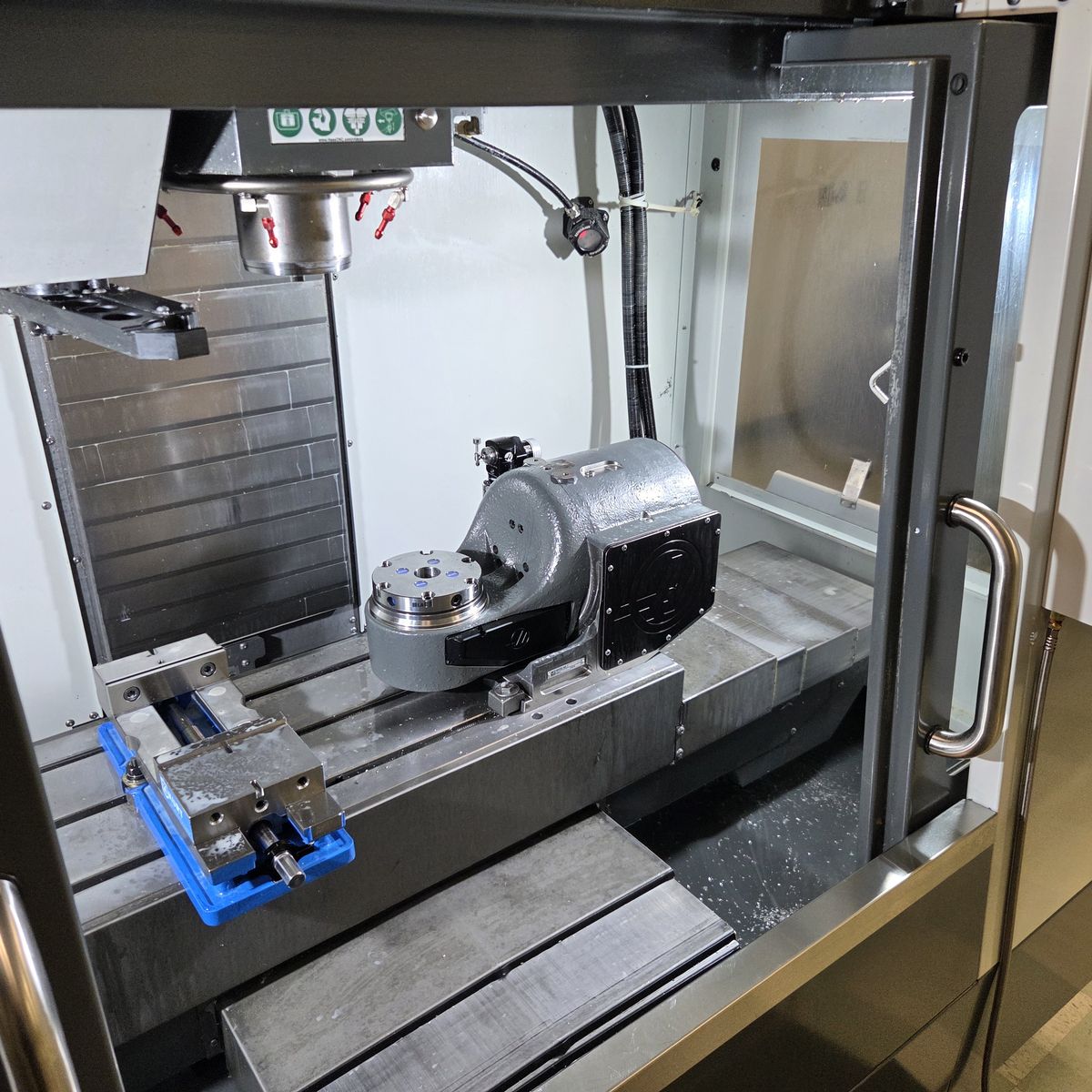

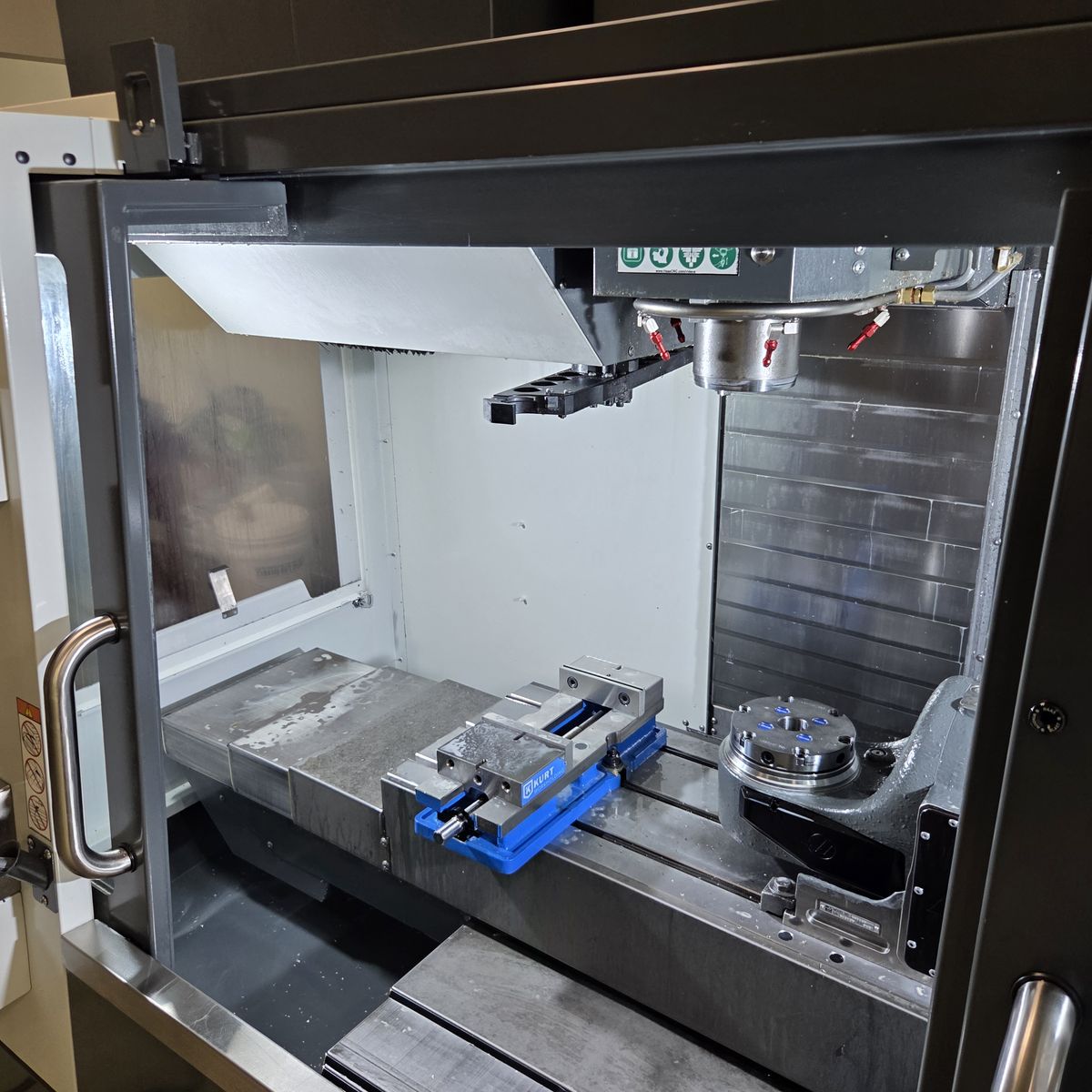

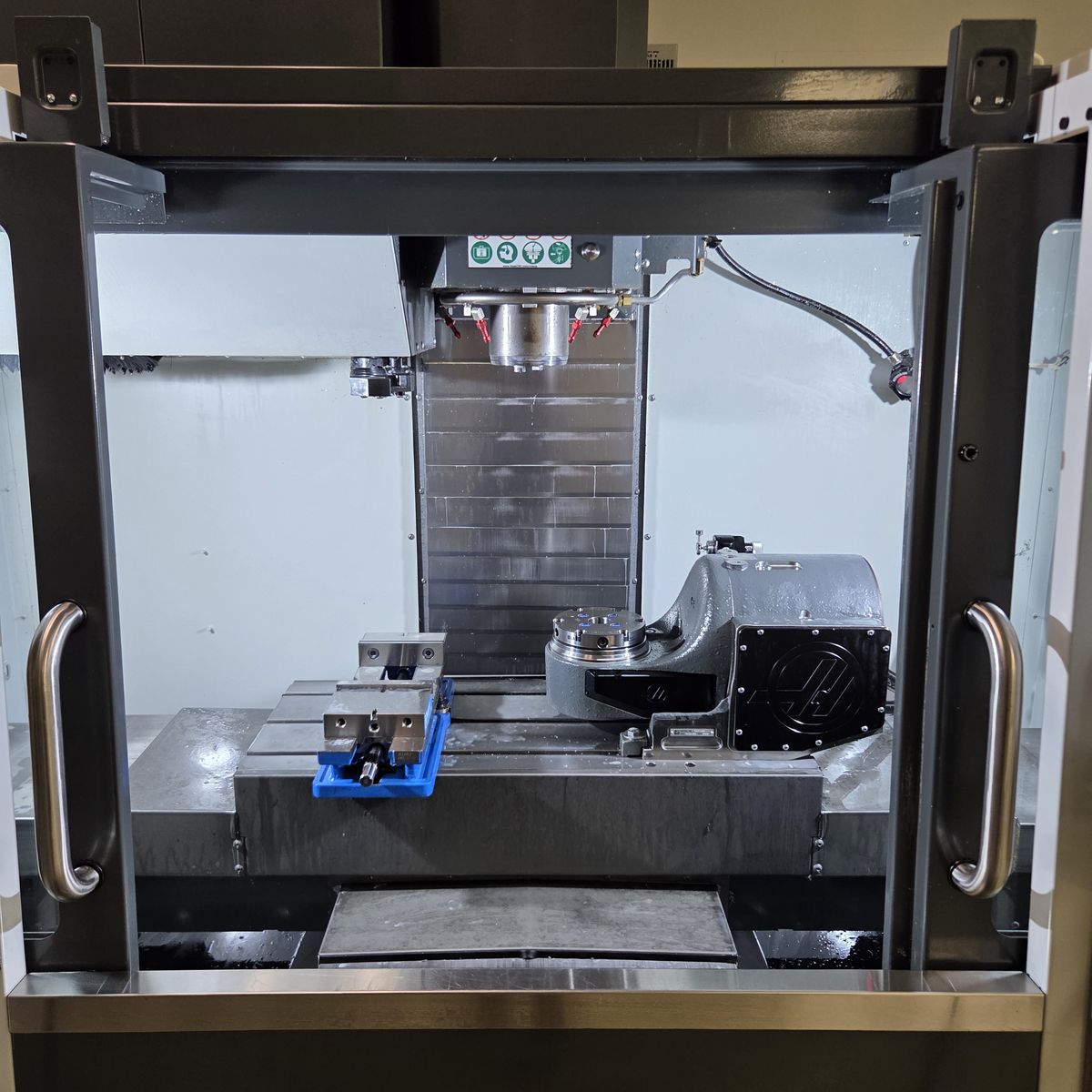

- Kurt DX6 Cross Over vise, 6" jaw, 9" opening, Angle Lock design. Mounted alongside the rotary, so you can run 3-axis vise work and 5-axis rotary work without a changeover.
TERMS:
- Sold as-is, where-is. No warranty offered or implied.
- Buyer responsible for rigging, loading, and freight. Happy to recommend reputable local rigging and transport services.
- Machine is under power in Sandy — inspection welcome by appointment for serious buyers.
- Payment by: cashier's check, wire transfer or Zelle. 10% deposit to hold, balance before removal, removed within 14 days.]
Serious inquiries and offers only please. Happy to answer technical questions.
DM or Text is best. If calling please leave a message.
