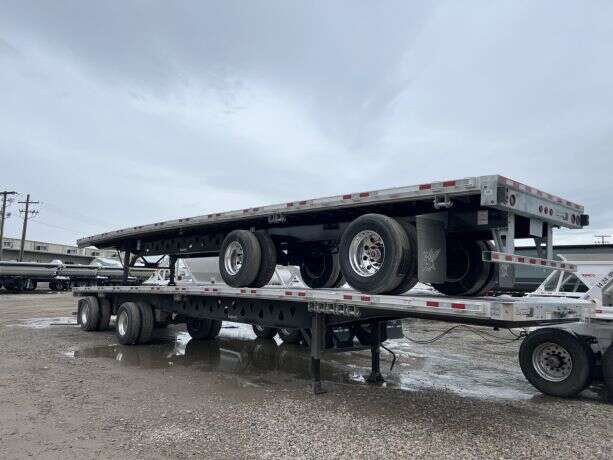

MANAC 10248C000L SEMI-TRAILER, COMBO PLATFORM LEGEND SD

DIMENSIONS LENGTH: 48'-0" WIDTH: 102", 97" BETWEEN SIDE RAILS HEIGHT: FLOOR, APPROXIMATELY 59 1/2" HIGH AT FRONT AND 54" AT REAR

COUPLING COUPLER PLATE: 1/4", 80000 PSI STEEL, PLUG WELDED STRUCTURE KING PIN LOCATION: 30" FROM FRONT COUPLER HEIGHT: 48"

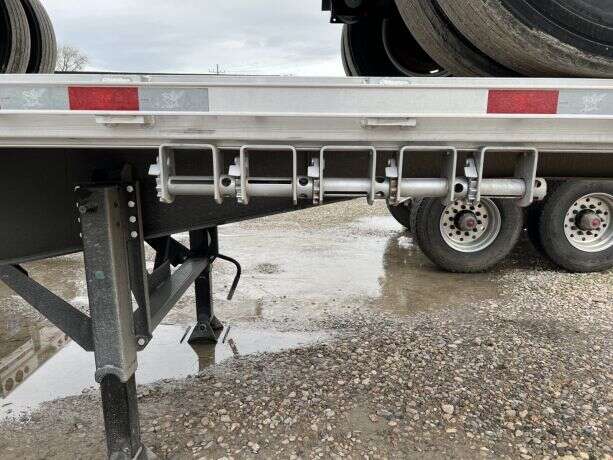

STRUCTURE STRUCTURE: 44" C/C FRAME WITH "CAMBER" FLANGES: 3/8" x 5", HIGH TENSILE WEB: 1/4" PLATE IN KING PIN AREA AND THE REMAINING IN 3/16", 80000 PSI STEEL. 27" HIGH AT THE PEAK WITH HOLES, PARACHUTE SHAPED, TO LIGHTEN TRAILER GOOSENECK: 11 1/4" HIGH, WITH INTEGRATED NOSE RAMP AND 48" STRAIGHT BEHIND KING PIN CROSSMEMBERS: I BEAMS, 4" @ 3.2 LBS/FT, 80000 PSI STEEL, GALVANIZED, 16" C/C FLOOR: STRUCTURAL ALUMINUM EXTRUSIONS, FLAT TYPE, INVERTED "T", 1 1/8" HIGH WITH 4 APITONG OR EQUIVALENT PLANKS FLOOR FASTENING: SCREWS SIDE RAILS: 4 3/8" x 5 11/16" HIGH, EXTRUDED ALUMINUM ("LEGEND" MODEL) SIDE BOXES: 3 5/8" x 1 5/8" INSIDE, 4" HIGH, EXTRUDED ALUMINUM. CMVSS-905 WLL, 5500 LBS WLL APPROVED RUB RAILS: ALUMINUM EXTRUSIONS 3/8" x 2 3/4", SINGLE RUB RAIL SPACERS 1" x 1 3/4" AS ANCHOR CORNERS: BEVELLED X BRACES: BETWEEN MAIN BEAMS, FULL LENGTH

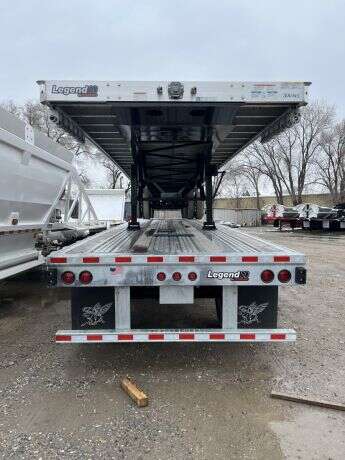

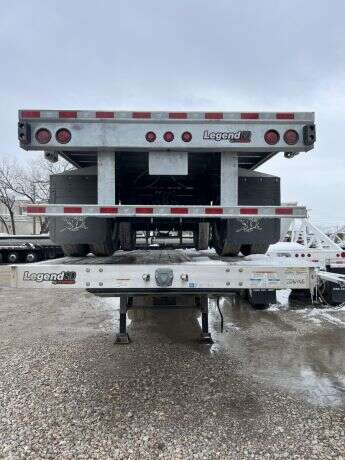

ENDS FRONT RAIL: BOLTED ALUMINUM EXTRUSION, 7" HIGH, OVERLAPPED FLOOR TO ALLOW PLANK TO WALK UNDERNEATH BUMPER: CMVSS 223-RIG APPROVED (IN ACCORDANCE WITH CANADA & USA REGULATION). GALVANIZED (G164) STEEL, BOLTED UPRIGHTS TO FRAMES, 4" x 4" CROSS BAR FORMED TUBING AT A MAXIMUM HEIGHT OF 22" FROM UNDER TUBING TO GROUND BUMPER: 2 RUBBER DOCK, AT THE END OF REAR RAIL REAR RAIL: FORMED STEEL, GALVANIZED

ELECTRICAL FRONT CONNECTOR: 7 WAY (SAE J560) ELECTRICAL SYSTEM: SHOCK PROOF LIGHTS, POLYCARBONATE LENSES, IN COMPLIANCE W/ CMVSS 108 MAIN SYSTEM: GROTE ULTRA BLUE LED, SEALED BEAMS, TAIL LIGHTS, MARKERS LIGHTS "DOT", IDENTIFICATION LIGHTS (2 1/2" DIA.), LICENSE LIGHT FLASHERS: SEALED BEAMS LED, ONE LAMP INCLUDING SIDE MARKER AND FLASHER, EACH SIDE AT MIDDLE POINT, AMBER

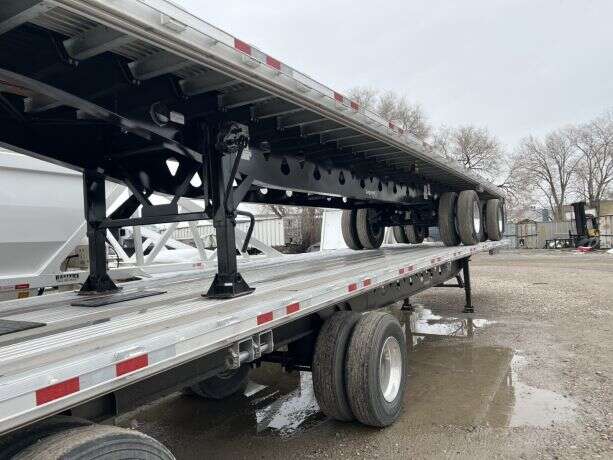

LANDING GEAR LANDING GEAR: AXN, (LG50DUN) SAND SHOES: 10" x 10" CRANK: ROAD SIDE

BOGIE BASIC MECHANICAL BOGIE: FIXED, FOR TANDEM 122" SPREAD CA LEGAL
